Grippers

HPG-2

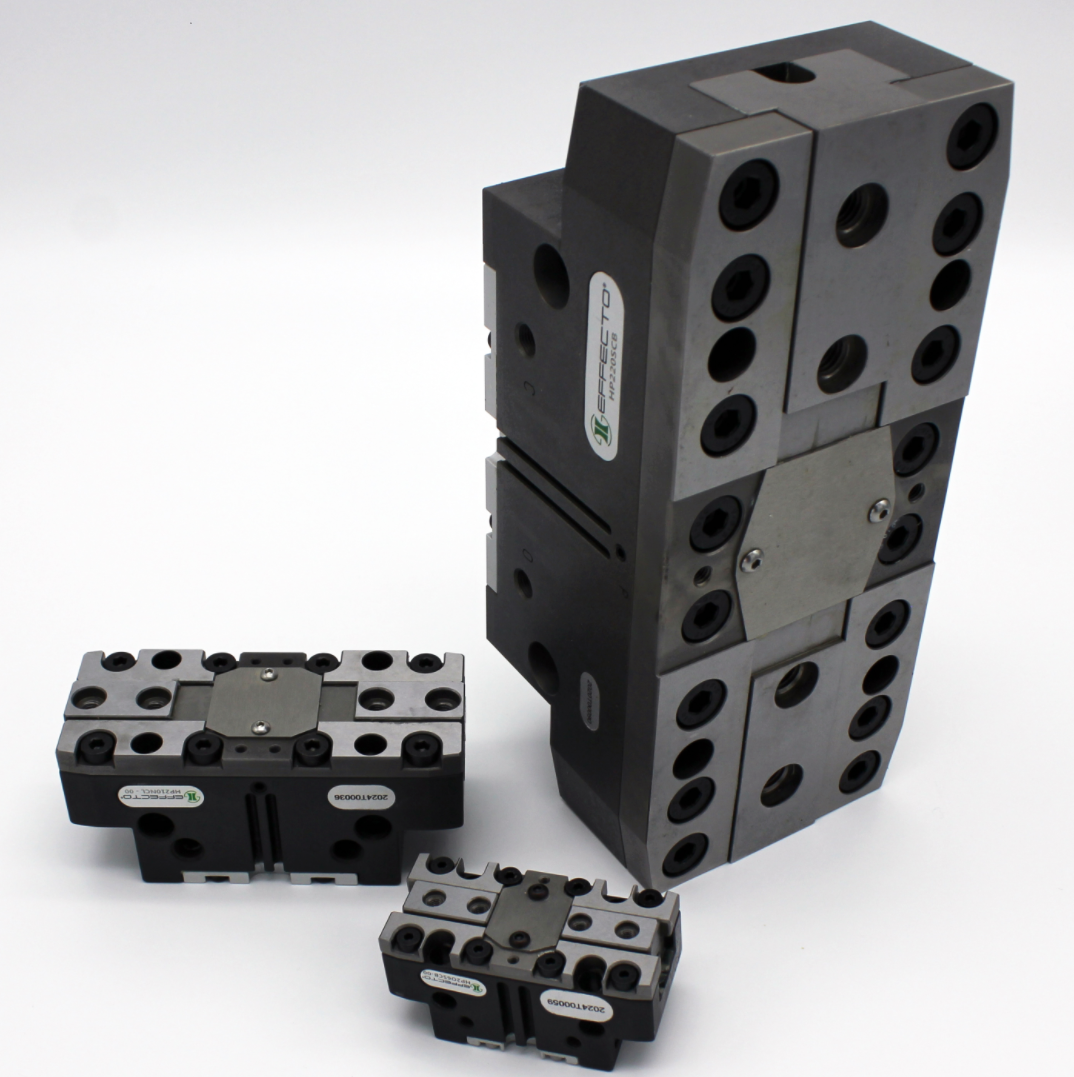

HPG is a universal two-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.

Models Designs Downloads Modules & Accessories

Models

HPG is a universal two-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.

Advantages

Robust and lightweight housing made of hard coated aluminum alloy.
Sturdy T-slot with hardened steel gibs for effective jaw guidance, precise handling and easy maintenance.

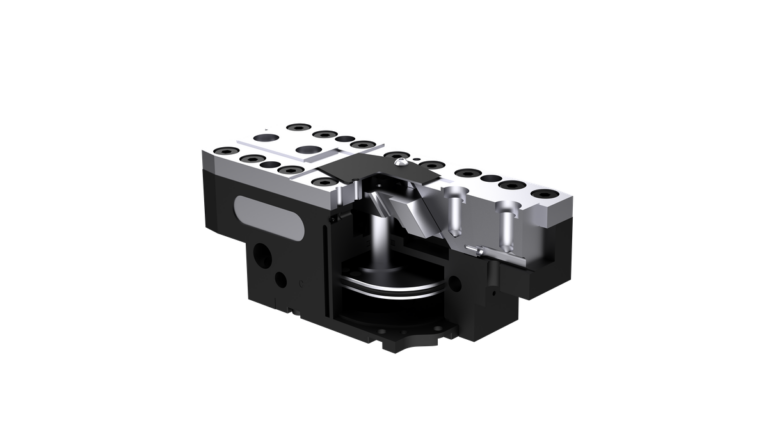

Wedge-hook design for high-force transmission and jaw synchronization.
Compact dimensions for minimal impact in space sensitive applications.
Mounting from two sides in three screw directions for versatile and flexible integration.
Integrated permanent magnets for direct monitoring of piston movement.
Slots for mounting and positioning of magnetic-field sensors.
Air supply via hose-free direct connections or fitting screw connections.

Model & Description	Weight	Stroke Per Jaw	Fluid Consumption Double Stroke	Closing Force Per Jaw @ 6 bar	Opening Force Per Jaw @ 6 bar	Total closing force @ 6 bar	Total opening force @ 6 bar	Recommended Workpiece Weight	Repeat Accuracy
HPG-205-P-4-U-SM-8-P-B-S Long stroke version	0.19 kg0.42 lb	4 mm0.16 in	7 cm³0.43 in³	110 N24.7 lbf	120 N27.0 lbf	220 N49.5 lbf	240 N54.0 lbf	1.10 kg2.4 lb	±0.01 mm±0.0004 in
HPG-205-P-4-U-CM-8-P-B-S Long stroke version - Spring in closing	0.22 kg0.49 lb	4 mm0.16 in	11 cm³0.67 in³	139 N31.2 lbf	85 N19.1 lbf	278 N62.5 lbf	170 N38.2 lbf	1.10 kg2.4 lb	±0.01 mm±0.0004 in
HPG-205-P-4-U-AM-8-P-B-S Long stroke version - Spring in opening	0.23 kg0.51 lb	4 mm0.16 in	11 cm³0.67 in³	75 N16.9 lbf	150 N33.7 lbf	150 N33.7 lbf	300 N67.4 lbf	1.10 kg2.4 lb	±0.01 mm±0.0004 in
HPG-205-P-2-U-SM-8-P-B-S Short stroke version	0.20 kg0.44 lb	2 mm0.08 in	7 cm³0.43 in³	220 N49.5 lbf	240 N54.0 lbf	440 N98.9 lbf	480 N107.9 lbf	2.20 kg4.8 lb	±0.01 mm±0.0004 in
HPG-205-P-2-U-CM-8-P-B-S Short stroke version - Spring in closing	0.22 kg0.49 lb	2 mm0.08 in	11 cm³0.67 in³	280 N62.9 lbf	170 N38.2 lbf	560 N125.9 lbf	340 N76.4 lbf	2.20 kg4.8 lb	±0.01 mm±0.0004 in
HPG-205-P-2-U-AM-8-P-B-S Short stroke version - Spring in opening	0.22 kg0.49 lb	2 mm0.08 in	11 cm³0.67 in³	150 N33.7 lbf	300 N67.4 lbf	300 N67.4 lbf	600 N134.9 lbf	2.20 kg4.8 lb	±0.01 mm±0.0004 in
HPG-206-P-6-U-SM-8-P-B-S Long stroke version	0.30 kg0.66 lb	6 mm0.24 in	12 cm³0.73 in³	175 N39.3 lbf	190 N42.7 lbf	350 N78.7 lbf	380 N85.4 lbf	1.75 kg3.9 lb	±0.01 mm±0.0004 in
HPG-206-P-6-U-CM-8-P-B-S Long stroke version - Spring in closing	0.37 kg0.82 lb	6 mm0.24 in	23 cm³1.40 in³	210 N47.2 lbf	130 N29.2 lbf	420 N94.4 lbf	260 N58.5 lbf	1.75 kg3.9 lb	±0.01 mm±0.0004 in
HPG-206-P-6-U-AM-8-P-B-S Long stroke version - Spring in opening	0.37 kg0.82 lb	6 mm0.24 in	23 cm³1.40 in³	115 N25.9 lbf	220 N49.5 lbf	230 N51.7 lbf	440 N98.9 lbf	1.75 kg3.9 lb	±0.01 mm±0.0004 in
HPG-206-P-3-U-SM-8-P-B-S Short stroke version	0.32 kg0.70 lb	3 mm0.12 in	12 cm³0.73 in³	350 N78.7 lbf	380 N85.4 lbf	700 N157.4 lbf	760 N170.8 lbf	3.50 kg7.7 lb	±0.01 mm±0.0004 in
HPG-206-P-3-U-CM-8-P-B-S Short stroke version - Spring in closing	0.38 kg0.84 lb	3 mm0.12 in	23 cm³1.40 in³	420 N94.4 lbf	260 N58.5 lbf	840 N188.8 lbf	520 N116.9 lbf	3.50 kg7.7 lb	±0.01 mm±0.0004 in
HPG-206-P-3-U-AM-8-P-B-S Short stroke version - Spring in opening	0.38 kg0.84 lb	3 mm0.12 in	23 cm³1.40 in³	230 N51.7 lbf	440 N98.9 lbf	460 N103.4 lbf	880 N197.8 lbf	3.50 kg7.7 lb	±0.01 mm±0.0004 in
HPG-208-P-8-U-SM-8-P-B-S Long stroke version	0.57 kg1.25 lb	8 mm0.31 in	25 cm³1.53 in³	287.5 N64.6 lbf	307.5 N69.1 lbf	575 N129.3 lbf	615 N138.3 lbf	2.88 kg6.3 lb	±0.01 mm±0.0004 in
HPG-208-P-8-U-CM-8-P-B-S Long stroke version - Spring in closing	0.68 kg1.50 lb	8 mm0.31 in	42 cm³2.56 in³	350 N78.7 lbf	210 N47.2 lbf	700 N157.4 lbf	420 N94.4 lbf	2.88 kg6.3 lb	±0.01 mm±0.0004 in
HPG-208-P-8-U-AM-8-P-B-S Long stroke version - Spring in opening	0.66 kg1.46 lb	8 mm0.31 in	42 cm³2.56 in³	190 N42.7 lbf	360 N80.9 lbf	380 N85.4 lbf	720 N161.9 lbf	2.88 kg6.3 lb	±0.01 mm±0.0004 in
HPG-208-P-4-U-SM-8-P-B-S Short stroke version	0.59 kg1.30 lb	4 mm0.16 in	25 cm³1.53 in³	575 N129.3 lbf	615 N138.3 lbf	1150 N258.5 lbf	1230 N276.5 lbf	5.75 kg12.7 lb	±0.01 mm±0.0004 in
HPG-208-P-4-U-CM-8-P-B-S Short stroke version - Spring in closing	0.70 kg1.54 lb	4 mm0.16 in	42 cm³2.56 in³	705 N158.5 lbf	420 N94.4 lbf	1410 N317.0 lbf	840 N188.8 lbf	5.75 kg12.7 lb	±0.01 mm±0.0004 in
HPG-208-P-4-U-AM-8-P-B-S Short stroke version - Spring in opening	0.68 kg1.50 lb	4 mm0.16 in	42 cm³2.56 in³	390 N87.7 lbf	740 N166.4 lbf	780 N175.4 lbf	1480 N332.7 lbf	5.75 kg12.7 lb	±0.01 mm±0.0004 in
HPG-210-P-10-U-SM-8-P-B-S Long stroke version	0.91 kg2.00 lb	10 mm0.39 in	50 cm³3.05 in³	445 N100.0 lbf	475 N106.8 lbf	890 N200.1 lbf	950 N213.6 lbf	4.45 kg9.8 lb	±0.01 mm±0.0004 in
HPG-210-P-10-U-CM-8-P-B-S Long stroke version - Spring in closing	1.18 kg2.60 lb	10 mm0.39 in	87 cm³5.31 in³	580 N130.4 lbf	280 N62.9 lbf	1160 N260.8 lbf	560 N125.9 lbf	4.45 kg9.8 lb	±0.01 mm±0.0004 in
HPG-210-P-10-U-AM-8-P-B-S Long stroke version - Spring in opening	1.16 kg2.56 lb	10 mm0.39 in	87 cm³5.31 in³	250 N56.2 lbf	590 N132.6 lbf	500 N112.4 lbf	1180 N265.3 lbf	4.45 kg9.8 lb	±0.01 mm±0.0004 in
HPG-210-P-5-U-SM-8-P-B-S Short stroke version	0.95 kg2.09 lb	5 mm0.20 in	50 cm³3.05 in³	890 N200.1 lbf	950 N213.6 lbf	1780 N400.1 lbf	1900 N427.1 lbf	8.90 kg19.6 lb	±0.01 mm±0.0004 in
HPG-210-P-5-U-CM-8-P-B-S Short stroke version - Spring in closing	1.21 kg2.67 lb	5 mm0.20 in	87 cm³5.31 in³	1150 N258.5 lbf	550 N123.6 lbf	2300 N517.1 lbf	1100 N247.3 lbf	8.90 kg19.6 lb	±0.01 mm±0.0004 in
HPG-210-P-5-U-AM-8-P-B-S Short stroke version - Spring in opening	1.19 kg2.62 lb	5 mm0.20 in	87 cm³5.31 in³	510 N114.7 lbf	1200 N269.8 lbf	1020 N229.3 lbf	2400 N539.5 lbf	8.90 kg19.6 lb	±0.01 mm±0.0004 in
HPG-212-P-12-U-SM-8-P-B-S Long stroke version	1.64 kg3.61 lb	12 mm0.47 in	100 cm³6.10 in³	707.5 N159.0 lbf	750 N168.6 lbf	1415 N318.1 lbf	1500 N337.2 lbf	7.08 kg15.6 lb	±0.01 mm±0.0004 in
HPG-212-P-12-U-CM-8-P-B-S Long stroke version - Spring in closing	2.03 kg4.48 lb	12 mm0.47 in	163 cm³9.95 in³	900 N202.3 lbf	460 N103.4 lbf	1800 N404.7 lbf	920 N206.8 lbf	7.08 kg15.6 lb	±0.01 mm±0.0004 in
HPG-212-P-12-U-AM-8-P-B-S Long stroke version - Spring in opening	1.98 kg4.37 lb	12 mm0.47 in	163 cm³9.95 in³	410 N92.2 lbf	950 N213.6 lbf	820 N184.3 lbf	1900 N427.1 lbf	7.08 kg15.6 lb	±0.01 mm±0.0004 in
HPG-212-P-6-U-SM-8-P-B-S Short stroke version	1.70 kg3.74 lb	6 mm0.24 in	100 cm³6.10 in³	1415 N318.1 lbf	1500 N337.2 lbf	2830 N636.2 lbf	3000 N674.4 lbf	14.15 kg31.1 lb	±0.01 mm±0.0004 in
HPG-212-P-6-U-CM-8-P-B-S Short stroke version - Spring in closing	2.08 kg4.59 lb	6 mm0.24 in	163 cm³9.95 in³	1830 N411.4 lbf	920 N206.8 lbf	3660 N822.8 lbf	1840 N413.7 lbf	14.15 kg31.1 lb	±0.01 mm±0.0004 in
HPG-212-P-6-U-AM-8-P-B-S Short stroke version - Spring in opening	2.03 kg4.48 lb	6 mm0.24 in	163 cm³9.95 in³	840 N188.8 lbf	1920 N431.6 lbf	1680 N377.7 lbf	3840 N863.3 lbf	14.15 kg31.1 lb	±0.01 mm±0.0004 in
HPG-216-P-16-U-SM-8-P-B-S Long stroke version	3.10 kg6.82 lb	16 mm0.63 in	185 cm³11.29 in³	1100 N247.3 lbf	1150 N258.5 lbf	2200 N494.6 lbf	2300 N517.0 lbf	11.00 kg24.2 lb	±0.015 mm±0.0006 in
HPG-216-P-16-U-CM-8-P-B-S Long stroke version - Spring in closing	3.86 kg8.51 lb	16 mm0.63 in	338 cm³20.62 in³	1380 N310.2 lbf	730 N164.1 lbf	2760 N620.5 lbf	1460 N328.2 lbf	11.00 kg24.2 lb	±0.015 mm±0.0006 in
HPG-216-P-16-U-AM-8-P-B-S Long stroke version - Spring in opening	3.77 kg8.31 lb	16 mm0.63 in	338 cm³20.62 in³	680 N152.9 lbf	1390 N312.5 lbf	1360 N305.7 lbf	2780 N625.0 lbf	11.00 kg24.2 lb	±0.015 mm±0.0006 in
HPG-216-P-8-U-SM-8-P-B-S Short stroke version	3.20 kg7.04 lb	8 mm0.31 in	185 cm³11.29 in³	2200 N494.6 lbf	2300 N517.0 lbf	4400 N989.1 lbf	4600 N1034.1 lbf	22.00 kg48.4 lb	±0.015 mm±0.0006 in
HPG-216-P-8-U-CM-8-P-B-S Short stroke version - Spring in closing	3.97 kg8.75 lb	8 mm0.31 in	338 cm³20.62 in³	2740 N616.0 lbf	1450 N326.0 lbf	5480 N1232.0 lbf	2900 N651.9 lbf	22.00 kg48.4 lb	±0.015 mm±0.0006 in
HPG-216-P-8-U-AM-8-P-B-S Short stroke version - Spring in opening	3.88 kg8.55 lb	8 mm0.31 in	338 cm³20.62 in³	1380 N310.2 lbf	2820 N634.0 lbf	2760 N620.5 lbf	5640 N1267.9 lbf	22.00 kg48.4 lb	±0.015 mm±0.0006 in
HPG-220-P-25-U-SM-8-P-B-S Long stroke version	5.90 kg12.98 lb	25 mm0.98 in	450 cm³27.45 in³	1775 N399.0 lbf	1850 N415.9 lbf	3550 N798.0 lbf	3700 N831.8 lbf	17.75 kg39.1 lb	±0.02 mm±0.0008 in
HPG-220-P-25-U-CM-8-P-B-S Long stroke version - Spring in closing	7.45 kg16.42 lb	25 mm0.98 in	821 cm³50.10 in³	2110 N474.3 lbf	1290 N290.0 lbf	4220 N948.7 lbf	2580 N580.0 lbf	17.75 kg39.1 lb	±0.02 mm±0.0008 in
HPG-220-P-25-U-AM-8-P-B-S Long stroke version - Spring in opening	7.42 kg16.36 lb	25 mm0.98 in	821 cm³50.10 in³	1220 N274.3 lbf	2180 N490.1 lbf	2440 N548.5 lbf	4360 N980.2 lbf	17.75 kg39.1 lb	±0.02 mm±0.0008 in
HPG-220-P-14-U-SM-8-P-B-S Short stroke version	6.00 kg13.20 lb	14 mm0.55 in	450 cm³27.45 in³	3025 N680.0 lbf	3150 N708.1 lbf	6050 N1360.0 lbf	6300 N1416.2 lbf	30.25 kg66.6 lb	±0.02 mm±0.0008 in
HPG-220-P-14-U-CM-8-P-B-S Short stroke version - Spring in closing	7.68 kg16.93 lb	14 mm0.55 in	821 cm³50.10 in³	3660 N822.8 lbf	2230 N501.3 lbf	7320 N1645.6 lbf	4460 N1002.7 lbf	30.25 kg66.6 lb	±0.02 mm±0.0008 in
HPG-220-P-14-U-AM-8-P-B-S Short stroke version - Spring in opening	7.64 kg16.84 lb	14 mm0.55 in	821 cm³50.10 in³	2110 N474.3 lbf	3780 N849.8 lbf	4220 N948.7 lbf	7560 N1699.6 lbf	30.25 kg66.6 lb	±0.02 mm±0.0008 in
HPG-225-P-30-U-SM-8-P-B-S Long stroke version	9.20 kg20.24 lb	30 mm1.18 in	750 cm³45.75 in³	2600 N584.5 lbf	2650 N595.7 lbf	5200 N1169.0 lbf	5300 N1191.4 lbf	26.00 kg57.2 lb	±0.02 mm±0.0008 in
HPG-225-P-30-U-CM-8-P-B-S Long stroke version - Spring in closing	12.91 kg28.46 lb	30 mm1.18 in	1400 cm³85.43 in³	2980 N669.9 lbf	1550 N348.5 lbf	5960 N1339.9 lbf	3100 N696.9 lbf	26.00 kg57.2 lb	±0.02 mm±0.0008 in
HPG-225-P-30-U-AM-8-P-B-S Long stroke version - Spring in opening	12.57 kg27.71 lb	30 mm1.18 in	1400 cm³85.43 in³	1500 N337.2 lbf	3050 N685.7 lbf	3000 N674.4 lbf	6100 N1371.3 lbf	26.00 kg57.2 lb	±0.02 mm±0.0008 in
HPG-225-P-17-U-SM-8-P-B-S Short stroke version	9.40 kg20.68 lb	17 mm0.67 in	750 cm³45.75 in³	4450 N1000.4 lbf	4650 N1045.3 lbf	8900 N2000.7 lbf	9300 N2090.6 lbf	44.50 kg97.9 lb	±0.02 mm±0.0008 in
HPG-225-P-17-U-CM-8-P-B-S Short stroke version - Spring in closing	13.27 kg29.26 lb	17 mm0.67 in	1400 cm³85.43 in³	5150 N1157.8 lbf	2700 N607.0 lbf	10300 N2315.5 lbf	5400 N1214.0 lbf	44.50 kg97.9 lb	±0.02 mm±0.0008 in
HPG-225-P-17-U-AM-8-P-B-S Short stroke version - Spring in opening	12.93 kg28.51 lb	17 mm0.67 in	1400 cm³85.43 in³	2550 N573.3 lbf	5300 N1191.5 lbf	5100 N1146.5 lbf	10600 N2383.0 lbf	44.50 kg97.9 lb	±0.02 mm±0.0008 in
HPG-230-P-35-U-SM-8-P-B-S Long stroke version	15.70 kg34.54 lb	35 mm1.38 in	1100 cm³67.10 in³	3350 N753.1 lbf	3450 N775.6 lbf	6700 N1506.2 lbf	6900 N1551.1 lbf	33.50 kg73.7 lb	±0.03 mm±0.0012 in
HPG-230-P-35-U-CM-8-P-B-S Long stroke version - Spring in closing	19.62 kg43.25 lb	35 mm1.38 in	1640 cm³100.07 in³	4220 N948.7 lbf	1950 N438.4 lbf	8440 N1897.4 lbf	3900 N876.8 lbf	33.50 kg73.7 lb	±0.03 mm±0.0012 in
HPG-230-P-35-U-AM-8-P-B-S Long stroke version - Spring in opening	19.57 kg43.14 lb	35 mm1.38 in	1640 cm³100.07 in³	1800 N404.7 lbf	4400 N989.2 lbf	3600 N809.3 lbf	8800 N1978.3 lbf	33.50 kg73.7 lb	±0.03 mm±0.0012 in
HPG-230-P-20-U-SM-8-P-B-S Short stroke version	16.20 kg35.64 lb	20 mm0.79 in	1100 cm³67.10 in³	5700 N1281.4 lbf	5900 N1326.3 lbf	11400 N2562.7 lbf	11800 N2652.6 lbf	57.00 kg125.4 lb	±0.03 mm±0.0012 in
HPG-230-P-20-U-CM-8-P-B-S Short stroke version - Spring in closing	20.17 kg44.47 lb	20 mm0.79 in	1640 cm³100.07 in³	7300 N1641.1 lbf	3400 N764.4 lbf	14600 N3282.2 lbf	6800 N1528.7 lbf	57.00 kg125.4 lb	±0.03 mm±0.0012 in
HPG-230-P-20-U-AM-8-P-B-S Short stroke version - Spring in opening	20.12 kg44.36 lb	20 mm0.79 in	1640 cm³100.07 in³	3380 N759.9 lbf	7320 N1645.6 lbf	6760 N1519.7 lbf	14640 N3291.2 lbf	57.00 kg125.4 lb	±0.03 mm±0.0012 in
HPG-240-P-45-U-SM-8-P-B-S Long stroke version	33.50 kg73.70 lb	45 mm1.77 in	2300 cm³140.30 in³	5350 N1202.7 lbf	5550 N1247.6 lbf	10700 N2405.4 lbf	11100 N2495.3 lbf	53.50 kg117.7 lb	±0.05 mm±0.0020 in
HPG-240-P-26-U-SM-8-P-B-S Short stroke version	34.50 kg75.90 lb	26 mm1.02 in	2300 cm³140.30 in³	9175 N2062.5 lbf	9475 N2130.0 lbf	18350 N4125.1 lbf	18950 N4260.0 lbf	91.75 kg201.9 lb	±0.05 mm±0.0020 in

HPG-205-P-4-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight: 0.19 kg0.42 lb
Stroke Per Jaw: 4 mm0.16 in
Fluid Consumption Double Stroke: 7 cm³0.43 in³
Closing Force Per Jaw @ 6 bar: 110 N24.7 lbf
Opening Force Per Jaw @ 6 bar: 120 N27.0 lbf
Total closing force @ 6 bar: 220 N49.5 lbf
Total opening force @ 6 bar: 240 N54.0 lbf
Recommended Workpiece Weight: 1.10 kg2.4 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-205-P-4-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 0.22 kg0.49 lb
Stroke Per Jaw: 4 mm0.16 in
Fluid Consumption Double Stroke: 11 cm³0.67 in³
Closing Force Per Jaw @ 6 bar: 139 N31.2 lbf
Opening Force Per Jaw @ 6 bar: 85 N19.1 lbf
Total closing force @ 6 bar: 278 N62.5 lbf
Total opening force @ 6 bar: 170 N38.2 lbf
Recommended Workpiece Weight: 1.10 kg2.4 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-205-P-4-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 0.23 kg0.51 lb
Stroke Per Jaw: 4 mm0.16 in
Fluid Consumption Double Stroke: 11 cm³0.67 in³
Closing Force Per Jaw @ 6 bar: 75 N16.9 lbf
Opening Force Per Jaw @ 6 bar: 150 N33.7 lbf
Total closing force @ 6 bar: 150 N33.7 lbf
Total opening force @ 6 bar: 300 N67.4 lbf
Recommended Workpiece Weight: 1.10 kg2.4 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-205-P-2-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight: 0.20 kg0.44 lb
Stroke Per Jaw: 2 mm0.08 in
Fluid Consumption Double Stroke: 7 cm³0.43 in³
Closing Force Per Jaw @ 6 bar: 220 N49.5 lbf
Opening Force Per Jaw @ 6 bar: 240 N54.0 lbf
Total closing force @ 6 bar: 440 N98.9 lbf
Total opening force @ 6 bar: 480 N107.9 lbf
Recommended Workpiece Weight: 2.20 kg4.8 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-205-P-2-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 0.22 kg0.49 lb
Stroke Per Jaw: 2 mm0.08 in
Fluid Consumption Double Stroke: 11 cm³0.67 in³
Closing Force Per Jaw @ 6 bar: 280 N62.9 lbf
Opening Force Per Jaw @ 6 bar: 170 N38.2 lbf
Total closing force @ 6 bar: 560 N125.9 lbf
Total opening force @ 6 bar: 340 N76.4 lbf
Recommended Workpiece Weight: 2.20 kg4.8 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-205-P-2-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 0.22 kg0.49 lb
Stroke Per Jaw: 2 mm0.08 in
Fluid Consumption Double Stroke: 11 cm³0.67 in³
Closing Force Per Jaw @ 6 bar: 150 N33.7 lbf
Opening Force Per Jaw @ 6 bar: 300 N67.4 lbf
Total closing force @ 6 bar: 300 N67.4 lbf
Total opening force @ 6 bar: 600 N134.9 lbf
Recommended Workpiece Weight: 2.20 kg4.8 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-206-P-6-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight: 0.30 kg0.66 lb
Stroke Per Jaw: 6 mm0.24 in
Fluid Consumption Double Stroke: 12 cm³0.73 in³
Closing Force Per Jaw @ 6 bar: 175 N39.3 lbf
Opening Force Per Jaw @ 6 bar: 190 N42.7 lbf
Total closing force @ 6 bar: 350 N78.7 lbf
Total opening force @ 6 bar: 380 N85.4 lbf
Recommended Workpiece Weight: 1.75 kg3.9 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-206-P-6-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 0.37 kg0.82 lb
Stroke Per Jaw: 6 mm0.24 in
Fluid Consumption Double Stroke: 23 cm³1.40 in³
Closing Force Per Jaw @ 6 bar: 210 N47.2 lbf
Opening Force Per Jaw @ 6 bar: 130 N29.2 lbf
Total closing force @ 6 bar: 420 N94.4 lbf
Total opening force @ 6 bar: 260 N58.5 lbf
Recommended Workpiece Weight: 1.75 kg3.9 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-206-P-6-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 0.37 kg0.82 lb
Stroke Per Jaw: 6 mm0.24 in
Fluid Consumption Double Stroke: 23 cm³1.40 in³
Closing Force Per Jaw @ 6 bar: 115 N25.9 lbf
Opening Force Per Jaw @ 6 bar: 220 N49.5 lbf
Total closing force @ 6 bar: 230 N51.7 lbf
Total opening force @ 6 bar: 440 N98.9 lbf
Recommended Workpiece Weight: 1.75 kg3.9 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-206-P-3-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight: 0.32 kg0.70 lb
Stroke Per Jaw: 3 mm0.12 in
Fluid Consumption Double Stroke: 12 cm³0.73 in³
Closing Force Per Jaw @ 6 bar: 350 N78.7 lbf
Opening Force Per Jaw @ 6 bar: 380 N85.4 lbf
Total closing force @ 6 bar: 700 N157.4 lbf
Total opening force @ 6 bar: 760 N170.8 lbf
Recommended Workpiece Weight: 3.50 kg7.7 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-206-P-3-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 0.38 kg0.84 lb
Stroke Per Jaw: 3 mm0.12 in
Fluid Consumption Double Stroke: 23 cm³1.40 in³
Closing Force Per Jaw @ 6 bar: 420 N94.4 lbf
Opening Force Per Jaw @ 6 bar: 260 N58.5 lbf
Total closing force @ 6 bar: 840 N188.8 lbf
Total opening force @ 6 bar: 520 N116.9 lbf
Recommended Workpiece Weight: 3.50 kg7.7 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-206-P-3-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 0.38 kg0.84 lb
Stroke Per Jaw: 3 mm0.12 in
Fluid Consumption Double Stroke: 23 cm³1.40 in³
Closing Force Per Jaw @ 6 bar: 230 N51.7 lbf
Opening Force Per Jaw @ 6 bar: 440 N98.9 lbf
Total closing force @ 6 bar: 460 N103.4 lbf
Total opening force @ 6 bar: 880 N197.8 lbf
Recommended Workpiece Weight: 3.50 kg7.7 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-208-P-8-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight: 0.57 kg1.25 lb
Stroke Per Jaw: 8 mm0.31 in
Fluid Consumption Double Stroke: 25 cm³1.53 in³
Closing Force Per Jaw @ 6 bar: 287.5 N64.6 lbf
Opening Force Per Jaw @ 6 bar: 307.5 N69.1 lbf
Total closing force @ 6 bar: 575 N129.3 lbf
Total opening force @ 6 bar: 615 N138.3 lbf
Recommended Workpiece Weight: 2.88 kg6.3 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-208-P-8-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 0.68 kg1.50 lb
Stroke Per Jaw: 8 mm0.31 in
Fluid Consumption Double Stroke: 42 cm³2.56 in³
Closing Force Per Jaw @ 6 bar: 350 N78.7 lbf
Opening Force Per Jaw @ 6 bar: 210 N47.2 lbf
Total closing force @ 6 bar: 700 N157.4 lbf
Total opening force @ 6 bar: 420 N94.4 lbf
Recommended Workpiece Weight: 2.88 kg6.3 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-208-P-8-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 0.66 kg1.46 lb
Stroke Per Jaw: 8 mm0.31 in
Fluid Consumption Double Stroke: 42 cm³2.56 in³
Closing Force Per Jaw @ 6 bar: 190 N42.7 lbf
Opening Force Per Jaw @ 6 bar: 360 N80.9 lbf
Total closing force @ 6 bar: 380 N85.4 lbf
Total opening force @ 6 bar: 720 N161.9 lbf
Recommended Workpiece Weight: 2.88 kg6.3 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-208-P-4-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight: 0.59 kg1.30 lb
Stroke Per Jaw: 4 mm0.16 in
Fluid Consumption Double Stroke: 25 cm³1.53 in³
Closing Force Per Jaw @ 6 bar: 575 N129.3 lbf
Opening Force Per Jaw @ 6 bar: 615 N138.3 lbf
Total closing force @ 6 bar: 1150 N258.5 lbf
Total opening force @ 6 bar: 1230 N276.5 lbf
Recommended Workpiece Weight: 5.75 kg12.7 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-208-P-4-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 0.70 kg1.54 lb
Stroke Per Jaw: 4 mm0.16 in
Fluid Consumption Double Stroke: 42 cm³2.56 in³
Closing Force Per Jaw @ 6 bar: 705 N158.5 lbf
Opening Force Per Jaw @ 6 bar: 420 N94.4 lbf
Total closing force @ 6 bar: 1410 N317.0 lbf
Total opening force @ 6 bar: 840 N188.8 lbf
Recommended Workpiece Weight: 5.75 kg12.7 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-208-P-4-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 0.68 kg1.50 lb
Stroke Per Jaw: 4 mm0.16 in
Fluid Consumption Double Stroke: 42 cm³2.56 in³
Closing Force Per Jaw @ 6 bar: 390 N87.7 lbf
Opening Force Per Jaw @ 6 bar: 740 N166.4 lbf
Total closing force @ 6 bar: 780 N175.4 lbf
Total opening force @ 6 bar: 1480 N332.7 lbf
Recommended Workpiece Weight: 5.75 kg12.7 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-210-P-10-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight: 0.91 kg2.00 lb
Stroke Per Jaw: 10 mm0.39 in
Fluid Consumption Double Stroke: 50 cm³3.05 in³
Closing Force Per Jaw @ 6 bar: 445 N100.0 lbf
Opening Force Per Jaw @ 6 bar: 475 N106.8 lbf
Total closing force @ 6 bar: 890 N200.1 lbf
Total opening force @ 6 bar: 950 N213.6 lbf
Recommended Workpiece Weight: 4.45 kg9.8 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-210-P-10-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 1.18 kg2.60 lb
Stroke Per Jaw: 10 mm0.39 in
Fluid Consumption Double Stroke: 87 cm³5.31 in³
Closing Force Per Jaw @ 6 bar: 580 N130.4 lbf
Opening Force Per Jaw @ 6 bar: 280 N62.9 lbf
Total closing force @ 6 bar: 1160 N260.8 lbf
Total opening force @ 6 bar: 560 N125.9 lbf
Recommended Workpiece Weight: 4.45 kg9.8 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-210-P-10-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 1.16 kg2.56 lb
Stroke Per Jaw: 10 mm0.39 in
Fluid Consumption Double Stroke: 87 cm³5.31 in³
Closing Force Per Jaw @ 6 bar: 250 N56.2 lbf
Opening Force Per Jaw @ 6 bar: 590 N132.6 lbf
Total closing force @ 6 bar: 500 N112.4 lbf
Total opening force @ 6 bar: 1180 N265.3 lbf
Recommended Workpiece Weight: 4.45 kg9.8 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-210-P-5-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight: 0.95 kg2.09 lb
Stroke Per Jaw: 5 mm0.20 in
Fluid Consumption Double Stroke: 50 cm³3.05 in³
Closing Force Per Jaw @ 6 bar: 890 N200.1 lbf
Opening Force Per Jaw @ 6 bar: 950 N213.6 lbf
Total closing force @ 6 bar: 1780 N400.1 lbf
Total opening force @ 6 bar: 1900 N427.1 lbf
Recommended Workpiece Weight: 8.90 kg19.6 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-210-P-5-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 1.21 kg2.67 lb
Stroke Per Jaw: 5 mm0.20 in
Fluid Consumption Double Stroke: 87 cm³5.31 in³
Closing Force Per Jaw @ 6 bar: 1150 N258.5 lbf
Opening Force Per Jaw @ 6 bar: 550 N123.6 lbf
Total closing force @ 6 bar: 2300 N517.1 lbf
Total opening force @ 6 bar: 1100 N247.3 lbf
Recommended Workpiece Weight: 8.90 kg19.6 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-210-P-5-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 1.19 kg2.62 lb
Stroke Per Jaw: 5 mm0.20 in
Fluid Consumption Double Stroke: 87 cm³5.31 in³
Closing Force Per Jaw @ 6 bar: 510 N114.7 lbf
Opening Force Per Jaw @ 6 bar: 1200 N269.8 lbf
Total closing force @ 6 bar: 1020 N229.3 lbf
Total opening force @ 6 bar: 2400 N539.5 lbf
Recommended Workpiece Weight: 8.90 kg19.6 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-212-P-12-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight: 1.64 kg3.61 lb
Stroke Per Jaw: 12 mm0.47 in
Fluid Consumption Double Stroke: 100 cm³6.10 in³
Closing Force Per Jaw @ 6 bar: 707.5 N159.0 lbf
Opening Force Per Jaw @ 6 bar: 750 N168.6 lbf
Total closing force @ 6 bar: 1415 N318.1 lbf
Total opening force @ 6 bar: 1500 N337.2 lbf
Recommended Workpiece Weight: 7.08 kg15.6 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-212-P-12-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 2.03 kg4.48 lb
Stroke Per Jaw: 12 mm0.47 in
Fluid Consumption Double Stroke: 163 cm³9.95 in³
Closing Force Per Jaw @ 6 bar: 900 N202.3 lbf
Opening Force Per Jaw @ 6 bar: 460 N103.4 lbf
Total closing force @ 6 bar: 1800 N404.7 lbf
Total opening force @ 6 bar: 920 N206.8 lbf
Recommended Workpiece Weight: 7.08 kg15.6 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-212-P-12-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 1.98 kg4.37 lb
Stroke Per Jaw: 12 mm0.47 in
Fluid Consumption Double Stroke: 163 cm³9.95 in³
Closing Force Per Jaw @ 6 bar: 410 N92.2 lbf
Opening Force Per Jaw @ 6 bar: 950 N213.6 lbf
Total closing force @ 6 bar: 820 N184.3 lbf
Total opening force @ 6 bar: 1900 N427.1 lbf
Recommended Workpiece Weight: 7.08 kg15.6 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-212-P-6-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight: 1.70 kg3.74 lb
Stroke Per Jaw: 6 mm0.24 in
Fluid Consumption Double Stroke: 100 cm³6.10 in³
Closing Force Per Jaw @ 6 bar: 1415 N318.1 lbf
Opening Force Per Jaw @ 6 bar: 1500 N337.2 lbf
Total closing force @ 6 bar: 2830 N636.2 lbf
Total opening force @ 6 bar: 3000 N674.4 lbf
Recommended Workpiece Weight: 14.15 kg31.1 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-212-P-6-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 2.08 kg4.59 lb
Stroke Per Jaw: 6 mm0.24 in
Fluid Consumption Double Stroke: 163 cm³9.95 in³
Closing Force Per Jaw @ 6 bar: 1830 N411.4 lbf
Opening Force Per Jaw @ 6 bar: 920 N206.8 lbf
Total closing force @ 6 bar: 3660 N822.8 lbf
Total opening force @ 6 bar: 1840 N413.7 lbf
Recommended Workpiece Weight: 14.15 kg31.1 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-212-P-6-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 2.03 kg4.48 lb
Stroke Per Jaw: 6 mm0.24 in
Fluid Consumption Double Stroke: 163 cm³9.95 in³
Closing Force Per Jaw @ 6 bar: 840 N188.8 lbf
Opening Force Per Jaw @ 6 bar: 1920 N431.6 lbf
Total closing force @ 6 bar: 1680 N377.7 lbf
Total opening force @ 6 bar: 3840 N863.3 lbf
Recommended Workpiece Weight: 14.15 kg31.1 lb
Repeat Accuracy: ±0.01 mm±0.0004 in

HPG-216-P-16-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight: 3.10 kg6.82 lb
Stroke Per Jaw: 16 mm0.63 in
Fluid Consumption Double Stroke: 185 cm³11.29 in³
Closing Force Per Jaw @ 6 bar: 1100 N247.3 lbf
Opening Force Per Jaw @ 6 bar: 1150 N258.5 lbf
Total closing force @ 6 bar: 2200 N494.6 lbf
Total opening force @ 6 bar: 2300 N517.0 lbf
Recommended Workpiece Weight: 11.00 kg24.2 lb
Repeat Accuracy: ±0.015 mm±0.0006 in

HPG-216-P-16-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 3.86 kg8.51 lb
Stroke Per Jaw: 16 mm0.63 in
Fluid Consumption Double Stroke: 338 cm³20.62 in³
Closing Force Per Jaw @ 6 bar: 1380 N310.2 lbf
Opening Force Per Jaw @ 6 bar: 730 N164.1 lbf
Total closing force @ 6 bar: 2760 N620.5 lbf
Total opening force @ 6 bar: 1460 N328.2 lbf
Recommended Workpiece Weight: 11.00 kg24.2 lb
Repeat Accuracy: ±0.015 mm±0.0006 in

HPG-216-P-16-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 3.77 kg8.31 lb
Stroke Per Jaw: 16 mm0.63 in
Fluid Consumption Double Stroke: 338 cm³20.62 in³
Closing Force Per Jaw @ 6 bar: 680 N152.9 lbf
Opening Force Per Jaw @ 6 bar: 1390 N312.5 lbf
Total closing force @ 6 bar: 1360 N305.7 lbf
Total opening force @ 6 bar: 2780 N625.0 lbf
Recommended Workpiece Weight: 11.00 kg24.2 lb
Repeat Accuracy: ±0.015 mm±0.0006 in

HPG-216-P-8-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight: 3.20 kg7.04 lb
Stroke Per Jaw: 8 mm0.31 in
Fluid Consumption Double Stroke: 185 cm³11.29 in³
Closing Force Per Jaw @ 6 bar: 2200 N494.6 lbf
Opening Force Per Jaw @ 6 bar: 2300 N517.0 lbf
Total closing force @ 6 bar: 4400 N989.1 lbf
Total opening force @ 6 bar: 4600 N1034.1 lbf
Recommended Workpiece Weight: 22.00 kg48.4 lb
Repeat Accuracy: ±0.015 mm±0.0006 in

HPG-216-P-8-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 3.97 kg8.75 lb
Stroke Per Jaw: 8 mm0.31 in
Fluid Consumption Double Stroke: 338 cm³20.62 in³
Closing Force Per Jaw @ 6 bar: 2740 N616.0 lbf
Opening Force Per Jaw @ 6 bar: 1450 N326.0 lbf
Total closing force @ 6 bar: 5480 N1232.0 lbf
Total opening force @ 6 bar: 2900 N651.9 lbf
Recommended Workpiece Weight: 22.00 kg48.4 lb
Repeat Accuracy: ±0.015 mm±0.0006 in

HPG-216-P-8-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 3.88 kg8.55 lb
Stroke Per Jaw: 8 mm0.31 in
Fluid Consumption Double Stroke: 338 cm³20.62 in³
Closing Force Per Jaw @ 6 bar: 1380 N310.2 lbf
Opening Force Per Jaw @ 6 bar: 2820 N634.0 lbf
Total closing force @ 6 bar: 2760 N620.5 lbf
Total opening force @ 6 bar: 5640 N1267.9 lbf
Recommended Workpiece Weight: 22.00 kg48.4 lb
Repeat Accuracy: ±0.015 mm±0.0006 in

HPG-220-P-25-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight: 5.90 kg12.98 lb
Stroke Per Jaw: 25 mm0.98 in
Fluid Consumption Double Stroke: 450 cm³27.45 in³
Closing Force Per Jaw @ 6 bar: 1775 N399.0 lbf
Opening Force Per Jaw @ 6 bar: 1850 N415.9 lbf
Total closing force @ 6 bar: 3550 N798.0 lbf
Total opening force @ 6 bar: 3700 N831.8 lbf
Recommended Workpiece Weight: 17.75 kg39.1 lb
Repeat Accuracy: ±0.02 mm±0.0008 in

HPG-220-P-25-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 7.45 kg16.42 lb
Stroke Per Jaw: 25 mm0.98 in
Fluid Consumption Double Stroke: 821 cm³50.10 in³
Closing Force Per Jaw @ 6 bar: 2110 N474.3 lbf
Opening Force Per Jaw @ 6 bar: 1290 N290.0 lbf
Total closing force @ 6 bar: 4220 N948.7 lbf
Total opening force @ 6 bar: 2580 N580.0 lbf
Recommended Workpiece Weight: 17.75 kg39.1 lb
Repeat Accuracy: ±0.02 mm±0.0008 in

HPG-220-P-25-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 7.42 kg16.36 lb
Stroke Per Jaw: 25 mm0.98 in
Fluid Consumption Double Stroke: 821 cm³50.10 in³
Closing Force Per Jaw @ 6 bar: 1220 N274.3 lbf
Opening Force Per Jaw @ 6 bar: 2180 N490.1 lbf
Total closing force @ 6 bar: 2440 N548.5 lbf
Total opening force @ 6 bar: 4360 N980.2 lbf
Recommended Workpiece Weight: 17.75 kg39.1 lb
Repeat Accuracy: ±0.02 mm±0.0008 in

HPG-220-P-14-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight: 6.00 kg13.20 lb
Stroke Per Jaw: 14 mm0.55 in
Fluid Consumption Double Stroke: 450 cm³27.45 in³
Closing Force Per Jaw @ 6 bar: 3025 N680.0 lbf
Opening Force Per Jaw @ 6 bar: 3150 N708.1 lbf
Total closing force @ 6 bar: 6050 N1360.0 lbf
Total opening force @ 6 bar: 6300 N1416.2 lbf
Recommended Workpiece Weight: 30.25 kg66.6 lb
Repeat Accuracy: ±0.02 mm±0.0008 in

HPG-220-P-14-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 7.68 kg16.93 lb
Stroke Per Jaw: 14 mm0.55 in
Fluid Consumption Double Stroke: 821 cm³50.10 in³
Closing Force Per Jaw @ 6 bar: 3660 N822.8 lbf
Opening Force Per Jaw @ 6 bar: 2230 N501.3 lbf
Total closing force @ 6 bar: 7320 N1645.6 lbf
Total opening force @ 6 bar: 4460 N1002.7 lbf
Recommended Workpiece Weight: 30.25 kg66.6 lb
Repeat Accuracy: ±0.02 mm±0.0008 in

HPG-220-P-14-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 7.64 kg16.84 lb
Stroke Per Jaw: 14 mm0.55 in
Fluid Consumption Double Stroke: 821 cm³50.10 in³
Closing Force Per Jaw @ 6 bar: 2110 N474.3 lbf
Opening Force Per Jaw @ 6 bar: 3780 N849.8 lbf
Total closing force @ 6 bar: 4220 N948.7 lbf
Total opening force @ 6 bar: 7560 N1699.6 lbf
Recommended Workpiece Weight: 30.25 kg66.6 lb
Repeat Accuracy: ±0.02 mm±0.0008 in

HPG-225-P-30-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight: 9.20 kg20.24 lb
Stroke Per Jaw: 30 mm1.18 in
Fluid Consumption Double Stroke: 750 cm³45.75 in³
Closing Force Per Jaw @ 6 bar: 2600 N584.5 lbf
Opening Force Per Jaw @ 6 bar: 2650 N595.7 lbf
Total closing force @ 6 bar: 5200 N1169.0 lbf
Total opening force @ 6 bar: 5300 N1191.4 lbf
Recommended Workpiece Weight: 26.00 kg57.2 lb
Repeat Accuracy: ±0.02 mm±0.0008 in

HPG-225-P-30-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 12.91 kg28.46 lb
Stroke Per Jaw: 30 mm1.18 in
Fluid Consumption Double Stroke: 1400 cm³85.43 in³
Closing Force Per Jaw @ 6 bar: 2980 N669.9 lbf
Opening Force Per Jaw @ 6 bar: 1550 N348.5 lbf
Total closing force @ 6 bar: 5960 N1339.9 lbf
Total opening force @ 6 bar: 3100 N696.9 lbf
Recommended Workpiece Weight: 26.00 kg57.2 lb
Repeat Accuracy: ±0.02 mm±0.0008 in

HPG-225-P-30-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 12.57 kg27.71 lb
Stroke Per Jaw: 30 mm1.18 in
Fluid Consumption Double Stroke: 1400 cm³85.43 in³
Closing Force Per Jaw @ 6 bar: 1500 N337.2 lbf
Opening Force Per Jaw @ 6 bar: 3050 N685.7 lbf
Total closing force @ 6 bar: 3000 N674.4 lbf
Total opening force @ 6 bar: 6100 N1371.3 lbf
Recommended Workpiece Weight: 26.00 kg57.2 lb
Repeat Accuracy: ±0.02 mm±0.0008 in

HPG-225-P-17-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight: 9.40 kg20.68 lb
Stroke Per Jaw: 17 mm0.67 in
Fluid Consumption Double Stroke: 750 cm³45.75 in³
Closing Force Per Jaw @ 6 bar: 4450 N1000.4 lbf
Opening Force Per Jaw @ 6 bar: 4650 N1045.3 lbf
Total closing force @ 6 bar: 8900 N2000.7 lbf
Total opening force @ 6 bar: 9300 N2090.6 lbf
Recommended Workpiece Weight: 44.50 kg97.9 lb
Repeat Accuracy: ±0.02 mm±0.0008 in

HPG-225-P-17-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 13.27 kg29.26 lb
Stroke Per Jaw: 17 mm0.67 in
Fluid Consumption Double Stroke: 1400 cm³85.43 in³
Closing Force Per Jaw @ 6 bar: 5150 N1157.8 lbf
Opening Force Per Jaw @ 6 bar: 2700 N607.0 lbf
Total closing force @ 6 bar: 10300 N2315.5 lbf
Total opening force @ 6 bar: 5400 N1214.0 lbf
Recommended Workpiece Weight: 44.50 kg97.9 lb
Repeat Accuracy: ±0.02 mm±0.0008 in

HPG-225-P-17-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 12.93 kg28.51 lb
Stroke Per Jaw: 17 mm0.67 in
Fluid Consumption Double Stroke: 1400 cm³85.43 in³
Closing Force Per Jaw @ 6 bar: 2550 N573.3 lbf
Opening Force Per Jaw @ 6 bar: 5300 N1191.5 lbf
Total closing force @ 6 bar: 5100 N1146.5 lbf
Total opening force @ 6 bar: 10600 N2383.0 lbf
Recommended Workpiece Weight: 44.50 kg97.9 lb
Repeat Accuracy: ±0.02 mm±0.0008 in

HPG-230-P-35-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight: 15.70 kg34.54 lb
Stroke Per Jaw: 35 mm1.38 in
Fluid Consumption Double Stroke: 1100 cm³67.10 in³
Closing Force Per Jaw @ 6 bar: 3350 N753.1 lbf
Opening Force Per Jaw @ 6 bar: 3450 N775.6 lbf
Total closing force @ 6 bar: 6700 N1506.2 lbf
Total opening force @ 6 bar: 6900 N1551.1 lbf
Recommended Workpiece Weight: 33.50 kg73.7 lb
Repeat Accuracy: ±0.03 mm±0.0012 in

HPG-230-P-35-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 19.62 kg43.25 lb
Stroke Per Jaw: 35 mm1.38 in
Fluid Consumption Double Stroke: 1640 cm³100.07 in³
Closing Force Per Jaw @ 6 bar: 4220 N948.7 lbf
Opening Force Per Jaw @ 6 bar: 1950 N438.4 lbf
Total closing force @ 6 bar: 8440 N1897.4 lbf
Total opening force @ 6 bar: 3900 N876.8 lbf
Recommended Workpiece Weight: 33.50 kg73.7 lb
Repeat Accuracy: ±0.03 mm±0.0012 in

HPG-230-P-35-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 19.57 kg43.14 lb
Stroke Per Jaw: 35 mm1.38 in
Fluid Consumption Double Stroke: 1640 cm³100.07 in³
Closing Force Per Jaw @ 6 bar: 1800 N404.7 lbf
Opening Force Per Jaw @ 6 bar: 4400 N989.2 lbf
Total closing force @ 6 bar: 3600 N809.3 lbf
Total opening force @ 6 bar: 8800 N1978.3 lbf
Recommended Workpiece Weight: 33.50 kg73.7 lb
Repeat Accuracy: ±0.03 mm±0.0012 in

HPG-230-P-20-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight: 16.20 kg35.64 lb
Stroke Per Jaw: 20 mm0.79 in
Fluid Consumption Double Stroke: 1100 cm³67.10 in³
Closing Force Per Jaw @ 6 bar: 5700 N1281.4 lbf
Opening Force Per Jaw @ 6 bar: 5900 N1326.3 lbf
Total closing force @ 6 bar: 11400 N2562.7 lbf
Total opening force @ 6 bar: 11800 N2652.6 lbf
Recommended Workpiece Weight: 57.00 kg125.4 lb
Repeat Accuracy: ±0.03 mm±0.0012 in

HPG-230-P-20-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight: 20.17 kg44.47 lb
Stroke Per Jaw: 20 mm0.79 in
Fluid Consumption Double Stroke: 1640 cm³100.07 in³
Closing Force Per Jaw @ 6 bar: 7300 N1641.1 lbf
Opening Force Per Jaw @ 6 bar: 3400 N764.4 lbf
Total closing force @ 6 bar: 14600 N3282.2 lbf
Total opening force @ 6 bar: 6800 N1528.7 lbf
Recommended Workpiece Weight: 57.00 kg125.4 lb
Repeat Accuracy: ±0.03 mm±0.0012 in

HPG-230-P-20-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight: 20.12 kg44.36 lb
Stroke Per Jaw: 20 mm0.79 in
Fluid Consumption Double Stroke: 1640 cm³100.07 in³
Closing Force Per Jaw @ 6 bar: 3380 N759.9 lbf
Opening Force Per Jaw @ 6 bar: 7320 N1645.6 lbf
Total closing force @ 6 bar: 6760 N1519.7 lbf
Total opening force @ 6 bar: 14640 N3291.2 lbf
Recommended Workpiece Weight: 57.00 kg125.4 lb
Repeat Accuracy: ±0.03 mm±0.0012 in

HPG-240-P-45-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight: 33.50 kg73.70 lb
Stroke Per Jaw: 45 mm1.77 in
Fluid Consumption Double Stroke: 2300 cm³140.30 in³
Closing Force Per Jaw @ 6 bar: 5350 N1202.7 lbf
Opening Force Per Jaw @ 6 bar: 5550 N1247.6 lbf
Total closing force @ 6 bar: 10700 N2405.4 lbf
Total opening force @ 6 bar: 11100 N2495.3 lbf
Recommended Workpiece Weight: 53.50 kg117.7 lb
Repeat Accuracy: ±0.05 mm±0.0020 in

HPG-240-P-26-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight: 34.50 kg75.90 lb
Stroke Per Jaw: 26 mm1.02 in
Fluid Consumption Double Stroke: 2300 cm³140.30 in³
Closing Force Per Jaw @ 6 bar: 9175 N2062.5 lbf
Opening Force Per Jaw @ 6 bar: 9475 N2130.0 lbf
Total closing force @ 6 bar: 18350 N4125.1 lbf
Total opening force @ 6 bar: 18950 N4260.0 lbf
Recommended Workpiece Weight: 91.75 kg201.9 lb
Repeat Accuracy: ±0.05 mm±0.0020 in

Related Products

Grippers

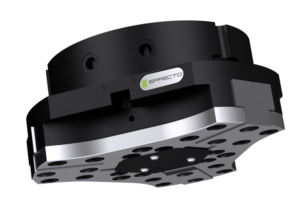

HPG-3

HPG is a universal three-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.

Tool Changers

E80

ER80/ET100 is an automatic tool changing assembly for exchanging robotic end-of-arm tooling (EOAT) on the fly. Rated payload up to 90 kg.

Collision Sensors

QuickSTOP Standard

QS is a dynamically variable collision sensor that operates on an air pressure system, providing excellent protection in machine load/unload robotics applications. Covers payloads from QS-7 to QS-7500.

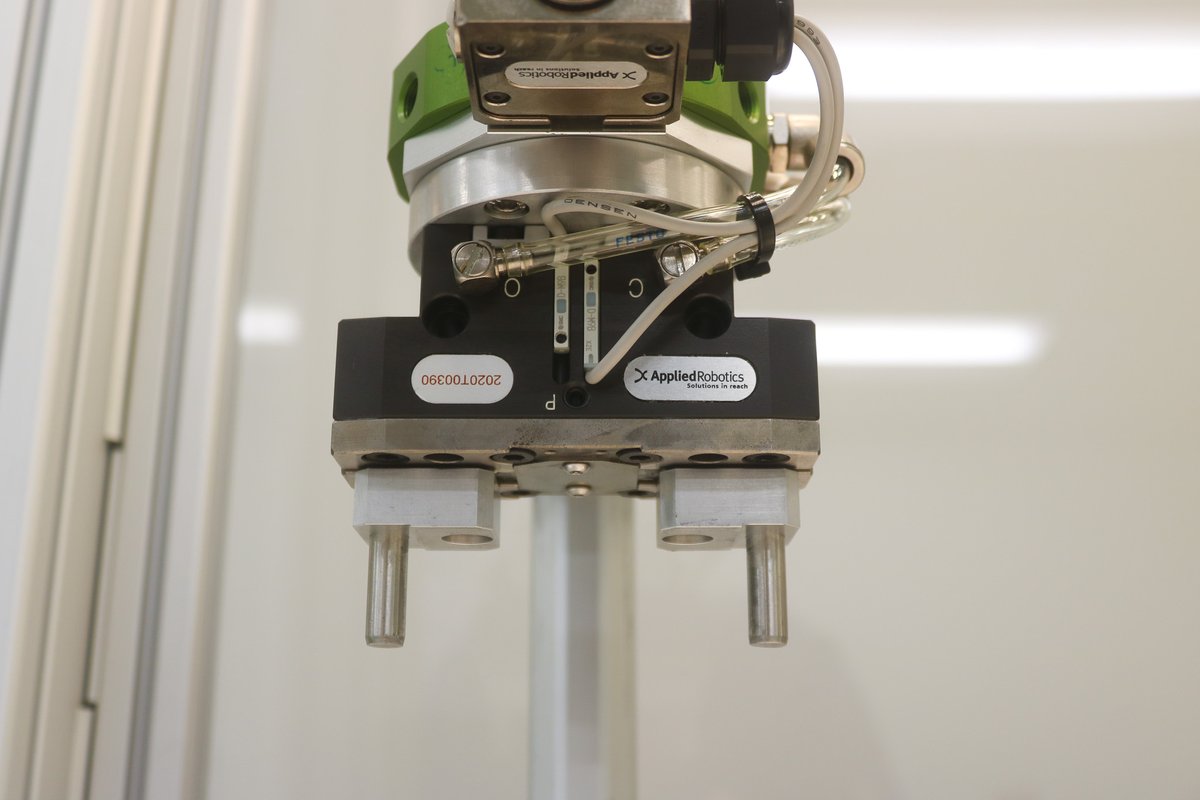

Designs

EFFECTO pneumatic grippers are designed for durability, with a wedge-hook mechanism that delivers high power transmission and repeatable, synchronized gripping cycle after cycle.

Available across 30 versions and multiple sizes, from compact grippers for tight workspaces to larger models for heavy-duty applications, each is built with superior jaw guidance for precise handling and easy maintenance in harsh environments.

Downloads

Model & Description	Data Sheet	2D Drawing	3D Model
HPG-205-P-4-U-SM-8-P-B-S Long stroke version
HPG-205-P-4-U-CM-8-P-B-S Long stroke version - Spring in closing
HPG-205-P-4-U-AM-8-P-B-S Long stroke version - Spring in opening
HPG-205-P-2-U-SM-8-P-B-S Short stroke version
HPG-205-P-2-U-CM-8-P-B-S Short stroke version - Spring in closing
HPG-205-P-2-U-AM-8-P-B-S Short stroke version - Spring in opening
HPG-206-P-6-U-SM-8-P-B-S Long stroke version
HPG-206-P-6-U-CM-8-P-B-S Long stroke version - Spring in closing
HPG-206-P-6-U-AM-8-P-B-S Long stroke version - Spring in opening
HPG-206-P-3-U-SM-8-P-B-S Short stroke version
HPG-206-P-3-U-CM-8-P-B-S Short stroke version - Spring in closing
HPG-206-P-3-U-AM-8-P-B-S Short stroke version - Spring in opening
HPG-208-P-8-U-SM-8-P-B-S Long stroke version
HPG-208-P-8-U-CM-8-P-B-S Long stroke version - Spring in closing
HPG-208-P-8-U-AM-8-P-B-S Long stroke version - Spring in opening
HPG-208-P-4-U-SM-8-P-B-S Short stroke version
HPG-208-P-4-U-CM-8-P-B-S Short stroke version - Spring in closing
HPG-208-P-4-U-AM-8-P-B-S Short stroke version - Spring in opening
HPG-210-P-10-U-SM-8-P-B-S Long stroke version
HPG-210-P-10-U-CM-8-P-B-S Long stroke version - Spring in closing
HPG-210-P-10-U-AM-8-P-B-S Long stroke version - Spring in opening
HPG-210-P-5-U-SM-8-P-B-S Short stroke version
HPG-210-P-5-U-CM-8-P-B-S Short stroke version - Spring in closing
HPG-210-P-5-U-AM-8-P-B-S Short stroke version - Spring in opening
HPG-212-P-12-U-SM-8-P-B-S Long stroke version
HPG-212-P-12-U-CM-8-P-B-S Long stroke version - Spring in closing
HPG-212-P-12-U-AM-8-P-B-S Long stroke version - Spring in opening
HPG-212-P-6-U-SM-8-P-B-S Short stroke version
HPG-212-P-6-U-CM-8-P-B-S Short stroke version - Spring in closing
HPG-212-P-6-U-AM-8-P-B-S Short stroke version - Spring in opening
HPG-216-P-16-U-SM-8-P-B-S Long stroke version
HPG-216-P-16-U-CM-8-P-B-S Long stroke version - Spring in closing
HPG-216-P-16-U-AM-8-P-B-S Long stroke version - Spring in opening
HPG-216-P-8-U-SM-8-P-B-S Short stroke version
HPG-216-P-8-U-CM-8-P-B-S Short stroke version - Spring in closing
HPG-216-P-8-U-AM-8-P-B-S Short stroke version - Spring in opening
HPG-220-P-25-U-SM-8-P-B-S Long stroke version
HPG-220-P-25-U-CM-8-P-B-S Long stroke version - Spring in closing
HPG-220-P-25-U-AM-8-P-B-S Long stroke version - Spring in opening
HPG-220-P-14-U-SM-8-P-B-S Short stroke version
HPG-220-P-14-U-CM-8-P-B-S Short stroke version - Spring in closing
HPG-220-P-14-U-AM-8-P-B-S Short stroke version - Spring in opening
HPG-225-P-30-U-SM-8-P-B-S Long stroke version
HPG-225-P-30-U-CM-8-P-B-S Long stroke version - Spring in closing
HPG-225-P-30-U-AM-8-P-B-S Long stroke version - Spring in opening
HPG-225-P-17-U-SM-8-P-B-S Short stroke version
HPG-225-P-17-U-CM-8-P-B-S Short stroke version - Spring in closing
HPG-225-P-17-U-AM-8-P-B-S Short stroke version - Spring in opening
HPG-230-P-35-U-SM-8-P-B-S Long stroke version
HPG-230-P-35-U-CM-8-P-B-S Long stroke version - Spring in closing
HPG-230-P-35-U-AM-8-P-B-S Long stroke version - Spring in opening
HPG-230-P-20-U-SM-8-P-B-S Short stroke version
HPG-230-P-20-U-CM-8-P-B-S Short stroke version - Spring in closing
HPG-230-P-20-U-AM-8-P-B-S Short stroke version - Spring in opening
HPG-240-P-45-U-SM-8-P-B-S Long stroke version
HPG-240-P-26-U-SM-8-P-B-S Short stroke version

HPG-205-P-4-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model

HPG-205-P-4-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-205-P-4-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-205-P-2-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model

HPG-205-P-2-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-205-P-2-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-206-P-6-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model

HPG-206-P-6-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-206-P-6-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-206-P-3-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model

HPG-206-P-3-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-206-P-3-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-208-P-8-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model

HPG-208-P-8-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-208-P-8-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-208-P-4-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model

HPG-208-P-4-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-208-P-4-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-210-P-10-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model

HPG-210-P-10-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-210-P-10-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-210-P-5-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model

HPG-210-P-5-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-210-P-5-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-212-P-12-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model

HPG-212-P-12-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-212-P-12-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-212-P-6-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model

HPG-212-P-6-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-212-P-6-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-216-P-16-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model

HPG-216-P-16-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-216-P-16-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-216-P-8-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model

HPG-216-P-8-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-216-P-8-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-220-P-25-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model

HPG-220-P-25-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-220-P-25-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-220-P-14-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model

HPG-220-P-14-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-220-P-14-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-225-P-30-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model

HPG-225-P-30-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-225-P-30-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-225-P-17-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model

HPG-225-P-17-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-225-P-17-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-230-P-35-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model

HPG-230-P-35-U-CM-8-P-B-S

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-230-P-35-U-AM-8-P-B-S

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-230-P-20-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model

HPG-230-P-20-U-CM-8-P-B-S

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model

HPG-230-P-20-U-AM-8-P-B-S

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

HPG-240-P-45-U-SM-8-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model

HPG-240-P-26-U-SM-8-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model

Modules & Accessories

Gripper Sensors

HPG-2 Gripper Sensors

Gripper Sensors detect jaw position (open/closed) for verification in automated handling sequences.

Model & Description	Max Current	Type	Wires	Voltage	Cable Length	Protection
MZCG-1Z7PS-KU0 HALL effect magnetic switch, 3-wire PNP-N/O	100 mA	HALL	3	10 - 30 VDC	2 m78.74 in	IP67
MZCG-1Z7PS-KR0 HALL effect magnetic switch, M8 male 3-pin, PNP-N/O	100 mA	HALL	3	10 - 30 VDC	0.5 m19.69 in1	IP67

MZCG-1Z7PS-KU0

HALL effect magnetic switch, 3-wire PNP-N/O

Max Current: 100 mA
Type: HALL
Wires: 3
Voltage: 10 - 30 VDC
Cable Length: 2 m78.74 in
Protection: IP67

MZCG-1Z7PS-KR0

HALL effect magnetic switch, M8 male 3-pin, PNP-N/O

Max Current: 100 mA
Type: HALL
Wires: 3
Voltage: 10 - 30 VDC
Cable Length: 0.5 m19.69 in1
Protection: IP67
