Automatic Vises

UVP

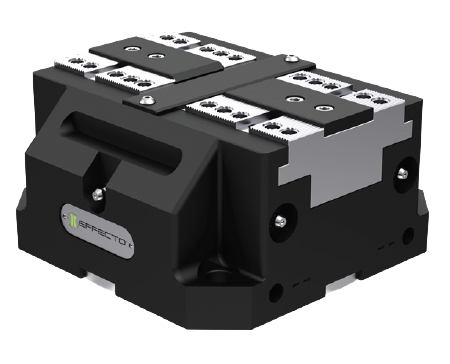

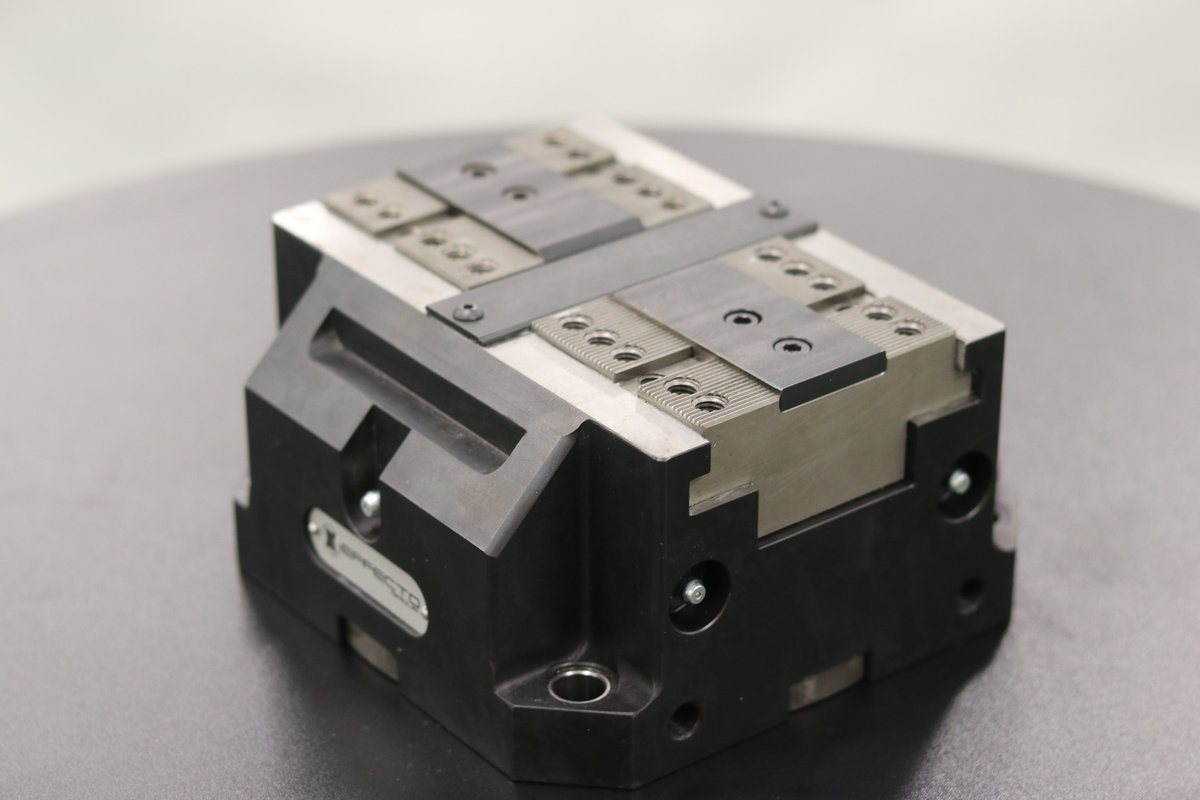

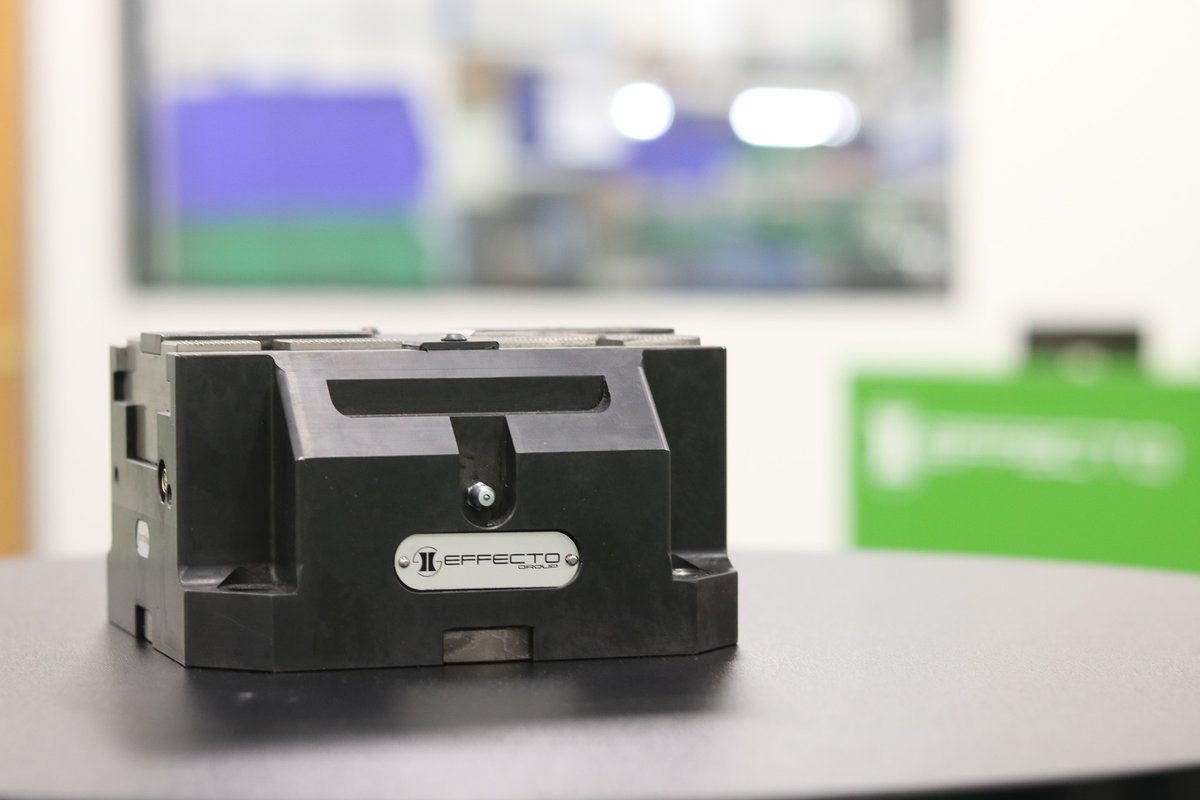

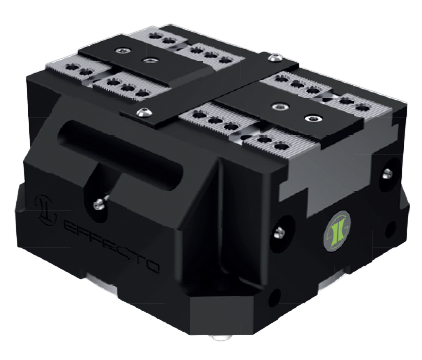

UVP is a pneumatically actuated 2-jaw self-centering vise in compact design with high clamping force.

Models

UVP is a pneumatically actuated 2-jaw self-centering vise in compact design with a high clamping force. The vises are available with standard stroke, or long stroke or with one fixed jaw.

Advantages

  • Precise wedge-hook mechanism allows machining accuracy.
  • High force drive for secure clamping.
  • Extended clamping range with long jaw guidance.
  • Optimum jaw guides (hardened, sturdy, low-backlash) allow high clamping forces and a long service life.
  • Low profile: Maximum use of the machine room and excellent rigidity of the system.
  • Lean outer contour for optimal accessibility of the machine spindle to the workpiece.
  • Cubic design: ideal for 6-sided machining.
  • Optimized lubrication system for consistently high clamping forces.
  • Base jaws with tongue and groove or fine serration as standard for high flexibility of top jaws.
  • All functional parts are hardened and ground to ensure a long service life.



Metric Imperial
Model & Description Data Sheet 2D Drawing 3D Model Fluid Consumption Double Stroke Weight Stroke Per Jaw Closing Force Per Jaw @ Max Pressure Total Closing Force @ Max Pressure Max Pressure Clamping Accuracy Closing / Opening Time Repeat Accuracy
UVP-100-P-2-C-9-N-B-N Short stroke version 141 cm³8.60 in³ 3.50 kg7.72 lb 2 mm0.08 in 10750 N2417.0 lb 21500 N4833.4 lb 9 bar130.5 psi ±0.02 mm±0.0008 in 0.2 s ±0.01 mm±0.0004 in
UVP 100 – “P” variant Short stroke version - Dowel pins 141 cm³8.60 in³ 3.50 kg7.72 lb 2 mm0.08 in 10750 N2417.0 lb 21500 N4833.4 lb 9 bar130.5 psi ±0.01 mm±0.0004 in 0.2 s ±0.01 mm±0.0004 in
UVP-100-P-6-C-9-N-B-N Long stroke version 141 cm³8.60 in³ 3.50 kg7.72 lb 6 mm0.24 in 4100 N921.7 lb 8200 N1843.4 lb 9 bar130.5 psi ±0.02 mm±0.0008 in 0.2 s ±0.01 mm±0.0004 in
UVP 100 X – “P” variant Long stroke version - Dowel pins 141 cm³8.60 in³ 3.50 kg7.72 lb 6 mm0.24 in 4100 N921.7 lb 8200 N1843.4 lb 9 bar130.5 psi ±0.01 mm±0.0004 in 0.2 s ±0.01 mm±0.0004 in
UVP-140-P-3-C-9-N-B-N Short stroke version 334 cm³20.38 in³ 7.20 kg15.87 lb 3 mm0.12 in 17000 N3821.8 lb 34000 N7643.5 lb 9 bar130.5 psi ±0.02 mm±0.0008 in 0.2 s ±0.01 mm±0.0004 in
UVP 140 – “P” variant Short stroke version - Dowel pins 334 cm³20.38 in³ 7.20 kg15.87 lb 3 mm0.12 in 17000 N3821.8 lb 34000 N7643.5 lb 9 bar130.5 psi ±0.01 mm±0.0004 in 0.2 s ±0.01 mm±0.0004 in
UVP-140-P-7-C-9-N-B-N Long stroke version 334 cm³20.38 in³ 7.20 kg15.87 lb 7 mm0.27 in 7750 N1742.3 lb 15500 N3484.6 lb 9 bar130.5 psi ±0.02 mm±0.0008 in 0.2 s ±0.01 mm±0.0004 in
UVP 140 X – “P” variant Long stroke version - Dowel pins 334 cm³20.38 in³ 7.20 kg15.87 lb 7 mm0.27 in 7750 N1742.3 lb 15500 N3484.6 lb 9 bar130.5 psi ±0.01 mm±0.0004 in 0.2 s ±0.01 mm±0.0004 in
UVP-160-P-3-C-9-N-B-N Short stroke version 530 cm³32.34 in³ 11.00 kg24.25 lb 3 mm0.12 in 25000 N5620.3 lb 50000 N11240.5 lb 9 bar130.5 psi ±0.02 mm±0.0008 in 0.4 s ±0.01 mm±0.0004 in
UVP 160 – “P” variant Short stroke version - Dowel pins 530 cm³32.34 in³ 11.00 kg24.25 lb 3 mm0.12 in 25000 N5620.3 lb 50000 N11240.5 lb 9 bar130.5 psi ±0.01 mm±0.0004 in 0.4 s ±0.01 mm±0.0004 in
UVP-160-P-8-C-9-N-B-N Long stroke version 530 cm³32.34 in³ 11.00 kg24.25 lb 8 mm0.31 in 10000 N2248.1 lb 20000 N4496.2 lb 9 bar130.5 psi ±0.02 mm±0.0008 in 0.4 s ±0.01 mm±0.0004 in
UVP 160 X – “P” variant Long stroke version - Dowel pins 530 cm³32.34 in³ 11.00 kg24.25 lb 8 mm0.31 in 10000 N2248.1 lb 20000 N4496.2 lb 9 bar130.5 psi ±0.01 mm±0.0004 in 0.4 s ±0.01 mm±0.0004 in
UVP-250-P-5-C-6-N-B-N Short stroke version 1660 cm³101.30 in³ 32.00 kg70.55 lb 5 mm0.20 in 28500 N6407.1 lb 57000 N12814.2 lb 6 bar87.0 psi ±0.02 mm±0.0008 in 0.4 s ±0.01 mm±0.0004 in
UVP 250 – “P” variant Short stroke version - Dowel pins 1660 cm³101.30 in³ 32.00 kg70.55 lb 5 mm0.20 in 28500 N6407.1 lb 57000 N12814.2 lb 6 bar87.0 psi ±0.01 mm±0.0004 in 0.4 s ±0.01 mm±0.0004 in
UVP-250-P-15-C-6-N-B-N Long stroke version 1660 cm³101.30 in³ 32.00 kg70.55 lb 15 mm0.59 in 10500 N2360.5 lb 21000 N4721.0 lb 6 bar87.0 psi ±0.02 mm±0.0008 in 0.4 s ±0.01 mm±0.0004 in
UVP 250 X – “P” variant Long stroke version - Dowel pins 1660 cm³101.30 in³ 32.00 kg70.55 lb 15 mm0.59 in 10500 N2360.5 lb 21000 N4721.0 lb 6 bar87.0 psi ±0.01 mm±0.0004 in 0.4 s ±0.01 mm±0.0004 in
UVP-100-P-2-C-9-N-B-N

Short stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
141 cm³8.60 in³
Weight
3.50 kg7.72 lb
Stroke Per Jaw
2 mm0.08 in
Closing Force Per Jaw @ Max Pressure
10750 N2417.0 lb
Total Closing Force @ Max Pressure
21500 N4833.4 lb
Max Pressure
9 bar130.5 psi
Clamping Accuracy
±0.02 mm±0.0008 in
Closing / Opening Time
0.2 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP 100 – “P” variant

Short stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
141 cm³8.60 in³
Weight
3.50 kg7.72 lb
Stroke Per Jaw
2 mm0.08 in
Closing Force Per Jaw @ Max Pressure
10750 N2417.0 lb
Total Closing Force @ Max Pressure
21500 N4833.4 lb
Max Pressure
9 bar130.5 psi
Clamping Accuracy
±0.01 mm±0.0004 in
Closing / Opening Time
0.2 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP-100-P-6-C-9-N-B-N

Long stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
141 cm³8.60 in³
Weight
3.50 kg7.72 lb
Stroke Per Jaw
6 mm0.24 in
Closing Force Per Jaw @ Max Pressure
4100 N921.7 lb
Total Closing Force @ Max Pressure
8200 N1843.4 lb
Max Pressure
9 bar130.5 psi
Clamping Accuracy
±0.02 mm±0.0008 in
Closing / Opening Time
0.2 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP 100 X – “P” variant

Long stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
141 cm³8.60 in³
Weight
3.50 kg7.72 lb
Stroke Per Jaw
6 mm0.24 in
Closing Force Per Jaw @ Max Pressure
4100 N921.7 lb
Total Closing Force @ Max Pressure
8200 N1843.4 lb
Max Pressure
9 bar130.5 psi
Clamping Accuracy
±0.01 mm±0.0004 in
Closing / Opening Time
0.2 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP-140-P-3-C-9-N-B-N

Short stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
334 cm³20.38 in³
Weight
7.20 kg15.87 lb
Stroke Per Jaw
3 mm0.12 in
Closing Force Per Jaw @ Max Pressure
17000 N3821.8 lb
Total Closing Force @ Max Pressure
34000 N7643.5 lb
Max Pressure
9 bar130.5 psi
Clamping Accuracy
±0.02 mm±0.0008 in
Closing / Opening Time
0.2 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP 140 – “P” variant

Short stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
334 cm³20.38 in³
Weight
7.20 kg15.87 lb
Stroke Per Jaw
3 mm0.12 in
Closing Force Per Jaw @ Max Pressure
17000 N3821.8 lb
Total Closing Force @ Max Pressure
34000 N7643.5 lb
Max Pressure
9 bar130.5 psi
Clamping Accuracy
±0.01 mm±0.0004 in
Closing / Opening Time
0.2 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP-140-P-7-C-9-N-B-N

Long stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
334 cm³20.38 in³
Weight
7.20 kg15.87 lb
Stroke Per Jaw
7 mm0.27 in
Closing Force Per Jaw @ Max Pressure
7750 N1742.3 lb
Total Closing Force @ Max Pressure
15500 N3484.6 lb
Max Pressure
9 bar130.5 psi
Clamping Accuracy
±0.02 mm±0.0008 in
Closing / Opening Time
0.2 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP 140 X – “P” variant

Long stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
334 cm³20.38 in³
Weight
7.20 kg15.87 lb
Stroke Per Jaw
7 mm0.27 in
Closing Force Per Jaw @ Max Pressure
7750 N1742.3 lb
Total Closing Force @ Max Pressure
15500 N3484.6 lb
Max Pressure
9 bar130.5 psi
Clamping Accuracy
±0.01 mm±0.0004 in
Closing / Opening Time
0.2 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP-160-P-3-C-9-N-B-N

Short stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
530 cm³32.34 in³
Weight
11.00 kg24.25 lb
Stroke Per Jaw
3 mm0.12 in
Closing Force Per Jaw @ Max Pressure
25000 N5620.3 lb
Total Closing Force @ Max Pressure
50000 N11240.5 lb
Max Pressure
9 bar130.5 psi
Clamping Accuracy
±0.02 mm±0.0008 in
Closing / Opening Time
0.4 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP 160 – “P” variant

Short stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
530 cm³32.34 in³
Weight
11.00 kg24.25 lb
Stroke Per Jaw
3 mm0.12 in
Closing Force Per Jaw @ Max Pressure
25000 N5620.3 lb
Total Closing Force @ Max Pressure
50000 N11240.5 lb
Max Pressure
9 bar130.5 psi
Clamping Accuracy
±0.01 mm±0.0004 in
Closing / Opening Time
0.4 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP-160-P-8-C-9-N-B-N

Long stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
530 cm³32.34 in³
Weight
11.00 kg24.25 lb
Stroke Per Jaw
8 mm0.31 in
Closing Force Per Jaw @ Max Pressure
10000 N2248.1 lb
Total Closing Force @ Max Pressure
20000 N4496.2 lb
Max Pressure
9 bar130.5 psi
Clamping Accuracy
±0.02 mm±0.0008 in
Closing / Opening Time
0.4 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP 160 X – “P” variant

Long stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
530 cm³32.34 in³
Weight
11.00 kg24.25 lb
Stroke Per Jaw
8 mm0.31 in
Closing Force Per Jaw @ Max Pressure
10000 N2248.1 lb
Total Closing Force @ Max Pressure
20000 N4496.2 lb
Max Pressure
9 bar130.5 psi
Clamping Accuracy
±0.01 mm±0.0004 in
Closing / Opening Time
0.4 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP-250-P-5-C-6-N-B-N

Short stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
1660 cm³101.30 in³
Weight
32.00 kg70.55 lb
Stroke Per Jaw
5 mm0.20 in
Closing Force Per Jaw @ Max Pressure
28500 N6407.1 lb
Total Closing Force @ Max Pressure
57000 N12814.2 lb
Max Pressure
6 bar87.0 psi
Clamping Accuracy
±0.02 mm±0.0008 in
Closing / Opening Time
0.4 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP 250 – “P” variant

Short stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
1660 cm³101.30 in³
Weight
32.00 kg70.55 lb
Stroke Per Jaw
5 mm0.20 in
Closing Force Per Jaw @ Max Pressure
28500 N6407.1 lb
Total Closing Force @ Max Pressure
57000 N12814.2 lb
Max Pressure
6 bar87.0 psi
Clamping Accuracy
±0.01 mm±0.0004 in
Closing / Opening Time
0.4 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP-250-P-15-C-6-N-B-N

Long stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
1660 cm³101.30 in³
Weight
32.00 kg70.55 lb
Stroke Per Jaw
15 mm0.59 in
Closing Force Per Jaw @ Max Pressure
10500 N2360.5 lb
Total Closing Force @ Max Pressure
21000 N4721.0 lb
Max Pressure
6 bar87.0 psi
Clamping Accuracy
±0.02 mm±0.0008 in
Closing / Opening Time
0.4 s
Repeat Accuracy
±0.01 mm±0.0004 in
UVP 250 X – “P” variant

Long stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
1660 cm³101.30 in³
Weight
32.00 kg70.55 lb
Stroke Per Jaw
15 mm0.59 in
Closing Force Per Jaw @ Max Pressure
10500 N2360.5 lb
Total Closing Force @ Max Pressure
21000 N4721.0 lb
Max Pressure
6 bar87.0 psi
Clamping Accuracy
±0.01 mm±0.0004 in
Closing / Opening Time
0.4 s
Repeat Accuracy
±0.01 mm±0.0004 in

Pressure 3 - 9 barAmbient temperature 5 - 60 °CSound emissions (sound pressure) ≤ 70 dB(A) in each direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.

Related Products

Automatic Vises
UVH

UVH is a hydraulically actuated 2-jaw self-centering vise in compact design with high clamping force.
Automatic Vises
MPI

MPI is a 2-jaw self-centering vise with wedge-hook mechanism, operable hydraulically OR pneumatically — high flexibility, accuracy, and long life.
Automatic Vises
MP

MP is a 2-jaw pneumatic self-centering vise with wedge-hook mechanism for cycle time reduction — used on machine tools, industrial equipment, and assembly machines.

Designs

Automatic vises combine a precise wedge-hook mechanism with a compact, cubic body built for accurate 6-sided machining.

Hardened, low-backlash jaw guides deliver high clamping force and long service life, while a low-profile design maximizes machine room and keeps the spindle fully accessible to the workpiece.

Downloads

Model & Description Data Sheet 2D Drawing 3D Model
UVP-100-P-2-C-9-N-B-N Short stroke version
UVP 100 – “P” variant Short stroke version - Dowel pins
UVP-100-P-6-C-9-N-B-N Long stroke version
UVP 100 X – “P” variant Long stroke version - Dowel pins
UVP-140-P-3-C-9-N-B-N Short stroke version
UVP 140 – “P” variant Short stroke version - Dowel pins
UVP-140-P-7-C-9-N-B-N Long stroke version
UVP 140 X – “P” variant Long stroke version - Dowel pins
UVP-160-P-3-C-9-N-B-N Short stroke version
UVP 160 – “P” variant Short stroke version - Dowel pins
UVP-160-P-8-C-9-N-B-N Long stroke version
UVP 160 X – “P” variant Long stroke version - Dowel pins
UVP-250-P-5-C-6-N-B-N Short stroke version
UVP 250 – “P” variant Short stroke version - Dowel pins
UVP-250-P-15-C-6-N-B-N Long stroke version
UVP 250 X – “P” variant Long stroke version - Dowel pins
UVP-100-P-2-C-9-N-B-N

Short stroke version

Data Sheet
2D Drawing
3D Model
UVP 100 – “P” variant

Short stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
UVP-100-P-6-C-9-N-B-N

Long stroke version

Data Sheet
2D Drawing
3D Model
UVP 100 X – “P” variant

Long stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
UVP-140-P-3-C-9-N-B-N

Short stroke version

Data Sheet
2D Drawing
3D Model
UVP 140 – “P” variant

Short stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
UVP-140-P-7-C-9-N-B-N

Long stroke version

Data Sheet
2D Drawing
3D Model
UVP 140 X – “P” variant

Long stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
UVP-160-P-3-C-9-N-B-N

Short stroke version

Data Sheet
2D Drawing
3D Model
UVP 160 – “P” variant

Short stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
UVP-160-P-8-C-9-N-B-N

Long stroke version

Data Sheet
2D Drawing
3D Model
UVP 160 X – “P” variant

Long stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
UVP-250-P-5-C-6-N-B-N

Short stroke version

Data Sheet
2D Drawing
3D Model
UVP 250 – “P” variant

Short stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model
UVP-250-P-15-C-6-N-B-N

Long stroke version

Data Sheet
2D Drawing
3D Model
UVP 250 X – “P” variant

Long stroke version - Dowel pins

Data Sheet
2D Drawing
3D Model

Modules & Accessories

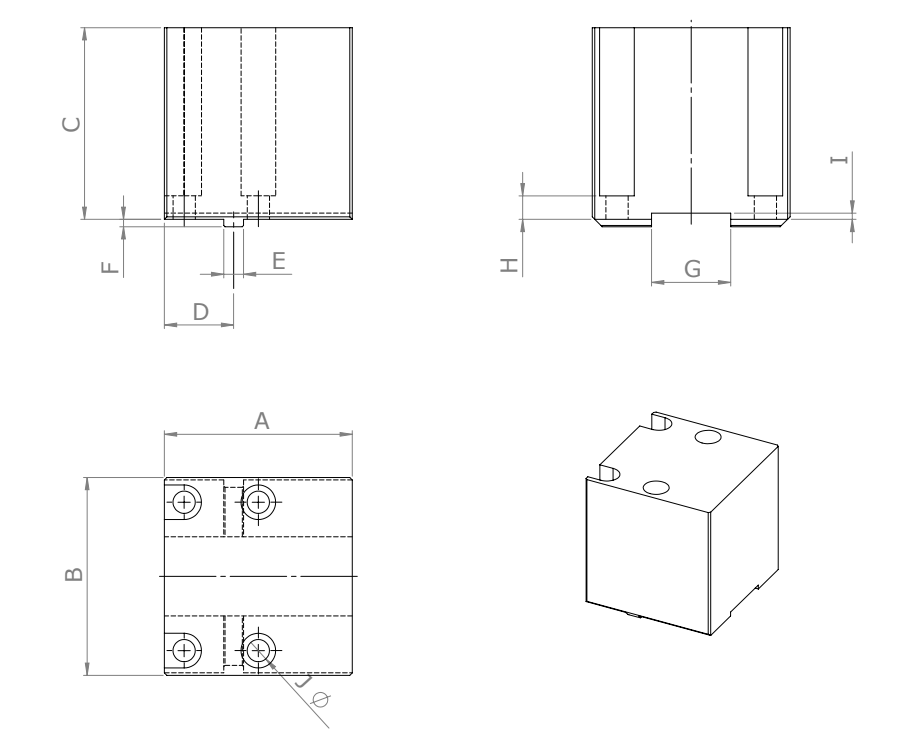

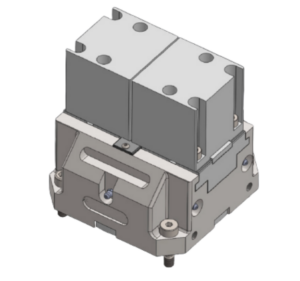

UVP Soft Jaws

Blank top jaws with mounting holes for UVP and UVH vises.

  • Material: 18NiCrMo5
  • Mounting: by tongues and grooves



Model & Description 2D Drawing 3D Model Material Mounting Type
BTJ-UVP-UVH-100 Blank top jaws with mounting holes for UVP and UVH 100 vises 18NiCrMo5 tongues and grooves
BTJ-UVP-UVH-160 Blank top jaws with mounting holes for UVP and UVH 160 vises 18NiCrMo5 tongues and grooves
BTJ-UVP-UVH-100

Blank top jaws with mounting holes for UVP and UVH 100 vises

2D Drawing
3D Model
Material
18NiCrMo5
Mounting Type
tongues and grooves
BTJ-UVP-UVH-160

Blank top jaws with mounting holes for UVP and UVH 160 vises

2D Drawing
3D Model
Material
18NiCrMo5
Mounting Type
tongues and grooves

Operating Temperature 5 - 60 °C (40 - 140 °F)Noise Emissions (Sound Pressure) ≤ 70 dB(A) in any direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.

Connect with EFFECTO

Find the right tool for your application today

Request 3D Model Download

* Denotes Required Field
