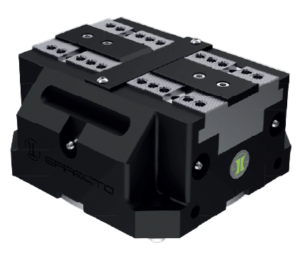

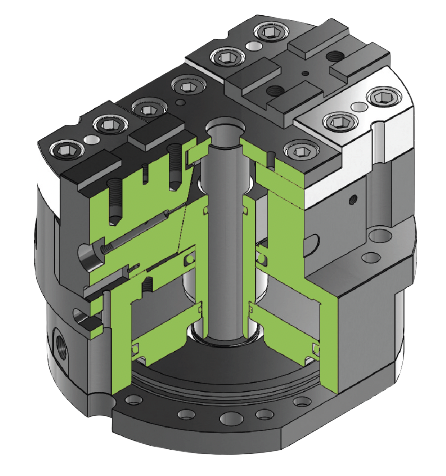

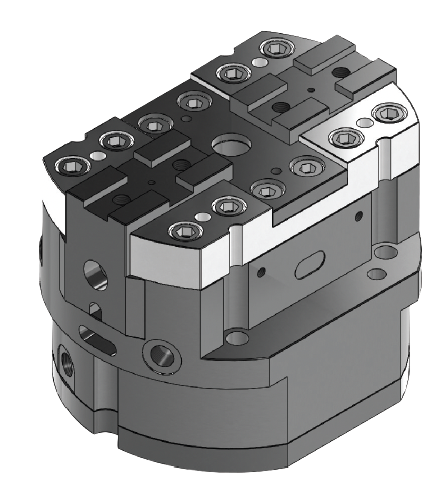

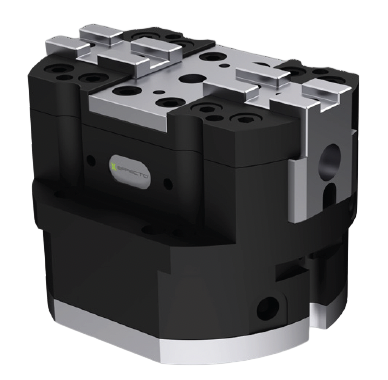

MP is a self-centering vise with wedge-hook mechanism and pneumatic drive for cycle time reduction. Used on machine tools and industrial equipment to clamp the workpiece with high precision. Also used on assembly machines for part clamping.
Advantages
- Precise wedge-hook mechanism allows machining accuracy.
- High force drive for secure clamping.
- Extended clamping range with long jaw guidance.
- Optimum jaw guides (hardened, sturdy, low-backlash) allow high clamping forces and a long service life.
- Lean outer contour for optimal accessibility of the machine spindle to the workpiece.
- Optimized lubrication system for consistently high clamping forces and long life.
- Base jaws with grooves for tongues.
- All functional parts hardened and ground to ensure high repeatability.
- Fluid Consumption Double Stroke
- 63.87 cm³3.90 in³
- Weight
- 2.00 kg4.41 lb
- Stroke Per Jaw
- 2.5 mm0.10 in
- Closing Force Per Jaw @ 9 Bar
- 2938 N660.4 lb
- Total Closing Force @ 9 Bar
- 5875 N1320.8 lb
- Pressure
- 6 - 9 bar87 - 130 psi
- Repeatability
- ±0.01 mm±0.0004 in
- Fluid Consumption Double Stroke
- 125.13 cm³7.64 in³
- Weight
- 4.40 kg9.70 lb
- Stroke Per Jaw
- 2.25 mm0.09 in
- Closing Force Per Jaw @ 9 Bar
- 6232 N1401.1 lb
- Total Closing Force @ 9 Bar
- 12464 N2802.2 lb
- Pressure
- 6 - 9 bar87 - 130 psi
- Repeatability
- ±0.01 mm±0.0004 in
- Fluid Consumption Double Stroke
- 248.55 cm³15.17 in³
- Weight
- 8.60 kg18.96 lb
- Stroke Per Jaw
- 3 mm0.12 in
- Closing Force Per Jaw @ 9 Bar
- 9695 N2179.7 lb
- Total Closing Force @ 9 Bar
- 19391 N4359.4 lb
- Pressure
- 6 - 9 bar87 - 130 psi
- Repeatability
- ±0.01 mm±0.0004 in
- Fluid Consumption Double Stroke
- 491.74 cm³30.01 in³
- Weight
- 15.10 kg33.29 lb
- Stroke Per Jaw
- 3.75 mm0.15 in
- Closing Force Per Jaw @ 9 Bar
- 14852 N3338.9 lb
- Total Closing Force @ 9 Bar
- 29704 N6677.7 lb
- Pressure
- 6 - 9 bar87 - 130 psi
- Repeatability
- ±0.01 mm±0.0004 in
