Automatic Vises

MPI

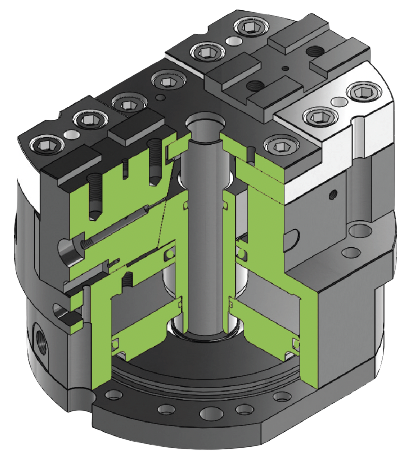

MPI is a 2-jaw self-centering vise with wedge-hook mechanism, operable hydraulically OR pneumatically — high flexibility, accuracy, and long life.

Models

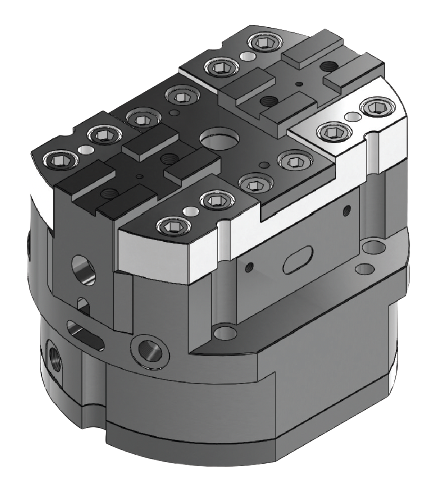

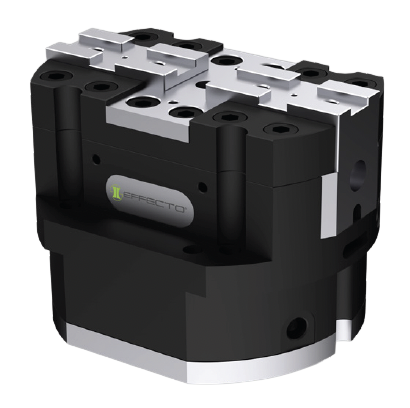

MPI is a hydraulically or pneumatically actuated 2-jaw self-centering vise with high flexibility, accuracy and long life. Available with standard stroke or long stroke.

Advantages

  • Precise wedge-hook mechanism allows machining accuracy.
  • High force drive for secure clamping.
  • Extended clamping range with long jaw guidance.
  • Optimum jaw guides (hardened, sturdy, low-backlash) allow high clamping forces and a long service life.
  • Lean outer contour for optimal accessibility of the machine spindle to the workpiece.
  • Pneumatic drive: 5 – 30 bar.
  • Hydraulic drive: up to 30, up to 60, or up to 200 bar.
  • Optimized lubrication system for consistently high clamping forces.
  • Base jaws for tongues and grooves.
  • All functional parts hardened and ground to ensure high repeatability.



Metric Imperial
Model & Description Data Sheet 2D Drawing 3D Model Fluid Consumption Double Stroke Weight Stroke Per Jaw Closing Force Per Jaw @ Max Pressure Closing Force Per Jaw @ 30 Bar Total Closing Force @ Max Pressure Total Closing Force @ 30 Bar Pressure Repeatability
MPI-52-U-3-C-30-N-B-S Short stroke version 10.1 cm³0.62 in³ 0.58 kg1.28 lb 3.1 mm0.12 in 1232 N276.9 lb 2464 N553.9 lb 5 - 30 bar73 - 435 psi ±0.01 mm±0.0004 in
MPI-52-U-5-C-30-N-B-S Long stroke version 10.1 cm³0.62 in³ 0.58 kg1.28 lb 5 mm0.20 in 781 N175.6 lb 1562 N351.2 lb 5 - 30 bar73 - 435 psi ±0.01 mm±0.0004 in
MPI-85-U-6-C-30-N-B-S Short stroke version 63.87 cm³3.90 in³ 2.00 kg4.41 lb 6.3 mm0.25 in 3993 N897.7 lb 7986 N1795.4 lb 5 - 30 bar73 - 435 psi ±0.01 mm±0.0004 in
MPI-85-U-10-C-30-N-B-S Long stroke version 63.87 cm³3.90 in³ 2.00 kg4.41 lb 10 mm0.39 in 2530 N568.8 lb 5060 N1137.6 lb 5 - 30 bar73 - 435 psi ±0.01 mm±0.0004 in
MPI85 – Short stroke (60 bar) Short stroke version 2.00 kg4.41 lb 6.3 mm0.25 in 3993 N897.7 lb 7986 N1795.4 lb 60 bar870.2 psi ±0.01 mm±0.0004 in
MPI85 – Long stroke (60 bar) Long stroke version 2.00 kg4.41 lb 10 mm0.39 in 2530 N568.8 lb 5060 N1137.6 lb 60 bar870.2 psi ±0.01 mm±0.0004 in
MPI-110-U-7-C-30-N-B-S Short stroke version 125.13 cm³7.64 in³ 4.40 kg9.70 lb 7 mm0.28 in 7035 N1581.6 lb 14069 N3163.0 lb 5 - 30 bar73 - 435 psi ±0.01 mm±0.0004 in
MPI-110-U-11-C-30-N-B-S Long stroke version 125.13 cm³7.64 in³ 4.40 kg9.70 lb 11.1 mm0.44 in 4461 N1002.9 lb 8921 N2005.6 lb 5 - 30 bar73 - 435 psi ±0.01 mm±0.0004 in
MPI110 – Short stroke (60 bar) Short stroke version 4.40 kg9.70 lb 7 mm0.28 in 7035 N1581.6 lb 14069 N3163.0 lb 60 bar870.2 psi ±0.01 mm±0.0004 in
MPI110 – Long stroke (60 bar) Long stroke version 4.40 kg9.70 lb 11.1 mm0.44 in 4461 N1002.9 lb 8921 N2005.6 lb 60 bar870.2 psi ±0.01 mm±0.0004 in
MPI-140-U-9-C-30-N-B-S Short stroke version 248.55 cm³15.17 in³ 8.60 kg18.96 lb 9 mm0.35 in 10940 N2459.5 lb 21879 N4918.8 lb 5 - 30 bar73 - 435 psi ±0.01 mm±0.0004 in
MPI-140-U-14-C-30-N-B-S Long stroke version 248.55 cm³15.17 in³ 8.60 kg18.96 lb 14.2 mm0.56 in 6930 N1558.0 lb 13860 N3116.0 lb 5 - 30 bar73 - 435 psi ±0.01 mm±0.0004 in
MPI140 – Short stroke (60 bar) Short stroke version 8.60 kg18.96 lb 9 mm0.35 in 10940 N2459.5 lb 21879 N4918.8 lb 60 bar870.2 psi ±0.01 mm±0.0004 in
MPI140 – Long stroke (60 bar) Long stroke version 8.60 kg18.96 lb 14.2 mm0.56 in 6930 N1558.0 lb 13860 N3116.0 lb 60 bar870.2 psi ±0.01 mm±0.0004 in
MPI-170-U-11-C-30-N-B-S Short stroke version 491.74 cm³30.01 in³ 15.10 kg33.29 lb 11.4 mm0.45 in 17089 N3842.0 lb 34177 N7683.7 lb 5 - 30 bar73 - 435 psi ±0.01 mm±0.0004 in
MPI-170-U-18-C-30-N-B-S Long stroke version 491.74 cm³30.01 in³ 15.10 kg33.29 lb 18 mm0.71 in 10830 N2434.8 lb 21659 N4869.4 lb 5 - 30 bar73 - 435 psi ±0.01 mm±0.0004 in
MPI170 – Short stroke (60 bar) Short stroke version 15.10 kg33.29 lb 11.4 mm0.45 in 17089 N3842.0 lb 34177 N7683.7 lb 60 bar870.2 psi ±0.01 mm±0.0004 in
MPI170 – Long stroke (60 bar) Long stroke version 15.10 kg33.29 lb 18 mm0.71 in 10830 N2434.8 lb 21659 N4869.4 lb 60 bar870.2 psi ±0.01 mm±0.0004 in
MPI250 – (60 bar) 231.77 cm³14.14 in³ 28.00 kg61.73 lb 11.4 mm0.45 in 16740 N3763.3 lb 33480 N7526.6 lb 9 - 60 bar131 - 870 psi ±0.01 mm±0.0004 in
MPI-52-U-3-C-30-N-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
10.1 cm³0.62 in³
Weight
0.58 kg1.28 lb
Stroke Per Jaw
3.1 mm0.12 in
Closing Force Per Jaw @ 30 Bar
1232 N276.9 lb
Total Closing Force @ 30 Bar
2464 N553.9 lb
Pressure
5 - 30 bar73 - 435 psi
Repeatability
±0.01 mm±0.0004 in
MPI-52-U-5-C-30-N-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
10.1 cm³0.62 in³
Weight
0.58 kg1.28 lb
Stroke Per Jaw
5 mm0.20 in
Closing Force Per Jaw @ 30 Bar
781 N175.6 lb
Total Closing Force @ 30 Bar
1562 N351.2 lb
Pressure
5 - 30 bar73 - 435 psi
Repeatability
±0.01 mm±0.0004 in
MPI-85-U-6-C-30-N-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
63.87 cm³3.90 in³
Weight
2.00 kg4.41 lb
Stroke Per Jaw
6.3 mm0.25 in
Closing Force Per Jaw @ 30 Bar
3993 N897.7 lb
Total Closing Force @ 30 Bar
7986 N1795.4 lb
Pressure
5 - 30 bar73 - 435 psi
Repeatability
±0.01 mm±0.0004 in
MPI-85-U-10-C-30-N-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
63.87 cm³3.90 in³
Weight
2.00 kg4.41 lb
Stroke Per Jaw
10 mm0.39 in
Closing Force Per Jaw @ 30 Bar
2530 N568.8 lb
Total Closing Force @ 30 Bar
5060 N1137.6 lb
Pressure
5 - 30 bar73 - 435 psi
Repeatability
±0.01 mm±0.0004 in
MPI85 – Short stroke (60 bar)

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
2.00 kg4.41 lb
Stroke Per Jaw
6.3 mm0.25 in
Closing Force Per Jaw @ Max Pressure
3993 N897.7 lb
Total Closing Force @ Max Pressure
7986 N1795.4 lb
Pressure
60 bar870.2 psi
Repeatability
±0.01 mm±0.0004 in
MPI85 – Long stroke (60 bar)

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
2.00 kg4.41 lb
Stroke Per Jaw
10 mm0.39 in
Closing Force Per Jaw @ Max Pressure
2530 N568.8 lb
Total Closing Force @ Max Pressure
5060 N1137.6 lb
Pressure
60 bar870.2 psi
Repeatability
±0.01 mm±0.0004 in
MPI-110-U-7-C-30-N-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
125.13 cm³7.64 in³
Weight
4.40 kg9.70 lb
Stroke Per Jaw
7 mm0.28 in
Closing Force Per Jaw @ 30 Bar
7035 N1581.6 lb
Total Closing Force @ 30 Bar
14069 N3163.0 lb
Pressure
5 - 30 bar73 - 435 psi
Repeatability
±0.01 mm±0.0004 in
MPI-110-U-11-C-30-N-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
125.13 cm³7.64 in³
Weight
4.40 kg9.70 lb
Stroke Per Jaw
11.1 mm0.44 in
Closing Force Per Jaw @ 30 Bar
4461 N1002.9 lb
Total Closing Force @ 30 Bar
8921 N2005.6 lb
Pressure
5 - 30 bar73 - 435 psi
Repeatability
±0.01 mm±0.0004 in
MPI110 – Short stroke (60 bar)

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
4.40 kg9.70 lb
Stroke Per Jaw
7 mm0.28 in
Closing Force Per Jaw @ Max Pressure
7035 N1581.6 lb
Total Closing Force @ Max Pressure
14069 N3163.0 lb
Pressure
60 bar870.2 psi
Repeatability
±0.01 mm±0.0004 in
MPI110 – Long stroke (60 bar)

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
4.40 kg9.70 lb
Stroke Per Jaw
11.1 mm0.44 in
Closing Force Per Jaw @ Max Pressure
4461 N1002.9 lb
Total Closing Force @ Max Pressure
8921 N2005.6 lb
Pressure
60 bar870.2 psi
Repeatability
±0.01 mm±0.0004 in
MPI-140-U-9-C-30-N-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
248.55 cm³15.17 in³
Weight
8.60 kg18.96 lb
Stroke Per Jaw
9 mm0.35 in
Closing Force Per Jaw @ 30 Bar
10940 N2459.5 lb
Total Closing Force @ 30 Bar
21879 N4918.8 lb
Pressure
5 - 30 bar73 - 435 psi
Repeatability
±0.01 mm±0.0004 in
MPI-140-U-14-C-30-N-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
248.55 cm³15.17 in³
Weight
8.60 kg18.96 lb
Stroke Per Jaw
14.2 mm0.56 in
Closing Force Per Jaw @ 30 Bar
6930 N1558.0 lb
Total Closing Force @ 30 Bar
13860 N3116.0 lb
Pressure
5 - 30 bar73 - 435 psi
Repeatability
±0.01 mm±0.0004 in
MPI140 – Short stroke (60 bar)

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
8.60 kg18.96 lb
Stroke Per Jaw
9 mm0.35 in
Closing Force Per Jaw @ Max Pressure
10940 N2459.5 lb
Total Closing Force @ Max Pressure
21879 N4918.8 lb
Pressure
60 bar870.2 psi
Repeatability
±0.01 mm±0.0004 in
MPI140 – Long stroke (60 bar)

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
8.60 kg18.96 lb
Stroke Per Jaw
14.2 mm0.56 in
Closing Force Per Jaw @ Max Pressure
6930 N1558.0 lb
Total Closing Force @ Max Pressure
13860 N3116.0 lb
Pressure
60 bar870.2 psi
Repeatability
±0.01 mm±0.0004 in
MPI-170-U-11-C-30-N-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
491.74 cm³30.01 in³
Weight
15.10 kg33.29 lb
Stroke Per Jaw
11.4 mm0.45 in
Closing Force Per Jaw @ 30 Bar
17089 N3842.0 lb
Total Closing Force @ 30 Bar
34177 N7683.7 lb
Pressure
5 - 30 bar73 - 435 psi
Repeatability
±0.01 mm±0.0004 in
MPI-170-U-18-C-30-N-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
491.74 cm³30.01 in³
Weight
15.10 kg33.29 lb
Stroke Per Jaw
18 mm0.71 in
Closing Force Per Jaw @ 30 Bar
10830 N2434.8 lb
Total Closing Force @ 30 Bar
21659 N4869.4 lb
Pressure
5 - 30 bar73 - 435 psi
Repeatability
±0.01 mm±0.0004 in
MPI170 – Short stroke (60 bar)

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
15.10 kg33.29 lb
Stroke Per Jaw
11.4 mm0.45 in
Closing Force Per Jaw @ Max Pressure
17089 N3842.0 lb
Total Closing Force @ Max Pressure
34177 N7683.7 lb
Pressure
60 bar870.2 psi
Repeatability
±0.01 mm±0.0004 in
MPI170 – Long stroke (60 bar)

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
15.10 kg33.29 lb
Stroke Per Jaw
18 mm0.71 in
Closing Force Per Jaw @ Max Pressure
10830 N2434.8 lb
Total Closing Force @ Max Pressure
21659 N4869.4 lb
Pressure
60 bar870.2 psi
Repeatability
±0.01 mm±0.0004 in
MPI250 – (60 bar)
Data Sheet
2D Drawing
3D Model
Fluid Consumption Double Stroke
231.77 cm³14.14 in³
Weight
28.00 kg61.73 lb
Stroke Per Jaw
11.4 mm0.45 in
Closing Force Per Jaw @ Max Pressure
16740 N3763.3 lb
Total Closing Force @ Max Pressure
33480 N7526.6 lb
Pressure
9 - 60 bar131 - 870 psi
Repeatability
±0.01 mm±0.0004 in

Versions available 30, 60 and 200 bar (hydraulic) / 5 - 30 bar (pneumatic)Ambient temperature 5 - 60 °CSound emissions (sound pressure) ≤ 70 dB(A) in each direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.

Related Products

Automatic Vises
MP

MP is a 2-jaw pneumatic self-centering vise with wedge-hook mechanism for cycle time reduction — used on machine tools, industrial equipment, and assembly machines.
Automatic Vises
UVP

UVP is a pneumatically actuated 2-jaw self-centering vise in compact design with high clamping force.
Automatic Vises
UVH

UVH is a hydraulically actuated 2-jaw self-centering vise in compact design with high clamping force.

Designs

Automatic vises combine a precise wedge-hook mechanism with a compact, cubic body built for accurate 6-sided machining.

Hardened, low-backlash jaw guides deliver high clamping force and long service life, while a low-profile design maximizes machine room and keeps the spindle fully accessible to the workpiece.

Downloads

Model & Description Data Sheet 2D Drawing 3D Model
MPI-52-U-3-C-30-N-B-S Short stroke version
MPI-52-U-5-C-30-N-B-S Long stroke version
MPI-85-U-6-C-30-N-B-S Short stroke version
MPI-85-U-10-C-30-N-B-S Long stroke version
MPI85 – Short stroke (60 bar) Short stroke version
MPI85 – Long stroke (60 bar) Long stroke version
MPI-110-U-7-C-30-N-B-S Short stroke version
MPI-110-U-11-C-30-N-B-S Long stroke version
MPI110 – Short stroke (60 bar) Short stroke version
MPI110 – Long stroke (60 bar) Long stroke version
MPI-140-U-9-C-30-N-B-S Short stroke version
MPI-140-U-14-C-30-N-B-S Long stroke version
MPI140 – Short stroke (60 bar) Short stroke version
MPI140 – Long stroke (60 bar) Long stroke version
MPI-170-U-11-C-30-N-B-S Short stroke version
MPI-170-U-18-C-30-N-B-S Long stroke version
MPI170 – Short stroke (60 bar) Short stroke version
MPI170 – Long stroke (60 bar) Long stroke version
MPI250 – (60 bar)
MPI-52-U-3-C-30-N-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
MPI-52-U-5-C-30-N-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
MPI-85-U-6-C-30-N-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
MPI-85-U-10-C-30-N-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
MPI85 – Short stroke (60 bar)

Short stroke version

Data Sheet
2D Drawing
3D Model
MPI85 – Long stroke (60 bar)

Long stroke version

Data Sheet
2D Drawing
3D Model
MPI-110-U-7-C-30-N-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
MPI-110-U-11-C-30-N-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
MPI110 – Short stroke (60 bar)

Short stroke version

Data Sheet
2D Drawing
3D Model
MPI110 – Long stroke (60 bar)

Long stroke version

Data Sheet
2D Drawing
3D Model
MPI-140-U-9-C-30-N-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
MPI-140-U-14-C-30-N-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
MPI140 – Short stroke (60 bar)

Short stroke version

Data Sheet
2D Drawing
3D Model
MPI140 – Long stroke (60 bar)

Long stroke version

Data Sheet
2D Drawing
3D Model
MPI-170-U-11-C-30-N-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
MPI-170-U-18-C-30-N-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
MPI170 – Short stroke (60 bar)

Short stroke version

Data Sheet
2D Drawing
3D Model
MPI170 – Long stroke (60 bar)

Long stroke version

Data Sheet
2D Drawing
3D Model
MPI250 – (60 bar)
Data Sheet
2D Drawing
3D Model

Connect with EFFECTO

Find the right tool for your application today

Request 3D Model Download

* Denotes Required Field
