Models

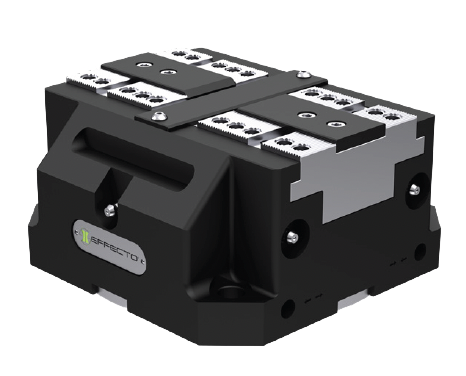

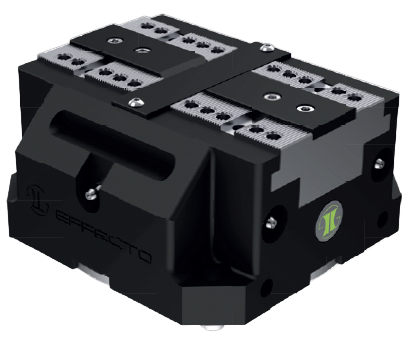

UVH is a hydraulically actuated 2-jaw self-centering vise in compact design with a high clamping force. Hydraulic drive sibling of the UVP family, suitable for higher pressure clamping in heavy-duty machining.
Advantages

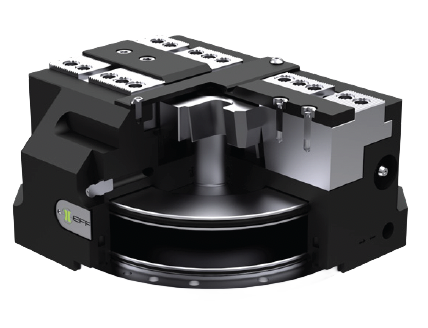

- Precise wedge-hook mechanism allows machining accuracy.
- High force drive for secure clamping.
- Extended clamping range with long jaw guidance.
- Optimum jaw guides (hardened, sturdy, low-backlash) allow high clamping forces and a long service life.
- Low profile: Maximum use of the machine room and excellent rigidity of the system.
- Lean outer contour for optimal accessibility of the machine spindle to the workpiece.
- Cubic design: ideal for 6-sided machining.
- Optimized lubrication system for consistently high clamping forces.
- Base jaws with tongue and groove or fine serration as standard for high flexibility of top jaws.
- All functional parts are hardened and ground to ensure a long service life.
Short stroke version
- Fluid Consumption Double Stroke
- 30 cm³1.83 in³
- Weight
- 5.00 kg11.00 lb
- Stroke Per Jaw
- 2 mm0.08 in
- Closing Force Per Jaw @ Max Pressure
- 8900 N2001.0 lb
- Total Closing Force @ Max Pressure
- 17800 N4001.6 lb
- Max Pressure
- 60 bar870.2 psi
- Clamping Accuracy
- ±0.02 mm±0.0008 in
- Closing / Opening Time
- 1 s
- Repeat Accuracy
- ±0.01 mm±0.0004 in
Short stroke version - Dowel pins
- 2D Drawing
- 3D Model
- Fluid Consumption Double Stroke
- 30 cm³1.83 in³
- Weight
- 5.00 kg11.00 lb
- Stroke Per Jaw
- 2 mm0.08 in
- Closing Force Per Jaw @ Max Pressure
- 8900 N2001.0 lb
- Total Closing Force @ Max Pressure
- 17800 N4001.6 lb
- Max Pressure
- 60 bar870.2 psi
- Clamping Accuracy
- ±0.01 mm±0.0004 in
- Closing / Opening Time
- 1 s
- Repeat Accuracy
- ±0.01 mm±0.0004 in
Long stroke version
- Fluid Consumption Double Stroke
- 30 cm³1.83 in³
- Weight
- 5.00 kg11.00 lb
- Stroke Per Jaw
- 6 mm0.24 in
- Closing Force Per Jaw @ Max Pressure
- 6680 N1501.7 lb
- Total Closing Force @ Max Pressure
- 13360 N3003.3 lb
- Max Pressure
- 120 bar1740.5 psi
- Clamping Accuracy
- ±0.02 mm±0.0008 in
- Closing / Opening Time
- 1 s
- Repeat Accuracy
- ±0.01 mm±0.0004 in
Long stroke version - Dowel pins
- 2D Drawing
- 3D Model
- Fluid Consumption Double Stroke
- 30 cm³1.83 in³
- Weight
- 5.00 kg11.00 lb
- Stroke Per Jaw
- 6 mm0.24 in
- Closing Force Per Jaw @ Max Pressure
- 6680 N1501.7 lb
- Total Closing Force @ Max Pressure
- 13360 N3003.3 lb
- Max Pressure
- 120 bar1740.5 psi
- Clamping Accuracy
- ±0.01 mm±0.0004 in
- Closing / Opening Time
- 1 s
- Repeat Accuracy
- ±0.01 mm±0.0004 in
Short stroke version
- 2D Drawing
- Fluid Consumption Double Stroke
- 56 cm³3.42 in³
- Weight
- 9.00 kg19.84 lb
- Stroke Per Jaw
- 3 mm0.12 in
- Closing Force Per Jaw @ Max Pressure
- 17800 N4001.6 lb
- Total Closing Force @ Max Pressure
- 35600 N8003.2 lb
- Max Pressure
- 60 bar870.2 psi
- Clamping Accuracy
- ±0.02 mm±0.0008 in
- Closing / Opening Time
- 1 s
- Repeat Accuracy
- ±0.01 mm±0.0004 in
Short stroke version - Dowel pins
- 2D Drawing
- 3D Model
- Fluid Consumption Double Stroke
- 56 cm³3.42 in³
- Weight
- 9.00 kg19.84 lb
- Stroke Per Jaw
- 3 mm0.12 in
- Closing Force Per Jaw @ Max Pressure
- 17800 N4001.6 lb
- Total Closing Force @ Max Pressure
- 35600 N8003.2 lb
- Max Pressure
- 60 bar870.2 psi
- Clamping Accuracy
- ±0.01 mm±0.0004 in
- Closing / Opening Time
- 1 s
- Repeat Accuracy
- ±0.01 mm±0.0004 in
Long stroke version
- Fluid Consumption Double Stroke
- 56 cm³3.42 in³
- Weight
- 9.00 kg19.84 lb
- Stroke Per Jaw
- 7 mm0.28 in
- Closing Force Per Jaw @ Max Pressure
- 16200 N3641.9 lb
- Total Closing Force @ Max Pressure
- 32400 N7283.8 lb
- Max Pressure
- 120 bar1740.5 psi
- Clamping Accuracy
- ±0.02 mm±0.0008 in
- Closing / Opening Time
- 1 s
- Repeat Accuracy
- ±0.01 mm±0.0004 in
Long stroke version - Dowel pins
- 2D Drawing
- 3D Model
- Fluid Consumption Double Stroke
- 56 cm³3.42 in³
- Weight
- 9.00 kg19.84 lb
- Stroke Per Jaw
- 7 mm0.28 in
- Closing Force Per Jaw @ Max Pressure
- 16200 N3641.9 lb
- Total Closing Force @ Max Pressure
- 32400 N7283.8 lb
- Max Pressure
- 120 bar1740.5 psi
- Clamping Accuracy
- ±0.01 mm±0.0004 in
- Closing / Opening Time
- 1 s
- Repeat Accuracy
- ±0.01 mm±0.0004 in
Short stroke version
- Fluid Consumption Double Stroke
- 100 cm³6.10 in³
- Weight
- 14.00 kg30.86 lb
- Stroke Per Jaw
- 3 mm0.12 in
- Closing Force Per Jaw @ Max Pressure
- 22500 N5058.2 lb
- Total Closing Force @ Max Pressure
- 45000 N10116.5 lb
- Max Pressure
- 60 bar870.2 psi
- Clamping Accuracy
- ±0.02 mm±0.0008 in
- Closing / Opening Time
- 1.5 s
- Repeat Accuracy
- ±0.01 mm±0.0004 in
Short stroke version - Dowel pins
- 2D Drawing
- 3D Model
- Fluid Consumption Double Stroke
- 100 cm³6.10 in³
- Weight
- 14.00 kg30.86 lb
- Stroke Per Jaw
- 3 mm0.12 in
- Closing Force Per Jaw @ Max Pressure
- 22500 N5058.2 lb
- Total Closing Force @ Max Pressure
- 45000 N10116.5 lb
- Max Pressure
- 60 bar870.2 psi
- Clamping Accuracy
- ±0.01 mm±0.0004 in
- Closing / Opening Time
- 1.5 s
- Repeat Accuracy
- ±0.01 mm±0.0004 in
Long stroke version
- Fluid Consumption Double Stroke
- 100 cm³6.10 in³
- Weight
- 14.00 kg30.86 lb
- Stroke Per Jaw
- 8 mm0.31 in
- Closing Force Per Jaw @ Max Pressure
- 19765 N4443.4 lb
- Total Closing Force @ Max Pressure
- 39530 N8886.7 lb
- Max Pressure
- 120 bar1740.5 psi
- Clamping Accuracy
- ±0.02 mm±0.0008 in
- Closing / Opening Time
- 1.5 s
- Repeat Accuracy
- ±0.01 mm±0.0004 in
Long stroke version - Dowel pins
- 2D Drawing
- 3D Model
- Fluid Consumption Double Stroke
- 100 cm³6.10 in³
- Weight
- 14.00 kg30.86 lb
- Stroke Per Jaw
- 8 mm0.31 in
- Closing Force Per Jaw @ Max Pressure
- 19765 N4443.4 lb
- Total Closing Force @ Max Pressure
- 39530 N8886.7 lb
- Max Pressure
- 120 bar1740.5 psi
- Clamping Accuracy
- ±0.01 mm±0.0004 in
- Closing / Opening Time
- 1.5 s
- Repeat Accuracy
- ±0.01 mm±0.0004 in
