Compliance Devices

CCR-LA

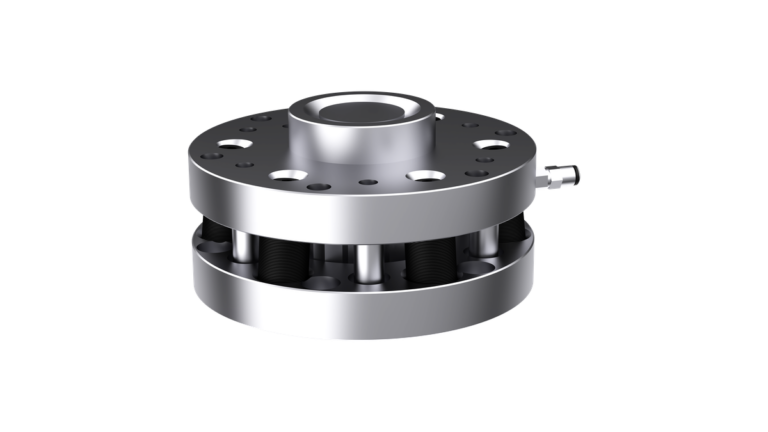

CCR-LA is a compliance device for assembly insertion — LA Series. Compensates for position, angular, and torsional errors during assembly of press-fit or loose-fit parts.

Models

Compliance devices compensate for errors (position and/or angular and/or torsional) occurred during an assembly where various precision parts are press or loose fitted into the holes. Thereby, it reduces assembly failure, enhances product quality, and shortens the cycle time in the production line.

Advantages

  • Significant reduction of assembly failure due to center position errors
  • Uniform press-fitting quality
  • Wide range of applications
  • Increased binding force between parts
  • Saves assembly line construction time, reduces equipment investment cost
  • Enhanced operation rate
  • Longer life cycle of the assembler
  • Simple maintenance
Metric Imperial
Model & Description Data Sheet 3D Model Payload Weight Allowable Maximum Force Compliance Center Length P Compensation Range: Position Error Compensation Range: Angle Compensation Range: Torsional Angle Elasticity Coefficient: Axial Direction (Compressional) Elasticity Coefficient: Axial Direction (Tensile) Elasticity Coefficient: Horizontal Direction Elasticity coefficient: Torsional Direction Tube External Diameter
CCR-LA6-060-060 19.6 N4.4 lbf 0.10 kg0.22 lb 353 N79.4 lbf 60 mm2.36 in ±2 mm±0.08 in ±2 ° ±6.0 ° 1180.9 N/mm6743.2 lbf/in 143.1 N/mm817.1 lbf/in 11.8 N/mm67.4 lbf/in 3.0 Nm/rad26.6 lbf·in/rad Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-070-065 19.6 N4.4 lbf 0.10 kg0.22 lb 471 N105.9 lbf 70 mm2.76 in ±2 mm±0.08 in ±2 ° ±6.6 ° 1180.9 N/mm6743.2 lbf/in 143.1 N/mm817.1 lbf/in 11.8 N/mm67.4 lbf/in 3.0 Nm/rad26.6 lbf·in/rad Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-080-070 26.5 N6.0 lbf 0.20 kg0.44 lb 471 N105.9 lbf 80 mm3.15 in ±2 mm±0.08 in ±2 ° ±6.2 ° 1573.9 N/mm8987.3 lbf/in 191.1 N/mm1091.2 lbf/in 11.8 N/mm67.4 lbf/in 4.2 Nm/rad37.2 lbf·in/rad Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-090-078 26.5 N6.0 lbf 0.20 kg0.44 lb 363 N81.6 lbf 90 mm3.54 in ±2 mm±0.08 in ±2 ° ±5.5 ° 1573.9 N/mm8987.3 lbf/in 191.1 N/mm1091.2 lbf/in 11.8 N/mm67.4 lbf/in 4.2 Nm/rad37.2 lbf·in/rad Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-100-084 37.3 N8.4 lbf 0.20 kg0.44 lb 363 N81.6 lbf 100 mm3.94 in ±2 mm±0.08 in ±2 ° ±5.0 ° 1217.2 N/mm6950.5 lbf/in 225.4 N/mm1287.1 lbf/in 12.4 N/mm70.8 lbf/in 6.1 Nm/rad54.0 lbf·in/rad Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-110-088 37.3 N8.4 lbf 0.30 kg0.66 lb 363 N81.6 lbf 110 mm4.33 in ±2 mm±0.08 in ±2 ° ±4.6 ° 1217.2 N/mm6950.5 lbf/in 225.4 N/mm1287.1 lbf/in 12.4 N/mm70.8 lbf/in 6.1 Nm/rad54.0 lbf·in/rad Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-120-095 37.8 N8.5 lbf 0.40 kg0.88 lb 363 N81.6 lbf 120 mm4.72 in ±2 mm±0.08 in ±2 ° ±5.1 ° 1217.2 N/mm6950.5 lbf/in 225.4 N/mm1287.1 lbf/in 12.4 N/mm70.8 lbf/in 7.0 Nm/rad62.0 lbf·in/rad Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-130-099 37.8 N8.5 lbf 0.40 kg0.88 lb 363 N81.6 lbf 130 mm5.12 in ±2 mm±0.08 in ±2 ° ±5.1 ° 1217.2 N/mm6950.5 lbf/in 225.4 N/mm1287.1 lbf/in 12.4 N/mm70.8 lbf/in 7.0 Nm/rad62.0 lbf·in/rad Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-140-108 37.8 N8.5 lbf 0.40 kg0.88 lb 549 N123.4 lbf 140 mm5.51 in ±2 mm±0.08 in ±2 ° ±4.8 ° 1217.2 N/mm6950.5 lbf/in 225.4 N/mm1287.1 lbf/in 12.4 N/mm70.8 lbf/in 7.0 Nm/rad62.0 lbf·in/rad Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-150-130 78.0 N17.5 lbf 0.50 kg1.10 lb 824 N185.2 lbf 150 mm5.91 in ±2 mm±0.08 in ±2 ° ±4.2 ° 1840.4 N/mm10509.1 lbf/in 407.7 N/mm2328.0 lbf/in 15.1 N/mm86.2 lbf/in 7.7 Nm/rad68.2 lbf·in/rad Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-060-060
Data Sheet
3D Model
Payload
19.6 N4.4 lbf
Weight
0.10 kg0.22 lb
Allowable Maximum Force
353 N79.4 lbf
Compliance Center Length P
60 mm2.36 in
Compensation Range: Position Error
±2 mm±0.08 in
Compensation Range: Angle
±2 °
Compensation Range: Torsional Angle
±6.0 °
Elasticity Coefficient: Axial Direction (Compressional)
1180.9 N/mm6743.2 lbf/in
Elasticity Coefficient: Axial Direction (Tensile)
143.1 N/mm817.1 lbf/in
Elasticity Coefficient: Horizontal Direction
11.8 N/mm67.4 lbf/in
Elasticity coefficient: Torsional Direction
3.0 Nm/rad26.6 lbf·in/rad
Tube External Diameter
Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-070-065
Data Sheet
3D Model
Payload
19.6 N4.4 lbf
Weight
0.10 kg0.22 lb
Allowable Maximum Force
471 N105.9 lbf
Compliance Center Length P
70 mm2.76 in
Compensation Range: Position Error
±2 mm±0.08 in
Compensation Range: Angle
±2 °
Compensation Range: Torsional Angle
±6.6 °
Elasticity Coefficient: Axial Direction (Compressional)
1180.9 N/mm6743.2 lbf/in
Elasticity Coefficient: Axial Direction (Tensile)
143.1 N/mm817.1 lbf/in
Elasticity Coefficient: Horizontal Direction
11.8 N/mm67.4 lbf/in
Elasticity coefficient: Torsional Direction
3.0 Nm/rad26.6 lbf·in/rad
Tube External Diameter
Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-080-070
Data Sheet
3D Model
Payload
26.5 N6.0 lbf
Weight
0.20 kg0.44 lb
Allowable Maximum Force
471 N105.9 lbf
Compliance Center Length P
80 mm3.15 in
Compensation Range: Position Error
±2 mm±0.08 in
Compensation Range: Angle
±2 °
Compensation Range: Torsional Angle
±6.2 °
Elasticity Coefficient: Axial Direction (Compressional)
1573.9 N/mm8987.3 lbf/in
Elasticity Coefficient: Axial Direction (Tensile)
191.1 N/mm1091.2 lbf/in
Elasticity Coefficient: Horizontal Direction
11.8 N/mm67.4 lbf/in
Elasticity coefficient: Torsional Direction
4.2 Nm/rad37.2 lbf·in/rad
Tube External Diameter
Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-090-078
Data Sheet
3D Model
Payload
26.5 N6.0 lbf
Weight
0.20 kg0.44 lb
Allowable Maximum Force
363 N81.6 lbf
Compliance Center Length P
90 mm3.54 in
Compensation Range: Position Error
±2 mm±0.08 in
Compensation Range: Angle
±2 °
Compensation Range: Torsional Angle
±5.5 °
Elasticity Coefficient: Axial Direction (Compressional)
1573.9 N/mm8987.3 lbf/in
Elasticity Coefficient: Axial Direction (Tensile)
191.1 N/mm1091.2 lbf/in
Elasticity Coefficient: Horizontal Direction
11.8 N/mm67.4 lbf/in
Elasticity coefficient: Torsional Direction
4.2 Nm/rad37.2 lbf·in/rad
Tube External Diameter
Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-100-084
Data Sheet
3D Model
Payload
37.3 N8.4 lbf
Weight
0.20 kg0.44 lb
Allowable Maximum Force
363 N81.6 lbf
Compliance Center Length P
100 mm3.94 in
Compensation Range: Position Error
±2 mm±0.08 in
Compensation Range: Angle
±2 °
Compensation Range: Torsional Angle
±5.0 °
Elasticity Coefficient: Axial Direction (Compressional)
1217.2 N/mm6950.5 lbf/in
Elasticity Coefficient: Axial Direction (Tensile)
225.4 N/mm1287.1 lbf/in
Elasticity Coefficient: Horizontal Direction
12.4 N/mm70.8 lbf/in
Elasticity coefficient: Torsional Direction
6.1 Nm/rad54.0 lbf·in/rad
Tube External Diameter
Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-110-088
Data Sheet
3D Model
Payload
37.3 N8.4 lbf
Weight
0.30 kg0.66 lb
Allowable Maximum Force
363 N81.6 lbf
Compliance Center Length P
110 mm4.33 in
Compensation Range: Position Error
±2 mm±0.08 in
Compensation Range: Angle
±2 °
Compensation Range: Torsional Angle
±4.6 °
Elasticity Coefficient: Axial Direction (Compressional)
1217.2 N/mm6950.5 lbf/in
Elasticity Coefficient: Axial Direction (Tensile)
225.4 N/mm1287.1 lbf/in
Elasticity Coefficient: Horizontal Direction
12.4 N/mm70.8 lbf/in
Elasticity coefficient: Torsional Direction
6.1 Nm/rad54.0 lbf·in/rad
Tube External Diameter
Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-120-095
Data Sheet
3D Model
Payload
37.8 N8.5 lbf
Weight
0.40 kg0.88 lb
Allowable Maximum Force
363 N81.6 lbf
Compliance Center Length P
120 mm4.72 in
Compensation Range: Position Error
±2 mm±0.08 in
Compensation Range: Angle
±2 °
Compensation Range: Torsional Angle
±5.1 °
Elasticity Coefficient: Axial Direction (Compressional)
1217.2 N/mm6950.5 lbf/in
Elasticity Coefficient: Axial Direction (Tensile)
225.4 N/mm1287.1 lbf/in
Elasticity Coefficient: Horizontal Direction
12.4 N/mm70.8 lbf/in
Elasticity coefficient: Torsional Direction
7.0 Nm/rad62.0 lbf·in/rad
Tube External Diameter
Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-130-099
Data Sheet
3D Model
Payload
37.8 N8.5 lbf
Weight
0.40 kg0.88 lb
Allowable Maximum Force
363 N81.6 lbf
Compliance Center Length P
130 mm5.12 in
Compensation Range: Position Error
±2 mm±0.08 in
Compensation Range: Angle
±2 °
Compensation Range: Torsional Angle
±5.1 °
Elasticity Coefficient: Axial Direction (Compressional)
1217.2 N/mm6950.5 lbf/in
Elasticity Coefficient: Axial Direction (Tensile)
225.4 N/mm1287.1 lbf/in
Elasticity Coefficient: Horizontal Direction
12.4 N/mm70.8 lbf/in
Elasticity coefficient: Torsional Direction
7.0 Nm/rad62.0 lbf·in/rad
Tube External Diameter
Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-140-108
Data Sheet
3D Model
Payload
37.8 N8.5 lbf
Weight
0.40 kg0.88 lb
Allowable Maximum Force
549 N123.4 lbf
Compliance Center Length P
140 mm5.51 in
Compensation Range: Position Error
±2 mm±0.08 in
Compensation Range: Angle
±2 °
Compensation Range: Torsional Angle
±4.8 °
Elasticity Coefficient: Axial Direction (Compressional)
1217.2 N/mm6950.5 lbf/in
Elasticity Coefficient: Axial Direction (Tensile)
225.4 N/mm1287.1 lbf/in
Elasticity Coefficient: Horizontal Direction
12.4 N/mm70.8 lbf/in
Elasticity coefficient: Torsional Direction
7.0 Nm/rad62.0 lbf·in/rad
Tube External Diameter
Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in
CCR-LA6-150-130
Data Sheet
3D Model
Payload
78.0 N17.5 lbf
Weight
0.50 kg1.10 lb
Allowable Maximum Force
824 N185.2 lbf
Compliance Center Length P
150 mm5.91 in
Compensation Range: Position Error
±2 mm±0.08 in
Compensation Range: Angle
±2 °
Compensation Range: Torsional Angle
±4.2 °
Elasticity Coefficient: Axial Direction (Compressional)
1840.4 N/mm10509.1 lbf/in
Elasticity Coefficient: Axial Direction (Tensile)
407.7 N/mm2328.0 lbf/in
Elasticity Coefficient: Horizontal Direction
15.1 N/mm86.2 lbf/in
Elasticity coefficient: Torsional Direction
7.7 Nm/rad68.2 lbf·in/rad
Tube External Diameter
Ø 4 mmØ 4 mmØ 0.16 inØ 0.16 in

Operating Temperature 5 - 60 °CThe dimensions and weights may vary slightly based on the specific configuration.

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.
