CNC-Flexicut

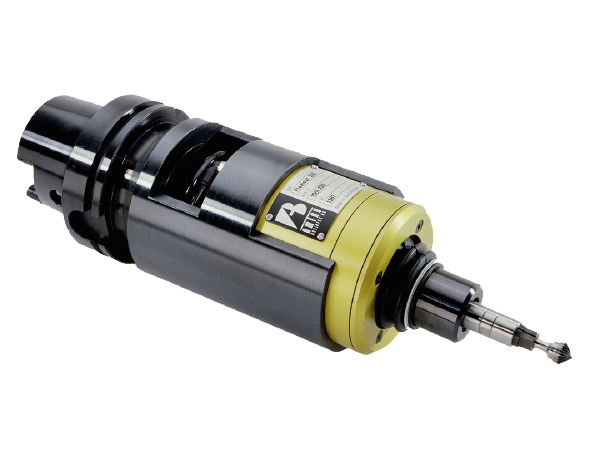

CNC-Flexicut 250 is a deburring tool for CNC machines that removes machining burrs, following the undefined edge between machined and raw surfaces and compensating edge deviations up to 8 mm.

Models Designs Downloads Videos

Models

CNC-Flexicut 250 is a deburring tool that removes the burrs in CNC machines generated by the machining process. It follows the undefined edges generated between machined and raw surface and can compensate edge deviations of up to 8 mm.

Advantages

A unique cardanic suspension of the spindle makes it possible to deburr around corners without changing the tool orientation. Pressure against the part is set by a pressure control valve, allowing variation of the chamfer width.
Driven by an air spindle; the high speed (35,000 rpm) allows high feed rates of up to 15 m/min.
Spindle driven by the air used to flush out the tool-taper and/or the cooling water line.
During the deburring process the main spindle of the machining center is standing still.
Can be stored in the normal toolrack.
Commercial milling inserts can be used, allowing deburring of all types of materials.

Model & Description	Weight	Tool Adapter	Powered by	Power	Idling Speed	Compliance Radial In All Directions	Compliance Torque @ 6 Bar	Compliance Force @ 6 Bar	Feed Forward Rate	Fluid Consumption	Collet
CNC-FLEXICUT 250-W25	4.90 kg10.80 lb	Weldon 25	Air motor	240 W	35000 rpm	±4.2° / ±8 mm (at collet)±4.2° / ±0.31 in (at collet)	1.04 Nm9.2 in-lb	8 N (at collet)1.8 lbf (at collet)	2 - 15 m/min	7.5 l/s	Ø6 mm
CNC-FLEXICUT 250-SK40	5.40 kg11.90 lb	SK 40	Air motor	240 W	35000 rpm	±4.2° / ±8 mm (at collet)±4.2° / ±0.31 in (at collet)	1.04 Nm9.2 in-lb	8 N (at collet)1.8 lbf (at collet)	2 - 15 m/min	7.5 l/s	Ø6 mm
CNC-FLEXICUT 250-SK50	7.60 kg16.76 lb	SK 50	Air motor	240 W	35000 rpm	±4.2° / ±8 mm (at collet)±4.2° / ±0.31 in (at collet)	1.04 Nm9.2 in-lb	8 N (at collet)1.8 lbf (at collet)	2 - 15 m/min	7.5 l/s	Ø6 mm
CNC-FLEXICUT 250-HSK63	5.30 kg11.68 lb	HSK 63	Air motor	240 W	35000 rpm	±4.2° / ±8 mm (at collet)±4.2° / ±0.31 in (at collet)	1.04 Nm9.2 in-lb	8 N (at collet)1.8 lbf (at collet)	2 - 15 m/min	7.5 l/s	Ø6 mm
CNC-FLEXICUT 250-HSK80	6.00 kg13.23 lb	HSK 80	Air motor	240 W	35000 rpm	±4.2° / ±8 mm (at collet)±4.2° / ±0.31 in (at collet)	1.04 Nm9.2 in-lb	8 N (at collet)1.8 lbf (at collet)	2 - 15 m/min	7.5 l/s	Ø6 mm
CNC-FLEXICUT 250-HSK100	7.00 kg15.43 lb	HSK 100	Air motor	240 W	35000 rpm	±4.2° / ±8 mm (at collet)±4.2° / ±0.31 in (at collet)	1.04 Nm9.2 in-lb	8 N (at collet)1.8 lbf (at collet)	2 - 15 m/min	7.5 l/s	Ø6 mm

CNC-FLEXICUT 250-W25

Data Sheet
Weight: 4.90 kg10.80 lb
Tool Adapter: Weldon 25
Powered by: Air motor
Power: 240 W
Idling Speed: 35000 rpm
Compliance Radial In All Directions: ±4.2° / ±8 mm (at collet)±4.2° / ±0.31 in (at collet)
Compliance Torque @ 6 Bar: 1.04 Nm9.2 in-lb
Compliance Force @ 6 Bar: 8 N (at collet)1.8 lbf (at collet)
Feed Forward Rate: 2 - 15 m/min
Fluid Consumption: 7.5 l/s
Collet: Ø6 mm

CNC-FLEXICUT 250-SK40

Data Sheet
Weight: 5.40 kg11.90 lb
Tool Adapter: SK 40
Powered by: Air motor
Power: 240 W
Idling Speed: 35000 rpm
Compliance Radial In All Directions: ±4.2° / ±8 mm (at collet)±4.2° / ±0.31 in (at collet)
Compliance Torque @ 6 Bar: 1.04 Nm9.2 in-lb
Compliance Force @ 6 Bar: 8 N (at collet)1.8 lbf (at collet)
Feed Forward Rate: 2 - 15 m/min
Fluid Consumption: 7.5 l/s
Collet: Ø6 mm

CNC-FLEXICUT 250-SK50

Data Sheet
Weight: 7.60 kg16.76 lb
Tool Adapter: SK 50
Powered by: Air motor
Power: 240 W
Idling Speed: 35000 rpm
Compliance Radial In All Directions: ±4.2° / ±8 mm (at collet)±4.2° / ±0.31 in (at collet)
Compliance Torque @ 6 Bar: 1.04 Nm9.2 in-lb
Compliance Force @ 6 Bar: 8 N (at collet)1.8 lbf (at collet)
Feed Forward Rate: 2 - 15 m/min
Fluid Consumption: 7.5 l/s
Collet: Ø6 mm

CNC-FLEXICUT 250-HSK63

Data Sheet
Weight: 5.30 kg11.68 lb
Tool Adapter: HSK 63
Powered by: Air motor
Power: 240 W
Idling Speed: 35000 rpm
Compliance Radial In All Directions: ±4.2° / ±8 mm (at collet)±4.2° / ±0.31 in (at collet)
Compliance Torque @ 6 Bar: 1.04 Nm9.2 in-lb
Compliance Force @ 6 Bar: 8 N (at collet)1.8 lbf (at collet)
Feed Forward Rate: 2 - 15 m/min
Fluid Consumption: 7.5 l/s
Collet: Ø6 mm

CNC-FLEXICUT 250-HSK80

Data Sheet
Weight: 6.00 kg13.23 lb
Tool Adapter: HSK 80
Powered by: Air motor
Power: 240 W
Idling Speed: 35000 rpm
Compliance Radial In All Directions: ±4.2° / ±8 mm (at collet)±4.2° / ±0.31 in (at collet)
Compliance Torque @ 6 Bar: 1.04 Nm9.2 in-lb
Compliance Force @ 6 Bar: 8 N (at collet)1.8 lbf (at collet)
Feed Forward Rate: 2 - 15 m/min
Fluid Consumption: 7.5 l/s
Collet: Ø6 mm

CNC-FLEXICUT 250-HSK100

Data Sheet
Weight: 7.00 kg15.43 lb
Tool Adapter: HSK 100
Powered by: Air motor
Power: 240 W
Idling Speed: 35000 rpm
Compliance Radial In All Directions: ±4.2° / ±8 mm (at collet)±4.2° / ±0.31 in (at collet)
Compliance Torque @ 6 Bar: 1.04 Nm9.2 in-lb
Compliance Force @ 6 Bar: 8 N (at collet)1.8 lbf (at collet)
Feed Forward Rate: 2 - 15 m/min
Fluid Consumption: 7.5 l/s
Collet: Ø6 mm

Related Products

Tooling for Machining Centers

Flexicut 12

Flexicut 12 is a deburring tool for CNC machines, powered by the machine's main spindle, that removes machining burrs along the undefined edge between machined and raw surfaces (compensating up to 6 mm).

Tooling for Machining Centers

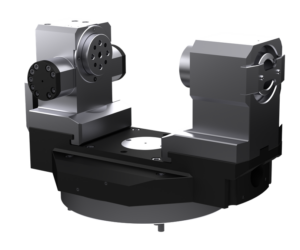

AIV

AIV is an automatic indexing vise for installation on the table of milling machining centers, with non-self-centering closure — intended as a static locking unit on CNC rotary tables.

Facing Heads

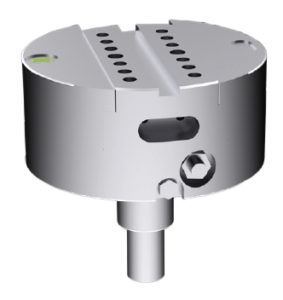

TRS

TRS is a single slide facing head with rigid design for low spindle needs.

Designs

Tooling for machine centers are built from hardened steel and designed to machine all four 90° faces of a workpiece, including the hidden face against the table, in a single setup and clamping.

Hydraulic open/close and rotation/indexing mechanisms work alongside a built-in position encoding device that verifies each of the four clamping positions against the CNC program, ensuring accuracy on both 3-axis and 5-axis machining centers.

Downloads

Model & Description	Data Sheet
CNC-FLEXICUT 250-W25
CNC-FLEXICUT 250-SK40
CNC-FLEXICUT 250-SK50
CNC-FLEXICUT 250-HSK63
CNC-FLEXICUT 250-HSK80
CNC-FLEXICUT 250-HSK100

CNC-FLEXICUT 250-W25

Data Sheet

CNC-FLEXICUT 250-SK40

Data Sheet

CNC-FLEXICUT 250-SK50

Data Sheet

CNC-FLEXICUT 250-HSK63

Data Sheet

CNC-FLEXICUT 250-HSK80

Data Sheet

CNC-FLEXICUT 250-HSK100

Data Sheet

Videos

Entgraten im BZ mit CNC Flexicut 250; Deburring in MC with CNC-Flexicut 250
