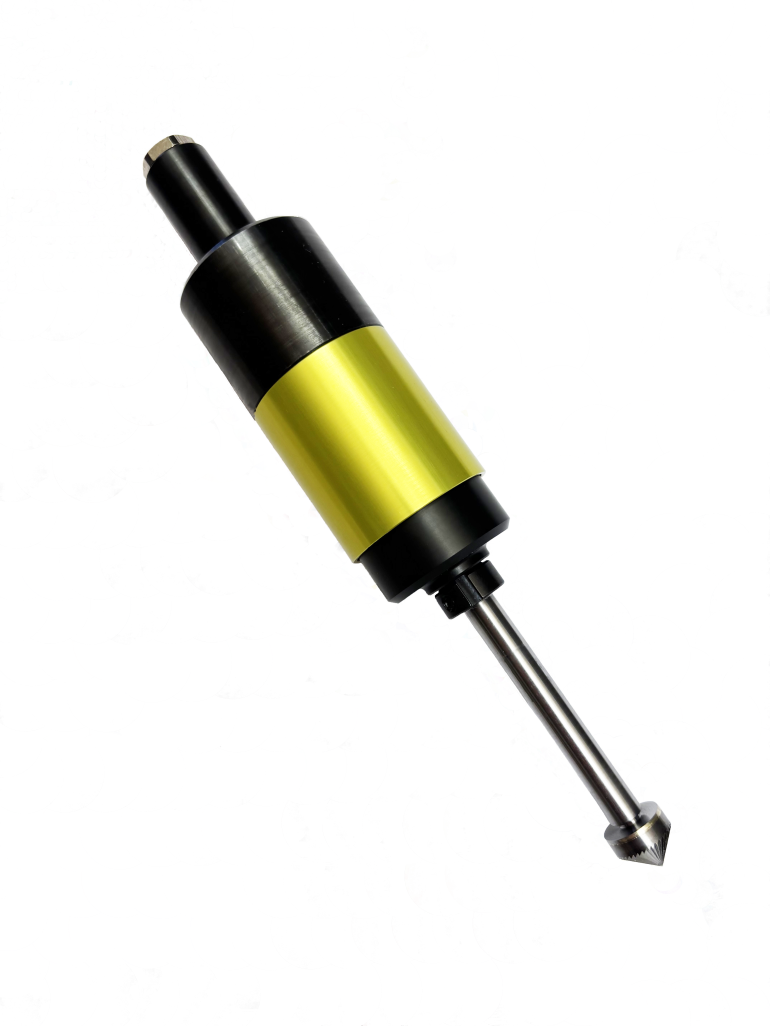

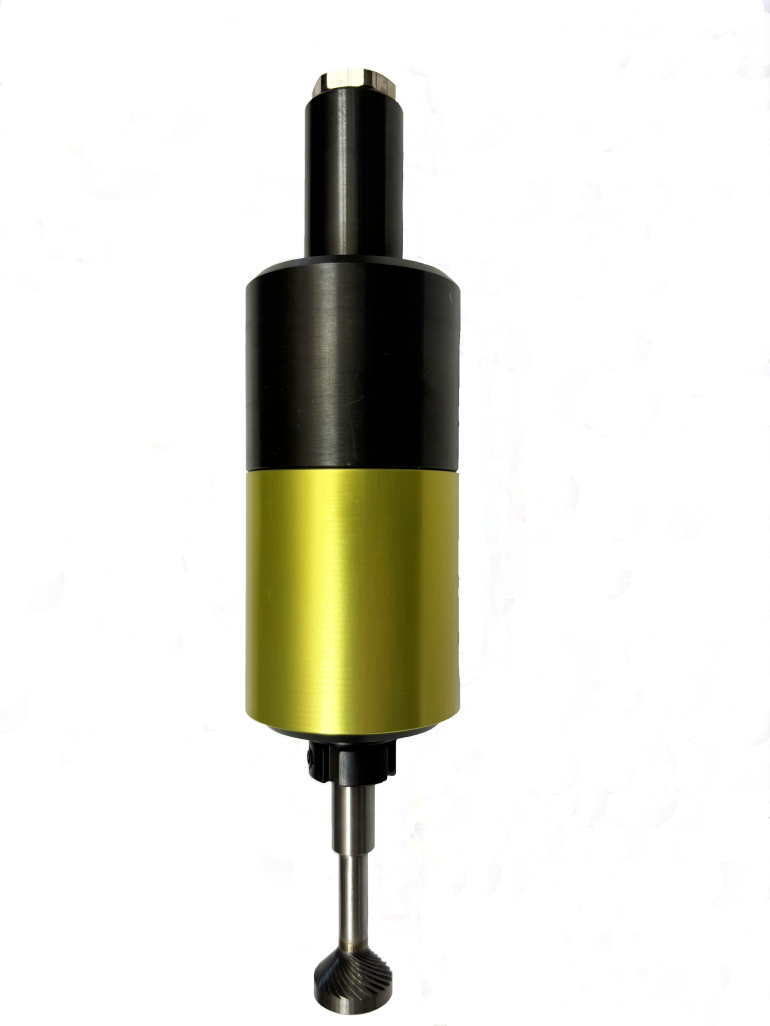

The Flexicut 12 is a deburring tool that removes the burrs in CNC machines generated by the machining process. It follows the undefined edges generated between machined and raw surface.
Advantages
- Edge deviations of up to 6 mm can be compensated.
- By changing the feed rate, the chamfer width can be made bigger or smaller.
- Driven by the main spindle of the machining center.
- Stored in the regular tool-rack.
- Various types of milling cutters for different types of materials are available.
- Weight
- 0.90 kg1.98 lb
- Tool Adapter
- Cylinder shaft Ø20h6 x 36 mm for collet chuck
- Powered by
- Main spindle of machining center
- Compliance Force @ 6 Bar
- 12 N2.7 lbf
- Feed Forward Rate
- 2 - 15 m/min
- Max. Speed
- 15000 rpm
- Compliance Range
- 6 mm0.24 in
- Burrs (selectable)
- Carbide burr cone shape 90°, Ø16 mm, cut 2 or cut 3 or cut 5
