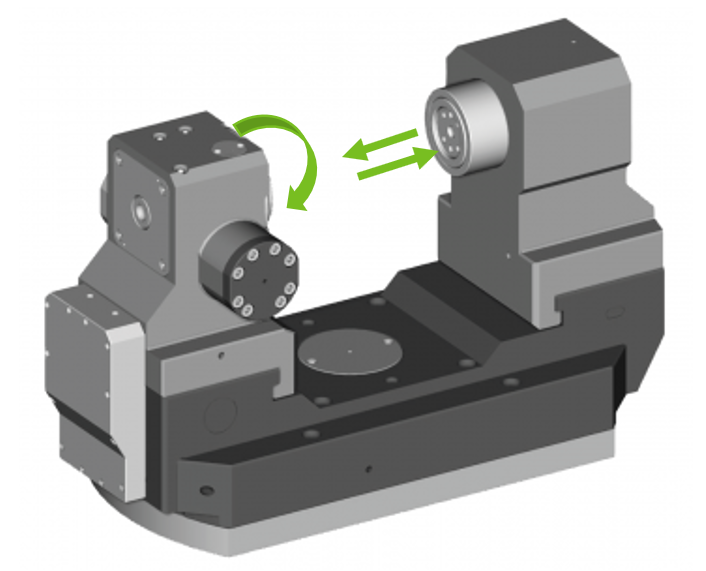

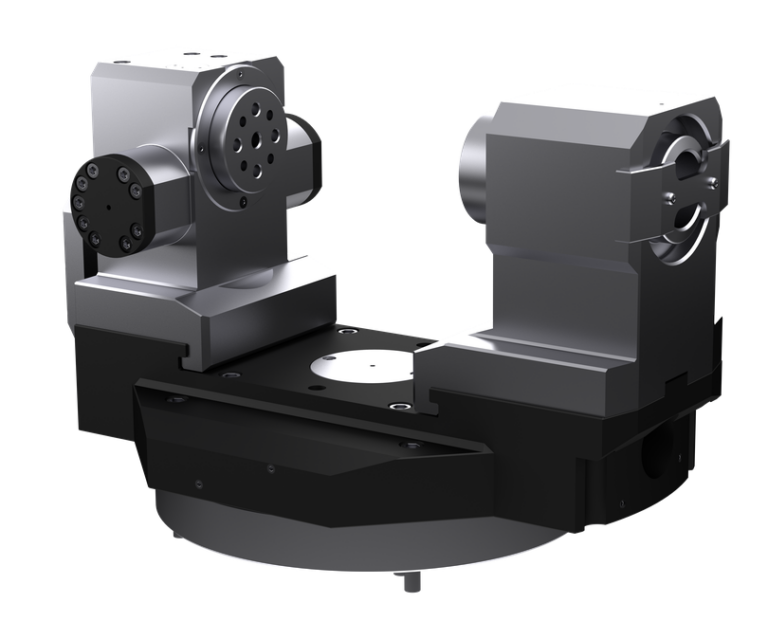

The AIV indexing vise is a specific product for installation on the table of milling machining centers, with non-self-centering closure. These vises are exclusively intended for use as a static locking unit (mounting on CNC rotary tables, with rotating tools); they cannot be used for turning operations with high rotation speed.
Advantages
- Allows complete processing, in a single loading and with a single locking, of four faces arranged at 90° (typical of valve bodies, for example) — including the hidden face facing the table — reducing processing time and improving accuracy.
- Can be applied on 3-axis machine tools; application on 5-axis machines is the best solution, also allowing machining of parts with complex shapes.
- Made of steel with hardening treatments.
- Incorporates a coding device for the 4 indexing positions, to check the working position matches the CNC program.
- Precision and reliability: the vise is built with special types of treated steel; the know-how gained by Effecto in 55 years of presence on the market as manufacturer of precision vices and indexing chucks is the best guarantee.
- Weight
- 135.00 kg297.62 lb
- Stroke Per Jaw
- 40 mm1.57 in
- Max. Closing Pressure
- 50 bar725.2 psi
- Closing Force
- 21000 N4721.0 lbf
- Repeat Accuracy
- ±0.01 mm±0.0004 in
- Weight
- 185.00 kg407.85 lb
- Stroke Per Jaw
- 40 mm1.57 in
- Max. Closing Pressure
- 50 bar725.2 psi
- Closing Force
- 21000 N4721.0 lbf
- Repeat Accuracy
- ±0.01 mm±0.0004 in
