Facing Heads

TRS

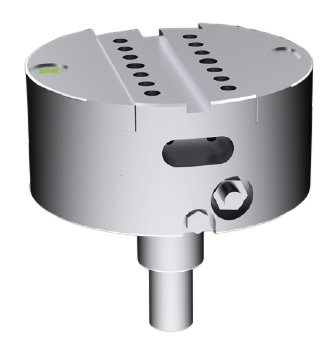

TRS is a single slide facing head with rigid design for low spindle needs.

Models

TRS is a single slide facing head with rigid design for low spindle needs.

Advantages

  • Large tool mount surface.
  • Minimum backlash.
  • Low coefficient of friction.
  • Adaptor plate (for DIN2079 spindle) on request.
  • Driven mechanically, with hydraulic or NC electromechanical cylinder, through drawbar (not supplied parts).



Metric Imperial
Model & Description Data Sheet 3D Model Weight Diameter Slide Stroke Hub Stroke Rack Angle Stroke Ratio (Approx.)
TRS 100-K1 Long stroke version 3.3 kg7.28 lb 100 mm3.94 in 17 mm0.67 in 20.3 mm0.80 in 40° 1.2:1
TRS 100-K2 Short stroke version 3.3 kg7.28 lb 100 mm3.94 in 10 mm0.39 in 19.7 mm0.78 in 27° 2:1
TRS 125-K1 Long stroke version 4.6 kg10.14 lb 125 mm4.92 in 22 mm0.87 in 26.2 mm1.03 in 40° 1.2:1
TRS 125-K2 Short stroke version 4.6 kg10.14 lb 125 mm4.92 in 13 mm0.51 in 25.6 mm1.01 in 27° 2:1
TRS 160-K1 Long stroke version 11.7 kg25.79 lb 160 mm6.30 in 30 mm1.18 in 35.7 mm1.41 in 40° 1.2:1
TRS 160-K2 Short stroke version 11.7 kg25.79 lb 160 mm6.30 in 18 mm0.71 in 35.4 mm1.39 in 27° 2:1
TRS 100-K1

Long stroke version

Data Sheet
3D Model
Weight
3.3 kg7.28 lb
Diameter
100 mm3.94 in
Slide Stroke
17 mm0.67 in
Hub Stroke
20.3 mm0.80 in
Rack Angle
40°
Stroke Ratio (Approx.)
1.2:1
TRS 100-K2

Short stroke version

Data Sheet
3D Model
Weight
3.3 kg7.28 lb
Diameter
100 mm3.94 in
Slide Stroke
10 mm0.39 in
Hub Stroke
19.7 mm0.78 in
Rack Angle
27°
Stroke Ratio (Approx.)
2:1
TRS 125-K1

Long stroke version

Data Sheet
3D Model
Weight
4.6 kg10.14 lb
Diameter
125 mm4.92 in
Slide Stroke
22 mm0.87 in
Hub Stroke
26.2 mm1.03 in
Rack Angle
40°
Stroke Ratio (Approx.)
1.2:1
TRS 125-K2

Short stroke version

Data Sheet
3D Model
Weight
4.6 kg10.14 lb
Diameter
125 mm4.92 in
Slide Stroke
13 mm0.51 in
Hub Stroke
25.6 mm1.01 in
Rack Angle
27°
Stroke Ratio (Approx.)
2:1
TRS 160-K1

Long stroke version

Data Sheet
3D Model
Weight
11.7 kg25.79 lb
Diameter
160 mm6.30 in
Slide Stroke
30 mm1.18 in
Hub Stroke
35.7 mm1.41 in
Rack Angle
40°
Stroke Ratio (Approx.)
1.2:1
TRS 160-K2

Short stroke version

Data Sheet
3D Model
Weight
11.7 kg25.79 lb
Diameter
160 mm6.30 in
Slide Stroke
18 mm0.71 in
Hub Stroke
35.4 mm1.39 in
Rack Angle
27°
Stroke Ratio (Approx.)
2:1

Working Temperature 5 - 60 °C (41 - 140 °F)

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.

Related Products

Facing Heads
TRD

TRD is a double slide facing head with rigid design for low spindle needs.
Automatic Vises
HIR

HIR is a 2-jaw hydraulic self-centering vise designed to be embedded in the machine table to reduce space and increase rigidity.

Designs

Facing heads use a twin slide design built for rigidity at low spindle speeds, with large tool mounting surfaces and minimal backlash for precise groove and profile work.

A low-friction rack-and-slide mechanism, available in 40° or 27° configurations, is driven through a drawbar via hydraulic or NC electromechanical cylinder, enabling accurate exterior and interior machining on transfer machines.
