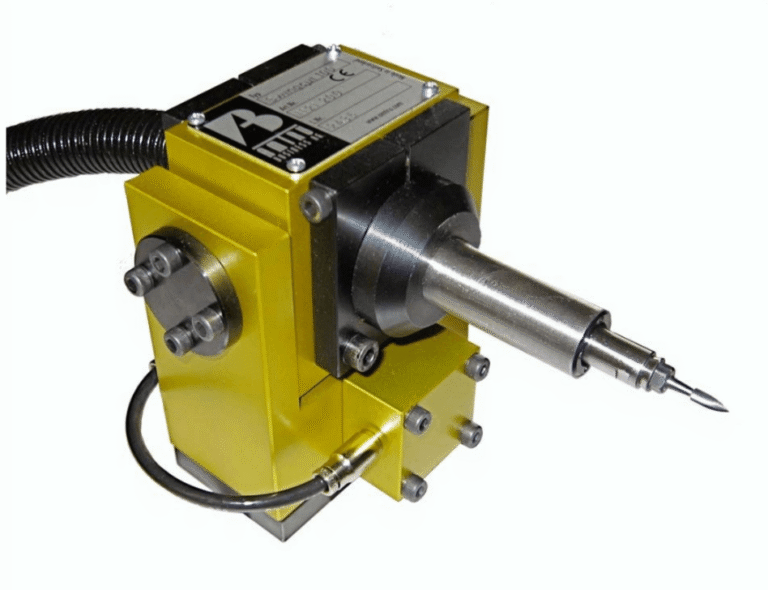

Swingcut is a pneumatic robotic milling tool with pendulous (swinging) compliance for adaptive contact during deburring/finishing operations.
Advantages
- Float-compensation system absorbs path deviations to maintain consistent tool engagement.
- Robotic-mounted design for integration in automated cells.
- Compatible with the full Amtru/Effecto tool changer ecosystem.
- Available in multiple sizes/power ratings to match application requirements.
- Designed for long service life in industrial deburring/grinding environments.
Pneumatic- Pendulous Compliance
- Weight
- 1.40 kg3.09 lb
- Power
- 100 W
- Idling Speed
- 85000 rpm
- Compliance Radial in All Directions
- ±3.8° / ±6 mm±3.8° / ±0.24 in
- Compliance torque @ 6 bar
- 0.9 Nm8.0 in-lb
- Compliance force @ 6 bar
- 10 N2.2 lbf
- Feed Forward Rate
- 5 - 200 mm/s0.20 - 7.87 in/s
- Fluid Consumption
- 2.8 l/s5.9 cfm
- Collet
- Ø 3 mm
Pneumatic- Pendulous Compliance
- Data Sheet
- Weight
- 2.20 kg4.85 lb
- Power
- 240 W
- Idling Speed
- 35000 rpm
- Compliance Radial in All Directions
- ±3.8° / ±8.5 mm±3.8° / ±0.33 in
- Compliance torque @ 6 bar
- 2.4 Nm21.2 in-lb
- Compliance force @ 6 bar
- 19 N4.3 lbf
- Feed Forward Rate
- 5 - 250 mm/s0.20 - 9.84 in/s
- Fluid Consumption
- 7.5 l/s15.9 cfm
- Collet
- Ø 6 mm
Pneumatic- Pendulous Compliance
- Weight
- 2.50 kg5.51 lb
- Power
- 600 W
- Idling Speed
- 15000 rpm
- Compliance Radial in All Directions
- ± 3.8°± 3.8°
- Compliance torque @ 6 bar
- 2.4 Nm21.2 in-lb
- Compliance force @ 6 bar
- 19 N4.3 lbf
- Feed Forward Rate
- 5 - 250 mm/s0.20 - 9.84 in/s
- Fluid Consumption
- 17.5 l/s37.1 cfm
- Collet
- Ø 6 mm
Pneumatic- Pendulous Compliance
- Weight
- 7.60 kg16.76 lb
- Power
- 1300 W
- Idling Speed
- 25000 rpm
- Compliance Radial in All Directions
- ±3.8° / ±15 mm±3.8° / ±0.59 in
- Compliance torque @ 6 bar
- 26 Nm230.1 in-lb
- Compliance force @ 6 bar
- 112 N25.2 lbf
- Feed Forward Rate
- 10 - 300 mm/s0.39 - 11.81 in/s
- Fluid Consumption
- 28 l/s59.3 cfm
- Collet
- Ø 8 mm
Electric - Pendulous Compliance
- Weight
- 2.60 kg5.73 lb
- Power
- 300 W
- Compliance Radial in All Directions
- ± 3.8° / ± 8.5 mm (at collet)± 3.8° / ± 0.33 in (at collet)
- Compliance torque @ 6 bar
- 2.4 Nm21.2 in-lb
- Compliance force @ 6 bar
- 19 N (at collet)4.3 lbf (at collet)
- Feed Forward Rate
- 5 - 250 mm/s0.20 - 9.84 in/s
- Collet
- Ø6 mm
- Rated Speed
- 35000 rpm
- Maximal Speed
- 60000 rpm
