Models

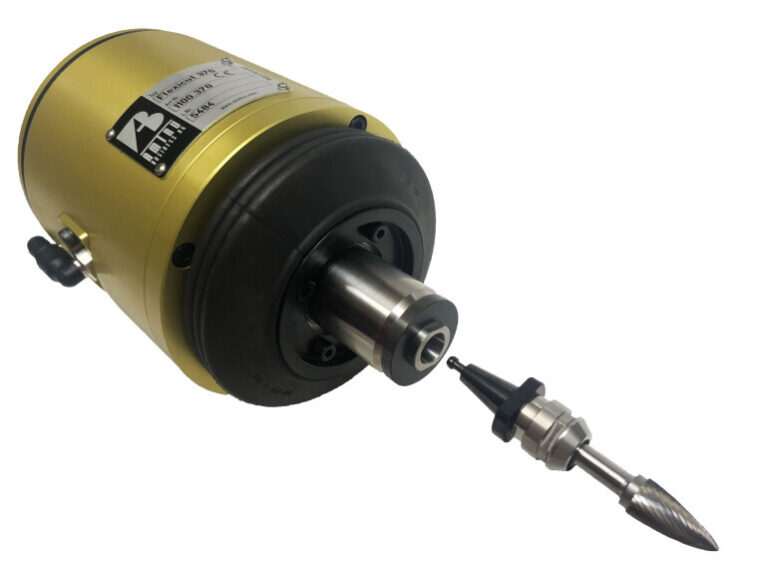

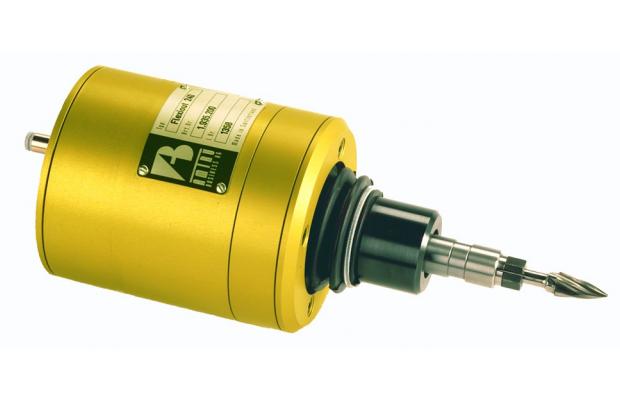

Flexicut is a pneumatic robotic milling and cutting tool with radial compliance for adaptive contact during deburring/finishing operations.
Advantages
- Float-compensation system absorbs path deviations to maintain consistent tool engagement.
- Robotic-mounted design for integration in automated cells.
- Compatible with the full Amtru/Effecto tool changer ecosystem.
- Available in multiple sizes/power ratings to match application requirements.
- Designed for long service life in industrial deburring/grinding environments.
Pneumatic- Radial Compliance
- Weight
- 1.76 kg3.88 lb
- Power
- 100 W
- Idling Speed
- 85000 rpm
- Compliance Radial in All Directions
- ±2.5° / ±5 mm±2.5° / ±0.20 in
- Compliance torque @ 6 bar
- 0.40 Nm3.5 in-lb
- Compliance force @ 6 bar
- 3 N0.8 lbf
- Feed Forward Rate
- 5 - 200 mm/s0.20 - 7.87 in/s
- Fluid Consumption
- 2.8 l/s5.9 cfm
- Collet
- Ø3 mm
Pneumatic- Radial Compliance
- Weight
- 2.60 kg5.73 lb
- Power
- 240 W
- Idling Speed
- 35000 rpm
- Compliance Radial in All Directions
- ±4.2° / ±8 mm±4.2° / ±0.31 in
- Compliance torque @ 6 bar
- 1.04 Nm9.2 in-lb
- Compliance force @ 6 bar
- 5 N1.1 lbf
- Feed Forward Rate
- 5 - 250 mm/s0.20 - 9.84 in/s
- Fluid Consumption
- 7.5 l/s15.9 cfm
- Collet
- Ø6 mm
Pneumatic- Radial Compliance
- Weight
- 12.00 kg26.46 lb
- Power
- 1000 W
- Idling Speed
- 25000 rpm
- Compliance Radial in All Directions
- ±3.5° / ±13 mm±3.5° / ±0.51 in
- Compliance torque @ 6 bar
- 10.00 Nm88.5 in-lb
- Compliance force @ 6 bar
- 60 N13.5 lbf
- Feed Forward Rate
- 10 - 300 mm/s0.39 - 11.81 in/s
- Fluid Consumption
- 26.0 l/s55.1 cfm
- Collet
- Ø8 mm
Pneumatic- Radial Compliance
- Weight
- 7.30 kg16.09 lb
- Power
- 1000 W
- Idling Speed
- 25000 rpm
- Compliance Radial in All Directions
- ±3.2° / ±16 mm±3.2° / ±0.63 in
- Compliance torque @ 6 bar
- 0 - 30 Nm0.0 - 265.5 in-lb
- Compliance force @ 6 bar
- 109 N24.5 lbf
- Feed Forward Rate
- 10 - 300 mm/s0.39 - 11.81 in/s
- Fluid Consumption
- 26.0 l/s55.1 cfm
- Collet
- Ø8 mm
Pneumatic- Radial Compliance
- Weight
- 18.00 kg39.68 lb
- Power
- 1300 W
- Idling Speed
- 25000 rpm
- Compliance Radial in All Directions
- ±5° / ±22 mm±5° / ±0.87 in
- Compliance torque @ 6 bar
- 71.00 Nm628.4 in-lb
- Compliance force @ 6 bar
- 250 N56.2 lbf
- Feed Forward Rate
- 10 - 300 mm/s0.39 - 11.81 in/s
- Fluid Consumption
- 26.0 l/s55.1 cfm
- Collet
- Ø8 mm
Electric - Radial Compliance
- Weight
- 2.60 kg5.73 lb
- Power
- 300 W
- Idling Speed
- 35000 rpm
- Compliance Radial in All Directions
- ± 4.2° / ± 8 mm± 4.2° / ± 0.31 in
- Compliance torque @ 6 bar
- 1.04 Nm9.2 in-lb
- Compliance force @ 6 bar
- 8 N1.8 lbf
- Feed Forward Rate
- 5 - 250 mm/s0.20 - 9.84 in/s
- Collet
- Ø6 mm
Electric - Radial Compliance
- Weight
- 18.00 kg39.68 lb
- Power
- 2600 W
- Idling Speed
- 30000 rpm
- Compliance Radial in All Directions
- ±3.2° / ±14 mm±3.2° / ±0.55 in
- Compliance torque @ 6 bar
- 0 - 30 Nm0.0 - 265.5 in-lb
- Compliance force @ 6 bar
- 250 N56.2 lbf
- Feed Forward Rate
- 10 - 300 mm/s0.39 - 11.81 in/s
- Collet
- Ø8 mm
