Models

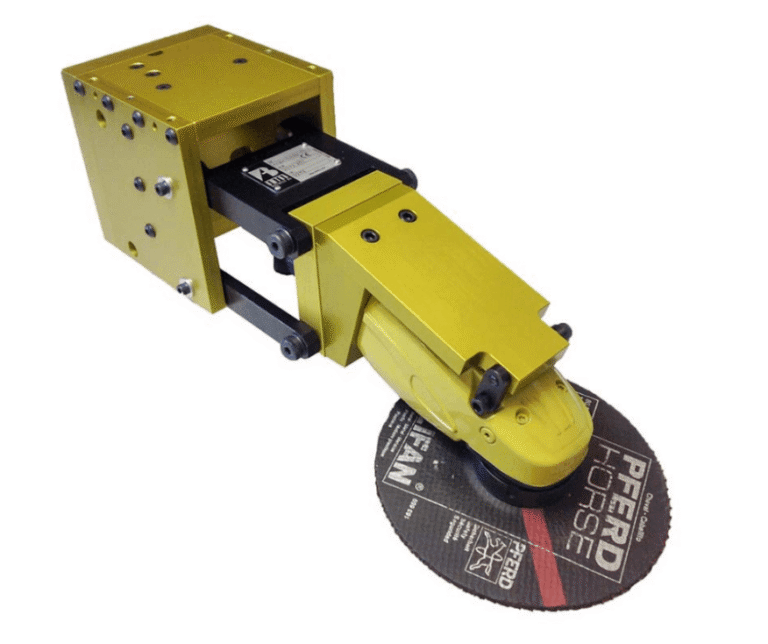

Angle-Grinder is a pneumatic robotic angle grinding tool with radial compliance for adaptive contact during deburring/finishing operations.
Advantages
- Float-compensation system absorbs path deviations to maintain consistent tool engagement.
- Robotic-mounted design for integration in automated cells.
- Compatible with the full Amtru/Effecto tool changer ecosystem.
- Available in multiple sizes/power ratings to match application requirements.
- Designed for long service life in industrial deburring/grinding environments.
Pneumatic- Radial Compliance
- Weight
- 6.70 kg14.77 lb
- Power
- 2.5 kW
- Idling Speed
- 12000 rpm
- Compliance force @ 6 bar
- 140 N31.5 lbf
- Feed Forward Rate
- 50 - 200 mm/s1.97 - 7.87 in/s
- Fluid Consumption
- 32 l/s67.8 cfm
- Compliance Movement
- 34 mm (axial)1.34 in (axial)
- Wheel Diameter
- max 125 mmmax 4.92 in
- Wheel Centering
- Ø 7/8"
Pneumatic- Radial Compliance
- Weight
- 6.70 kg14.77 lb
- Power
- 2.5 kW
- Idling Speed
- 8500 rpm
- Compliance force @ 6 bar
- 140 N31.5 lbf
- Feed Forward Rate
- 50 - 200 mm/s1.97 - 7.87 in/s
- Fluid Consumption
- 32 l/s67.8 cfm
- Compliance Movement
- 34 mm (axial)1.34 in (axial)
- Wheel Diameter
- max 180 mmmax 7.09 in
- Wheel Centering
- Ø 7/8"
Pneumatic- Radial Compliance
- Weight
- 8.40 kg18.52 lb
- Power
- 4.5 kW
- Idling Speed
- 8500 rpm
- Compliance force @ 6 bar
- 123 N27.7 lbf
- Feed Forward Rate
- 50 - 200 mm/s1.97 - 7.87 in/s
- Fluid Consumption
- 60 l/s127.1 cfm
- Compliance Movement
- 34 mm (axial)1.34 in (axial)
- Wheel Diameter
- max 180 mmmax 7.09 in
- Wheel Centering
- Ø 7/8"
Pneumatic- Radial Compliance
- Weight
- 8.40 kg18.52 lb
- Power
- 4.5 kW
- Idling Speed
- 6600 rpm
- Compliance force @ 6 bar
- 114 N25.7 lbf
- Feed Forward Rate
- 50 - 200 mm/s1.97 - 7.87 in/s
- Fluid Consumption
- 60 l/s127.1 cfm
- Compliance Movement
- 34 mm (axial)1.34 in (axial)
- Wheel Diameter
- max 230 mmmax 9.06 in
- Wheel Centering
- Ø 7/8"
