ECG2

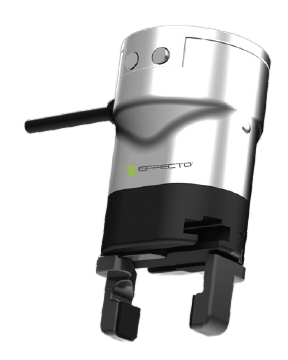

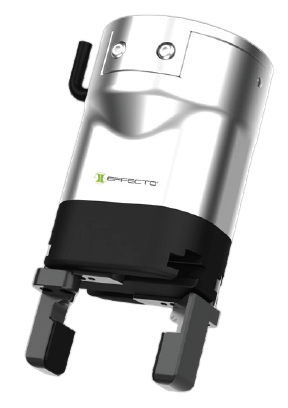

ECG2 is a collaborative electric 2-finger parallel gripper equipped with symmetrically parallel fingers, with smooth body and rounded edges ideal for collaborative robotic applications.

Models

ECG2 is a collaborative 2-finger parallel gripper that is equipped with symmetrically parallel fingers.

Advantages

  • Compact design
  • Smooth body with rounded edges ideal for collaborative applications
  • Grip control: force and position adjustment
  • Quick open/close time with speed adjustment
  • Grip feedback and part detection: gripper status can be read at the PLC/Controller and visualized on the unit via LEDs
  • Plug and play: mechanical and software interface for major cobot manufacturers
  • Multiple communication modes: Modbus RTU and I/O standard; USB and Ethernet via protocol converter
  • ROS compatible
  • Designed for harsh environments
  • Grip actuation via embedded controller
  • Brake locking mechanism
Metric Imperial
Model & Description Data Sheet 3D Model Weight Stroke Per Jaw Recommended Workpiece Weight Working Temperature Gripping Force per Jaw Total Gripping Force Opening/Closing Time Nominal Voltage Nominal Current Max Current Number of Fingers Repeatability (Positioning)
ECG2-18050 0.50 kg1.10 lb 17.5 mm0.69 in 1.0 kg2.20 lb 0 - 40 °C32 - 104 °F 15 - 50 N3.37 - 11.24 lb 30 - 100 N6.74 - 22.48 lb 0.7 / 0.7 s 24 V DC ± 10% 0.25 A 0.50 A 2 ±0.03 mm±0.001 in
ECG2-25140 1.00 kg2.20 lb 25 mm0.98 in 3.0 kg6.61 lb 0 - 40 °C32 - 104 °F 40 - 140 N8.99 - 31.47 lb 80 - 280 N17.98 - 62.95 lb 0.6 / 0.6 s 24 V DC ± 10% 0.40 A 1.00 A 2 ±0.03 mm±0.001 in
ECG2-30300 1.50 kg3.31 lb 30 mm1.18 in 6.0 kg13.23 lb 0 - 40 °C32 - 104 °F 40 - 300 N8.99 - 67.44 lb 80 - 600 N17.98 - 134.89 lb 0.8 / 0.8 s 24 V DC ± 10% 0.40 A 2.00 A 2 ±0.03 mm±0.001 in
ECG2-18050
Data Sheet
3D Model
Weight
0.50 kg1.10 lb
Stroke Per Jaw
17.5 mm0.69 in
Recommended Workpiece Weight
1.0 kg2.20 lb
Working Temperature
0 - 40 °C32 - 104 °F
Gripping Force per Jaw
15 - 50 N3.37 - 11.24 lb
Total Gripping Force
30 - 100 N6.74 - 22.48 lb
Opening/Closing Time
0.7 / 0.7 s
Nominal Voltage
24 V DC ± 10%
Nominal Current
0.25 A
Max Current
0.50 A
Number of Fingers
2
Repeatability (Positioning)
±0.03 mm±0.001 in
ECG2-25140
Data Sheet
3D Model
Weight
1.00 kg2.20 lb
Stroke Per Jaw
25 mm0.98 in
Recommended Workpiece Weight
3.0 kg6.61 lb
Working Temperature
0 - 40 °C32 - 104 °F
Gripping Force per Jaw
40 - 140 N8.99 - 31.47 lb
Total Gripping Force
80 - 280 N17.98 - 62.95 lb
Opening/Closing Time
0.6 / 0.6 s
Nominal Voltage
24 V DC ± 10%
Nominal Current
0.40 A
Max Current
1.00 A
Number of Fingers
2
Repeatability (Positioning)
±0.03 mm±0.001 in
ECG2-30300
Data Sheet
3D Model
Weight
1.50 kg3.31 lb
Stroke Per Jaw
30 mm1.18 in
Recommended Workpiece Weight
6.0 kg13.23 lb
Working Temperature
0 - 40 °C32 - 104 °F
Gripping Force per Jaw
40 - 300 N8.99 - 67.44 lb
Total Gripping Force
80 - 600 N17.98 - 134.89 lb
Opening/Closing Time
0.8 / 0.8 s
Nominal Voltage
24 V DC ± 10%
Nominal Current
0.40 A
Max Current
2.00 A
Number of Fingers
2
Repeatability (Positioning)
±0.03 mm±0.001 in

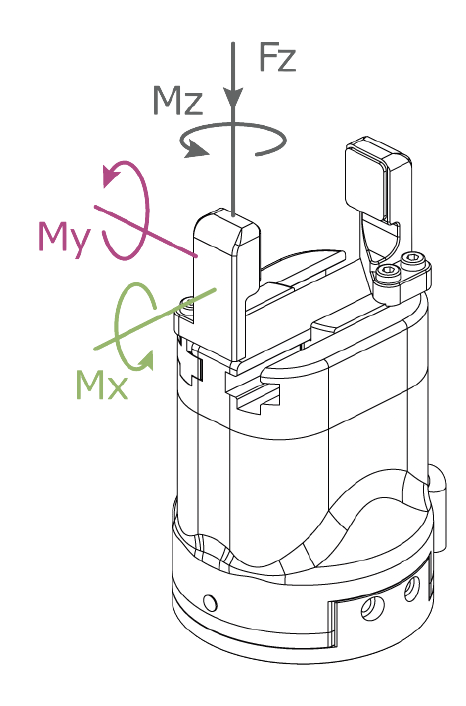

Noise Emission (Sound Pressure) ≤ 40-50 dB(A) in any directionCommunication Interface: Standard Modbus RTU (RS485), Digital I/O — TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT via external converterNominal Voltage 24 V DC ± 10%Recommended operating environment 0 - 40 °C, < 85% RH

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.
