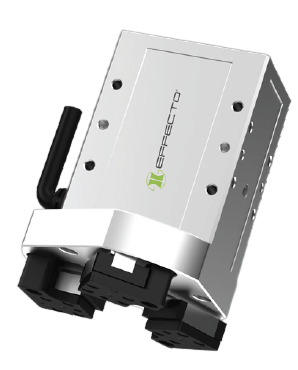

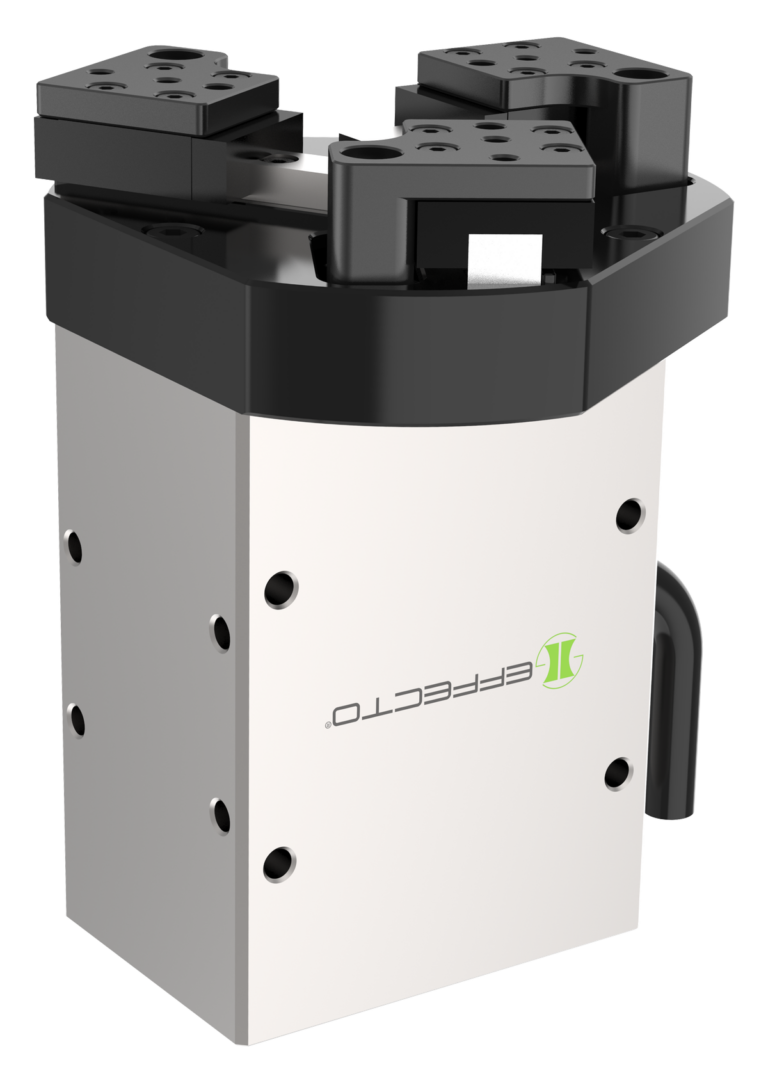

EIG3 is an electric 3-finger parallel gripper that is equipped with three symmetrically parallel fingers.
Advantages
- Compact size
- Slim rectangular body with five installation positions for flexible mounting
- Grip control: force and position adjustment
- Quick open/close time with speed adjustment
- Grip feedback and part detection: gripper status can be read at the PLC/Controller and visualized on the unit via LEDs
- Multiple communication modes: Modbus RTU protocol and I/O mode control. Other protocols such as USB and ETHERNET can be implemented through a protocol converter
- Grip actuation via embedded controller
- Weight
- 0.43 kg0.98 lb
- Stroke Per Jaw
- 10 mm0.39 in
- Recommended Workpiece Weight
- 0.1 kg0.22 lb
- Working Temperature
- 0 - 40 °C32 - 104 °F
- Gripping Force per Jaw
- 3 - 10 N0.67 - 2.25 lb
- Total Gripping Force
- 9 - 30 N2.02 - 6.74 lb
- Opening/Closing Time
- 0.3 / 0.3 s
- Nominal Voltage
- 24 V DC ± 10%
- Nominal Current
- 0.30 A
- Max Current
- 0.60 A
- Number of Fingers
- 3
- Repeatability (Positioning)
- ±0.03 mm±0.001 in
