Deburring Tools

Circ-Saw

Circ-Saw is a robotic circular sawing tool for cut-off operations on metal and plastic workpieces.

Models Designs Downloads Videos

Models

Circ-Saw is a robotic circular sawing tool designed for cut-off operations in automated production cells.

Advantages

Circular blade for clean, controlled cut-off operations.
Robotic-mounted design for integration in automated cells.
Compatible with the Effecto/Amtru tool changer ecosystem.
Designed for long service life in industrial cutting environments.

Model & Description	Data Sheet	Weight	Power	Rated Torque	Degree of Protection	Power Supply	Idling Speed @ 50 Hz	Bearings	Lubrication	Circular-Saw Blade	Tool Interface
CIRC-SAW 3000 Electric - No compliance		28.50 kg62.83 lb	3 kW	9.8 Nm86.7 in-lb	IP 55	3 x 400 V / 50 Hz	2920 rpm	Deep groove ball bearings (lifetime lubricated)	Grease	Ø 300 x 3.4 mm (for nonferrous metal)	Centring Ø 45 / 4 threads M6 / pitch circle 70 mm

CIRC-SAW 3000

Electric - No compliance

Data Sheet
Weight: 28.50 kg62.83 lb
Power: 3 kW
Rated Torque: 9.8 Nm86.7 in-lb
Degree of Protection: IP 55
Power Supply: 3 x 400 V / 50 Hz
Idling Speed @ 50 Hz: 2920 rpm
Bearings: Deep groove ball bearings (lifetime lubricated)
Lubrication: Grease
Circular-Saw Blade: Ø 300 x 3.4 mm (for nonferrous metal)
Tool Interface: Centring Ø 45 / 4 threads M6 / pitch circle 70 mm

Related Products

Deburring Tools

Angle-Grinder

Angle-Grinder is a pneumatic robotic angle grinding tool with radial compliance for adaptive contact during deburring/finishing operations.

Deburring Tools

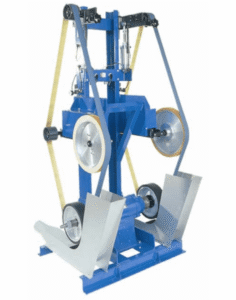

Flexibelt is a pneumatic robotic belt grinding tool with pendulous (swinging) compliance for adaptive contact during deburring/finishing operations.

Deburring Tools

Flexitool is a pneumatic robotic deburring tool with configurable compliance for adaptive contact during deburring/finishing operations.

Designs

AMTRU deburring and finishing tools are designed with active compliance, allowing the tool to follow part contours and maintain consistent contact force even across variations in surface geometry.

EFFECTO ensures a uniform finish part after part without relying on precise robot programming to compensate for tolerance stack-up.

Downloads

Model & Description	Data Sheet
CIRC-SAW 3000 Electric - No compliance

CIRC-SAW 3000

Electric - No compliance

Data Sheet

Videos

Sägen mit Circ-Saw 3000; Sawing with Circ-Saw 3000
