Models

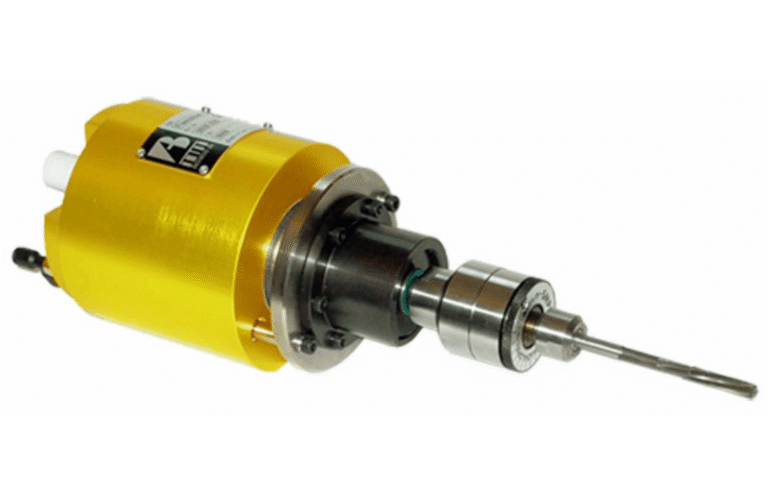

Flexitool is a pneumatic robotic deburring tool with configurable compliance for adaptive contact during deburring/finishing operations.
Advantages
- Float-compensation system absorbs path deviations to maintain consistent tool engagement.
- Robotic-mounted design for integration in automated cells.
- Compatible with the full Amtru/Effecto tool changer ecosystem.
- Available in multiple sizes/power ratings to match application requirements.
- Designed for long service life in industrial deburring/grinding environments.
Pneumatic - no compliance
- Weight
- 2.50 kg5.51 lb
- Power
- 240 - 600 W
- Idling Speed
- 550 - 18000 rpm
- Compliance force @ 6 bar
- approx. 60 Napprox. 13.5 lbf
- Fluid Consumption
- 8.3 - 17.5 l/s17.6 - 37.1 cfm
- Rated Speed
- 260 - 10000 rpm
- Tool Insertion Mounting
- Drill chuck or collet
- Compliance
- 12 mm (axial)
Pneumatic - no compliance
- Weight
- 1.80 kg3.97 lb
- Power
- 390 W
- Idling Speed
- 550 rpm
- Compliance force @ 6 bar
- approx. 60 Napprox. 13.5 lbf
- Fluid Consumption
- 8.3 l/s17.6 cfm
- Rated Speed
- 259 rpm
- Tool Insertion Mounting
- Collet ESX12 Ø6 mm
- Compliance
- 12 mm (axial)
Pneumatic - Axial compliance
- Weight
- 3.70 kg8.16 lb
- Power
- 390 W
- Idling Speed
- 550 rpm
- Compliance force @ 6 bar
- approx. 60 Napprox. 13.5 lbf
- Fluid Consumption
- 8.3 l/s17.6 cfm
- Rated Speed
- 259 rpm
- Tool Insertion Mounting
- Collet ESX12 Ø6 mm
- Compliance
- 12 mm (axial)
Pneumatic - no compliance
- Weight
- 2.30 kg5.07 lb
- Power
- 830 W
- Idling Speed
- 2550 rpm
- Compliance force @ 6 bar
- approx. 135 Napprox. 30.3 lbf
- Fluid Consumption
- 17.0 l/s36.0 cfm
- Rated Speed
- 1280 rpm
- Tool Insertion Mounting
- Shaft Ø16j6 x 40 mm
- Compliance
- 16 mm (axial)
Pneumatic - no compliance
- Weight
- 2.50 kg5.51 lb
- Power
- 830 W
- Idling Speed
- 570 rpm
- Compliance force @ 6 bar
- approx. 135 Napprox. 30.3 lbf
- Fluid Consumption
- 17.0 l/s36.0 cfm
- Rated Speed
- 290 rpm
- Tool Insertion Mounting
- Shaft Ø16j6 x 40 mm
- Compliance
- 16 mm (axial)
Pneumatic - Axial compliance
- Weight
- 7.00 kg15.43 lb
- Power
- 830 W
- Idling Speed
- 570 rpm
- Compliance force @ 6 bar
- approx. 135 Napprox. 30.3 lbf
- Fluid Consumption
- 17.0 l/s36.0 cfm
- Rated Speed
- 290 rpm
- Tool Insertion Mounting
- Collet ER25 Ø8 mm
- Compliance
- 16 mm (axial)
Electric - Axial compliance
- Power
- 0.57 kW
- Idling Speed
- 550 - 6000 rpm
