Deburring Tools

Circ-Flexibrush

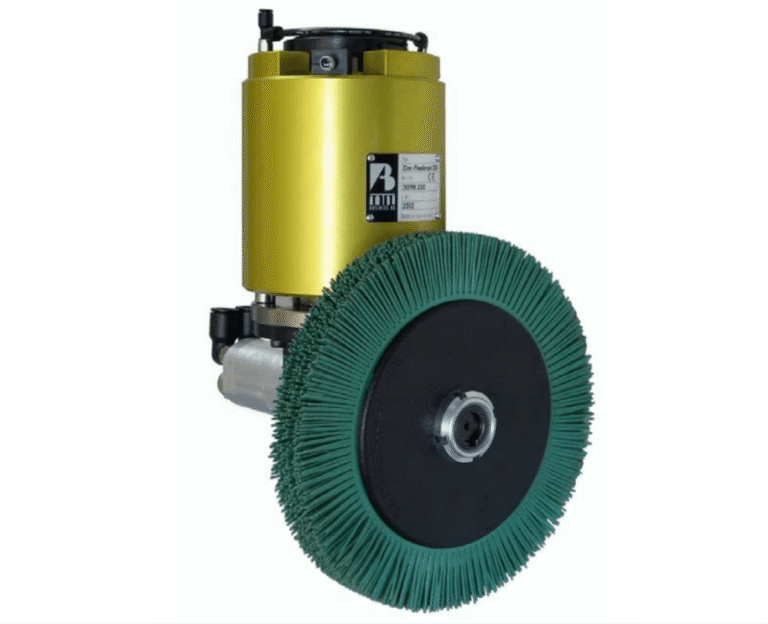

Circ-Flexibrush is a pneumatic robotic circular brushing tool with axial compliance for adaptive contact during deburring/finishing operations.

Models

Circ-Flexibrush is a pneumatic robotic circular brushing tool with axial compliance for adaptive contact during deburring/finishing operations.

Advantages

  • Float-compensation system absorbs path deviations to maintain consistent tool engagement.
  • Robotic-mounted design for integration in automated cells.
  • Compatible with the full Amtru/Effecto tool changer ecosystem.
  • Available in multiple sizes/power ratings to match application requirements.
  • Designed for long service life in industrial deburring/grinding environments.
Metric Imperial
Model & Description Data Sheet Weight Power Idling Speed Compliance force @ 6 bar Feed Forward Rate Fluid Consumption Rated Speed Compliance Movement Motor Shaft
CIRCFLEXIBRUSH 219 Pneumatic - Axial compliance 6.70 kg14.77 lb 840 W 2500 rpm approx. 135 Napprox. 30.3 lbf 20 - 200 mm/s0.79 - 7.87 in/s 17.0 l/s36.0 cfm 1280 rpm 16 mm (axial)0.63 in (axial) Ø 16j6x40
CIRCFLEXIBRUSH 222 Pneumatic - Axial compliance 6.70 kg14.77 lb 840 W 4200 rpm approx. 135 Napprox. 30.3 lbf 20 - 200 mm/s0.79 - 7.87 in/s 17.0 l/s36.0 cfm 2100 rpm 16 mm (axial)0.63 in (axial) Ø 16j6x40
CIRCFLEXIBRUSH 225 Pneumatic - Axial compliance 6.70 kg14.77 lb 840 W 6700 rpm approx. 135 Napprox. 30.3 lbf 20 - 200 mm/s0.79 - 7.87 in/s 17.0 l/s36.0 cfm 3300 rpm 16 mm (axial)0.63 in (axial) Ø 16j6x40
CIRCFLEXIBRUSH 230 Pneumatic - Axial compliance 6.70 kg14.77 lb 620 W 3350 rpm approx. 135 Napprox. 30.3 lbf 20 - 200 mm/s0.79 - 7.87 in/s 14.5 l/s30.7 cfm 1700 rpm 16 mm (axial)0.63 in (axial) Ø 16j6x40
CIRCFLEXIBRUSH 232 Pneumatic - Axial compliance 6.70 kg14.77 lb 620 W 5250 rpm approx. 135 Napprox. 30.3 lbf 20 - 200 mm/s0.79 - 7.87 in/s 14.5 l/s30.7 cfm 2650 rpm 16 mm (axial)0.63 in (axial) Ø 16j6x40
CIRCFLEXIBRUSH 219

Pneumatic - Axial compliance

Data Sheet
Weight
6.70 kg14.77 lb
Power
840 W
Idling Speed
2500 rpm
Compliance force @ 6 bar
approx. 135 Napprox. 30.3 lbf
Feed Forward Rate
20 - 200 mm/s0.79 - 7.87 in/s
Fluid Consumption
17.0 l/s36.0 cfm
Rated Speed
1280 rpm
Compliance Movement
16 mm (axial)0.63 in (axial)
Motor Shaft
Ø 16j6x40
CIRCFLEXIBRUSH 222

Pneumatic - Axial compliance

Data Sheet
Weight
6.70 kg14.77 lb
Power
840 W
Idling Speed
4200 rpm
Compliance force @ 6 bar
approx. 135 Napprox. 30.3 lbf
Feed Forward Rate
20 - 200 mm/s0.79 - 7.87 in/s
Fluid Consumption
17.0 l/s36.0 cfm
Rated Speed
2100 rpm
Compliance Movement
16 mm (axial)0.63 in (axial)
Motor Shaft
Ø 16j6x40
CIRCFLEXIBRUSH 225

Pneumatic - Axial compliance

Data Sheet
Weight
6.70 kg14.77 lb
Power
840 W
Idling Speed
6700 rpm
Compliance force @ 6 bar
approx. 135 Napprox. 30.3 lbf
Feed Forward Rate
20 - 200 mm/s0.79 - 7.87 in/s
Fluid Consumption
17.0 l/s36.0 cfm
Rated Speed
3300 rpm
Compliance Movement
16 mm (axial)0.63 in (axial)
Motor Shaft
Ø 16j6x40
CIRCFLEXIBRUSH 230

Pneumatic - Axial compliance

Data Sheet
Weight
6.70 kg14.77 lb
Power
620 W
Idling Speed
3350 rpm
Compliance force @ 6 bar
approx. 135 Napprox. 30.3 lbf
Feed Forward Rate
20 - 200 mm/s0.79 - 7.87 in/s
Fluid Consumption
14.5 l/s30.7 cfm
Rated Speed
1700 rpm
Compliance Movement
16 mm (axial)0.63 in (axial)
Motor Shaft
Ø 16j6x40
CIRCFLEXIBRUSH 232

Pneumatic - Axial compliance

Data Sheet
Weight
6.70 kg14.77 lb
Power
620 W
Idling Speed
5250 rpm
Compliance force @ 6 bar
approx. 135 Napprox. 30.3 lbf
Feed Forward Rate
20 - 200 mm/s0.79 - 7.87 in/s
Fluid Consumption
14.5 l/s30.7 cfm
Rated Speed
2650 rpm
Compliance Movement
16 mm (axial)0.63 in (axial)
Motor Shaft
Ø 16j6x40

Operating pressure 5 - 7 barAmbient temperature 5 - 60 °CPneumatic drive (powered by air motor)

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.

Related Products

Deburring Tools
Flexibrush

Flexibrush is a pneumatic robotic brushing tool with axial compliance for adaptive contact during deburring/finishing operations.
Deburring Tools
Flexorbital

Flexorbital is a pneumatic robotic orbital grinding tool with axial compliance for adaptive contact during deburring/finishing operations.
Tool Changers
E125LP

ER125LP/ET125LP is a low-profile automatic tool changing assembly for exchanging robotic end-of-arm tooling (EOAT) on the fly. Rated payload up to 225 kg.

Designs

AMTRU deburring and finishing tools are designed with active compliance, allowing the tool to follow part contours and maintain consistent contact force even across variations in surface geometry.

EFFECTO ensures a uniform finish part after part without relying on precise robot programming to compensate for tolerance stack-up.
