Models

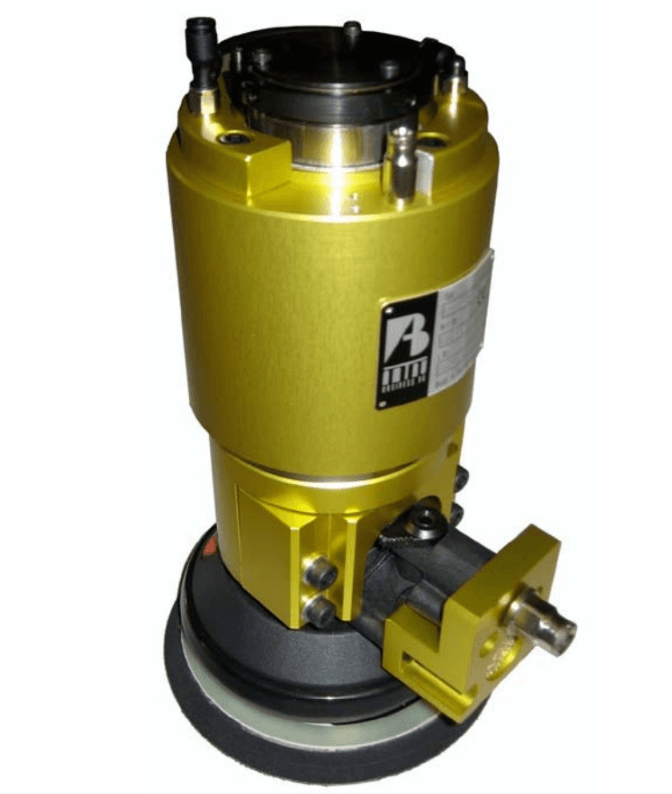

Flexorbital is a pneumatic robotic orbital grinding tool with axial compliance for adaptive contact during deburring/finishing operations.
Advantages
- Float-compensation system absorbs path deviations to maintain consistent tool engagement.
- Robotic-mounted design for integration in automated cells.
- Compatible with the full Amtru/Effecto tool changer ecosystem.
- Available in multiple sizes/power ratings to match application requirements.
- Designed for long service life in industrial deburring/grinding environments.
Pneumatic - Axial compliance
- Weight
- 3.50 kg7.72 lb
- Power
- 186 W
- Idling Speed
- 12000 rpm
- Compliance force @ 6 bar
- approx. 60 Napprox. 13.5 lbf
- Feed Forward Rate
- 5 - 100 mm/s0.20 - 3.94 in/s
- Fluid Consumption
- 6.6 l/s14.0 cfm
- Compliance Movement
- 14 mm (radial)0.55 in (radial)
- Wheel Diameter
- 73 - 116 mm2.87 - 4.57 in
- Orbital Diameter
- 5 mm0.20 in
Pneumatic - Axial compliance
- Weight
- 4.00 kg8.82 lb
- Power
- 336 W
- Idling Speed
- 12000 rpm
- Compliance force @ 6 bar
- approx. 60 Napprox. 13.5 lbf
- Feed Forward Rate
- 5 - 100 mm/s0.20 - 3.94 in/s
- Fluid Consumption
- 11.0 l/s23.3 cfm
- Compliance Movement
- 14 mm (radial)0.55 in (radial)
- Wheel Diameter
- 73 - 152 mm2.87 - 5.98 in
- Orbital Diameter
- 5 mm0.20 in
