Models

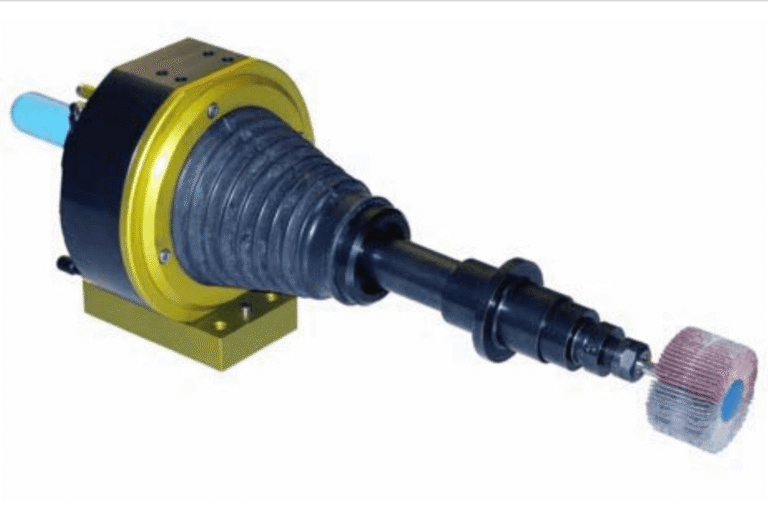

Flexfinisher is a pneumatic robotic grinding tool with radial compliance for adaptive contact during deburring/finishing operations.
Advantages
- Float-compensation system absorbs path deviations to maintain consistent tool engagement.
- Robotic-mounted design for integration in automated cells.
- Compatible with the full Amtru/Effecto tool changer ecosystem.
- Available in multiple sizes/power ratings to match application requirements.
- Designed for long service life in industrial deburring/grinding environments.
Pneumatic- Radial Compliance
- Weight
- 6.70 kg14.77 lb
- Power
- 840 W
- Idling Speed
- 21000 rpm
- Compliance force @ 6 bar
- approx. 109 Napprox. 24.5 lbf
- Feed Forward Rate
- 50 - 200 mm/s1.97 - 7.87 in/s
- Fluid Consumption
- 17 l/s36.0 cfm
- Rated Speed
- 10800 rpm
- Motor Shaft
- Ø 16 x 40 mm
- Compliance (Radial)
- ± 3.2° ± 16 mm at collet
- Compliance torque with connection 1
- 0 - 15 Nm0.0 - 132.8 in-lb
- Compliance torque with connection 2
- 5 - 30 Nm44.3 - 265.5 in-lb
Pneumatic- Radial Compliance
- Weight
- 6.70 kg14.77 lb
- Power
- 840 W
- Idling Speed
- 6700 rpm
- Compliance force @ 6 bar
- approx. 109 Napprox. 24.5 lbf
- Feed Forward Rate
- 50 - 200 mm/s1.97 - 7.87 in/s
- Fluid Consumption
- 17 l/s36.0 cfm
- Rated Speed
- 3300 rpm
- Motor Shaft
- Ø 16 x 40 mm
- Compliance (Radial)
- ± 3.2° ± 16 mm at collet
- Compliance torque with connection 1
- 0 - 15 Nm0.0 - 132.8 in-lb
- Compliance torque with connection 2
- 5 - 30 Nm44.3 - 265.5 in-lb
Pneumatic- Radial Compliance
- Weight
- 6.70 kg14.77 lb
- Power
- 840 W
- Idling Speed
- 4200 rpm
- Compliance force @ 6 bar
- approx. 109 Napprox. 24.5 lbf
- Feed Forward Rate
- 50 - 200 mm/s1.97 - 7.87 in/s
- Fluid Consumption
- 17 l/s36.0 cfm
- Rated Speed
- 2100 rpm
- Motor Shaft
- Ø 16 x 40 mm
- Compliance (Radial)
- ± 3.2° ± 16 mm at collet
- Compliance torque with connection 1
- 0 - 15 Nm0.0 - 132.8 in-lb
- Compliance torque with connection 2
- 5 - 30 Nm44.3 - 265.5 in-lb
Pneumatic- Radial Compliance
- Weight
- 6.70 kg14.77 lb
- Power
- 620 W
- Idling Speed
- 2550 rpm
- Compliance force @ 6 bar
- approx. 109 Napprox. 24.5 lbf
- Feed Forward Rate
- 50 - 200 mm/s1.97 - 7.87 in/s
- Fluid Consumption
- 17 l/s36.0 cfm
- Rated Speed
- 1280 rpm
- Motor Shaft
- Ø 16 x 40 mm
- Compliance (Radial)
- ± 3.2° ± 16 mm at collet
- Compliance torque with connection 1
- 0 - 15 Nm0.0 - 132.8 in-lb
- Compliance torque with connection 2
- 5 - 30 Nm44.3 - 265.5 in-lb
