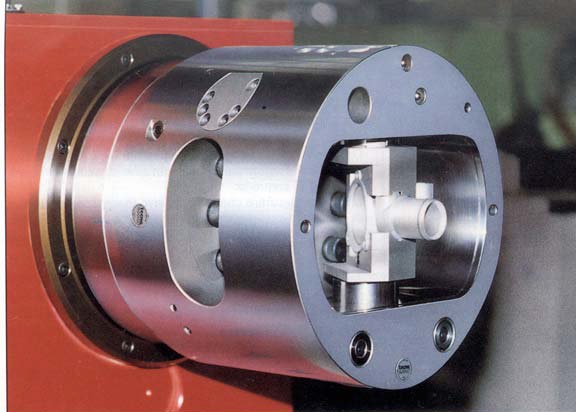

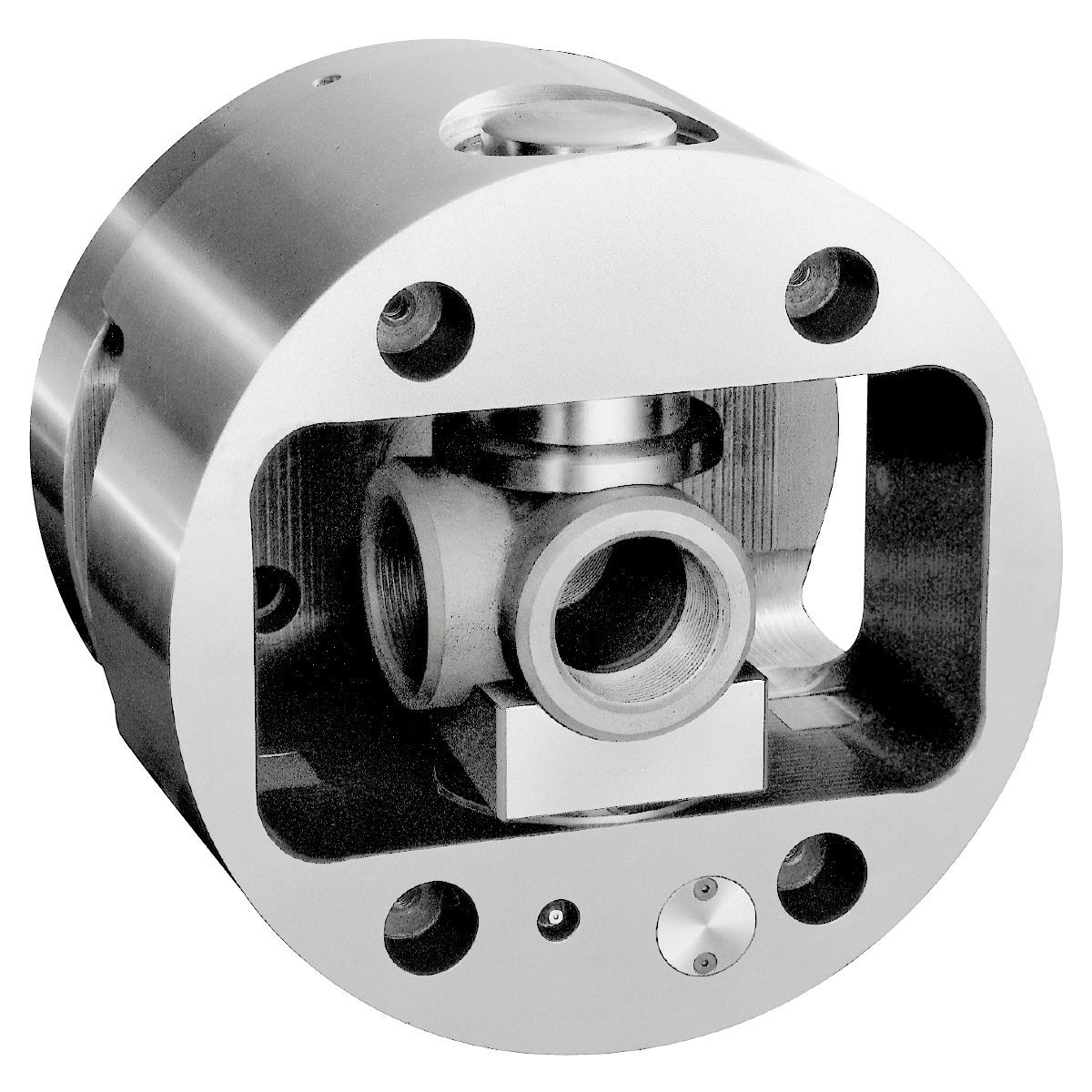

MDE Automatic Indexing Chuck

Models

MDE is an automatic indexing chuck with hydraulic clamping and indexing, providing 8×45° indexing positions. It is not self-centering.

Advantages

Made of special high-resistance hardened and case-hardened 60HRC steel (UNI 18NiCrMo5) for high precision, reliability and quality.
Indexing movement (Tecnomors patent): simple and reliable, with a single piston working in rotation and in clamping position. Indexing precision ± 1′.
Guiding system using two pre-loaded solid straight rollers radially and one axial bearing.
Seals against contamination by coolant, chips or dust.
Constant and long-lasting precision; easy installation to the machine.
Centrifugal-force compensation system for parts susceptible to deformation, for higher productivity.
The chucking piston is connected to a safety device that keeps the workpiece securely gripped even in the event of complete pressure loss.
Constant and automatic control of the indexing position and other parameters via a separate electronic interface (not supplied) by the machine CNC.

Model & Description	Weight	Diameter	Clamping Surface	Stroke
MDE160	22.00 kg48.50 lb	160 mm6.30 in	13.85 cm²2.15 in²	10 mm0.39 in
MDE205	32.00 kg70.55 lb	205 mm8.07 in	23.7 cm²3.67 in²	14 mm0.55 in
MDE235	42.00 kg92.59 lb	235 mm9.25 in	23.7 cm²3.67 in²	14 mm0.55 in
MDE260	50.00 kg110.23 lb	260 mm10.24 in	44.1 cm²6.84 in²	18 mm0.71 in
MDE285	60.00 kg132.28 lb	285 mm11.22 in	44.1 cm²6.84 in²	18 mm0.71 in
MDE300	70.00 kg154.32 lb	300 mm11.81 in	44.1 cm²6.84 in²	18 mm0.71 in
