Models

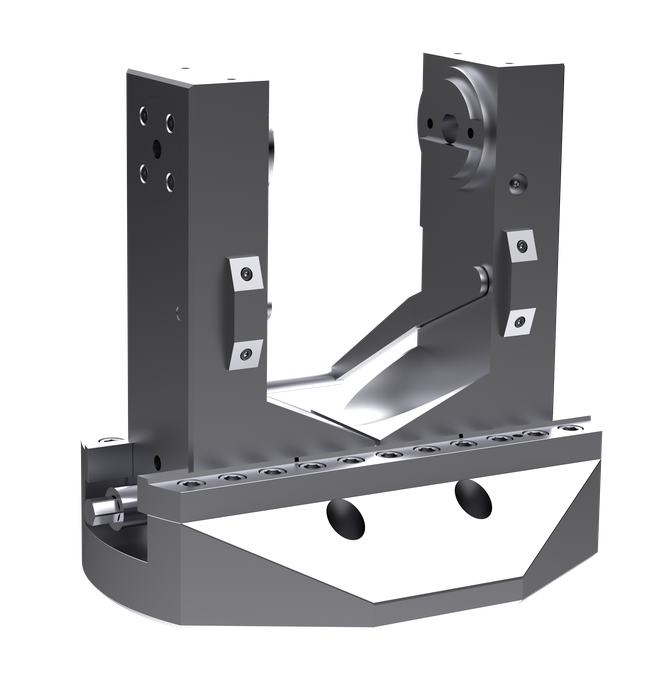

Chucks series MADV are self-centering. In the MADV version, jaw clamping is manual thanks to an operating key, with a manual indexing system. Standard with 4×90° + 1×45° indexing; special positions (8×45°, 6×60°) available on request.
Advantages
- Self-centering clamping.
- Big clamping capacity.
- Versions with long jaws for workpieces that need a big radius of revolution.
- Can be used on every machine tool (lathe, milling machine, etc.).
- The big jaw stroke enables clamping of complex profiles that couldn’t be clamped well with an automatic chuck.
- Suited to realization of prototypes, samples and series, also of big pieces.
- A central screw supported by an axial sliding bearing transmits the clamping force to the jaws.
| Model & Description | Weight | Diameter | Max. Closing Force Per Jaw | Chuck Opening | Chuck Closing | Max. Rotation Speed |
|---|---|---|---|---|---|---|
| MADV170C | 16.00 kg35.27 lb | 168 mm6.61 in | 9000 N2023.3 lbf | 95 mm3.74 in | 48 mm1.89 in | 1700 rpm |
| MADV180C | 21.00 kg46.30 lb | 180 mm7.09 in | 10000 N2248.1 lbf | 100 mm3.94 in | 55 mm2.17 in | 1600 rpm |
| MADV195C Short jaws version | 23.00 kg50.71 lb | 195 mm7.68 in | 13000 N2922.5 lbf | 106 mm4.17 in | 59 mm2.32 in | 1500 rpm |
| MADV230C Short jaws version | 30.00 kg66.14 lb | 230 mm9.06 in | 14500 N3259.7 lbf | 138 mm5.43 in | 74 mm2.91 in | 1300 rpm |
| MADV230L Long jaws version | 32.00 kg70.55 lb | 230 mm9.06 in | 14500 N3259.7 lbf | 138 mm5.43 in | 74 mm2.91 in | 1300 rpm |
| MADV250C Short jaws version | 44.00 kg97.00 lb | 248 mm9.76 in | 16500 N3709.4 lbf | 155 mm6.10 in | 89 mm3.50 in | 1200 rpm |
| MADV250L Long jaws version | 46.00 kg101.41 lb | 248 mm9.76 in | 16500 N3709.4 lbf | 155 mm6.10 in | 89 mm3.50 in | 1200 rpm |
| MADV275C Short jaws version | 51.00 kg112.44 lb | 275 mm10.83 in | 17500 N3934.2 lbf | 180 mm7.09 in | 99 mm3.90 in | 1000 rpm |
| MADV275L Long jaws version | 54.00 kg119.05 lb | 275 mm10.83 in | 17500 N3934.2 lbf | 180 mm7.09 in | 99 mm3.90 in | 1000 rpm |
| MADV315C Short jaws version | 64.00 kg141.10 lb | 315 mm12.40 in | 17500 N3934.2 lbf | 210 mm8.27 in | 120 mm4.72 in | 900 rpm |
| MADV315L Long jaws version | 69.00 kg152.12 lb | 315 mm12.40 in | 17500 N3934.2 lbf | 210 mm8.27 in | 120 mm4.72 in | 900 rpm |
| MADV350C Short jaws version | 76.00 kg167.55 lb | 350 mm13.78 in | 21000 N4721.0 lbf | 240 mm9.45 in | 138 mm5.43 in | 750 rpm |
| MADV350L Long jaws version | 80.00 kg176.37 lb | 350 mm13.78 in | 21000 N4721.0 lbf | 240 mm9.45 in | 138 mm5.43 in | 750 rpm |
- Weight
- 16.00 kg35.27 lb
- Diameter
- 168 mm6.61 in
- Max. Closing Force Per Jaw
- 9000 N2023.3 lbf
- Chuck Opening
- 95 mm3.74 in
- Chuck Closing
- 48 mm1.89 in
- Max. Rotation Speed
- 1700 rpm
- Weight
- 21.00 kg46.30 lb
- Diameter
- 180 mm7.09 in
- Max. Closing Force Per Jaw
- 10000 N2248.1 lbf
- Chuck Opening
- 100 mm3.94 in
- Chuck Closing
- 55 mm2.17 in
- Max. Rotation Speed
- 1600 rpm
Short jaws version
- Weight
- 23.00 kg50.71 lb
- Diameter
- 195 mm7.68 in
- Max. Closing Force Per Jaw
- 13000 N2922.5 lbf
- Chuck Opening
- 106 mm4.17 in
- Chuck Closing
- 59 mm2.32 in
- Max. Rotation Speed
- 1500 rpm
Short jaws version
- Weight
- 30.00 kg66.14 lb
- Diameter
- 230 mm9.06 in
- Max. Closing Force Per Jaw
- 14500 N3259.7 lbf
- Chuck Opening
- 138 mm5.43 in
- Chuck Closing
- 74 mm2.91 in
- Max. Rotation Speed
- 1300 rpm
Long jaws version
- Weight
- 32.00 kg70.55 lb
- Diameter
- 230 mm9.06 in
- Max. Closing Force Per Jaw
- 14500 N3259.7 lbf
- Chuck Opening
- 138 mm5.43 in
- Chuck Closing
- 74 mm2.91 in
- Max. Rotation Speed
- 1300 rpm
Short jaws version
- Weight
- 44.00 kg97.00 lb
- Diameter
- 248 mm9.76 in
- Max. Closing Force Per Jaw
- 16500 N3709.4 lbf
- Chuck Opening
- 155 mm6.10 in
- Chuck Closing
- 89 mm3.50 in
- Max. Rotation Speed
- 1200 rpm
Long jaws version
- Weight
- 46.00 kg101.41 lb
- Diameter
- 248 mm9.76 in
- Max. Closing Force Per Jaw
- 16500 N3709.4 lbf
- Chuck Opening
- 155 mm6.10 in
- Chuck Closing
- 89 mm3.50 in
- Max. Rotation Speed
- 1200 rpm
Short jaws version
- Weight
- 51.00 kg112.44 lb
- Diameter
- 275 mm10.83 in
- Max. Closing Force Per Jaw
- 17500 N3934.2 lbf
- Chuck Opening
- 180 mm7.09 in
- Chuck Closing
- 99 mm3.90 in
- Max. Rotation Speed
- 1000 rpm
Long jaws version
- Weight
- 54.00 kg119.05 lb
- Diameter
- 275 mm10.83 in
- Max. Closing Force Per Jaw
- 17500 N3934.2 lbf
- Chuck Opening
- 180 mm7.09 in
- Chuck Closing
- 99 mm3.90 in
- Max. Rotation Speed
- 1000 rpm
Short jaws version
- Weight
- 64.00 kg141.10 lb
- Diameter
- 315 mm12.40 in
- Max. Closing Force Per Jaw
- 17500 N3934.2 lbf
- Chuck Opening
- 210 mm8.27 in
- Chuck Closing
- 120 mm4.72 in
- Max. Rotation Speed
- 900 rpm
Long jaws version
- Weight
- 69.00 kg152.12 lb
- Diameter
- 315 mm12.40 in
- Max. Closing Force Per Jaw
- 17500 N3934.2 lbf
- Chuck Opening
- 210 mm8.27 in
- Chuck Closing
- 120 mm4.72 in
- Max. Rotation Speed
- 900 rpm
Short jaws version
- Weight
- 76.00 kg167.55 lb
- Diameter
- 350 mm13.78 in
- Max. Closing Force Per Jaw
- 21000 N4721.0 lbf
- Chuck Opening
- 240 mm9.45 in
- Chuck Closing
- 138 mm5.43 in
- Max. Rotation Speed
- 750 rpm
Long jaws version
- Weight
- 80.00 kg176.37 lb
- Diameter
- 350 mm13.78 in
- Max. Closing Force Per Jaw
- 21000 N4721.0 lbf
- Chuck Opening
- 240 mm9.45 in
- Chuck Closing
- 138 mm5.43 in
- Max. Rotation Speed
- 750 rpm
