Models

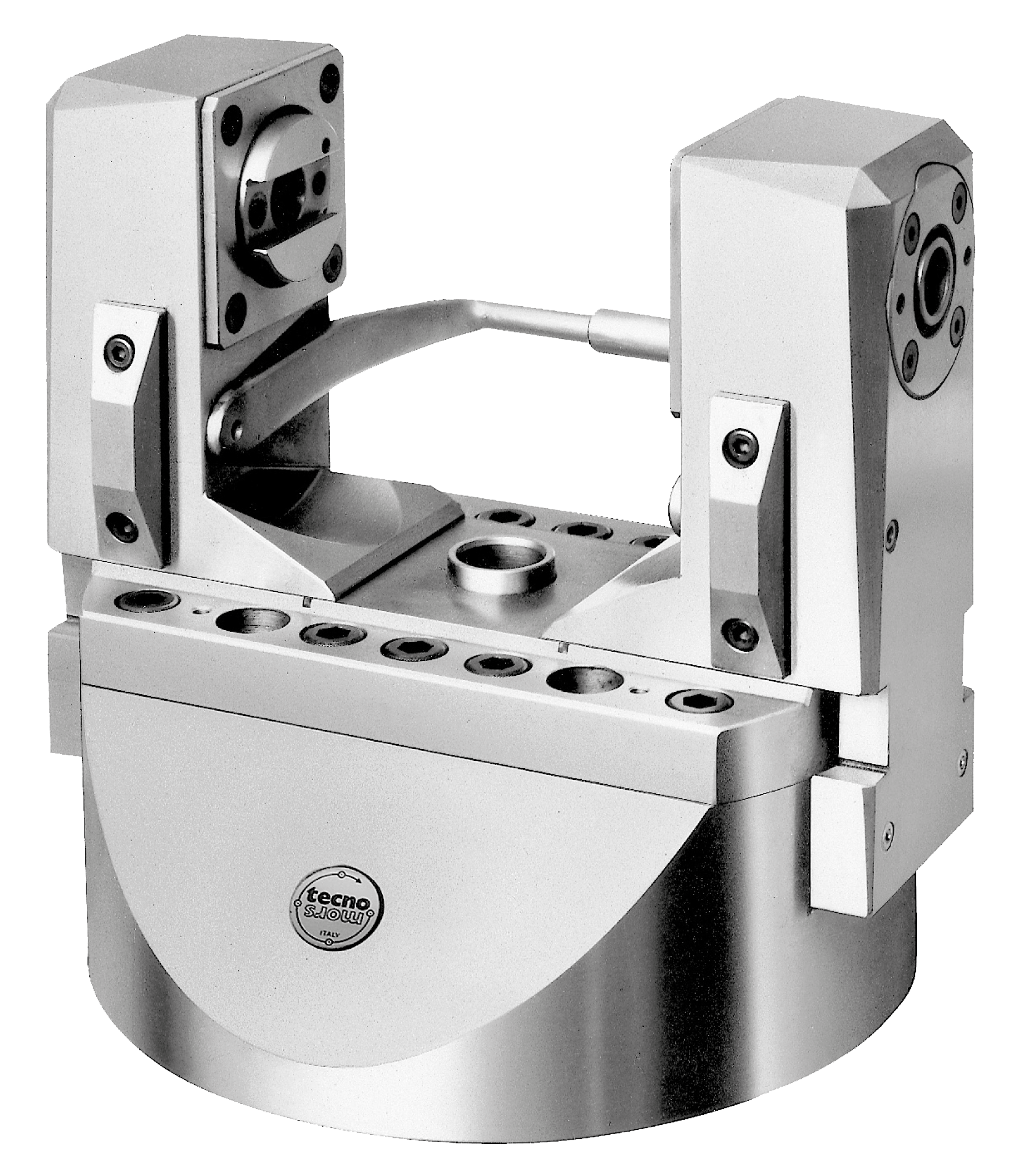

MADT chucks series are self-centering. Jaw clamping is automatic through a draw rod and a rear cylinder, with a manual indexing system. Standard with 4×90° + 1×45° indexing; special positions (8×45°, 6×60°) available on request.
Advantages
- Self-centering clamping.
- Big clamping capacity.

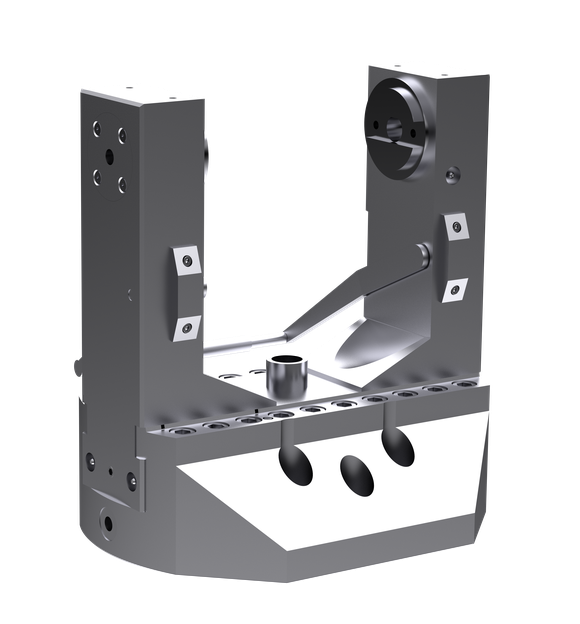

- Versions with long jaws for workpieces that need a big radius of revolution.
- Quick and easy installation to the machine — only the connection to the hydraulic cylinder on the lathe is required.
- Suited to manufacturing different pieces and small series.
- Handles workpieces with big radius of revolution and flanges with big diameter.
- Can be applied in the same machine with a conventional 3-jaw power chuck thanks to quick retooling, increasing flexibility and productivity.
- Indexing device allows a quick change between multiple working axes.
- Good tool accessibility thanks to the chuck shape.
| Model & Description | Weight | Diameter | Max. Closing Force Per Jaw | Max. Traction Force | Chuck Opening | Chuck Closing | Max. Rotation Speed |
|---|---|---|---|---|---|---|---|
| MADT165C | 17.00 kg37.48 lb | 160 mm6.30 in | 9000 N2023.3 lbf | 14700 N3304.7 lbf | 75 mm2.95 in | 59 mm2.32 in | 1800 rpm |
| MADT195C | 24.00 kg52.91 lb | 195 mm7.68 in | 14000 N3147.3 lbf | 23000 N5170.6 lbf | 95 mm3.74 in | 78 mm3.07 in | 1600 rpm |
| MADT220C Short jaws version | 30.00 kg66.14 lb | 220 mm8.66 in | 14000 N3147.3 lbf | 23000 N5170.6 lbf | 120 mm4.72 in | 102 mm4.02 in | 1500 rpm |
| MADT220L Long jaws version | 32.00 kg70.55 lb | 220 mm8.66 in | 14000 N3147.3 lbf | 23000 N5170.6 lbf | 120 mm4.72 in | 102 mm4.02 in | 1500 rpm |
| MADT230C Short jaws version | 36.00 kg79.37 lb | 230 mm9.06 in | 13000 N2922.5 lbf | 29000 N6519.5 lbf | 140 mm5.51 in | 115 mm4.53 in | 1400 rpm |
| MADT230L Long jaws version | 38.00 kg83.78 lb | 230 mm9.06 in | 13000 N2922.5 lbf | 29000 N6519.5 lbf | 140 mm5.51 in | 115 mm4.53 in | 1400 rpm |
| MADT250C Short jaws version | 45.00 kg99.21 lb | 250 mm9.84 in | 16500 N3709.4 lbf | 36200 N8138.1 lbf | 150 mm5.91 in | 123 mm4.84 in | 1300 rpm |
| MADT250L Long jaws version | 47.00 kg103.62 lb | 250 mm9.84 in | 16500 N3709.4 lbf | 36200 N8138.1 lbf | 150 mm5.91 in | 123 mm4.84 in | 1300 rpm |
| MADT275C Short jaws version | 59.00 kg130.07 lb | 275 mm10.83 in | 16500 N3709.4 lbf | 36200 N8138.1 lbf | 175 mm6.89 in | 147 mm5.79 in | 1200 rpm |
| MADT275L Long jaws version | 62.00 kg136.69 lb | 275 mm10.83 in | 16500 N3709.4 lbf | 36200 N8138.1 lbf | 175 mm6.89 in | 147 mm5.79 in | 1200 rpm |
| MADT315C Short jaws version | 65.00 kg143.30 lb | 315 mm12.40 in | 16500 N3709.4 lbf | 36200 N8138.1 lbf | 210 mm8.27 in | 180 mm7.09 in | 1000 rpm |
| MADT315L Long jaws version | 70.00 kg154.32 lb | 315 mm12.40 in | 16500 N3709.4 lbf | 36200 N8138.1 lbf | 210 mm8.27 in | 180 mm7.09 in | 1000 rpm |
| MADT350C Short jaws version | 76.00 kg167.55 lb | 350 mm13.78 in | 22000 N4945.8 lbf | 45500 N10228.9 lbf | 230 mm9.06 in | 198 mm7.80 in | 800 rpm |
| MADT350L Long jaws version | 80.00 kg176.37 lb | 350 mm13.78 in | 22000 N4945.8 lbf | 45500 N10228.9 lbf | 230 mm9.06 in | 198 mm7.80 in | 800 rpm |
