Automatic Vises

M-2

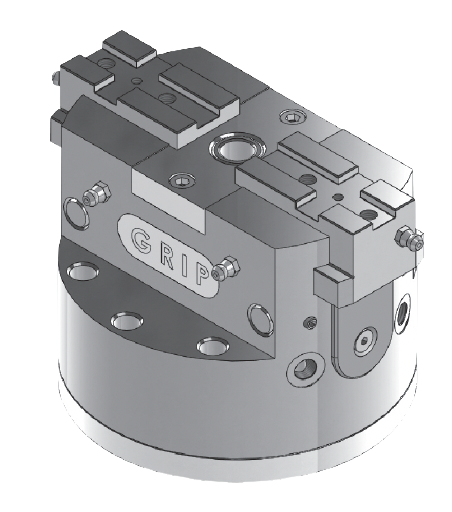

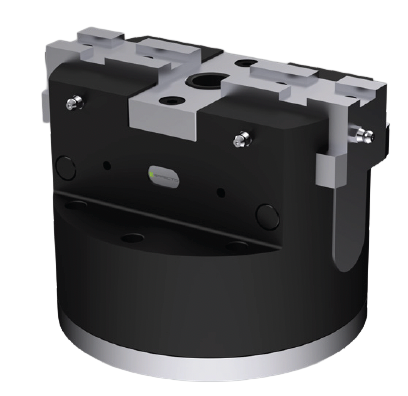

M is a hydraulically or pneumatically actuated 2-jaw self-centering vise with high flexibility, accuracy and long life.

Models

M is a hydraulically or pneumatically actuated 2-jaw self-centering vise with high flexibility, accuracy and long life.

Advantages

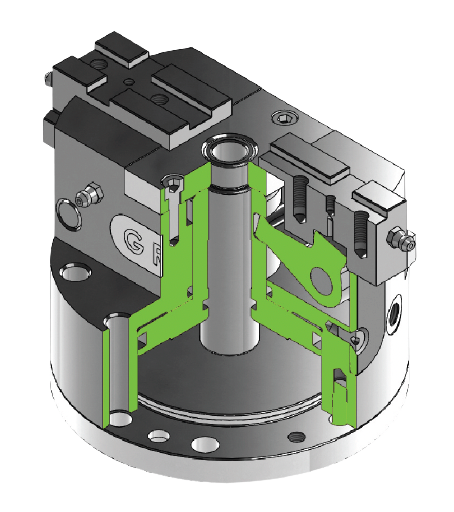

  • Lever mechanism allows extended clamping range.
  • High force drive for secure clamping.
  • Optimum jaw guides (hardened, sturdy, low-backlash) allow high clamping forces and a long service life.
  • Lean outer contour for optimal accessibility of the machine spindle to the workpiece.
  • Optimized lubrication system for consistently high clamping forces and long life.
  • Base jaws with grooves for tongues.
  • All functional parts are hardened and ground to ensure a high repeatability.



Metric Imperial
Model & Description Data Sheet 3D Model Fluid Consumption Double Stroke Weight Stroke Per Jaw Closing Force Per Jaw @ Max Pressure Total Closing Force @ Max Pressure Pressure Repeatability
M-52-U-2.5-C-9-N-B-N 8 cm³0.49 in³ 0.60 kg1.32 lb 2.5 mm0.10 in 336 N75.4 lb 671 N150.9 lb 6 - 9 bar87 - 130 psi ±0.01 mm±0.0004 in
M-85-U-5-C-12-N-B-N 53 cm³3.23 in³ 2.00 kg4.41 lb 5 mm0.20 in 1658 N372.8 lb 3317 N745.6 lb 6 - 12 bar87 - 174 psi ±0.01 mm±0.0004 in
M-110-U-6-C-12-N-B-N 109 cm³6.65 in³ 4.50 kg9.92 lb 6 mm0.24 in 2503 N562.7 lb 5006 N1125.5 lb 6 - 12 bar87 - 174 psi ±0.01 mm±0.0004 in
M-140-U-8-C-20-N-B-N 225 cm³13.73 in³ 9.00 kg19.84 lb 8 mm0.31 in 6437 N1447.1 lb 12873 N2894.2 lb 6 - 20 bar87 - 290 psi ±0.01 mm±0.0004 in
M-170-U-9-C-20-N-B-N 393 cm³23.98 in³ 17.00 kg37.48 lb 9 mm0.35 in 11114 N2498.7 lb 22229 N4997.5 lb 6 - 20 bar87 - 290 psi ±0.01 mm±0.0004 in
M-52-U-2.5-C-9-N-B-N
Data Sheet
3D Model
Fluid Consumption Double Stroke
8 cm³0.49 in³
Weight
0.60 kg1.32 lb
Stroke Per Jaw
2.5 mm0.10 in
Closing Force Per Jaw @ Max Pressure
336 N75.4 lb
Total Closing Force @ Max Pressure
671 N150.9 lb
Pressure
6 - 9 bar87 - 130 psi
Repeatability
±0.01 mm±0.0004 in
M-85-U-5-C-12-N-B-N
Data Sheet
3D Model
Fluid Consumption Double Stroke
53 cm³3.23 in³
Weight
2.00 kg4.41 lb
Stroke Per Jaw
5 mm0.20 in
Closing Force Per Jaw @ Max Pressure
1658 N372.8 lb
Total Closing Force @ Max Pressure
3317 N745.6 lb
Pressure
6 - 12 bar87 - 174 psi
Repeatability
±0.01 mm±0.0004 in
M-110-U-6-C-12-N-B-N
Data Sheet
3D Model
Fluid Consumption Double Stroke
109 cm³6.65 in³
Weight
4.50 kg9.92 lb
Stroke Per Jaw
6 mm0.24 in
Closing Force Per Jaw @ Max Pressure
2503 N562.7 lb
Total Closing Force @ Max Pressure
5006 N1125.5 lb
Pressure
6 - 12 bar87 - 174 psi
Repeatability
±0.01 mm±0.0004 in
M-140-U-8-C-20-N-B-N
Data Sheet
3D Model
Fluid Consumption Double Stroke
225 cm³13.73 in³
Weight
9.00 kg19.84 lb
Stroke Per Jaw
8 mm0.31 in
Closing Force Per Jaw @ Max Pressure
6437 N1447.1 lb
Total Closing Force @ Max Pressure
12873 N2894.2 lb
Pressure
6 - 20 bar87 - 290 psi
Repeatability
±0.01 mm±0.0004 in
M-170-U-9-C-20-N-B-N
Data Sheet
3D Model
Fluid Consumption Double Stroke
393 cm³23.98 in³
Weight
17.00 kg37.48 lb
Stroke Per Jaw
9 mm0.35 in
Closing Force Per Jaw @ Max Pressure
11114 N2498.7 lb
Total Closing Force @ Max Pressure
22229 N4997.5 lb
Pressure
6 - 20 bar87 - 290 psi
Repeatability
±0.01 mm±0.0004 in

Pressure 6 - 20 bar (model-dependent)Ambient temperature 5 - 60 °CSound emissions (sound pressure) ≤ 70 dB(A) in each direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.
