Models

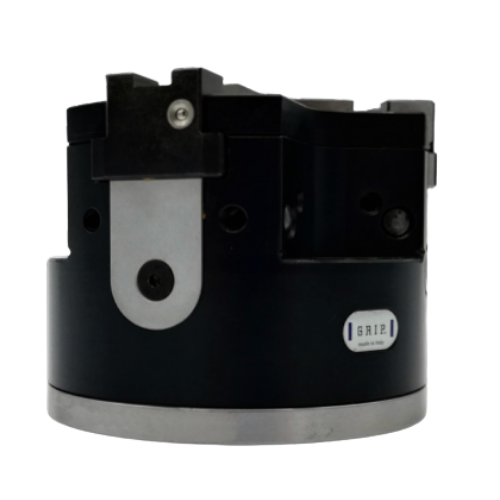

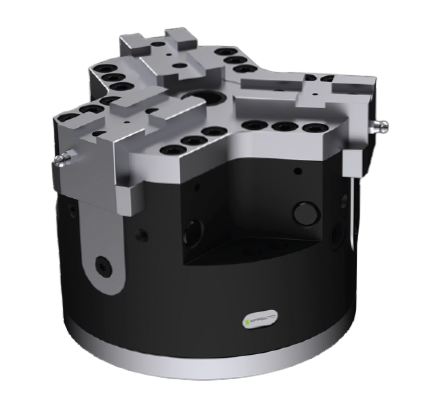

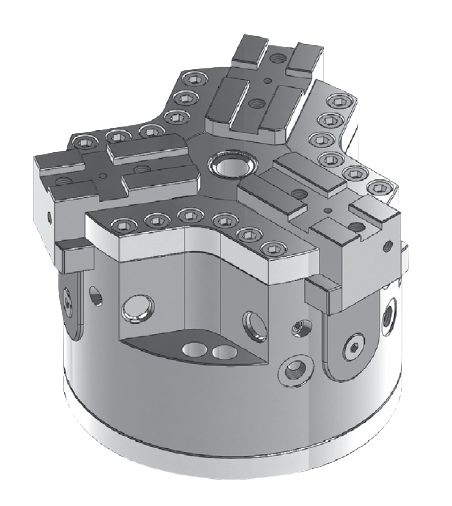

M is a hydraulically or pneumatically actuated 3-jaw self-centering vise with high flexibility, accuracy and long life.
Advantages

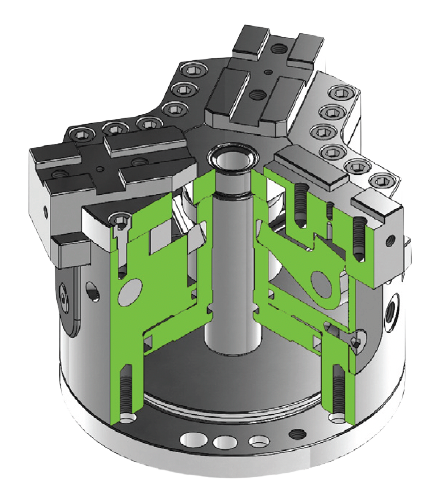

- Lever mechanism allows extended clamping range.
- High force drive for secure clamping.
- Optimum jaw guides (hardened, sturdy, low-backlash) allow high clamping forces and a long service life.
- Lean outer contour for optimal accessibility of the machine spindle to the workpiece.
- Optimized lubrication system for consistently high clamping forces and long life.
- Base jaws with grooves for tongues.
- All functional parts are hardened and ground to ensure a high repeatability.
- Fluid Consumption Double Stroke
- 109 cm³6.65 in³
- Weight
- 5.50 kg12.13 lb
- Stroke Per Jaw
- 6 mm0.24 in
- Closing Force Per Jaw @ Max Pressure
- 4153 N933.6 lb
- Total Closing Force @ Max Pressure
- 12459 N2801.0 lb
- Pressure
- 6 - 30 bar87 - 435 psi
- Repeatability
- ±0.01 mm±0.0004 in
- Fluid Consumption Double Stroke
- 225 cm³13.73 in³
- Weight
- 10.20 kg22.49 lb
- Stroke Per Jaw
- 8 mm0.31 in
- Closing Force Per Jaw @ Max Pressure
- 6419 N1443.0 lb
- Total Closing Force @ Max Pressure
- 19257 N4329.4 lb
- Pressure
- 6 - 30 bar87 - 435 psi
- Repeatability
- ±0.01 mm±0.0004 in
- Fluid Consumption Double Stroke
- 393 cm³23.98 in³
- Weight
- 20.00 kg44.09 lb
- Stroke Per Jaw
- 9 mm0.35 in
- Closing Force Per Jaw @ Max Pressure
- 9980 N2243.7 lb
- Total Closing Force @ Max Pressure
- 29940 N6731.1 lb
- Pressure
- 6 - 30 bar87 - 435 psi
- Repeatability
- ±0.01 mm±0.0004 in
