Grippers

QPGB

QPGB is a universal pneumatic self-centering 3-jaw gripper with through-hole, designed for applications requiring a central hole (e.g. workpiece feed, special sensor systems, or optical recognition systems).

Models

QPGB is a universal pneumatic self-centering 3-jaw gripper with through-hole, with high reliability and long service life, suitable for applications requiring a central hole (e.g. for workpiece feeding, special sensor systems, or optical recognition systems).

Advantages

  • Robust and lightweight housing made of hard-coated anodized aluminum alloy.
  • Sturdy T-slot with hardened steel gibs for effective jaw guidance, precise handling, and easy maintenance.
  • Central through-hole can be used for routing supply hoses and utility lines.
  • Mounting from one side in two screw directions for versatile and flexible integration.
  • Integrated permanent magnets for direct monitoring of piston movement.
  • Slots for mounting and positioning of magnetic-field sensors.
  • Air supply via hose-free direct connections or fitting screw connections.

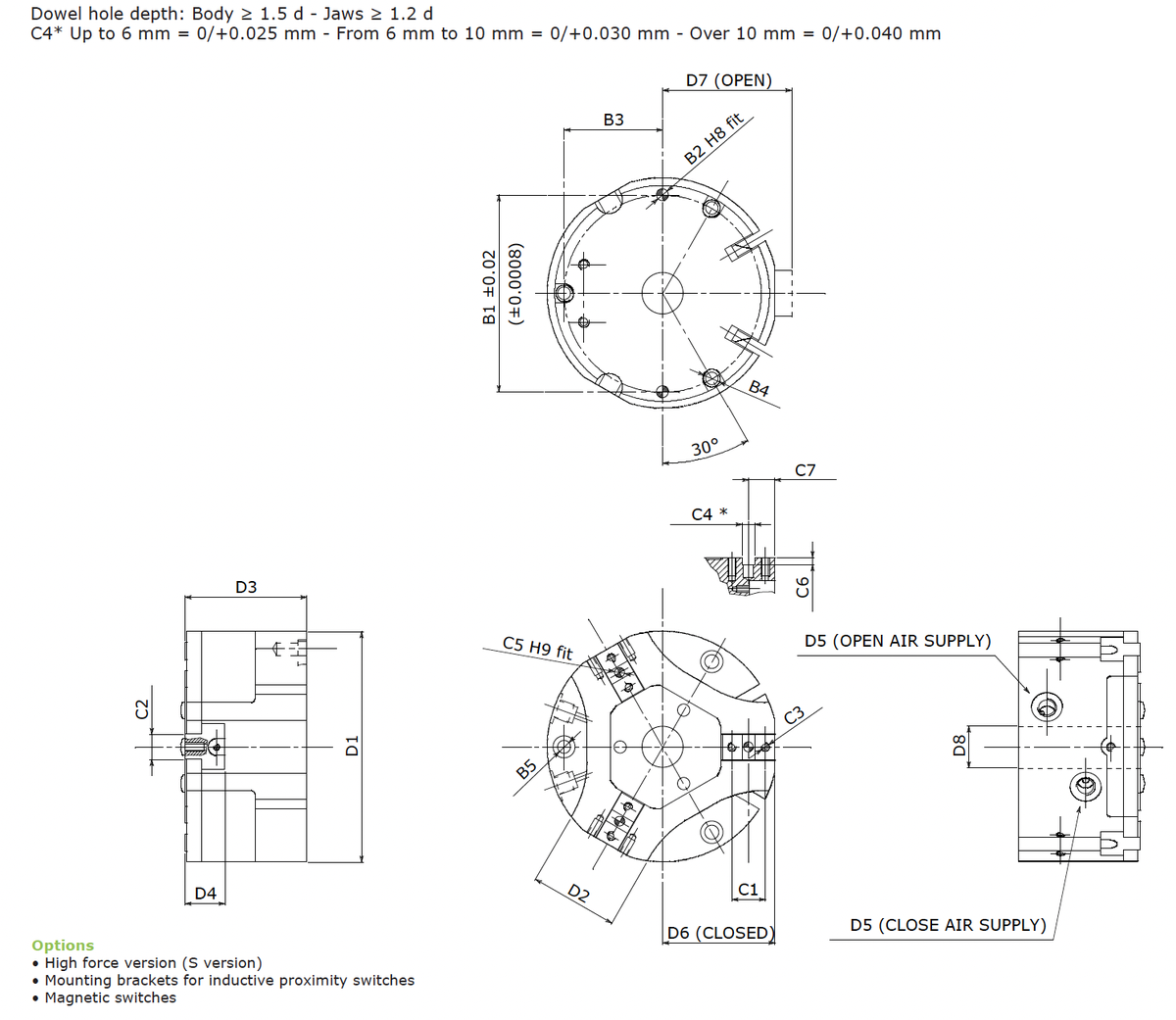

Metric Imperial
Model & Description Data Sheet 3D Model Weight Stroke Per Jaw Fluid Consumption Double Stroke Closing Force Per Jaw @ 6 bar Opening Force Per Jaw @ 6 bar Total closing force @ 6 bar Total opening force @ 6 bar Recommended Workpiece Weight Repeat Accuracy
QPGB-307-P-4-U-SM-8-P-B-S 0.50 kg1.10 lb 4 mm0.16 in 13.5 cm³0.82 in³ 165 N37.1 lbf 194 N43.61 lbf 495 N111.3 lbf 582 N130.84 lbf 1.65 kg3.64 lb ±0.01 mm±0.0004 in
QPGB-309-P-6-U-SM-8-P-B-S Long stroke version 0.85 kg1.87 lb 6 mm0.24 in 28.5 cm³1.74 in³ 230 N51.7 lbf 265 N59.57 lbf 690 N155.1 lbf 796 N178.95 lbf 2.30 kg5.10 lb ±0.01 mm±0.0004 in
QPGB-309-P-3-U-SM-8-P-B-S Short stroke version 0.85 kg1.87 lb 3 mm0.12 in 28.5 cm³1.74 in³ 455 N102.3 lbf 530 N119.15 lbf 1365 N306.9 lbf 1590 N357.45 lbf 4.55 kg10.00 lb ±0.01 mm±0.0004 in
QPGB-311-P-8-U-SM-8-P-B-S Long stroke version 1.30 kg2.86 lb 8 mm0.31 in 66 cm³4.03 in³ 385 N86.5 lbf 452 N101.61 lbf 1155 N259.6 lbf 1358 N305.29 lbf 3.85 kg8.50 lb ±0.01 mm±0.0004 in
QPGB-311-P-4-U-SM-8-P-B-S Short stroke version 1.30 kg2.86 lb 4 mm0.16 in 66 cm³4.03 in³ 770 N173.1 lbf 905 N203.45 lbf 2310 N519.3 lbf 2715 N610.36 lbf 7.70 kg16.90 lb ±0.01 mm±0.0004 in
QPGB-313-P-10-U-SM-8-P-B-S Long stroke version 2.00 kg4.40 lb 10 mm0.39 in 130 cm³7.93 in³ 610 N137.1 lbf 716 N160.96 lbf 1830 N411.4 lbf 2148 N482.89 lbf 6.10 kg13.40 lb ±0.01 mm±0.0004 in
QPGB-313-P-5-U-SM-8-P-B-S Short stroke version 2.00 kg4.40 lb 5 mm0.20 in 130 cm³7.93 in³ 1200 N269.8 lbf 1415 N318.10 lbf 3600 N809.3 lbf 4245 N954.31 lbf 12.00 kg26.40 lb ±0.01 mm±0.0004 in
QPGB-307-P-4-U-SM-8-P-B-S
Data Sheet
3D Model
Weight
0.50 kg1.10 lb
Stroke Per Jaw
4 mm0.16 in
Fluid Consumption Double Stroke
13.5 cm³0.82 in³
Closing Force Per Jaw @ 6 bar
165 N37.1 lbf
Opening Force Per Jaw @ 6 bar
194 N43.61 lbf
Total closing force @ 6 bar
495 N111.3 lbf
Total opening force @ 6 bar
582 N130.84 lbf
Recommended Workpiece Weight
1.65 kg3.64 lb
Repeat Accuracy
±0.01 mm±0.0004 in
QPGB-309-P-6-U-SM-8-P-B-S

Long stroke version

Data Sheet
3D Model
Weight
0.85 kg1.87 lb
Stroke Per Jaw
6 mm0.24 in
Fluid Consumption Double Stroke
28.5 cm³1.74 in³
Closing Force Per Jaw @ 6 bar
230 N51.7 lbf
Opening Force Per Jaw @ 6 bar
265 N59.57 lbf
Total closing force @ 6 bar
690 N155.1 lbf
Total opening force @ 6 bar
796 N178.95 lbf
Recommended Workpiece Weight
2.30 kg5.10 lb
Repeat Accuracy
±0.01 mm±0.0004 in
QPGB-309-P-3-U-SM-8-P-B-S

Short stroke version

Data Sheet
3D Model
Weight
0.85 kg1.87 lb
Stroke Per Jaw
3 mm0.12 in
Fluid Consumption Double Stroke
28.5 cm³1.74 in³
Closing Force Per Jaw @ 6 bar
455 N102.3 lbf
Opening Force Per Jaw @ 6 bar
530 N119.15 lbf
Total closing force @ 6 bar
1365 N306.9 lbf
Total opening force @ 6 bar
1590 N357.45 lbf
Recommended Workpiece Weight
4.55 kg10.00 lb
Repeat Accuracy
±0.01 mm±0.0004 in
QPGB-311-P-8-U-SM-8-P-B-S

Long stroke version

Data Sheet
3D Model
Weight
1.30 kg2.86 lb
Stroke Per Jaw
8 mm0.31 in
Fluid Consumption Double Stroke
66 cm³4.03 in³
Closing Force Per Jaw @ 6 bar
385 N86.5 lbf
Opening Force Per Jaw @ 6 bar
452 N101.61 lbf
Total closing force @ 6 bar
1155 N259.6 lbf
Total opening force @ 6 bar
1358 N305.29 lbf
Recommended Workpiece Weight
3.85 kg8.50 lb
Repeat Accuracy
±0.01 mm±0.0004 in
QPGB-311-P-4-U-SM-8-P-B-S

Short stroke version

Data Sheet
3D Model
Weight
1.30 kg2.86 lb
Stroke Per Jaw
4 mm0.16 in
Fluid Consumption Double Stroke
66 cm³4.03 in³
Closing Force Per Jaw @ 6 bar
770 N173.1 lbf
Opening Force Per Jaw @ 6 bar
905 N203.45 lbf
Total closing force @ 6 bar
2310 N519.3 lbf
Total opening force @ 6 bar
2715 N610.36 lbf
Recommended Workpiece Weight
7.70 kg16.90 lb
Repeat Accuracy
±0.01 mm±0.0004 in
QPGB-313-P-10-U-SM-8-P-B-S

Long stroke version

Data Sheet
3D Model
Weight
2.00 kg4.40 lb
Stroke Per Jaw
10 mm0.39 in
Fluid Consumption Double Stroke
130 cm³7.93 in³
Closing Force Per Jaw @ 6 bar
610 N137.1 lbf
Opening Force Per Jaw @ 6 bar
716 N160.96 lbf
Total closing force @ 6 bar
1830 N411.4 lbf
Total opening force @ 6 bar
2148 N482.89 lbf
Recommended Workpiece Weight
6.10 kg13.40 lb
Repeat Accuracy
±0.01 mm±0.0004 in
QPGB-313-P-5-U-SM-8-P-B-S

Short stroke version

Data Sheet
3D Model
Weight
2.00 kg4.40 lb
Stroke Per Jaw
5 mm0.20 in
Fluid Consumption Double Stroke
130 cm³7.93 in³
Closing Force Per Jaw @ 6 bar
1200 N269.8 lbf
Opening Force Per Jaw @ 6 bar
1415 N318.10 lbf
Total closing force @ 6 bar
3600 N809.3 lbf
Total opening force @ 6 bar
4245 N954.31 lbf
Recommended Workpiece Weight
12.00 kg26.40 lb
Repeat Accuracy
±0.01 mm±0.0004 in

Operating pressure 2 - 8 bar (QPGB 307 K: 2 - 7 bar)Ambient temperature 5 - 60 °CSound emissions (sound pressure) ≤ 70 dB(A) in each direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.

Related Products

Grippers
HPG-3

HPG is a universal three-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.
Grippers

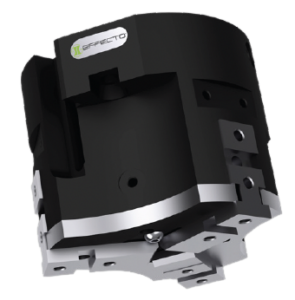

OPE-3

OPE is a universal three-finger parallel gripper featuring high reliability and long service life, suitable for a wide range of industrial applications.
Grippers

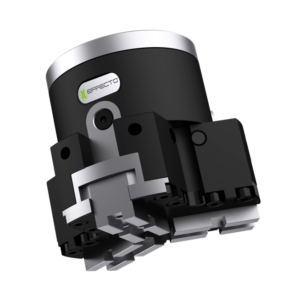

MOP-3

MOP is a universal three-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.

Designs

EFFECTO pneumatic grippers are designed for durability, with a wedge-hook mechanism that delivers high power transmission and repeatable, synchronized gripping cycle after cycle.

Available across 30 versions and multiple sizes, from compact grippers for tight workspaces to larger models for heavy-duty applications, each is built with superior jaw guidance for precise handling and easy maintenance in harsh environments.

Downloads

Model & Description Data Sheet 3D Model
QPGB-307-P-4-U-SM-8-P-B-S
QPGB-309-P-6-U-SM-8-P-B-S Long stroke version
QPGB-309-P-3-U-SM-8-P-B-S Short stroke version
QPGB-311-P-8-U-SM-8-P-B-S Long stroke version
QPGB-311-P-4-U-SM-8-P-B-S Short stroke version
QPGB-313-P-10-U-SM-8-P-B-S Long stroke version
QPGB-313-P-5-U-SM-8-P-B-S Short stroke version
QPGB-307-P-4-U-SM-8-P-B-S
Data Sheet
3D Model
QPGB-309-P-6-U-SM-8-P-B-S

Long stroke version

Data Sheet
3D Model
QPGB-309-P-3-U-SM-8-P-B-S

Short stroke version

Data Sheet
3D Model
QPGB-311-P-8-U-SM-8-P-B-S

Long stroke version

Data Sheet
3D Model
QPGB-311-P-4-U-SM-8-P-B-S

Short stroke version

Data Sheet
3D Model
QPGB-313-P-10-U-SM-8-P-B-S

Long stroke version

Data Sheet
3D Model
QPGB-313-P-5-U-SM-8-P-B-S

Short stroke version

Data Sheet
3D Model

Modules & Accessories

QPGB Gripper Sensors

Gripper Sensors detect jaw position (open/closed) for verification in automated handling sequences.

Metric Imperial
Model & Description Max Current Type Wires Voltage Cable Length Protection Operating Distance
TOH REED type magnetic switch, horizontal mount, normally open 5 - 50 mA REED 2 12 - 24 V 3 m118.11 in IP67
TOV REED type magnetic switch, vertical mount, normally open 5 - 50 mA REED 2 12 - 24 V 3 m118.11 in IP67
DSL1C REED type magnetic switch, normally open 100 mA REED 2 3 - 24 V 2.5 m98.43 in IP67
T2H HALL effect magnetic switch, horizontal mount, normally open 5 - 25 mA HALL 2 10 - 30 V 3 m118.11 in IP67
T2V HALL effect magnetic switch, vertical mount, normally open 5 - 25 mA HALL 2 10 - 30 V 3 m118.11 in IP67
T3PH HALL effect magnetic switch, 3-wire 100 mA HALL 3 10 - 28 V 3 m3 m118.11 in IP67
SM8 PNP proximity switch, normally open, M8x1 thread 200 mA Proximity 3 10 - 30 V 2 m78.74 in IP67 2 mm0.08 in
TOH

REED type magnetic switch, horizontal mount, normally open

Max Current
5 - 50 mA
Type
REED
Wires
2
Voltage
12 - 24 V
Cable Length
3 m118.11 in
Protection
IP67
TOV

REED type magnetic switch, vertical mount, normally open

Max Current
5 - 50 mA
Type
REED
Wires
2
Voltage
12 - 24 V
Cable Length
3 m118.11 in
Protection
IP67
DSL1C

REED type magnetic switch, normally open

Max Current
100 mA
Type
REED
Wires
2
Voltage
3 - 24 V
Cable Length
2.5 m98.43 in
Protection
IP67
T2H

HALL effect magnetic switch, horizontal mount, normally open

Max Current
5 - 25 mA
Type
HALL
Wires
2
Voltage
10 - 30 V
Cable Length
3 m118.11 in
Protection
IP67
T2V

HALL effect magnetic switch, vertical mount, normally open

Max Current
5 - 25 mA
Type
HALL
Wires
2
Voltage
10 - 30 V
Cable Length
3 m118.11 in
Protection
IP67
T3PH

HALL effect magnetic switch, 3-wire

Max Current
100 mA
Type
HALL
Wires
3
Voltage
10 - 28 V
Cable Length
3 m3 m118.11 in
Protection
IP67
SM8

PNP proximity switch, normally open, M8x1 thread

Max Current
200 mA
Type
Proximity
Wires
3
Voltage
10 - 30 V
Cable Length
2 m78.74 in
Protection
IP67
Operating Distance
2 mm0.08 in

Operating Temperature 5 - 60 °C (40 - 140 °F)Noise Emissions (Sound Pressure) ≤ 70 dB(A) in any direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.
