Grippers

MOP-3

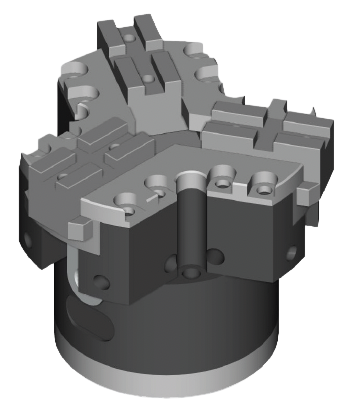

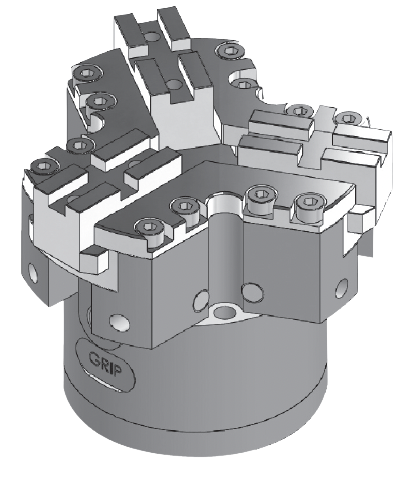

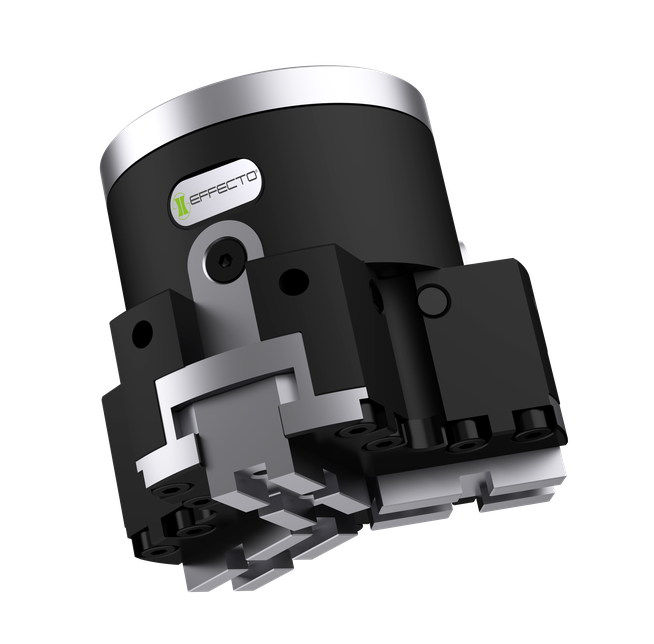

MOP is a universal three-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.

Models Designs Downloads

Models

MOP is a universal three-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.

Advantages

Robust and lightweight housing made of hard coated aluminum alloy.
Sturdy T-slot with hardened steel gibs for effective jaw guidance, precise handling and easy maintenance.

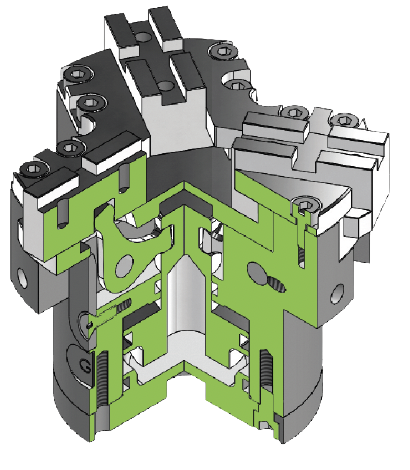

Lever design for high-force transmission and jaw synchronization.

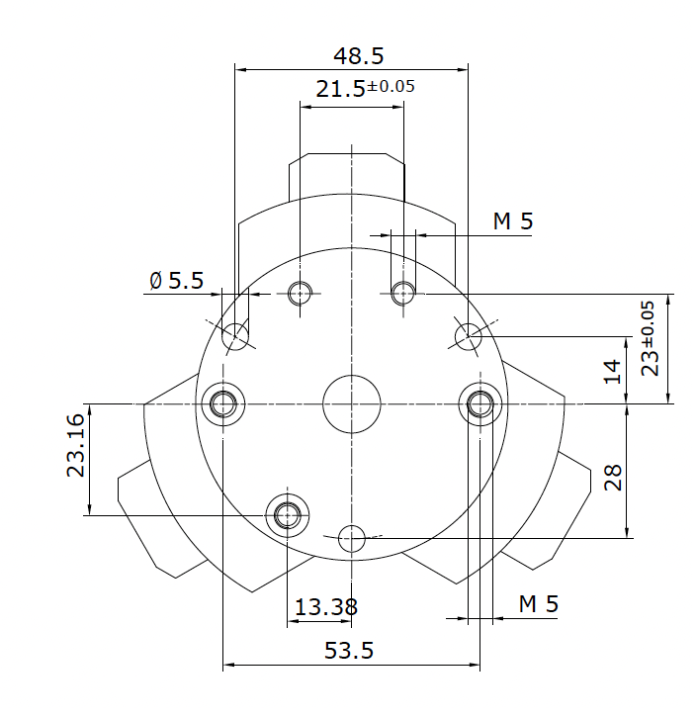

Mounting from two sides in three screw directions for versatile and flexible integration.

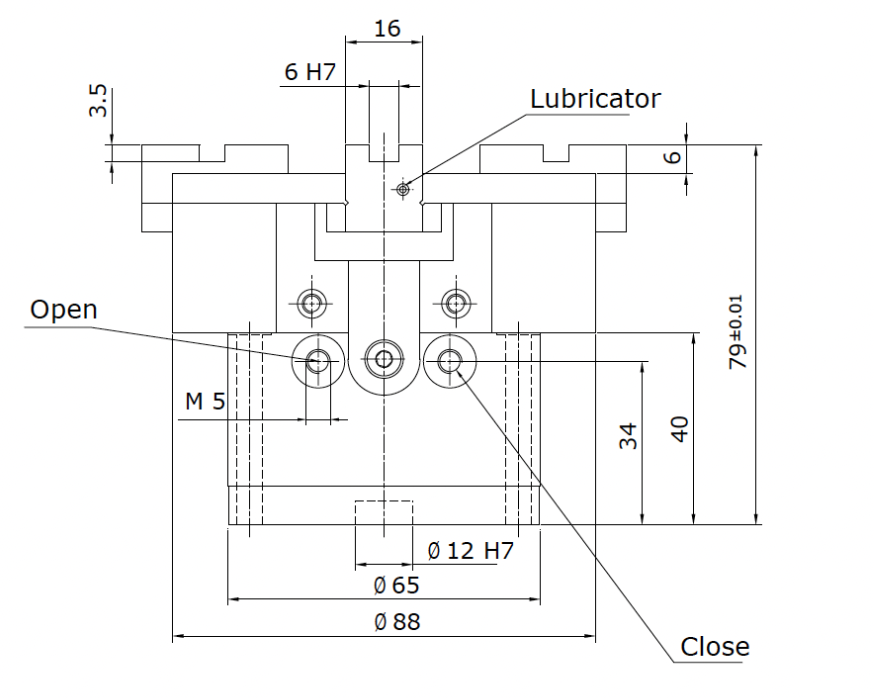

Air supply via hose-free direct connections or fitting screw connections.

Model & Description	Data Sheet	3D Model	Weight	Stroke Per Jaw	Fluid Consumption Double Stroke	Closing Force Per Jaw @ 6 bar	Opening Force Per Jaw @ 6 bar	Total closing force @ 6 bar	Total opening force @ 6 bar	Recommended Workpiece Weight
MOP-653-P-10-U-SM-12-N-B-N			1.10 kg2.42 lb	10 mm0.39 in	31 cm³1.89 in³	118 N26.5 lbf	137 N30.8 lbf	354 N79.6 lbf	411 N92.4 lbf	2.21 kg4.90 lb

MOP-653-P-10-U-SM-12-N-B-N

Data Sheet
3D Model
Weight: 1.10 kg2.42 lb
Stroke Per Jaw: 10 mm0.39 in
Fluid Consumption Double Stroke: 31 cm³1.89 in³
Closing Force Per Jaw @ 6 bar: 118 N26.5 lbf
Opening Force Per Jaw @ 6 bar: 137 N30.8 lbf
Total closing force @ 6 bar: 354 N79.6 lbf
Total opening force @ 6 bar: 411 N92.4 lbf
Recommended Workpiece Weight: 2.21 kg4.90 lb

Related Products

Grippers

HPG is a universal three-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.

Tool Changers

ER63/ET63 is an automatic tool changing assembly for exchanging robotic end-of-arm tooling (EOAT) on the fly. Rated payload up to 50 kg.

Collision Sensors

Quick Stop Collision Sensor Family

QuickSTOP Standard

QS is a dynamically variable collision sensor that operates on an air pressure system, providing excellent protection in machine load/unload robotics applications. Covers payloads from QS-7 to QS-7500.

Designs

EFFECTO pneumatic grippers are designed for durability, with a wedge-hook mechanism that delivers high power transmission and repeatable, synchronized gripping cycle after cycle.

Available across 30 versions and multiple sizes, from compact grippers for tight workspaces to larger models for heavy-duty applications, each is built with superior jaw guidance for precise handling and easy maintenance in harsh environments.

Downloads

Model & Description	Data Sheet	3D Model
MOP-653-P-10-U-SM-12-N-B-N

MOP-653-P-10-U-SM-12-N-B-N

Data Sheet
3D Model
