Grippers

OPE-3

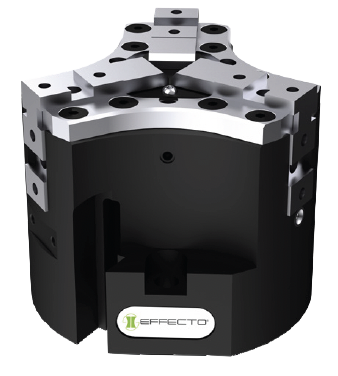

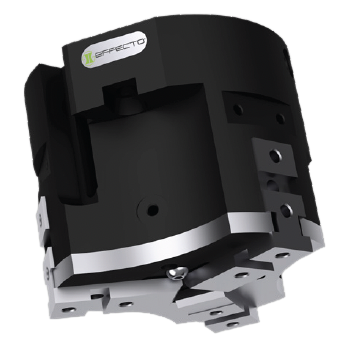

OPE is a universal three-finger parallel gripper featuring high reliability and long service life, suitable for a wide range of industrial applications.

Models

OPE is a universal three-finger parallel gripper featuring high reliability and long service life, suitable for a wide range of industrial applications.

Advantages

  • Robust, lightweight housing made of hard-coated aluminum alloy.
  • Sturdy C-slot with hardened steel gibs for effective jaw guidance, precise handling, and easy maintenance.
  • Mounting from two sides in three screw directions for versatile and flexible integration.
  • Side or top finger mounting.
  • Integrated permanent magnets for direct monitoring of piston movement.
  • Slots for mounting and positioning of magnetic-field sensors.
  • Air supply via fitting screw connections or hose-free direct connections (optional version “X”).
Metric Imperial
Model & Description Data Sheet 2D Drawing 3D Model Weight Stroke Per Jaw Fluid Consumption Double Stroke Closing Force Per Jaw @ 6 bar Opening Force Per Jaw @ 6 bar Total closing force @ 6 bar Total opening force @ 6 bar Recommended Workpiece Weight Repeat Accuracy
OPE-60-P-5-L-SM-12-P-B-S Long stroke version 0.36 kg0.79 lb 5 mm0.20 in 8 cm³0.49 in³ 80 N18.0 lbf 90 N20.2 lbf 240 N54.0 lbf 270 N60.7 lbf 1.20 kg2.65 lb ±0.05 mm±0.002 in
OPE60-3CM Long stroke version - Spring in closing 0.67 kg1.48 lb 5 mm0.20 in 8 cm³0.49 in³ 96 N21.6 lbf 288 N64.7 lbf 1.20 kg2.65 lb ±0.05 mm±0.002 in
OPE60-3CMA Long stroke version - Spring in opening 0.67 kg1.48 lb 5 mm0.20 in 8 cm³0.49 in³ 105 N23.6 lbf 315 N70.8 lbf 1.20 kg2.65 lb ±0.05 mm±0.002 in
OPE-60-P-3-L-SM-12-P-B-S Short stroke version 0.30 kg0.66 lb 3 mm0.12 in 8 cm³0.49 in³ 135 N30.3 lbf 152 N34.2 lbf 405 N91.0 lbf 456 N102.5 lbf 2.03 kg4.48 lb ±0.05 mm±0.002 in
OPE60-3SCM Short stroke version - Spring in closing 0.57 kg1.26 lb 3 mm0.12 in 8 cm³0.49 in³ 158 N35.5 lbf 474 N106.6 lbf 2.03 kg4.48 lb ±0.05 mm±0.002 in
OPE60-3SCMA Short stroke version - Spring in opening 0.57 kg1.26 lb 3 mm0.12 in 8 cm³0.49 in³ 177 N39.8 lbf 531 N119.4 lbf 2.03 kg4.48 lb ±0.05 mm±0.002 in
OPE-65-P-7.5-L-SM-12-N-B-S Long stroke version 0.57 kg1.25 lb 7.5 mm0.30 in 18 cm³1.10 in³ 126 N28.3 lbf 138 N31.0 lbf 378 N85.0 lbf 414 N93.1 lbf 1.89 kg4.17 lb ±0.05 mm±0.002 in
OPE65-3CM Long stroke version - Spring in closing 0.78 kg1.72 lb 7.5 mm0.30 in 18 cm³1.10 in³ 147 N33.0 lbf 441 N99.1 lbf 1.89 kg4.17 lb ±0.05 mm±0.002 in
OPE65-3CMA Long stroke version - Spring in opening 0.78 kg1.72 lb 7.5 mm0.30 in 18 cm³1.10 in³ 158 N35.5 lbf 474 N106.6 lbf 1.89 kg4.17 lb ±0.05 mm±0.002 in
OPE-65-P-3.75-L-SM-12-P-B-S Short stroke version 0.50 kg1.10 lb 3.75 mm0.15 in 18 cm³1.10 in³ 247 N55.5 lbf 272 N61.1 lbf 741 N166.6 lbf 816 N183.4 lbf 3.71 kg8.18 lb ±0.05 mm±0.002 in
OPE65-3SCM Short stroke version - Spring in closing 0.68 kg1.50 lb 3.75 mm0.15 in 18 cm³1.10 in³ 290 N65.2 lbf 870 N195.6 lbf 3.71 kg8.18 lb ±0.05 mm±0.002 in
OPE65-3SCMA Short stroke version - Spring in opening 0.68 kg1.50 lb 3.75 mm0.15 in 18 cm³1.10 in³ 312 N70.1 lbf 936 N210.4 lbf 3.71 kg8.18 lb ±0.05 mm±0.002 in
OPE-80-P-12-L-SM-12-P-B-S Long stroke version 0.90 kg1.98 lb 10 mm0.39 in 26 cm³1.59 in³ 126 N28.3 lbf 138 N31.0 lbf 378 N85.0 lbf 414 N93.1 lbf 1.89 kg4.17 lb ±0.05 mm±0.002 in
OPE80-3CM Long stroke version - Spring in closing 1.03 kg2.27 lb 10 mm0.39 in 26 cm³1.59 in³ 144 N32.4 lbf 432 N97.1 lbf 1.89 kg4.17 lb ±0.05 mm±0.002 in
OPE80-3CMA Long stroke version - Spring in opening 1.03 kg2.27 lb 10 mm0.39 in 26 cm³1.59 in³ 155 N34.8 lbf 465 N104.5 lbf 1.89 kg4.17 lb ±0.05 mm±0.002 in
OPE-80-P-5-L-SM-12-P-B-S Short stroke version 0.85 kg1.87 lb 5 mm0.20 in 26 cm³1.59 in³ 247 N55.5 lbf 272 N61.1 lbf 741 N166.6 lbf 816 N183.4 lbf 3.71 kg8.18 lb ±0.05 mm±0.002 in
OPE80-3SCM Short stroke version - Spring in closing 0.93 kg2.05 lb 5 mm0.20 in 26 cm³1.59 in³ 283 N63.6 lbf 849 N190.9 lbf 3.71 kg8.18 lb ±0.05 mm±0.002 in
OPE80-3SCMA Short stroke version - Spring in opening 0.93 kg2.05 lb 5 mm0.20 in 26 cm³1.59 in³ 306 N68.8 lbf 918 N206.4 lbf 3.71 kg8.18 lb ±0.05 mm±0.002 in
OPE-90-P-12-L-SM-12-P-B-S Long stroke version 1.30 kg2.86 lb 12 mm0.47 in 36.5 cm³2.23 in³ 155 N34.8 lbf 172 N38.7 lbf 465 N104.5 lbf 516 N116.0 lbf 2.33 kg5.14 lb ±0.05 mm±0.002 in
OPE90-3CM Long stroke version - Spring in closing 1.35 kg2.98 lb 12 mm0.47 in 36.5 cm³2.23 in³ 186 N41.8 lbf 558 N125.4 lbf 2.33 kg5.14 lb ±0.05 mm±0.002 in
OPE90-3CMA Long stroke version - Spring in opening 1.35 kg2.98 lb 12 mm0.47 in 36.5 cm³2.23 in³ 203 N45.6 lbf 609 N136.9 lbf 2.33 kg5.14 lb ±0.05 mm±0.002 in
OPE-90-P-6-L-SM-12-P-B-S Short stroke version 1.20 kg2.64 lb 6 mm0.24 in 36.5 cm³2.23 in³ 310 N70 lbf 344 N77.3 lbf 930 N209.1 lbf 1032 N232.0 lbf 4.65 kg10.25 lb ±0.05 mm±0.002 in
OPE90-3SCM Short stroke version - Spring in closing 1.25 kg2.76 lb 6 mm0.24 in 36.5 cm³2.23 in³ 366 N82.3 lbf 1098 N246.8 lbf 4.65 kg10.25 lb ±0.05 mm±0.002 in
OPE90-3SCMA Short stroke version - Spring in opening 1.25 kg2.76 lb 6 mm0.24 in 36.5 cm³2.23 in³ 406 N91.3 lbf 1218 N273.8 lbf 4.65 kg10.25 lb ±0.05 mm±0.002 in
OPE-105-P-15-L-SM-12-P-B-S Long stroke version 2.10 kg4.62 lb 15 mm0.59 in 57 cm³3.48 in³ 195 N43.8 lbf 211 N47.4 lbf 585 N131.5 lbf 633 N142.3 lbf 2.93 kg6.46 lb ±0.05 mm±0.002 in
OPE105-3CM Long stroke version - Spring in closing 2.17 kg4.78 lb 15 mm0.59 in 57 cm³3.48 in³ 237 N53.3 lbf 711 N159.8 lbf 2.93 kg6.46 lb ±0.05 mm±0.002 in
OPE105-3CMA Long stroke version - Spring in opening 2.17 kg4.78 lb 15 mm0.59 in 57 cm³3.48 in³ 253 N56.9 lbf 759 N170.6 lbf 2.93 kg6.46 lb ±0.05 mm±0.002 in
OPE-105-P-7.5-L-SM-12-P-B-S Short stroke version 1.85 kg4.07 lb 7.5 mm0.30 in 57 cm³3.48 in³ 390 N87.7 lbf 422 N94.9 lbf 1170 N263.0 lbf 1266 N284.6 lbf 5.85 kg12.90 lb ±0.05 mm±0.002 in
OPE105-3SCM Short stroke version - Spring in closing 1.92 kg4.23 lb 7.5 mm0.30 in 57 cm³3.48 in³ 465 N104.5 lbf 1395 N313.6 lbf 5.85 kg12.90 lb ±0.05 mm±0.002 in
OPE105-3SCMA Short stroke version - Spring in opening 1.92 kg4.23 lb 7.5 mm0.30 in 57 cm³3.48 in³ 504 N113.3 lbf 1512 N339.9 lbf 5.85 kg12.90 lb ±0.05 mm±0.002 in
OPE-110-P-10-L-SM-12-P-B-S Long stroke version 2.35 kg5.17 lb 10 mm0.39 in 60.5 cm³3.69 in³ 320 N71.9 lbf 342 N76.9 lbf 960 N215.8 lbf 1026 N230.6 lbf 4.80 kg10.58 lb ±0.05 mm±0.0020 in
OPE110-3CM Long stroke version - Spring in closing 3.00 kg6.61 lb 10 mm0.39 in 60.5 cm³3.69 in³ 383 N86.1 lbf 1149 N258.3 lbf 4.80 kg10.58 lb ±0.05 mm±0.0020 in
OPE110-3CMA Long stroke version - Spring in opening 3.00 kg6.61 lb 10 mm0.39 in 60.5 cm³3.69 in³ 410 N92.2 lbf 1230 N276.5 lbf 4.80 kg10.58 lb ±0.05 mm±0.0020 in
OPE-110-P-5-L-SM-12-P-B-S Short stroke version 2.20 kg4.84 lb 5 mm0.20 in 60.5 cm³3.69 in³ 629 N141.4 lbf 671 N150.8 lbf 1887 N424.2 lbf 2013 N452.5 lbf 9.44 kg20.81 lb ±0.05 mm±0.0020 in
OPE110-3SCM Short stroke version - Spring in closing 2.60 kg5.73 lb 5 mm0.20 in 60.5 cm³3.69 in³ 752 N169.1 lbf 2256 N507.2 lbf 9.44 kg20.81 lb ±0.05 mm±0.0020 in
OPE110-3SCMA Short stroke version - Spring in opening 2.60 kg5.73 lb 5 mm0.20 in 60.5 cm³3.69 in³ 806 N181.2 lbf 2418 N543.6 lbf 9.44 kg20.81 lb ±0.05 mm±0.0020 in
OPE-125-P-20-L-SM-12-P-B-S Long stroke version 3.15 kg6.93 lb 20 mm0.79 in 150 cm³9.15 in³ 400 N89.9 lbf 422 N94.9 lbf 1200 N269.8 lbf 1266 N284.6 lbf 6.00 kg13.23 lb ±0.05 mm±0.0020 in
OPE125-3CM Long stroke version - Spring in closing 4.00 kg8.82 lb 20 mm0.79 in 150 cm³9.15 in³ 471 N105.9 lbf 1413 N317.7 lbf 6.00 kg13.23 lb ±0.05 mm±0.0020 in
OPE125-3CMA Long stroke version - Spring in opening 4.00 kg8.82 lb 20 mm0.79 in 150 cm³9.15 in³ 500 N112.4 lbf 1500 N337.2 lbf 6.00 kg13.23 lb ±0.05 mm±0.0020 in
OPE-125-P-10-L-SM-12-P-B-S Short stroke version 2.95 kg6.49 lb 10 mm0.39 in 150 cm³9.15 in³ 787 N176.9 lbf 830 N186.6 lbf 2361 N530.8 lbf 2490 N559.8 lbf 11.81 kg26.04 lb ±0.05 mm±0.0020 in
OPE125-3SCM Short stroke version - Spring in closing 3.25 kg7.17 lb 10 mm0.39 in 150 cm³9.15 in³ 925 N207.9 lbf 2775 N623.8 lbf 11.81 kg26.04 lb ±0.05 mm±0.0020 in
OPE125-3SCMA Short stroke version - Spring in opening 3.25 kg7.17 lb 10 mm0.39 in 150 cm³9.15 in³ 983 N221.0 lbf 2949 N663.0 lbf 11.81 kg26.04 lb ±0.05 mm±0.0020 in
OPE-175-P-30-L-SM-12-P-B-S Long stroke version 6.50 kg14.30 lb 30 mm1.18 in 293 cm³17.87 in³ 520 N116.9 lbf 555 N124.8 lbf 1560 N350.7 lbf 1665 N374.3 lbf 7.80 kg17.20 lb ±0.05 mm±0.0020 in
OPE175-3CM Long stroke version - Spring in closing 6.90 kg15.21 lb 30 mm1.18 in 293 cm³17.87 in³ 589 N132.4 lbf 1767 N397.2 lbf 7.80 kg17.20 lb ±0.05 mm±0.0020 in
OPE175-3CMA Long stroke version - Spring in opening 6.90 kg15.21 lb 30 mm1.18 in 293 cm³17.87 in³ 636 N143.0 lbf 1908 N428.9 lbf 7.80 kg17.20 lb ±0.05 mm±0.0020 in
OPE-175-P-15-L-SM-12-P-B-S Short stroke version 6.00 kg13.20 lb 15 mm0.59 in 293 cm³17.87 in³ 1047 N235.4 lbf 1089 N244.8 lbf 3141 N706.1 lbf 3267 N734.4 lbf 15.71 kg34.63 lb ±0.05 mm±0.0020 in
OPE175-3SCM Short stroke version - Spring in closing 6.40 kg14.11 lb 15 mm0.59 in 293 cm³17.87 in³ 1156 N259.9 lbf 3468 N779.6 lbf 15.71 kg34.63 lb ±0.05 mm±0.0020 in
OPE175-3SCMA Short stroke version - Spring in opening 6.40 kg14.11 lb 15 mm0.59 in 293 cm³17.87 in³ 1248 N280.6 lbf 3744 N841.7 lbf 15.71 kg34.63 lb ±0.05 mm±0.0020 in
OPE-205-P-35-L-SM-12-P-B-S Long stroke version 12.00 kg26.40 lb 35 mm1.38 in 533 cm³32.51 in³ 805 N181.0 lbf 859 N193.1 lbf 2415 N542.9 lbf 2577 N579.3 lbf 12.08 kg26.63 lb ±0.05 mm±0.0020 in
OPE205-3CM Long stroke version - Spring in closing 12.80 kg28.22 lb 35 mm1.38 in 533 cm³32.51 in³ 882 N198.3 lbf 2646 N594.8 lbf 12.08 kg26.63 lb ±0.05 mm±0.0020 in
OPE205-3CMA Long stroke version - Spring in opening 12.80 kg28.22 lb 35 mm1.38 in 533 cm³32.51 in³ 947 N212.9 lbf 2841 N638.7 lbf 12.08 kg26.63 lb ±0.05 mm±0.0020 in
OPE-205-P-17.5-L-SM-12-P-B-S Short stroke version 11.50 kg25.30 lb 17.5 mm0.69 in 533 cm³32.51 in³ 1580 N355.2 lbf 1686 N379.0 lbf 4740 N1065.6 lbf 5058 N1137.0 lbf 23.70 kg52.25 lb ±0.05 mm±0.0020 in
OPE205-3SCM Short stroke version - Spring in closing 12.30 kg27.12 lb 17.5 mm0.69 in 533 cm³32.51 in³ 1732 N389.4 lbf 5196 N1168.1 lbf 23.70 kg52.25 lb ±0.05 mm±0.0020 in
OPE205-3SCMA Short stroke version - Spring in opening 12.30 kg27.12 lb 17.5 mm0.69 in 533 cm³32.51 in³ 1859 N417.9 lbf 5577 N1253.8 lbf 23.70 kg52.25 lb ±0.05 mm±0.0020 in
OPE-60-P-5-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
0.36 kg0.79 lb
Stroke Per Jaw
5 mm0.20 in
Fluid Consumption Double Stroke
8 cm³0.49 in³
Closing Force Per Jaw @ 6 bar
80 N18.0 lbf
Opening Force Per Jaw @ 6 bar
90 N20.2 lbf
Total closing force @ 6 bar
240 N54.0 lbf
Total opening force @ 6 bar
270 N60.7 lbf
Recommended Workpiece Weight
1.20 kg2.65 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE60-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
0.67 kg1.48 lb
Stroke Per Jaw
5 mm0.20 in
Fluid Consumption Double Stroke
8 cm³0.49 in³
Closing Force Per Jaw @ 6 bar
96 N21.6 lbf
Total closing force @ 6 bar
288 N64.7 lbf
Recommended Workpiece Weight
1.20 kg2.65 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE60-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
0.67 kg1.48 lb
Stroke Per Jaw
5 mm0.20 in
Fluid Consumption Double Stroke
8 cm³0.49 in³
Opening Force Per Jaw @ 6 bar
105 N23.6 lbf
Total opening force @ 6 bar
315 N70.8 lbf
Recommended Workpiece Weight
1.20 kg2.65 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE-60-P-3-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
0.30 kg0.66 lb
Stroke Per Jaw
3 mm0.12 in
Fluid Consumption Double Stroke
8 cm³0.49 in³
Closing Force Per Jaw @ 6 bar
135 N30.3 lbf
Opening Force Per Jaw @ 6 bar
152 N34.2 lbf
Total closing force @ 6 bar
405 N91.0 lbf
Total opening force @ 6 bar
456 N102.5 lbf
Recommended Workpiece Weight
2.03 kg4.48 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE60-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
0.57 kg1.26 lb
Stroke Per Jaw
3 mm0.12 in
Fluid Consumption Double Stroke
8 cm³0.49 in³
Closing Force Per Jaw @ 6 bar
158 N35.5 lbf
Total closing force @ 6 bar
474 N106.6 lbf
Recommended Workpiece Weight
2.03 kg4.48 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE60-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
0.57 kg1.26 lb
Stroke Per Jaw
3 mm0.12 in
Fluid Consumption Double Stroke
8 cm³0.49 in³
Opening Force Per Jaw @ 6 bar
177 N39.8 lbf
Total opening force @ 6 bar
531 N119.4 lbf
Recommended Workpiece Weight
2.03 kg4.48 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE-65-P-7.5-L-SM-12-N-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
0.57 kg1.25 lb
Stroke Per Jaw
7.5 mm0.30 in
Fluid Consumption Double Stroke
18 cm³1.10 in³
Closing Force Per Jaw @ 6 bar
126 N28.3 lbf
Opening Force Per Jaw @ 6 bar
138 N31.0 lbf
Total closing force @ 6 bar
378 N85.0 lbf
Total opening force @ 6 bar
414 N93.1 lbf
Recommended Workpiece Weight
1.89 kg4.17 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE65-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
0.78 kg1.72 lb
Stroke Per Jaw
7.5 mm0.30 in
Fluid Consumption Double Stroke
18 cm³1.10 in³
Closing Force Per Jaw @ 6 bar
147 N33.0 lbf
Total closing force @ 6 bar
441 N99.1 lbf
Recommended Workpiece Weight
1.89 kg4.17 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE65-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
0.78 kg1.72 lb
Stroke Per Jaw
7.5 mm0.30 in
Fluid Consumption Double Stroke
18 cm³1.10 in³
Opening Force Per Jaw @ 6 bar
158 N35.5 lbf
Total opening force @ 6 bar
474 N106.6 lbf
Recommended Workpiece Weight
1.89 kg4.17 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE-65-P-3.75-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
0.50 kg1.10 lb
Stroke Per Jaw
3.75 mm0.15 in
Fluid Consumption Double Stroke
18 cm³1.10 in³
Closing Force Per Jaw @ 6 bar
247 N55.5 lbf
Opening Force Per Jaw @ 6 bar
272 N61.1 lbf
Total closing force @ 6 bar
741 N166.6 lbf
Total opening force @ 6 bar
816 N183.4 lbf
Recommended Workpiece Weight
3.71 kg8.18 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE65-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
0.68 kg1.50 lb
Stroke Per Jaw
3.75 mm0.15 in
Fluid Consumption Double Stroke
18 cm³1.10 in³
Closing Force Per Jaw @ 6 bar
290 N65.2 lbf
Total closing force @ 6 bar
870 N195.6 lbf
Recommended Workpiece Weight
3.71 kg8.18 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE65-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
0.68 kg1.50 lb
Stroke Per Jaw
3.75 mm0.15 in
Fluid Consumption Double Stroke
18 cm³1.10 in³
Opening Force Per Jaw @ 6 bar
312 N70.1 lbf
Total opening force @ 6 bar
936 N210.4 lbf
Recommended Workpiece Weight
3.71 kg8.18 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE-80-P-12-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
0.90 kg1.98 lb
Stroke Per Jaw
10 mm0.39 in
Fluid Consumption Double Stroke
26 cm³1.59 in³
Closing Force Per Jaw @ 6 bar
126 N28.3 lbf
Opening Force Per Jaw @ 6 bar
138 N31.0 lbf
Total closing force @ 6 bar
378 N85.0 lbf
Total opening force @ 6 bar
414 N93.1 lbf
Recommended Workpiece Weight
1.89 kg4.17 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE80-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
1.03 kg2.27 lb
Stroke Per Jaw
10 mm0.39 in
Fluid Consumption Double Stroke
26 cm³1.59 in³
Closing Force Per Jaw @ 6 bar
144 N32.4 lbf
Total closing force @ 6 bar
432 N97.1 lbf
Recommended Workpiece Weight
1.89 kg4.17 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE80-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
1.03 kg2.27 lb
Stroke Per Jaw
10 mm0.39 in
Fluid Consumption Double Stroke
26 cm³1.59 in³
Opening Force Per Jaw @ 6 bar
155 N34.8 lbf
Total opening force @ 6 bar
465 N104.5 lbf
Recommended Workpiece Weight
1.89 kg4.17 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE-80-P-5-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
0.85 kg1.87 lb
Stroke Per Jaw
5 mm0.20 in
Fluid Consumption Double Stroke
26 cm³1.59 in³
Closing Force Per Jaw @ 6 bar
247 N55.5 lbf
Opening Force Per Jaw @ 6 bar
272 N61.1 lbf
Total closing force @ 6 bar
741 N166.6 lbf
Total opening force @ 6 bar
816 N183.4 lbf
Recommended Workpiece Weight
3.71 kg8.18 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE80-3SCM

Short stroke version - Spring in closing

Data Sheet

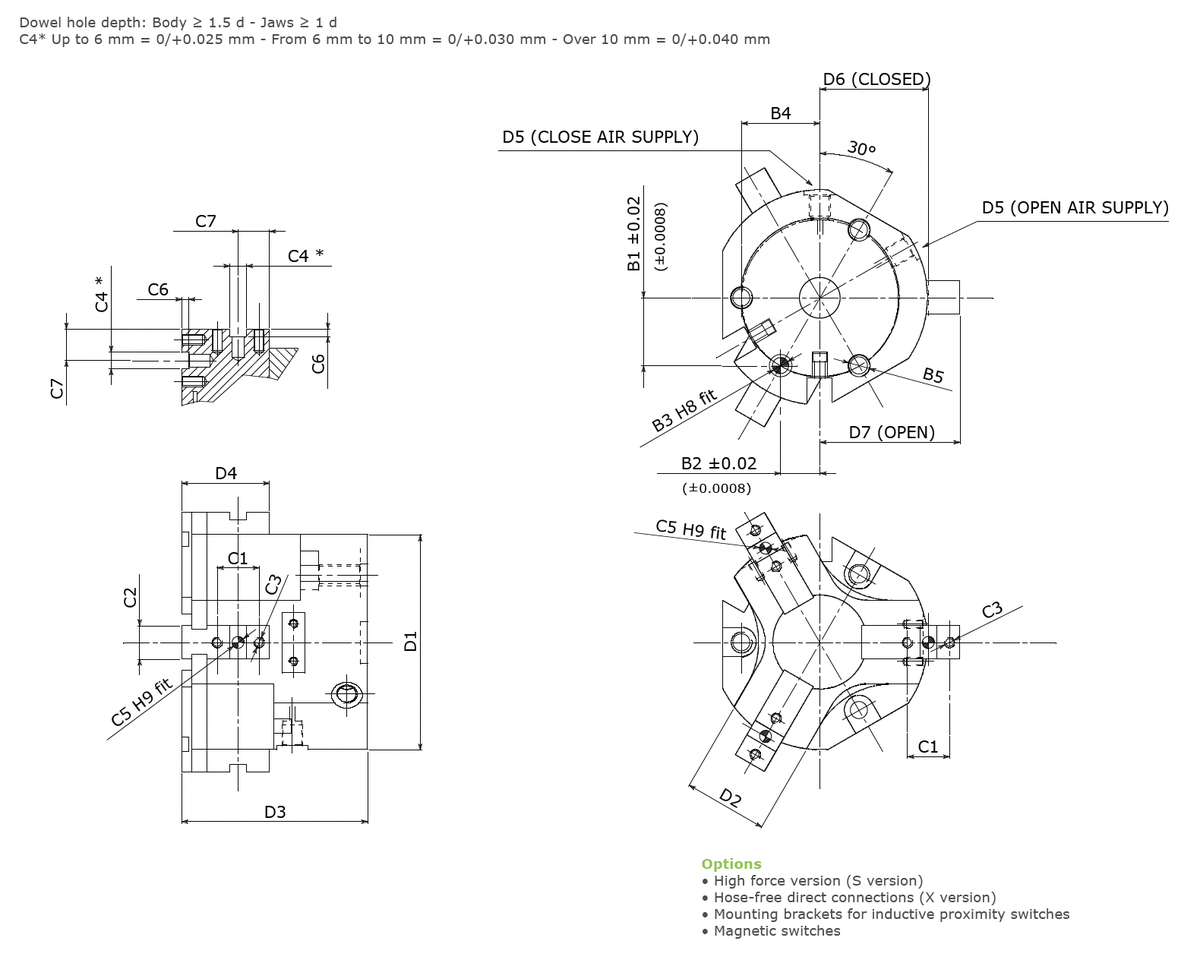

2D Drawing
3D Model
Weight
0.93 kg2.05 lb
Stroke Per Jaw
5 mm0.20 in
Fluid Consumption Double Stroke
26 cm³1.59 in³
Closing Force Per Jaw @ 6 bar
283 N63.6 lbf
Total closing force @ 6 bar
849 N190.9 lbf
Recommended Workpiece Weight
3.71 kg8.18 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE80-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
0.93 kg2.05 lb
Stroke Per Jaw
5 mm0.20 in
Fluid Consumption Double Stroke
26 cm³1.59 in³
Opening Force Per Jaw @ 6 bar
306 N68.8 lbf
Total opening force @ 6 bar
918 N206.4 lbf
Recommended Workpiece Weight
3.71 kg8.18 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE-90-P-12-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
1.30 kg2.86 lb
Stroke Per Jaw
12 mm0.47 in
Fluid Consumption Double Stroke
36.5 cm³2.23 in³
Closing Force Per Jaw @ 6 bar
155 N34.8 lbf
Opening Force Per Jaw @ 6 bar
172 N38.7 lbf
Total closing force @ 6 bar
465 N104.5 lbf
Total opening force @ 6 bar
516 N116.0 lbf
Recommended Workpiece Weight
2.33 kg5.14 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE90-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
1.35 kg2.98 lb
Stroke Per Jaw
12 mm0.47 in
Fluid Consumption Double Stroke
36.5 cm³2.23 in³
Closing Force Per Jaw @ 6 bar
186 N41.8 lbf
Total closing force @ 6 bar
558 N125.4 lbf
Recommended Workpiece Weight
2.33 kg5.14 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE90-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
1.35 kg2.98 lb
Stroke Per Jaw
12 mm0.47 in
Fluid Consumption Double Stroke
36.5 cm³2.23 in³
Opening Force Per Jaw @ 6 bar
203 N45.6 lbf
Total opening force @ 6 bar
609 N136.9 lbf
Recommended Workpiece Weight
2.33 kg5.14 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE-90-P-6-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
1.20 kg2.64 lb
Stroke Per Jaw
6 mm0.24 in
Fluid Consumption Double Stroke
36.5 cm³2.23 in³
Closing Force Per Jaw @ 6 bar
310 N70 lbf
Opening Force Per Jaw @ 6 bar
344 N77.3 lbf
Total closing force @ 6 bar
930 N209.1 lbf
Total opening force @ 6 bar
1032 N232.0 lbf
Recommended Workpiece Weight
4.65 kg10.25 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE90-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
1.25 kg2.76 lb
Stroke Per Jaw
6 mm0.24 in
Fluid Consumption Double Stroke
36.5 cm³2.23 in³
Closing Force Per Jaw @ 6 bar
366 N82.3 lbf
Total closing force @ 6 bar
1098 N246.8 lbf
Recommended Workpiece Weight
4.65 kg10.25 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE90-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
1.25 kg2.76 lb
Stroke Per Jaw
6 mm0.24 in
Fluid Consumption Double Stroke
36.5 cm³2.23 in³
Opening Force Per Jaw @ 6 bar
406 N91.3 lbf
Total opening force @ 6 bar
1218 N273.8 lbf
Recommended Workpiece Weight
4.65 kg10.25 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE-105-P-15-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
2.10 kg4.62 lb
Stroke Per Jaw
15 mm0.59 in
Fluid Consumption Double Stroke
57 cm³3.48 in³
Closing Force Per Jaw @ 6 bar
195 N43.8 lbf
Opening Force Per Jaw @ 6 bar
211 N47.4 lbf
Total closing force @ 6 bar
585 N131.5 lbf
Total opening force @ 6 bar
633 N142.3 lbf
Recommended Workpiece Weight
2.93 kg6.46 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE105-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
2.17 kg4.78 lb
Stroke Per Jaw
15 mm0.59 in
Fluid Consumption Double Stroke
57 cm³3.48 in³
Closing Force Per Jaw @ 6 bar
237 N53.3 lbf
Total closing force @ 6 bar
711 N159.8 lbf
Recommended Workpiece Weight
2.93 kg6.46 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE105-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
2.17 kg4.78 lb
Stroke Per Jaw
15 mm0.59 in
Fluid Consumption Double Stroke
57 cm³3.48 in³
Opening Force Per Jaw @ 6 bar
253 N56.9 lbf
Total opening force @ 6 bar
759 N170.6 lbf
Recommended Workpiece Weight
2.93 kg6.46 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE-105-P-7.5-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
1.85 kg4.07 lb
Stroke Per Jaw
7.5 mm0.30 in
Fluid Consumption Double Stroke
57 cm³3.48 in³
Closing Force Per Jaw @ 6 bar
390 N87.7 lbf
Opening Force Per Jaw @ 6 bar
422 N94.9 lbf
Total closing force @ 6 bar
1170 N263.0 lbf
Total opening force @ 6 bar
1266 N284.6 lbf
Recommended Workpiece Weight
5.85 kg12.90 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE105-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
1.92 kg4.23 lb
Stroke Per Jaw
7.5 mm0.30 in
Fluid Consumption Double Stroke
57 cm³3.48 in³
Closing Force Per Jaw @ 6 bar
465 N104.5 lbf
Total closing force @ 6 bar
1395 N313.6 lbf
Recommended Workpiece Weight
5.85 kg12.90 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE105-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
1.92 kg4.23 lb
Stroke Per Jaw
7.5 mm0.30 in
Fluid Consumption Double Stroke
57 cm³3.48 in³
Opening Force Per Jaw @ 6 bar
504 N113.3 lbf
Total opening force @ 6 bar
1512 N339.9 lbf
Recommended Workpiece Weight
5.85 kg12.90 lb
Repeat Accuracy
±0.05 mm±0.002 in
OPE-110-P-10-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
2.35 kg5.17 lb
Stroke Per Jaw
10 mm0.39 in
Fluid Consumption Double Stroke
60.5 cm³3.69 in³
Closing Force Per Jaw @ 6 bar
320 N71.9 lbf
Opening Force Per Jaw @ 6 bar
342 N76.9 lbf
Total closing force @ 6 bar
960 N215.8 lbf
Total opening force @ 6 bar
1026 N230.6 lbf
Recommended Workpiece Weight
4.80 kg10.58 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE110-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
3.00 kg6.61 lb
Stroke Per Jaw
10 mm0.39 in
Fluid Consumption Double Stroke
60.5 cm³3.69 in³
Closing Force Per Jaw @ 6 bar
383 N86.1 lbf
Total closing force @ 6 bar
1149 N258.3 lbf
Recommended Workpiece Weight
4.80 kg10.58 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE110-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
3.00 kg6.61 lb
Stroke Per Jaw
10 mm0.39 in
Fluid Consumption Double Stroke
60.5 cm³3.69 in³
Opening Force Per Jaw @ 6 bar
410 N92.2 lbf
Total opening force @ 6 bar
1230 N276.5 lbf
Recommended Workpiece Weight
4.80 kg10.58 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE-110-P-5-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
2.20 kg4.84 lb
Stroke Per Jaw
5 mm0.20 in
Fluid Consumption Double Stroke
60.5 cm³3.69 in³
Closing Force Per Jaw @ 6 bar
629 N141.4 lbf
Opening Force Per Jaw @ 6 bar
671 N150.8 lbf
Total closing force @ 6 bar
1887 N424.2 lbf
Total opening force @ 6 bar
2013 N452.5 lbf
Recommended Workpiece Weight
9.44 kg20.81 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE110-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
2.60 kg5.73 lb
Stroke Per Jaw
5 mm0.20 in
Fluid Consumption Double Stroke
60.5 cm³3.69 in³
Closing Force Per Jaw @ 6 bar
752 N169.1 lbf
Total closing force @ 6 bar
2256 N507.2 lbf
Recommended Workpiece Weight
9.44 kg20.81 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE110-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
2.60 kg5.73 lb
Stroke Per Jaw
5 mm0.20 in
Fluid Consumption Double Stroke
60.5 cm³3.69 in³
Opening Force Per Jaw @ 6 bar
806 N181.2 lbf
Total opening force @ 6 bar
2418 N543.6 lbf
Recommended Workpiece Weight
9.44 kg20.81 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE-125-P-20-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
3.15 kg6.93 lb
Stroke Per Jaw
20 mm0.79 in
Fluid Consumption Double Stroke
150 cm³9.15 in³
Closing Force Per Jaw @ 6 bar
400 N89.9 lbf
Opening Force Per Jaw @ 6 bar
422 N94.9 lbf
Total closing force @ 6 bar
1200 N269.8 lbf
Total opening force @ 6 bar
1266 N284.6 lbf
Recommended Workpiece Weight
6.00 kg13.23 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE125-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
4.00 kg8.82 lb
Stroke Per Jaw
20 mm0.79 in
Fluid Consumption Double Stroke
150 cm³9.15 in³
Closing Force Per Jaw @ 6 bar
471 N105.9 lbf
Total closing force @ 6 bar
1413 N317.7 lbf
Recommended Workpiece Weight
6.00 kg13.23 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE125-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
4.00 kg8.82 lb
Stroke Per Jaw
20 mm0.79 in
Fluid Consumption Double Stroke
150 cm³9.15 in³
Opening Force Per Jaw @ 6 bar
500 N112.4 lbf
Total opening force @ 6 bar
1500 N337.2 lbf
Recommended Workpiece Weight
6.00 kg13.23 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE-125-P-10-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
2.95 kg6.49 lb
Stroke Per Jaw
10 mm0.39 in
Fluid Consumption Double Stroke
150 cm³9.15 in³
Closing Force Per Jaw @ 6 bar
787 N176.9 lbf
Opening Force Per Jaw @ 6 bar
830 N186.6 lbf
Total closing force @ 6 bar
2361 N530.8 lbf
Total opening force @ 6 bar
2490 N559.8 lbf
Recommended Workpiece Weight
11.81 kg26.04 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE125-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
3.25 kg7.17 lb
Stroke Per Jaw
10 mm0.39 in
Fluid Consumption Double Stroke
150 cm³9.15 in³
Closing Force Per Jaw @ 6 bar
925 N207.9 lbf
Total closing force @ 6 bar
2775 N623.8 lbf
Recommended Workpiece Weight
11.81 kg26.04 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE125-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
3.25 kg7.17 lb
Stroke Per Jaw
10 mm0.39 in
Fluid Consumption Double Stroke
150 cm³9.15 in³
Opening Force Per Jaw @ 6 bar
983 N221.0 lbf
Total opening force @ 6 bar
2949 N663.0 lbf
Recommended Workpiece Weight
11.81 kg26.04 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE-175-P-30-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
6.50 kg14.30 lb
Stroke Per Jaw
30 mm1.18 in
Fluid Consumption Double Stroke
293 cm³17.87 in³
Closing Force Per Jaw @ 6 bar
520 N116.9 lbf
Opening Force Per Jaw @ 6 bar
555 N124.8 lbf
Total closing force @ 6 bar
1560 N350.7 lbf
Total opening force @ 6 bar
1665 N374.3 lbf
Recommended Workpiece Weight
7.80 kg17.20 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE175-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
6.90 kg15.21 lb
Stroke Per Jaw
30 mm1.18 in
Fluid Consumption Double Stroke
293 cm³17.87 in³
Closing Force Per Jaw @ 6 bar
589 N132.4 lbf
Total closing force @ 6 bar
1767 N397.2 lbf
Recommended Workpiece Weight
7.80 kg17.20 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE175-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
6.90 kg15.21 lb
Stroke Per Jaw
30 mm1.18 in
Fluid Consumption Double Stroke
293 cm³17.87 in³
Opening Force Per Jaw @ 6 bar
636 N143.0 lbf
Total opening force @ 6 bar
1908 N428.9 lbf
Recommended Workpiece Weight
7.80 kg17.20 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE-175-P-15-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
6.00 kg13.20 lb
Stroke Per Jaw
15 mm0.59 in
Fluid Consumption Double Stroke
293 cm³17.87 in³
Closing Force Per Jaw @ 6 bar
1047 N235.4 lbf
Opening Force Per Jaw @ 6 bar
1089 N244.8 lbf
Total closing force @ 6 bar
3141 N706.1 lbf
Total opening force @ 6 bar
3267 N734.4 lbf
Recommended Workpiece Weight
15.71 kg34.63 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE175-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
6.40 kg14.11 lb
Stroke Per Jaw
15 mm0.59 in
Fluid Consumption Double Stroke
293 cm³17.87 in³
Closing Force Per Jaw @ 6 bar
1156 N259.9 lbf
Total closing force @ 6 bar
3468 N779.6 lbf
Recommended Workpiece Weight
15.71 kg34.63 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE175-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
6.40 kg14.11 lb
Stroke Per Jaw
15 mm0.59 in
Fluid Consumption Double Stroke
293 cm³17.87 in³
Opening Force Per Jaw @ 6 bar
1248 N280.6 lbf
Total opening force @ 6 bar
3744 N841.7 lbf
Recommended Workpiece Weight
15.71 kg34.63 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE-205-P-35-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
Weight
12.00 kg26.40 lb
Stroke Per Jaw
35 mm1.38 in
Fluid Consumption Double Stroke
533 cm³32.51 in³
Closing Force Per Jaw @ 6 bar
805 N181.0 lbf
Opening Force Per Jaw @ 6 bar
859 N193.1 lbf
Total closing force @ 6 bar
2415 N542.9 lbf
Total opening force @ 6 bar
2577 N579.3 lbf
Recommended Workpiece Weight
12.08 kg26.63 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE205-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
12.80 kg28.22 lb
Stroke Per Jaw
35 mm1.38 in
Fluid Consumption Double Stroke
533 cm³32.51 in³
Closing Force Per Jaw @ 6 bar
882 N198.3 lbf
Total closing force @ 6 bar
2646 N594.8 lbf
Recommended Workpiece Weight
12.08 kg26.63 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE205-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
12.80 kg28.22 lb
Stroke Per Jaw
35 mm1.38 in
Fluid Consumption Double Stroke
533 cm³32.51 in³
Opening Force Per Jaw @ 6 bar
947 N212.9 lbf
Total opening force @ 6 bar
2841 N638.7 lbf
Recommended Workpiece Weight
12.08 kg26.63 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE-205-P-17.5-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
Weight
11.50 kg25.30 lb
Stroke Per Jaw
17.5 mm0.69 in
Fluid Consumption Double Stroke
533 cm³32.51 in³
Closing Force Per Jaw @ 6 bar
1580 N355.2 lbf
Opening Force Per Jaw @ 6 bar
1686 N379.0 lbf
Total closing force @ 6 bar
4740 N1065.6 lbf
Total opening force @ 6 bar
5058 N1137.0 lbf
Recommended Workpiece Weight
23.70 kg52.25 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE205-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
Weight
12.30 kg27.12 lb
Stroke Per Jaw
17.5 mm0.69 in
Fluid Consumption Double Stroke
533 cm³32.51 in³
Closing Force Per Jaw @ 6 bar
1732 N389.4 lbf
Total closing force @ 6 bar
5196 N1168.1 lbf
Recommended Workpiece Weight
23.70 kg52.25 lb
Repeat Accuracy
±0.05 mm±0.0020 in
OPE205-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
Weight
12.30 kg27.12 lb
Stroke Per Jaw
17.5 mm0.69 in
Fluid Consumption Double Stroke
533 cm³32.51 in³
Opening Force Per Jaw @ 6 bar
1859 N417.9 lbf
Total opening force @ 6 bar
5577 N1253.8 lbf
Recommended Workpiece Weight
23.70 kg52.25 lb
Repeat Accuracy
±0.05 mm±0.0020 in

Operating pressure 2 - 12 barAmbient temperature 5 - 60 °CSound emissions (sound pressure) ≤ 70 dB(A) in each direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.

Related Products

Grippers
HPG-3

HPG is a universal three-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.
Robot Components
SR

SR is a dual gripper support that mounts two grippers simultaneously on a robot or mechanical hand — simplifies machine tool interlock and robot load-unload operations.
Grippers
OPE-2

OPE is a universal two-finger parallel gripper featuring high reliability and long service life, suitable for a wide range of industrial applications.

Designs

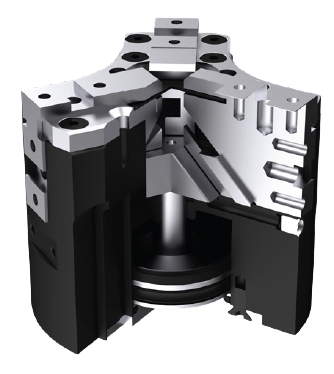

EFFECTO pneumatic grippers are designed for durability, with a wedge-hook mechanism that delivers high power transmission and repeatable, synchronized gripping cycle after cycle.

Available across 30 versions and multiple sizes, from compact grippers for tight workspaces to larger models for heavy-duty applications, each is built with superior jaw guidance for precise handling and easy maintenance in harsh environments.

Downloads

Model & Description Data Sheet 2D Drawing 3D Model
OPE-60-P-5-L-SM-12-P-B-S Long stroke version
OPE60-3CM Long stroke version - Spring in closing
OPE60-3CMA Long stroke version - Spring in opening
OPE-60-P-3-L-SM-12-P-B-S Short stroke version
OPE60-3SCM Short stroke version - Spring in closing
OPE60-3SCMA Short stroke version - Spring in opening
OPE-65-P-7.5-L-SM-12-N-B-S Long stroke version
OPE65-3CM Long stroke version - Spring in closing
OPE65-3CMA Long stroke version - Spring in opening
OPE-65-P-3.75-L-SM-12-P-B-S Short stroke version
OPE65-3SCM Short stroke version - Spring in closing
OPE65-3SCMA Short stroke version - Spring in opening
OPE-80-P-12-L-SM-12-P-B-S Long stroke version
OPE80-3CM Long stroke version - Spring in closing
OPE80-3CMA Long stroke version - Spring in opening
OPE-80-P-5-L-SM-12-P-B-S Short stroke version
OPE80-3SCM Short stroke version - Spring in closing
OPE80-3SCMA Short stroke version - Spring in opening
OPE-90-P-12-L-SM-12-P-B-S Long stroke version
OPE90-3CM Long stroke version - Spring in closing
OPE90-3CMA Long stroke version - Spring in opening
OPE-90-P-6-L-SM-12-P-B-S Short stroke version
OPE90-3SCM Short stroke version - Spring in closing
OPE90-3SCMA Short stroke version - Spring in opening
OPE-105-P-15-L-SM-12-P-B-S Long stroke version
OPE105-3CM Long stroke version - Spring in closing
OPE105-3CMA Long stroke version - Spring in opening
OPE-105-P-7.5-L-SM-12-P-B-S Short stroke version
OPE105-3SCM Short stroke version - Spring in closing
OPE105-3SCMA Short stroke version - Spring in opening
OPE-110-P-10-L-SM-12-P-B-S Long stroke version
OPE110-3CM Long stroke version - Spring in closing
OPE110-3CMA Long stroke version - Spring in opening
OPE-110-P-5-L-SM-12-P-B-S Short stroke version
OPE110-3SCM Short stroke version - Spring in closing
OPE110-3SCMA Short stroke version - Spring in opening
OPE-125-P-20-L-SM-12-P-B-S Long stroke version
OPE125-3CM Long stroke version - Spring in closing
OPE125-3CMA Long stroke version - Spring in opening
OPE-125-P-10-L-SM-12-P-B-S Short stroke version
OPE125-3SCM Short stroke version - Spring in closing
OPE125-3SCMA Short stroke version - Spring in opening
OPE-175-P-30-L-SM-12-P-B-S Long stroke version
OPE175-3CM Long stroke version - Spring in closing
OPE175-3CMA Long stroke version - Spring in opening
OPE-175-P-15-L-SM-12-P-B-S Short stroke version
OPE175-3SCM Short stroke version - Spring in closing
OPE175-3SCMA Short stroke version - Spring in opening
OPE-205-P-35-L-SM-12-P-B-S Long stroke version
OPE205-3CM Long stroke version - Spring in closing
OPE205-3CMA Long stroke version - Spring in opening
OPE-205-P-17.5-L-SM-12-P-B-S Short stroke version
OPE205-3SCM Short stroke version - Spring in closing
OPE205-3SCMA Short stroke version - Spring in opening
OPE-60-P-5-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
OPE60-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE60-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-60-P-3-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
OPE60-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE60-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-65-P-7.5-L-SM-12-N-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
OPE65-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE65-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-65-P-3.75-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
OPE65-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE65-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-80-P-12-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
OPE80-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE80-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-80-P-5-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
OPE80-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE80-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-90-P-12-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
OPE90-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE90-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-90-P-6-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
OPE90-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE90-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-105-P-15-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
OPE105-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE105-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-105-P-7.5-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
OPE105-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE105-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-110-P-10-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
OPE110-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE110-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-110-P-5-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
OPE110-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE110-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-125-P-20-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
OPE125-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE125-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-125-P-10-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
OPE125-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE125-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-175-P-30-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
OPE175-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE175-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-175-P-15-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
OPE175-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE175-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-205-P-35-L-SM-12-P-B-S

Long stroke version

Data Sheet
2D Drawing
3D Model
OPE205-3CM

Long stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE205-3CMA

Long stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model
OPE-205-P-17.5-L-SM-12-P-B-S

Short stroke version

Data Sheet
2D Drawing
3D Model
OPE205-3SCM

Short stroke version - Spring in closing

Data Sheet
2D Drawing
3D Model
OPE205-3SCMA

Short stroke version - Spring in opening

Data Sheet
2D Drawing
3D Model

Modules & Accessories

OPE-3 Gripper Sensors

Gripper Sensors detect jaw position (open/closed) for verification in automated handling sequences.

Metric Imperial
Model & Description Max Current Type Wires Voltage Cable Length Protection Operating Distance
TOH REED type magnetic switch, horizontal mount, normally open 5 - 50 mA REED 2 12 - 24 V 3 m118.11 in IP67
TOV REED type magnetic switch, vertical mount, normally open 5 - 50 mA REED 2 12 - 24 V 3 m118.11 in IP67
DSL1C REED type magnetic switch, normally open 100 mA REED 2 3 - 24 V 2.5 m98.43 in IP67
T2H HALL effect magnetic switch, horizontal mount, normally open 5 - 25 mA HALL 2 10 - 30 V 3 m118.11 in IP67
T2V HALL effect magnetic switch, vertical mount, normally open 5 - 25 mA HALL 2 10 - 30 V 3 m118.11 in IP67
T3PH HALL effect magnetic switch, 3-wire 100 mA HALL 3 10 - 28 V 3 m3 m118.11 in IP67
SM8 PNP proximity switch, normally open, M8x1 thread 200 mA Proximity 3 10 - 30 V 2 m78.74 in IP67 2 mm0.08 in
TOH

REED type magnetic switch, horizontal mount, normally open

Max Current
5 - 50 mA
Type
REED
Wires
2
Voltage
12 - 24 V
Cable Length
3 m118.11 in
Protection
IP67
TOV

REED type magnetic switch, vertical mount, normally open

Max Current
5 - 50 mA
Type
REED
Wires
2
Voltage
12 - 24 V
Cable Length
3 m118.11 in
Protection
IP67
DSL1C

REED type magnetic switch, normally open

Max Current
100 mA
Type
REED
Wires
2
Voltage
3 - 24 V
Cable Length
2.5 m98.43 in
Protection
IP67
T2H

HALL effect magnetic switch, horizontal mount, normally open

Max Current
5 - 25 mA
Type
HALL
Wires
2
Voltage
10 - 30 V
Cable Length
3 m118.11 in
Protection
IP67
T2V

HALL effect magnetic switch, vertical mount, normally open

Max Current
5 - 25 mA
Type
HALL
Wires
2
Voltage
10 - 30 V
Cable Length
3 m118.11 in
Protection
IP67
T3PH

HALL effect magnetic switch, 3-wire

Max Current
100 mA
Type
HALL
Wires
3
Voltage
10 - 28 V
Cable Length
3 m3 m118.11 in
Protection
IP67
SM8

PNP proximity switch, normally open, M8x1 thread

Max Current
200 mA
Type
Proximity
Wires
3
Voltage
10 - 30 V
Cable Length
2 m78.74 in
Protection
IP67
Operating Distance
2 mm0.08 in

Operating Temperature 5 - 60 °C (40 - 140 °F)Noise Emissions (Sound Pressure) ≤ 70 dB(A) in any direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.

Connect with EFFECTO

Find the right tool for your application today

Request 3D Model Download

* Denotes Required Field
