OPL-2

OPL is a compact two-finger parallel gripper featuring high reliability and a long service life, suitable for handling low weight or small components.

Models Designs Downloads Modules & Accessories

Models

OPL is a compact two-finger parallel gripper featuring high reliability and a long service life, suitable for handling low weight or small components.

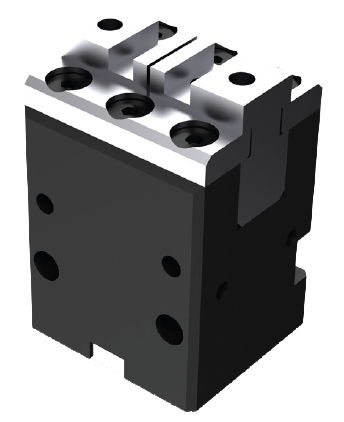

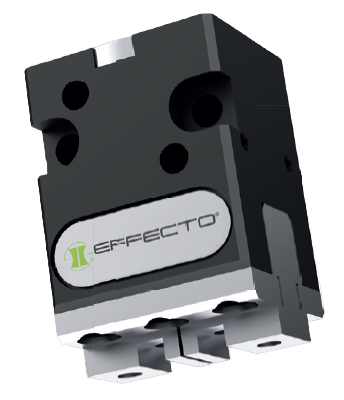

Advantages

Compact housing made of hard coated aluminum alloy.
Sturdy C-slot with hardened steel gibs for effective jaw guidance, precise handling, and easy maintenance.

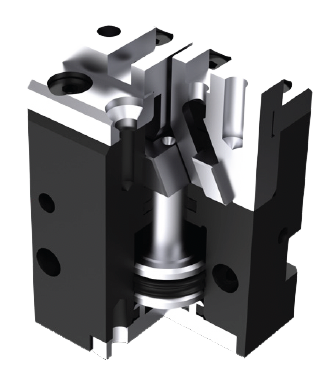

Wedge-hook design for high-force transmission and jaw synchronization.
Mounting from two sides in two screw directions for versatile and flexible integration.
Air supply via fitting screw connections.

Model & Description	Weight	Stroke Per Jaw	Fluid Consumption Double Stroke	Closing Force Per Jaw @ 6 bar	Opening Force Per Jaw @ 6 bar	Total closing force @ 6 bar	Total opening force @ 6 bar	Recommended Workpiece Weight	Repeat Accuracy
OPL-12-P-5-L-SM-8-N-B-S	0.08 kg0.18 lb	5 mm0.20 in	1.2 cm³0.07 in³	18 N4.0 lbf	24 N5.4 lbf	36 N8.1 lbf	48 N10.8 lbf	0.18 kg0.40 lb	±0.05 mm±0.002 in
OPL-30-P-2.5-L-SM-8-N-B-N	0.10 kg0.22 lb	2.5 mm0.10 in	1.4 cm³0.09 in³	42 N9.4 lbf	54 N12.1 lbf	84 N18.9 lbf	108 N24.3 lbf	0.42 kg0.90 lb	±0.05 mm±0.002 in
OPL-35-P-4-L-SM-8-N-B-N	0.13 kg0.28 lb	4 mm0.16 in	1.7 cm³0.10 in³	30 N6.7 lbf	43 N9.7 lbf	60 N13.5 lbf	86 N19.3 lbf	0.30 kg0.70 lb	±0.05 mm±0.002 in

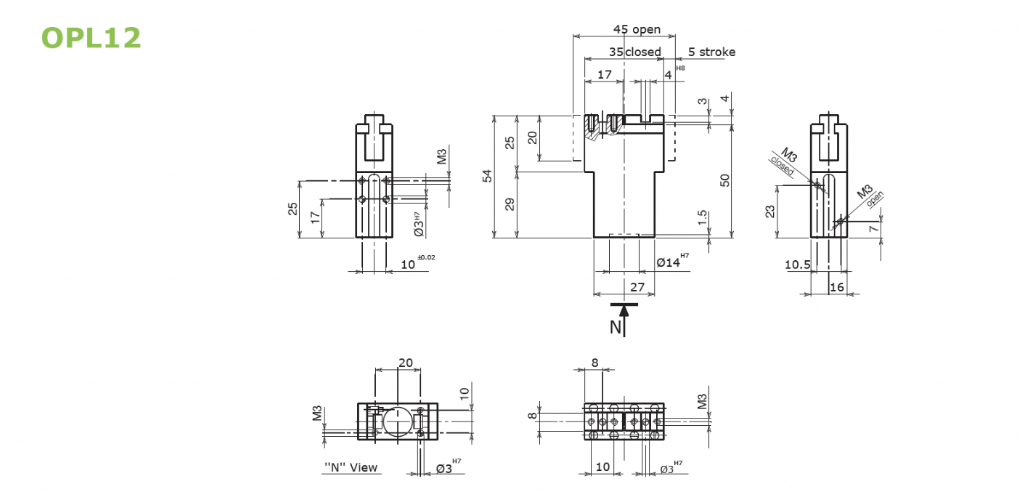

OPL-12-P-5-L-SM-8-N-B-S

Data Sheet
3D Model
Weight: 0.08 kg0.18 lb
Stroke Per Jaw: 5 mm0.20 in
Fluid Consumption Double Stroke: 1.2 cm³0.07 in³
Closing Force Per Jaw @ 6 bar: 18 N4.0 lbf
Opening Force Per Jaw @ 6 bar: 24 N5.4 lbf
Total closing force @ 6 bar: 36 N8.1 lbf
Total opening force @ 6 bar: 48 N10.8 lbf
Recommended Workpiece Weight: 0.18 kg0.40 lb
Repeat Accuracy: ±0.05 mm±0.002 in

OPL-30-P-2.5-L-SM-8-N-B-N

Data Sheet
3D Model
Weight: 0.10 kg0.22 lb
Stroke Per Jaw: 2.5 mm0.10 in
Fluid Consumption Double Stroke: 1.4 cm³0.09 in³
Closing Force Per Jaw @ 6 bar: 42 N9.4 lbf
Opening Force Per Jaw @ 6 bar: 54 N12.1 lbf
Total closing force @ 6 bar: 84 N18.9 lbf
Total opening force @ 6 bar: 108 N24.3 lbf
Recommended Workpiece Weight: 0.42 kg0.90 lb
Repeat Accuracy: ±0.05 mm±0.002 in

OPL-35-P-4-L-SM-8-N-B-N

Data Sheet
3D Model
Weight: 0.13 kg0.28 lb
Stroke Per Jaw: 4 mm0.16 in
Fluid Consumption Double Stroke: 1.7 cm³0.10 in³
Closing Force Per Jaw @ 6 bar: 30 N6.7 lbf
Opening Force Per Jaw @ 6 bar: 43 N9.7 lbf
Total closing force @ 6 bar: 60 N13.5 lbf
Total opening force @ 6 bar: 86 N19.3 lbf
Recommended Workpiece Weight: 0.30 kg0.70 lb
Repeat Accuracy: ±0.05 mm±0.002 in
