Grippers

OF

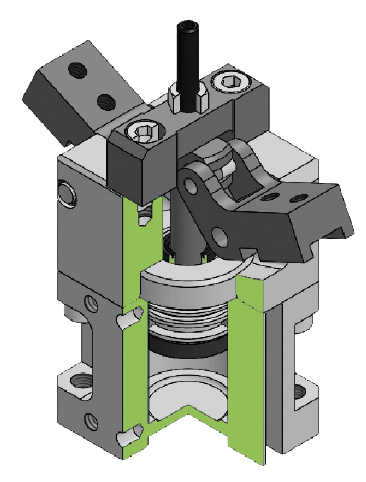

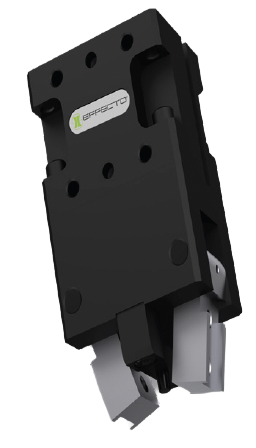

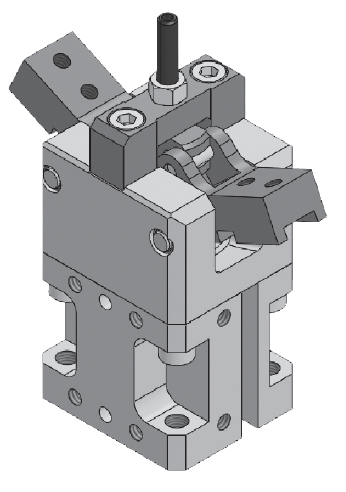

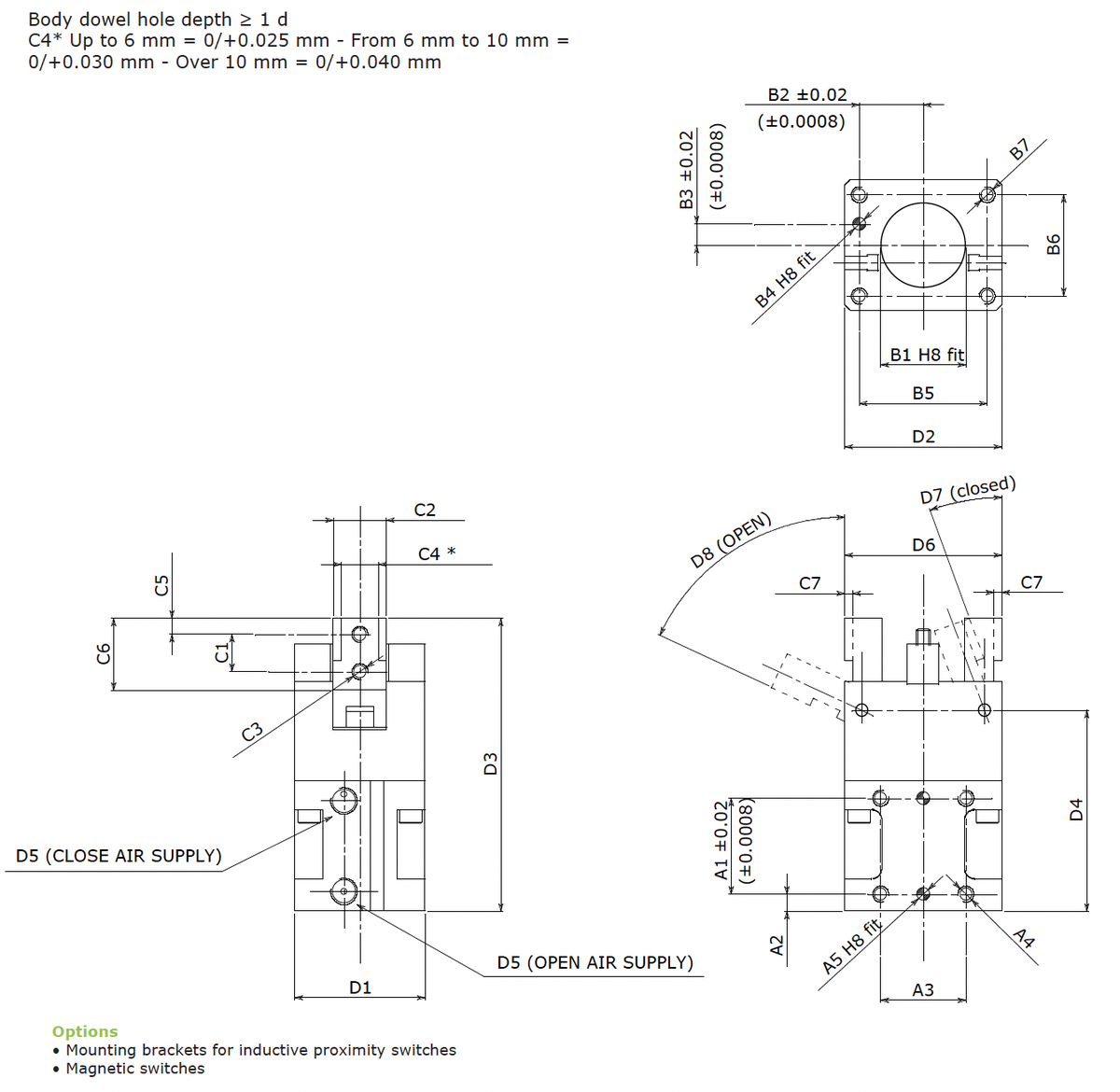

OF is an angular gripper for universal use in clean or dirty environments. Suitable for space sensitive applications.

Models

OF is an angular gripper for universal use in clean or dirty environments. Suitable for space sensitive applications.

Advantages

  • Slim design allows multiple grippers to be arranged in a row.
  • Light, compact design for space-saving handling without interference.
  • Integrated permanent magnets for direct monitoring of piston movement.
  • Slots for mounting and positioning of magnetic-field sensors.
Metric Imperial
Model & Description Data Sheet 3D Model Weight Stroke Per Jaw Fluid Consumption Double Stroke Closing Force Per Jaw @ 6 bar Opening Force Per Jaw @ 6 bar Total closing force @ 6 bar Total opening force @ 6 bar Recommended Workpiece Weight
OF-20-P-80-L-SM-8-N-B-S 0.25 kg0.55 lb 80°80° 7.6 cm³0.46 in³ 28.7 N6.5 lbf 32.6 N7.3 lbf 57.4 N12.9 lbf 65.2 N14.7 lbf 0.29 kg0.60 lb
OF-25-P-80-L-SM-8-N-B-S 0.45 kg0.99 lb 80°80° 16.2 cm³0.99 in³ 60 N13.5 lbf 67 N15.1 lbf 120 N27.0 lbf 134 N30.1 lbf 0.60 kg1.30 lb
OF-32-P-85-L-SM-8-N-B-S 0.78 kg1.72 lb 85°85° 32.2 cm³1.96 in³ 118 N26.5 lbf 130 N29.2 lbf 236 N53.1 lbf 260 N58.4 lbf 1.18 kg2.60 lb
OF-20-P-80-L-SM-8-N-B-S
Data Sheet
3D Model
Weight
0.25 kg0.55 lb
Stroke Per Jaw
80°80°
Fluid Consumption Double Stroke
7.6 cm³0.46 in³
Closing Force Per Jaw @ 6 bar
28.7 N6.5 lbf
Opening Force Per Jaw @ 6 bar
32.6 N7.3 lbf
Total closing force @ 6 bar
57.4 N12.9 lbf
Total opening force @ 6 bar
65.2 N14.7 lbf
Recommended Workpiece Weight
0.29 kg0.60 lb
OF-25-P-80-L-SM-8-N-B-S
Data Sheet
3D Model
Weight
0.45 kg0.99 lb
Stroke Per Jaw
80°80°
Fluid Consumption Double Stroke
16.2 cm³0.99 in³
Closing Force Per Jaw @ 6 bar
60 N13.5 lbf
Opening Force Per Jaw @ 6 bar
67 N15.1 lbf
Total closing force @ 6 bar
120 N27.0 lbf
Total opening force @ 6 bar
134 N30.1 lbf
Recommended Workpiece Weight
0.60 kg1.30 lb
OF-32-P-85-L-SM-8-N-B-S
Data Sheet
3D Model
Weight
0.78 kg1.72 lb
Stroke Per Jaw
85°85°
Fluid Consumption Double Stroke
32.2 cm³1.96 in³
Closing Force Per Jaw @ 6 bar
118 N26.5 lbf
Opening Force Per Jaw @ 6 bar
130 N29.2 lbf
Total closing force @ 6 bar
236 N53.1 lbf
Total opening force @ 6 bar
260 N58.4 lbf
Recommended Workpiece Weight
1.18 kg2.60 lb

Operating pressure 2 - 8 barAmbient temperature 5 - 60 °CSound emissions (sound pressure) ≤ 70 dB(A) in each direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.

Related Products

Grippers

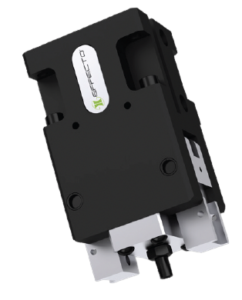

OG-A

OG-A is a two-finger toggle gripper with a high grip force and non-reversible mechanism, suitable for heavy industrial applications.
Grippers

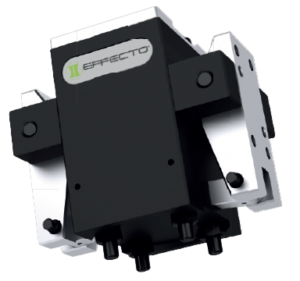

OG-2

OG2 is a two-finger toggle gripper with a high grip force and non-reversible mechanism, suitable for heavy industrial applications.
Grippers

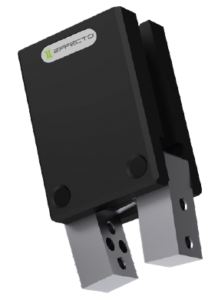

OLE

OLE is a pneumatic angular gripper for universal use in clean or dirty environments. Suitable for space sensitive applications.

Designs

EFFECTO pneumatic grippers are designed for durability, with a wedge-hook mechanism that delivers high power transmission and repeatable, synchronized gripping cycle after cycle.

Available across 30 versions and multiple sizes, from compact grippers for tight workspaces to larger models for heavy-duty applications, each is built with superior jaw guidance for precise handling and easy maintenance in harsh environments.

Downloads

Model & Description Data Sheet 3D Model
OF-20-P-80-L-SM-8-N-B-S
OF-25-P-80-L-SM-8-N-B-S
OF-32-P-85-L-SM-8-N-B-S
OF-20-P-80-L-SM-8-N-B-S
Data Sheet
3D Model
OF-25-P-80-L-SM-8-N-B-S
Data Sheet
3D Model
OF-32-P-85-L-SM-8-N-B-S
Data Sheet
3D Model

Modules & Accessories

OF Gripper Sensors

Gripper Sensors detect jaw position (open/closed) for verification in automated handling sequences.

Metric Imperial
Model & Description Max Current Type Wires Voltage Cable Length Protection Operating Distance
TOH REED type magnetic switch, horizontal mount, normally open 5 - 50 mA REED 2 12 - 24 V 3 m118.11 in IP67
TOV REED type magnetic switch, vertical mount, normally open 5 - 50 mA REED 2 12 - 24 V 3 m118.11 in IP67
DSL1C REED type magnetic switch, normally open 100 mA REED 2 3 - 24 V 2.5 m98.43 in IP67
T2H HALL effect magnetic switch, horizontal mount, normally open 5 - 25 mA HALL 2 10 - 30 V 3 m118.11 in IP67
T2V HALL effect magnetic switch, vertical mount, normally open 5 - 25 mA HALL 2 10 - 30 V 3 m118.11 in IP67
T3PH HALL effect magnetic switch, 3-wire 100 mA HALL 3 10 - 28 V 3 m3 m118.11 in IP67
SM8 PNP proximity switch, normally open, M8x1 thread 200 mA Proximity 3 10 - 30 V 2 m78.74 in IP67 2 mm0.08 in
TOH

REED type magnetic switch, horizontal mount, normally open

Max Current
5 - 50 mA
Type
REED
Wires
2
Voltage
12 - 24 V
Cable Length
3 m118.11 in
Protection
IP67
TOV

REED type magnetic switch, vertical mount, normally open

Max Current
5 - 50 mA
Type
REED
Wires
2
Voltage
12 - 24 V
Cable Length
3 m118.11 in
Protection
IP67
DSL1C

REED type magnetic switch, normally open

Max Current
100 mA
Type
REED
Wires
2
Voltage
3 - 24 V
Cable Length
2.5 m98.43 in
Protection
IP67
T2H

HALL effect magnetic switch, horizontal mount, normally open

Max Current
5 - 25 mA
Type
HALL
Wires
2
Voltage
10 - 30 V
Cable Length
3 m118.11 in
Protection
IP67
T2V

HALL effect magnetic switch, vertical mount, normally open

Max Current
5 - 25 mA
Type
HALL
Wires
2
Voltage
10 - 30 V
Cable Length
3 m118.11 in
Protection
IP67
T3PH

HALL effect magnetic switch, 3-wire

Max Current
100 mA
Type
HALL
Wires
3
Voltage
10 - 28 V
Cable Length
3 m3 m118.11 in
Protection
IP67
SM8

PNP proximity switch, normally open, M8x1 thread

Max Current
200 mA
Type
Proximity
Wires
3
Voltage
10 - 30 V
Cable Length
2 m78.74 in
Protection
IP67
Operating Distance
2 mm0.08 in

Operating Temperature 5 - 60 °C (40 - 140 °F)Noise Emissions (Sound Pressure) ≤ 70 dB(A) in any direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.
