Grippers

OLE

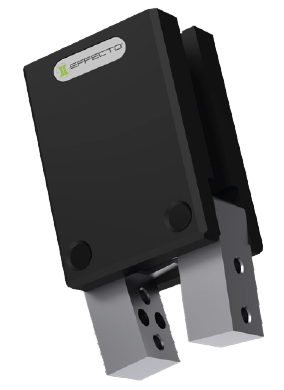

OLE is a pneumatic angular gripper for universal use in clean or dirty environments. Suitable for space sensitive applications.

Models Designs Downloads Modules & Accessories

Models

OLE is a pneumatic angular gripper for universal use in clean or dirty environments. Suitable for space sensitive applications.

Advantages

Slim design allows multiple grippers to be arranged in a row.
Light, compact design for space-saving handling without interference.
Integrated permanent magnets for direct monitoring of piston movement.
Slots for mounting and positioning of magnetic-field sensors.

Model & Description	Data Sheet	3D Model	Weight	Stroke Per Jaw	Fluid Consumption Double Stroke	Closing Force Per Jaw @ 6 bar	Opening Force Per Jaw @ 6 bar	Total closing force @ 6 bar	Total opening force @ 6 bar	Recommended Workpiece Weight
OLE-12-P-20-L-SM-8-N-B-S			0.10 kg0.22 lb	20°20°	0.62 cm³0.04 in³	13 N2.9 lbf	23 N5.2 lbf	26 N5.8 lbf	46 N10.3 lbf	0.13 kg0.30 lb
OLE-16-P-20-L-SM-8-N-B-S			0.15 kg0.33 lb	20°20°	1.3 cm³0.08 in³	30 N6.7 lbf	40.5 N9.1 lbf	60 N13.5 lbf	81 N18.2 lbf	0.30 kg0.70 lb

OLE-12-P-20-L-SM-8-N-B-S

Data Sheet
3D Model
Weight: 0.10 kg0.22 lb
Stroke Per Jaw: 20°20°
Fluid Consumption Double Stroke: 0.62 cm³0.04 in³
Closing Force Per Jaw @ 6 bar: 13 N2.9 lbf
Opening Force Per Jaw @ 6 bar: 23 N5.2 lbf
Total closing force @ 6 bar: 26 N5.8 lbf
Total opening force @ 6 bar: 46 N10.3 lbf
Recommended Workpiece Weight: 0.13 kg0.30 lb

OLE-16-P-20-L-SM-8-N-B-S

Data Sheet
3D Model
Weight: 0.15 kg0.33 lb
Stroke Per Jaw: 20°20°
Fluid Consumption Double Stroke: 1.3 cm³0.08 in³
Closing Force Per Jaw @ 6 bar: 30 N6.7 lbf
Opening Force Per Jaw @ 6 bar: 40.5 N9.1 lbf
Total closing force @ 6 bar: 60 N13.5 lbf
Total opening force @ 6 bar: 81 N18.2 lbf
Recommended Workpiece Weight: 0.30 kg0.70 lb

Related Products

Grippers

OF is an angular gripper for universal use in clean or dirty environments. Suitable for space sensitive applications.

Grippers

OG-A

OG-A is a two-finger toggle gripper with a high grip force and non-reversible mechanism, suitable for heavy industrial applications.

Grippers

OG-2

OG2 is a two-finger toggle gripper with a high grip force and non-reversible mechanism, suitable for heavy industrial applications.

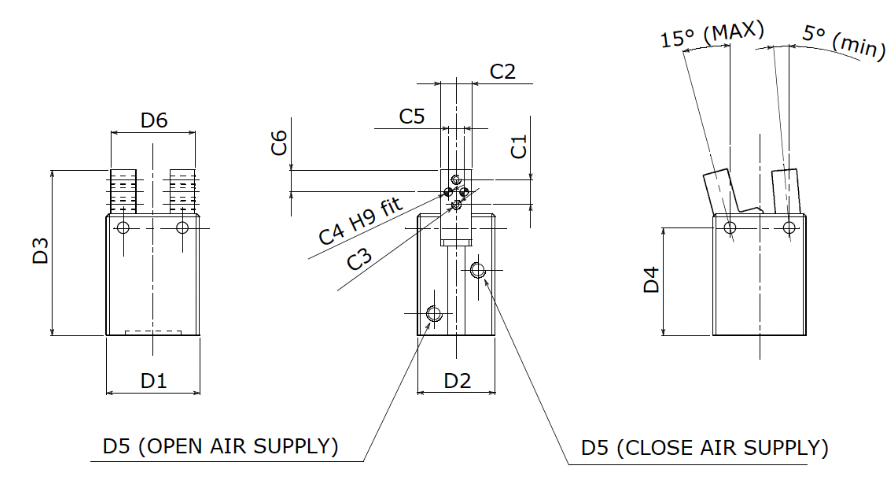

Designs

EFFECTO pneumatic grippers are designed for durability, with a wedge-hook mechanism that delivers high power transmission and repeatable, synchronized gripping cycle after cycle.

Available across 30 versions and multiple sizes, from compact grippers for tight workspaces to larger models for heavy-duty applications, each is built with superior jaw guidance for precise handling and easy maintenance in harsh environments.

Downloads

Model & Description	Data Sheet	3D Model
OLE-12-P-20-L-SM-8-N-B-S
OLE-16-P-20-L-SM-8-N-B-S

OLE-12-P-20-L-SM-8-N-B-S

Data Sheet
3D Model

OLE-16-P-20-L-SM-8-N-B-S

Data Sheet
3D Model

Modules & Accessories

Gripper Sensors

OLE Gripper Sensors

Gripper Sensors detect jaw position (open/closed) for verification in automated handling sequences.

Model & Description	Max Current	Type	Wires	Voltage	Cable Length	Protection
T2H HALL effect magnetic switch, horizontal mount, normally open	5 - 25 mA	HALL	2	10 - 30 V	3 m118.11 in	IP67
T2V HALL effect magnetic switch, vertical mount, normally open	5 - 25 mA	HALL	2	10 - 30 V	3 m118.11 in	IP67
T3PH HALL effect magnetic switch, 3-wire	100 mA	HALL	3	10 - 28 V	3 m3 m118.11 in	IP67

T2H

HALL effect magnetic switch, horizontal mount, normally open

Max Current: 5 - 25 mA
Type: HALL
Wires: 2
Voltage: 10 - 30 V
Cable Length: 3 m118.11 in
Protection: IP67

T2V

HALL effect magnetic switch, vertical mount, normally open

Max Current: 5 - 25 mA
Type: HALL
Wires: 2
Voltage: 10 - 30 V
Cable Length: 3 m118.11 in
Protection: IP67

T3PH

HALL effect magnetic switch, 3-wire

Max Current: 100 mA
Type: HALL
Wires: 3
Voltage: 10 - 28 V
Cable Length: 3 m3 m118.11 in
Protection: IP67
