LPG

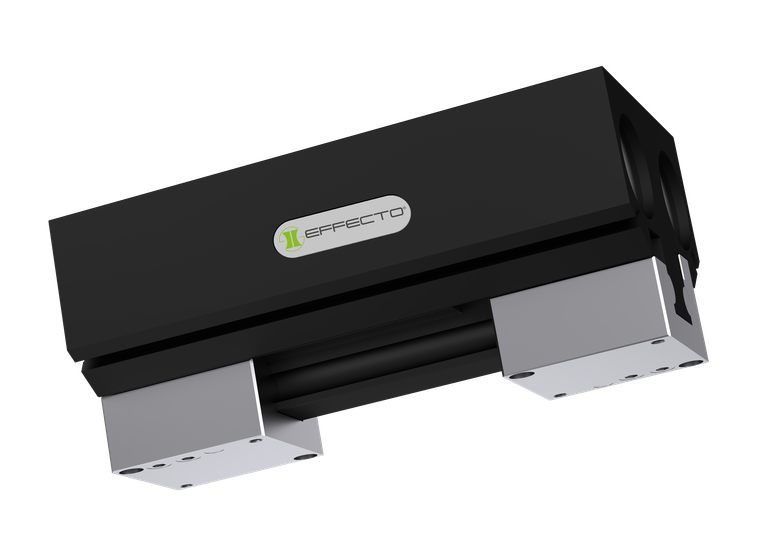

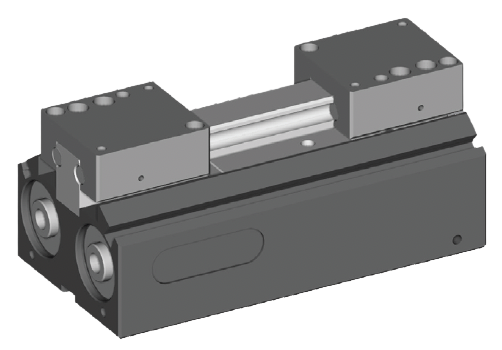

LPG is a long stroke two-finger parallel gripper featuring high reliability and a long service life, suitable for many applications including dirty/harsh environments.

Models

LPG is a long stroke two-finger parallel gripper featuring high reliability and a long service life, suitable for many applications including dirty/harsh environments.

Advantages

  • Limited height and large jaw support to ensure rigidity and stability.
  • Profiled guideways designed with polymer slide parts that have very low friction and high load capability.
  • Double piston drive synchronized by a rack-and-pinion system hermetically sealed for dirty environment applications.
  • All materials selected for long life in harsh environments.
  • Standard central connection for gripper pressurization.
  • Slots for mounting and positioning of magnetic-field sensors.
  • Air supply via hose-free direct connection or screw connections for flexible pressure supply in all automated systems.

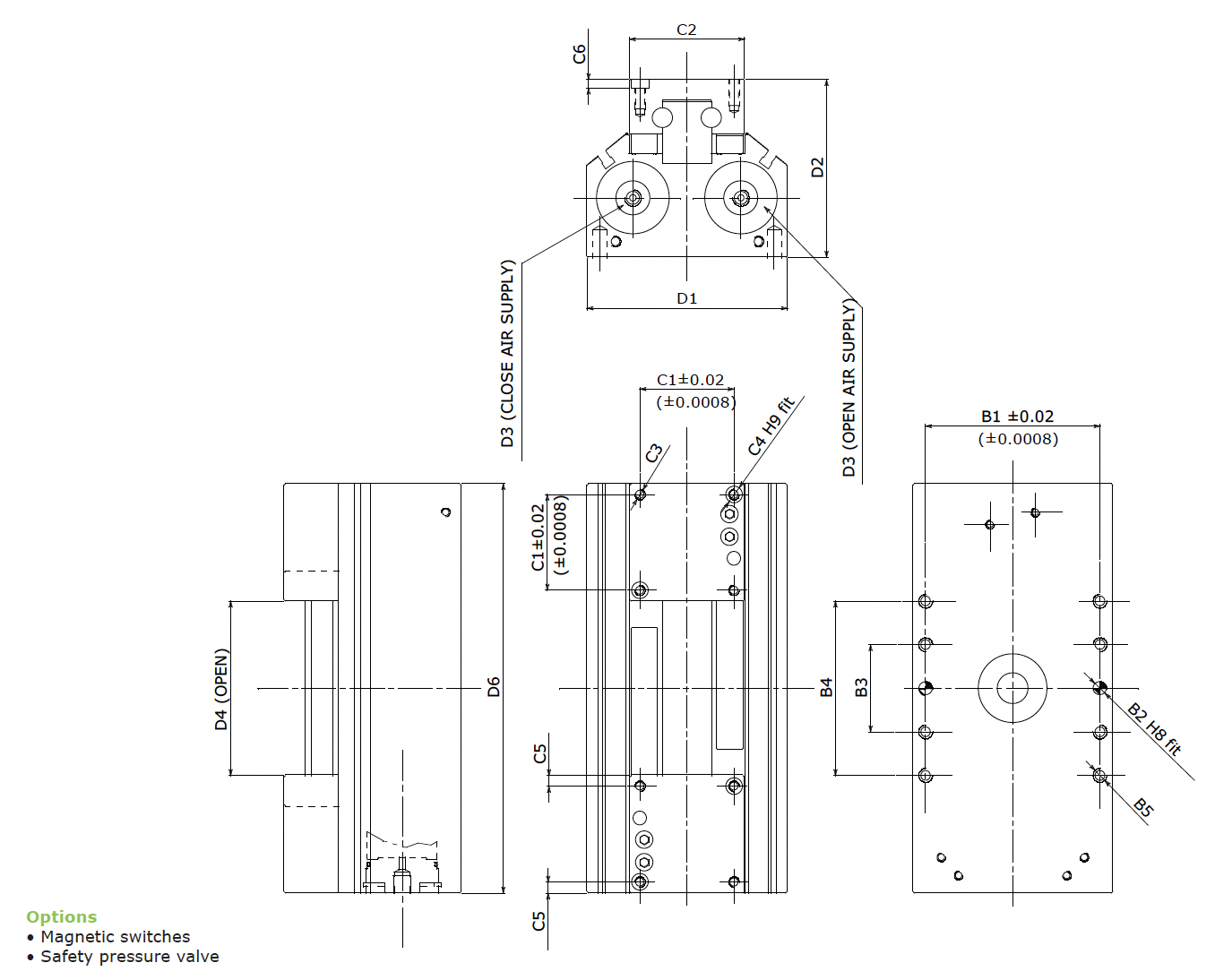

Metric Imperial
Model & Description Data Sheet 3D Model Weight Stroke Per Jaw Fluid Consumption Double Stroke Closing Force Per Jaw @ 6 bar Opening Force Per Jaw @ 6 bar Total closing force @ 6 bar Total opening force @ 6 bar Recommended Workpiece Weight
LPG-18-P-20-U-SM-8-P-B-S 0.75 kg1.65 lb 20 mm0.79 in 20.3 cm³1.24 in³ 105 N23.6 lbf 105 N23.6 lbf 210 N47.2 lbf 210 N47.2 lbf 1.05 kg2.30 lb
LPG-22-P-25-U-SM-8-P-B-S 1.10 kg2.42 lb 25 mm0.98 in 38 cm³2.32 in³ 155 N34.8 lbf 155 N34.8 lbf 310 N69.7 lbf 310 N69.7 lbf 1.55 kg3.40 lb
LPG-30-P-32.5-U-SM-8-P-B-S 2.20 kg4.84 lb 32.5 mm1.28 in 92 cm³5.61 in³ 290 N65.2 lbf 290 N65.2 lbf 580 N130.4 lbf 580 N130.4 lbf 2.90 kg6.40 lb
LPG-35-P-40-U-SM-8-P-B-S 3.50 kg7.70 lb 40 mm1.57 in 154 cm³9.39 in³ 400 N89.9 lbf 400 N89.9 lbf 800 N179.8 lbf 800 N179.8 lbf 4.00 kg8.80 lb
LPG-40-P-50-U-SM-8-P-B-S 5.60 kg12.32 lb 50 mm1.97 in 251 cm³15.31 in³ 515 N115.8 lbf 515 N115.8 lbf 1030 N231.5 lbf 1030 N231.5 lbf 5.15 kg11.30 lb
LPG-45-P-57.5-U-SM-8-P-B-S 8.00 kg17.60 lb 57.5 mm2.26 in 366 cm³22.33 in³ 655 N147.2 lbf 655 N147.2 lbf 1310 N294.5 lbf 1310 N294.5 lbf 6.55 kg14.40 lb
LPG-50-P-65-U-SM-8-P-B-S 11.00 kg24.20 lb 65 mm2.56 in 510 cm³31.11 in³ 810 N182.1 lbf 810 N182.1 lbf 1620 N364.2 lbf 1620 N364.2 lbf 8.10 kg17.80 lb
LPG-63-P-75-U-SM-8-P-B-S 18.00 kg39.60 lb 75 mm2.95 in 935 cm³57.04 in³ 1300 N292 lbf 1300 N292.2 lbf 2600 N584.5 lbf 2600 N584.5 lbf 13.00 kg28.60 lb
LPG-18-P-20-U-SM-8-P-B-S
Data Sheet
3D Model
Weight
0.75 kg1.65 lb
Stroke Per Jaw
20 mm0.79 in
Fluid Consumption Double Stroke
20.3 cm³1.24 in³
Closing Force Per Jaw @ 6 bar
105 N23.6 lbf
Opening Force Per Jaw @ 6 bar
105 N23.6 lbf
Total closing force @ 6 bar
210 N47.2 lbf
Total opening force @ 6 bar
210 N47.2 lbf
Recommended Workpiece Weight
1.05 kg2.30 lb
LPG-22-P-25-U-SM-8-P-B-S
Data Sheet
3D Model
Weight
1.10 kg2.42 lb
Stroke Per Jaw
25 mm0.98 in
Fluid Consumption Double Stroke
38 cm³2.32 in³
Closing Force Per Jaw @ 6 bar
155 N34.8 lbf
Opening Force Per Jaw @ 6 bar
155 N34.8 lbf
Total closing force @ 6 bar
310 N69.7 lbf
Total opening force @ 6 bar
310 N69.7 lbf
Recommended Workpiece Weight
1.55 kg3.40 lb
LPG-30-P-32.5-U-SM-8-P-B-S
Data Sheet
3D Model
Weight
2.20 kg4.84 lb
Stroke Per Jaw
32.5 mm1.28 in
Fluid Consumption Double Stroke
92 cm³5.61 in³
Closing Force Per Jaw @ 6 bar
290 N65.2 lbf
Opening Force Per Jaw @ 6 bar
290 N65.2 lbf
Total closing force @ 6 bar
580 N130.4 lbf
Total opening force @ 6 bar
580 N130.4 lbf
Recommended Workpiece Weight
2.90 kg6.40 lb
LPG-35-P-40-U-SM-8-P-B-S
Data Sheet
3D Model
Weight
3.50 kg7.70 lb
Stroke Per Jaw
40 mm1.57 in
Fluid Consumption Double Stroke
154 cm³9.39 in³
Closing Force Per Jaw @ 6 bar
400 N89.9 lbf
Opening Force Per Jaw @ 6 bar
400 N89.9 lbf
Total closing force @ 6 bar
800 N179.8 lbf
Total opening force @ 6 bar
800 N179.8 lbf
Recommended Workpiece Weight
4.00 kg8.80 lb
LPG-40-P-50-U-SM-8-P-B-S
Data Sheet
3D Model
Weight
5.60 kg12.32 lb
Stroke Per Jaw
50 mm1.97 in
Fluid Consumption Double Stroke
251 cm³15.31 in³
Closing Force Per Jaw @ 6 bar
515 N115.8 lbf
Opening Force Per Jaw @ 6 bar
515 N115.8 lbf
Total closing force @ 6 bar
1030 N231.5 lbf
Total opening force @ 6 bar
1030 N231.5 lbf
Recommended Workpiece Weight
5.15 kg11.30 lb
LPG-45-P-57.5-U-SM-8-P-B-S
Data Sheet
3D Model
Weight
8.00 kg17.60 lb
Stroke Per Jaw
57.5 mm2.26 in
Fluid Consumption Double Stroke
366 cm³22.33 in³
Closing Force Per Jaw @ 6 bar
655 N147.2 lbf
Opening Force Per Jaw @ 6 bar
655 N147.2 lbf
Total closing force @ 6 bar
1310 N294.5 lbf
Total opening force @ 6 bar
1310 N294.5 lbf
Recommended Workpiece Weight
6.55 kg14.40 lb
LPG-50-P-65-U-SM-8-P-B-S
Data Sheet
3D Model
Weight
11.00 kg24.20 lb
Stroke Per Jaw
65 mm2.56 in
Fluid Consumption Double Stroke
510 cm³31.11 in³
Closing Force Per Jaw @ 6 bar
810 N182.1 lbf
Opening Force Per Jaw @ 6 bar
810 N182.1 lbf
Total closing force @ 6 bar
1620 N364.2 lbf
Total opening force @ 6 bar
1620 N364.2 lbf
Recommended Workpiece Weight
8.10 kg17.80 lb
LPG-63-P-75-U-SM-8-P-B-S
Data Sheet
3D Model
Weight
18.00 kg39.60 lb
Stroke Per Jaw
75 mm2.95 in
Fluid Consumption Double Stroke
935 cm³57.04 in³
Closing Force Per Jaw @ 6 bar
1300 N292 lbf
Opening Force Per Jaw @ 6 bar
1300 N292.2 lbf
Total closing force @ 6 bar
2600 N584.5 lbf
Total opening force @ 6 bar
2600 N584.5 lbf
Recommended Workpiece Weight
13.00 kg28.60 lb

Operating pressure 2 - 8 barAmbient temperature 5 - 60 °CSound emissions (sound pressure) ≤ 70 dB(A) in each direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.

Related Products

Grippers
VRG

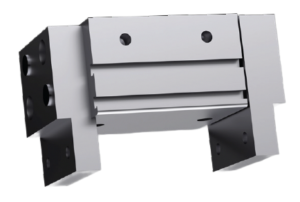

VRG is a long stroke two-finger parallel gripper for lighter duty applications.
Grippers
QPG-TECH

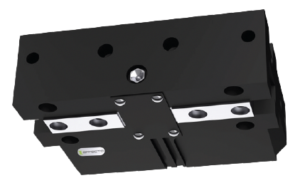

QPG-tech is a universal two-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.
Grippers
PM

PM is an innovative pneumatic gripper with 4 or 6 jaws for handling and assembly of O-rings and gaskets, equipped with expansion and ejection devices.

Designs

EFFECTO pneumatic grippers are designed for durability, with a wedge-hook mechanism that delivers high power transmission and repeatable, synchronized gripping cycle after cycle.

Available across 30 versions and multiple sizes, from compact grippers for tight workspaces to larger models for heavy-duty applications, each is built with superior jaw guidance for precise handling and easy maintenance in harsh environments.

Downloads

Model & Description Data Sheet 3D Model
LPG-18-P-20-U-SM-8-P-B-S
LPG-22-P-25-U-SM-8-P-B-S
LPG-30-P-32.5-U-SM-8-P-B-S
LPG-35-P-40-U-SM-8-P-B-S
LPG-40-P-50-U-SM-8-P-B-S
LPG-45-P-57.5-U-SM-8-P-B-S
LPG-50-P-65-U-SM-8-P-B-S
LPG-63-P-75-U-SM-8-P-B-S
LPG-18-P-20-U-SM-8-P-B-S
Data Sheet
3D Model
LPG-22-P-25-U-SM-8-P-B-S
Data Sheet
3D Model
LPG-30-P-32.5-U-SM-8-P-B-S
Data Sheet
3D Model
LPG-35-P-40-U-SM-8-P-B-S
Data Sheet
3D Model
LPG-40-P-50-U-SM-8-P-B-S
Data Sheet
3D Model
LPG-45-P-57.5-U-SM-8-P-B-S
Data Sheet
3D Model
LPG-50-P-65-U-SM-8-P-B-S
Data Sheet
3D Model
LPG-63-P-75-U-SM-8-P-B-S
Data Sheet
3D Model

Modules & Accessories

LPG Gripper Sensors

Gripper Sensors detect jaw position (open/closed) for verification in automated handling sequences.

Metric Imperial
Model & Description Max Current Type Wires Voltage Cable Length Protection
TOH REED type magnetic switch, horizontal mount, normally open 5 - 50 mA REED 2 12 - 24 V 3 m118.11 in IP67
TOV REED type magnetic switch, vertical mount, normally open 5 - 50 mA REED 2 12 - 24 V 3 m118.11 in IP67
DSL1C REED type magnetic switch, normally open 100 mA REED 2 3 - 24 V 2.5 m98.43 in IP67
T2H HALL effect magnetic switch, horizontal mount, normally open 5 - 25 mA HALL 2 10 - 30 V 3 m118.11 in IP67
T2V HALL effect magnetic switch, vertical mount, normally open 5 - 25 mA HALL 2 10 - 30 V 3 m118.11 in IP67
T3PH HALL effect magnetic switch, 3-wire 100 mA HALL 3 10 - 28 V 3 m3 m118.11 in IP67
TOH

REED type magnetic switch, horizontal mount, normally open

Max Current
5 - 50 mA
Type
REED
Wires
2
Voltage
12 - 24 V
Cable Length
3 m118.11 in
Protection
IP67
TOV

REED type magnetic switch, vertical mount, normally open

Max Current
5 - 50 mA
Type
REED
Wires
2
Voltage
12 - 24 V
Cable Length
3 m118.11 in
Protection
IP67
DSL1C

REED type magnetic switch, normally open

Max Current
100 mA
Type
REED
Wires
2
Voltage
3 - 24 V
Cable Length
2.5 m98.43 in
Protection
IP67
T2H

HALL effect magnetic switch, horizontal mount, normally open

Max Current
5 - 25 mA
Type
HALL
Wires
2
Voltage
10 - 30 V
Cable Length
3 m118.11 in
Protection
IP67
T2V

HALL effect magnetic switch, vertical mount, normally open

Max Current
5 - 25 mA
Type
HALL
Wires
2
Voltage
10 - 30 V
Cable Length
3 m118.11 in
Protection
IP67
T3PH

HALL effect magnetic switch, 3-wire

Max Current
100 mA
Type
HALL
Wires
3
Voltage
10 - 28 V
Cable Length
3 m3 m118.11 in
Protection
IP67

Operating Temperature 5 - 60 °C (40 - 140 °F)Noise Emissions (Sound Pressure) ≤ 70 dB(A) in any direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.
