Models

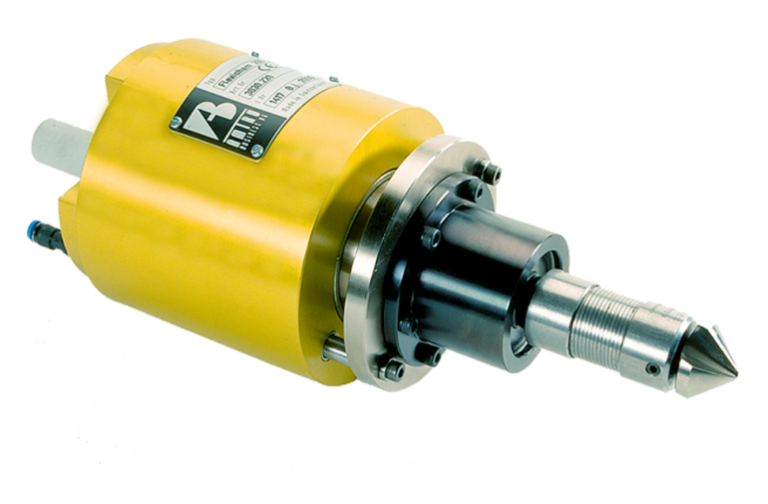

Flexicham is a pneumatic robotic countersink/chamfering tool with axial compliance for adaptive contact during deburring/finishing operations.
Advantages
- Float-compensation system absorbs path deviations to maintain consistent tool engagement.
- Robotic-mounted design for integration in automated cells.
- Compatible with the full Amtru/Effecto tool changer ecosystem.
- Available in multiple sizes/power ratings to match application requirements.
- Designed for long service life in industrial deburring/grinding environments.
Pneumatic - Axial compliance
- Weight
- 7.00 kg15.43 lb
- Power
- 830 W
- Idling Speed
- 540 rpm
- Compliance force @ 6 bar
- approx. 135 Napprox. 30.3 lbf
- Fluid Consumption
- 17.0 l/s36.0 cfm
- Rated Torque
- 27.0 Nm239.0 in-lb
- Compliance Movement
- 16 mm (axial)0.63 in (axial)
- Speed Adjustment Range
- 50 - 200 rpm
- Cutter
- 90° / Ø40 mm
- Tool Insertion Mounting
- Ø 10 mm
Pneumatic - Axial compliance
- Weight
- 3.50 kg7.72 lb
- Power
- 370 W
- Idling Speed
- 520 rpm
- Compliance force @ 6 bar
- approx. 60 Napprox. 13.5 lbf
- Fluid Consumption
- 8.3 l/s17.6 cfm
- Rated Torque
- 14.0 Nm123.9 in-lb
- Compliance Movement
- 12 mm (axial)0.47 in (axial)
- Speed Adjustment Range
- 75 - 320 rpm
- Cutter
- 90° / Ø26 mm
- Tool Insertion Mounting
- Ø 10 mm
Pneumatic - Axial compliance
- Weight
- 3.50 kg7.72 lb
- Power
- 370 W
- Idling Speed
- 1180 rpm
- Compliance force @ 6 bar
- approx. 60 Napprox. 13.5 lbf
- Fluid Consumption
- 8.3 l/s17.6 cfm
- Rated Torque
- 6.3 Nm55.8 in-lb
- Compliance Movement
- 12 mm (axial)0.47 in (axial)
- Speed Adjustment Range
- 150 - 680 rpm
- Cutter
- 90° / Ø12.4 mm
- Tool Insertion Mounting
- Ø 8 mm
Electric - Axial compliance
- Power
- 0.57 kW
- Speed Adjustment Range
- 150 - 6000 rpm
