Deburring Tools

Swingtool

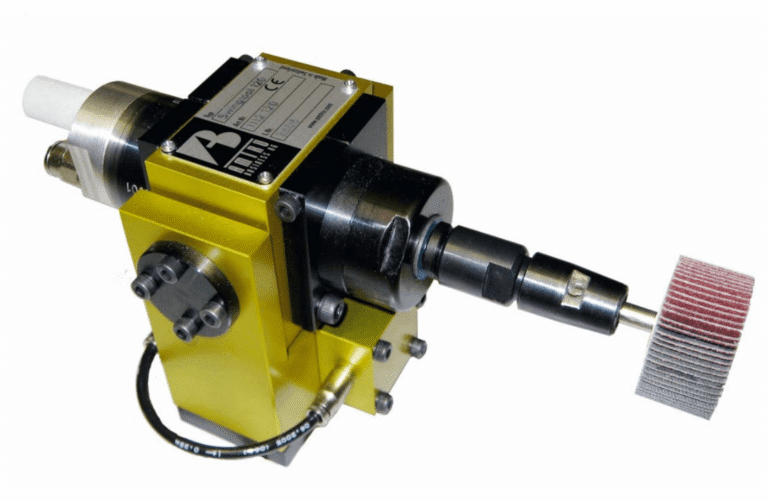

Swingtool is a pneumatic robotic brushing and grinding tool with pendulous (swinging) compliance for adaptive contact during deburring/finishing operations.

Models

Swingtool is a pneumatic robotic brushing and grinding tool with pendulous (swinging) compliance for adaptive contact during deburring/finishing operations.

Advantages

  • Float-compensation system absorbs path deviations to maintain consistent tool engagement.
  • Robotic-mounted design for integration in automated cells.
  • Compatible with the full Amtru/Effecto tool changer ecosystem.
  • Available in multiple sizes/power ratings to match application requirements.
  • Designed for long service life in industrial deburring/grinding environments.
Metric Imperial
Model & Description Data Sheet Weight Power Idling Speed Compliance torque @ 6 bar Feed Forward Rate Fluid Consumption Collet Rated Speed Motor Shaft Compliance
SWINGTOOL 125 Pneumatic- Pendulous Compliance 3.50 kg7.72 lb 390 W 5600 rpm 2.4 Nm21.2 in-lb 5 - 100 mm/s0.20 - 3.94 in/s 8.3 l/s17.6 cfm Ø6 mm 2600 rpm Ø 12x31.5 ± 3.8° (pendulous)
SWINGTOOL 128 Pneumatic- Pendulous Compliance 3.50 kg7.72 lb 240 W 3840 rpm 2.4 Nm21.2 in-lb 5 - 100 mm/s0.20 - 3.94 in/s 8.3 l/s17.6 cfm Ø6 mm 1960 rpm Ø 12x31.5 12 mm (pendulous)
SWINGTOOL 155 Pneumatic- Pendulous Compliance 3.50 kg7.72 lb 390 W 3100 rpm 2.4 Nm21.2 in-lb 5 - 100 mm/s0.20 - 3.94 in/s 8.3 l/s17.6 cfm Ø6 mm 1460 rpm Ø 12x31.5 ± 3.8° (pendulous)
SWINGTOOL 158 Pneumatic- Pendulous Compliance 3.50 kg7.72 lb 240 W 2090 rpm 2.4 Nm21.2 in-lb 5 - 100 mm/s0.20 - 3.94 in/s 8.3 l/s17.6 cfm Ø6 mm 1090 rpm Ø 12x31.5 ± 3.8° (pendulous)
SWINGTOOL 178 Pneumatic- Pendulous Compliance 3.50 kg7.72 lb 240 W 14000 rpm 2.4 Nm21.2 in-lb 5 - 100 mm/s0.20 - 3.94 in/s 7.8 l/s16.5 cfm Ø6 mm 7000 rpm Ø 16x40 ± 3.8° (pendulous)
SWINGTOOL 181 Pneumatic- Pendulous Compliance 3.80 kg8.38 lb 600 W 15000 rpm 2.4 Nm21.2 in-lb 10 - 200 mm/s0.39 - 7.87 in/s 17.5 l/s37.1 cfm Ø6 mm 8000 rpm Ø 16x32.5 ± 3.8° (pendulous)
SWINGTOOL 185 Pneumatic- Pendulous Compliance 3.80 kg8.38 lb 760 W 7000 rpm 2.4 Nm21.2 in-lb 11 - 200 mm/s0.43 - 7.87 in/s 18.9 l/s40.0 cfm Ø6 mm 5600 rpm Ø 12x31.5 ± 3.8° (pendulous)
SWINGTOOL 186 Pneumatic- Pendulous Compliance 3.80 kg8.38 lb 760 W 7000 rpm 2.4 Nm21.2 in-lb 12 - 200 mm/s0.47 - 7.87 in/s 18.9 l/s40.0 cfm Ø6 mm 5600 rpm Ø 12x32.5 ± 3.8° (pendulous)
SWINGTOOL 220 Pneumatic- Pendulous Compliance 7.50 kg16.53 lb 840 W 2500 rpm 10.5 Nm92.9 in-lb 20 - 200 mm/s0.79 - 7.87 in/s 17 l/s36.0 cfm 1280 rpm Ø16j6 x 40 ± 3.8° (pendulous)
SWINGTOOL 222 Pneumatic- Pendulous Compliance 7.50 kg16.53 lb 840 W 4200 rpm 10.5 Nm92.9 in-lb 20 - 200 mm/s0.79 - 7.87 in/s 17 l/s36.0 cfm 2100 rpm Ø16j6 x 40 ± 3.8° (pendulous)
SWINGTOOL 225 Pneumatic- Pendulous Compliance 7.50 kg16.53 lb 840 W 6700 rpm 10.5 Nm92.9 in-lb 20 - 200 mm/s0.79 - 7.87 in/s 17 l/s36.0 cfm 3300 rpm Ø16j6 x 40 ± 3.8° (pendulous)
SWINGTOOL 230 Pneumatic- Pendulous Compliance 7.50 kg16.53 lb 620 W 3350 rpm 10.5 Nm92.9 in-lb 20 - 200 mm/s0.79 - 7.87 in/s 14.5 l/s30.7 cfm 1700 rpm Ø16j6 x 40 ± 3.8° (pendulous)
SWINGTOOL 232 Pneumatic- Pendulous Compliance 7.50 kg16.53 lb 620 W 5250 rpm 10.5 Nm92.9 in-lb 20 - 200 mm/s0.79 - 7.87 in/s 14.5 l/s30.7 cfm 2650 rpm Ø16j6 x 40 ± 3.8° (pendulous)
SWINGTOOL 125

Pneumatic- Pendulous Compliance

Data Sheet
Weight
3.50 kg7.72 lb
Power
390 W
Idling Speed
5600 rpm
Compliance torque @ 6 bar
2.4 Nm21.2 in-lb
Feed Forward Rate
5 - 100 mm/s0.20 - 3.94 in/s
Fluid Consumption
8.3 l/s17.6 cfm
Collet
Ø6 mm
Rated Speed
2600 rpm
Motor Shaft
Ø 12x31.5
Compliance
± 3.8° (pendulous)
SWINGTOOL 128

Pneumatic- Pendulous Compliance

Data Sheet
Weight
3.50 kg7.72 lb
Power
240 W
Idling Speed
3840 rpm
Compliance torque @ 6 bar
2.4 Nm21.2 in-lb
Feed Forward Rate
5 - 100 mm/s0.20 - 3.94 in/s
Fluid Consumption
8.3 l/s17.6 cfm
Collet
Ø6 mm
Rated Speed
1960 rpm
Motor Shaft
Ø 12x31.5
Compliance
12 mm (pendulous)
SWINGTOOL 155

Pneumatic- Pendulous Compliance

Data Sheet
Weight
3.50 kg7.72 lb
Power
390 W
Idling Speed
3100 rpm
Compliance torque @ 6 bar
2.4 Nm21.2 in-lb
Feed Forward Rate
5 - 100 mm/s0.20 - 3.94 in/s
Fluid Consumption
8.3 l/s17.6 cfm
Collet
Ø6 mm
Rated Speed
1460 rpm
Motor Shaft
Ø 12x31.5
Compliance
± 3.8° (pendulous)
SWINGTOOL 158

Pneumatic- Pendulous Compliance

Data Sheet
Weight
3.50 kg7.72 lb
Power
240 W
Idling Speed
2090 rpm
Compliance torque @ 6 bar
2.4 Nm21.2 in-lb
Feed Forward Rate
5 - 100 mm/s0.20 - 3.94 in/s
Fluid Consumption
8.3 l/s17.6 cfm
Collet
Ø6 mm
Rated Speed
1090 rpm
Motor Shaft
Ø 12x31.5
Compliance
± 3.8° (pendulous)
SWINGTOOL 178

Pneumatic- Pendulous Compliance

Data Sheet
Weight
3.50 kg7.72 lb
Power
240 W
Idling Speed
14000 rpm
Compliance torque @ 6 bar
2.4 Nm21.2 in-lb
Feed Forward Rate
5 - 100 mm/s0.20 - 3.94 in/s
Fluid Consumption
7.8 l/s16.5 cfm
Collet
Ø6 mm
Rated Speed
7000 rpm
Motor Shaft
Ø 16x40
Compliance
± 3.8° (pendulous)
SWINGTOOL 181

Pneumatic- Pendulous Compliance

Data Sheet
Weight
3.80 kg8.38 lb
Power
600 W
Idling Speed
15000 rpm
Compliance torque @ 6 bar
2.4 Nm21.2 in-lb
Feed Forward Rate
10 - 200 mm/s0.39 - 7.87 in/s
Fluid Consumption
17.5 l/s37.1 cfm
Collet
Ø6 mm
Rated Speed
8000 rpm
Motor Shaft
Ø 16x32.5
Compliance
± 3.8° (pendulous)
SWINGTOOL 185

Pneumatic- Pendulous Compliance

Data Sheet
Weight
3.80 kg8.38 lb
Power
760 W
Idling Speed
7000 rpm
Compliance torque @ 6 bar
2.4 Nm21.2 in-lb
Feed Forward Rate
11 - 200 mm/s0.43 - 7.87 in/s
Fluid Consumption
18.9 l/s40.0 cfm
Collet
Ø6 mm
Rated Speed
5600 rpm
Motor Shaft
Ø 12x31.5
Compliance
± 3.8° (pendulous)
SWINGTOOL 186

Pneumatic- Pendulous Compliance

Data Sheet
Weight
3.80 kg8.38 lb
Power
760 W
Idling Speed
7000 rpm
Compliance torque @ 6 bar
2.4 Nm21.2 in-lb
Feed Forward Rate
12 - 200 mm/s0.47 - 7.87 in/s
Fluid Consumption
18.9 l/s40.0 cfm
Collet
Ø6 mm
Rated Speed
5600 rpm
Motor Shaft
Ø 12x32.5
Compliance
± 3.8° (pendulous)
SWINGTOOL 220

Pneumatic- Pendulous Compliance

Data Sheet
Weight
7.50 kg16.53 lb
Power
840 W
Idling Speed
2500 rpm
Compliance torque @ 6 bar
10.5 Nm92.9 in-lb
Feed Forward Rate
20 - 200 mm/s0.79 - 7.87 in/s
Fluid Consumption
17 l/s36.0 cfm
Rated Speed
1280 rpm
Motor Shaft
Ø16j6 x 40
Compliance
± 3.8° (pendulous)
SWINGTOOL 222

Pneumatic- Pendulous Compliance

Data Sheet
Weight
7.50 kg16.53 lb
Power
840 W
Idling Speed
4200 rpm
Compliance torque @ 6 bar
10.5 Nm92.9 in-lb
Feed Forward Rate
20 - 200 mm/s0.79 - 7.87 in/s
Fluid Consumption
17 l/s36.0 cfm
Rated Speed
2100 rpm
Motor Shaft
Ø16j6 x 40
Compliance
± 3.8° (pendulous)
SWINGTOOL 225

Pneumatic- Pendulous Compliance

Data Sheet
Weight
7.50 kg16.53 lb
Power
840 W
Idling Speed
6700 rpm
Compliance torque @ 6 bar
10.5 Nm92.9 in-lb
Feed Forward Rate
20 - 200 mm/s0.79 - 7.87 in/s
Fluid Consumption
17 l/s36.0 cfm
Rated Speed
3300 rpm
Motor Shaft
Ø16j6 x 40
Compliance
± 3.8° (pendulous)
SWINGTOOL 230

Pneumatic- Pendulous Compliance

Data Sheet
Weight
7.50 kg16.53 lb
Power
620 W
Idling Speed
3350 rpm
Compliance torque @ 6 bar
10.5 Nm92.9 in-lb
Feed Forward Rate
20 - 200 mm/s0.79 - 7.87 in/s
Fluid Consumption
14.5 l/s30.7 cfm
Rated Speed
1700 rpm
Motor Shaft
Ø16j6 x 40
Compliance
± 3.8° (pendulous)
SWINGTOOL 232

Pneumatic- Pendulous Compliance

Data Sheet
Weight
7.50 kg16.53 lb
Power
620 W
Idling Speed
5250 rpm
Compliance torque @ 6 bar
10.5 Nm92.9 in-lb
Feed Forward Rate
20 - 200 mm/s0.79 - 7.87 in/s
Fluid Consumption
14.5 l/s30.7 cfm
Rated Speed
2650 rpm
Motor Shaft
Ø16j6 x 40
Compliance
± 3.8° (pendulous)

Operating pressure 5 - 7 barAmbient temperature 5 - 60 °CPneumatic drive (powered by air motor)

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.
