Models

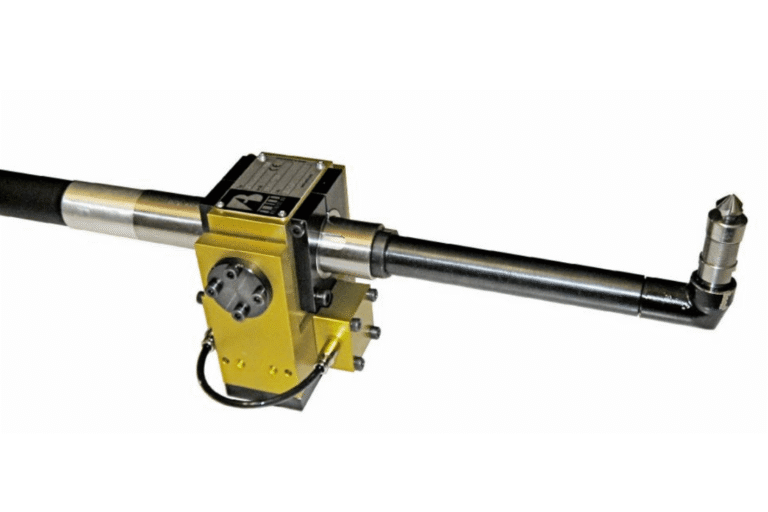

Swingcham is a pneumatic robotic countersink/chamfering tool with pendulous (swinging) compliance for adaptive contact during deburring/finishing operations.
Advantages
- Float-compensation system absorbs path deviations to maintain consistent tool engagement.
- Robotic-mounted design for integration in automated cells.
- Compatible with the full Amtru/Effecto tool changer ecosystem.
- Available in multiple sizes/power ratings to match application requirements.
- Designed for long service life in industrial deburring/grinding environments.
Pneumatic- Pendulous Compliance
- Weight
- 2.10 kg4.63 lb
- Power
- 20 W
- Compliance torque @ 6 bar
- 4.6 Nm40.7 in-lb
- Fluid Consumption
- 2.5 l/s5.3 cfm
- Rated Speed
- 900 rpm
- Cutter
- 90° / Ø12 mm
- Tool Insertion Mounting
- 3 mm / hexagon
- Compliance
- ± 3.8° (pendulous)
Pneumatic- Pendulous Compliance
- Weight
- 2.80 kg6.17 lb
- Power
- 80 W
- Compliance torque @ 6 bar
- 4.6 Nm40.7 in-lb
- Fluid Consumption
- 5.0 l/s10.6 cfm
- Rated Speed
- 500 rpm
- Cutter
- 90° / Ø12.4 mm
- Tool Insertion Mounting
- Ø 8 mm
- Compliance
- ± 3.8° (pendulous)
