Models

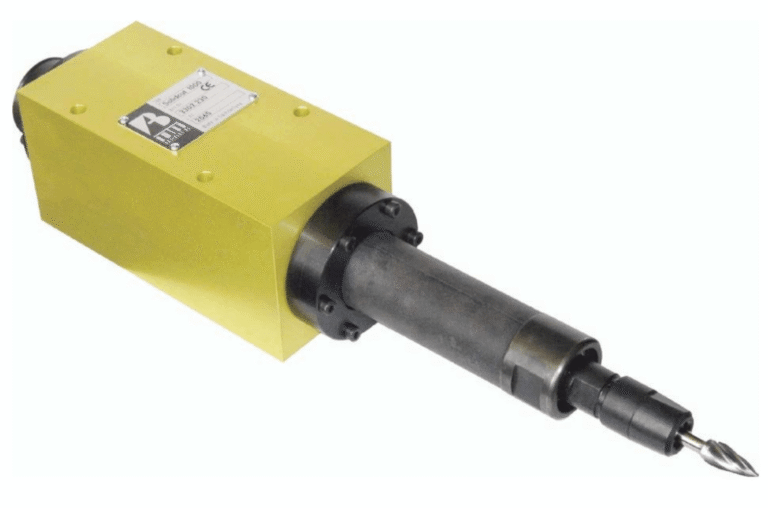

Solidcut is a pneumatic robotic rigid milling tool with rigid construction (no compliance) for adaptive contact during deburring/finishing operations.
Advantages
- Float-compensation system absorbs path deviations to maintain consistent tool engagement.
- Robotic-mounted design for integration in automated cells.
- Compatible with the full Amtru/Effecto tool changer ecosystem.
- Available in multiple sizes/power ratings to match application requirements.
- Designed for long service life in industrial deburring/grinding environments.
Pneumatic - No compliance
- Weight
- 1.50 kg3.31 lb
- Power
- 240 W
- Idling Speed
- 35000 rpm
- Feed Forward Rate
- 5 - 250 mm/s0.20 - 9.84 in/s
- Fluid Consumption
- 7.5 l/s15.9 cfm
- Collet
- Ø 6 mm
- Rated Speed
- 17500 rpm
Pneumatic - No compliance
- Weight
- 3.60 kg7.94 lb
- Power
- 1.3 kW
- Idling Speed
- 25000 rpm
- Feed Forward Rate
- 10 - 300 mm/s0.39 - 11.81 in/s
- Fluid Consumption
- 28.0 l/s59.3 cfm
- Collet
- Ø 8 mm
- Rated Speed
- 20000 rpm
Electric - No compliance
- Weight
- 1.60 kg3.53 lb
- Power
- 300 W
- Feed Forward Rate
- 5 - 250 mm/s0.20 - 9.84 in/s
- Collet
- Ø6 mm
- Rated Speed
- 35000 rpm
- Maximal Speed
- 60000 rpm
Electric - No compliance
- Weight
- 8.50 kg18.74 lb
- Power
- 2.6 kW
- Feed Forward Rate
- 10 - 300 mm/s0.39 - 11.81 in/s
- Collet
- ER-16 Ø10-9 mm (3/8")
- Maximal Speed
- 30000 rpm
