Robot Components

PRD

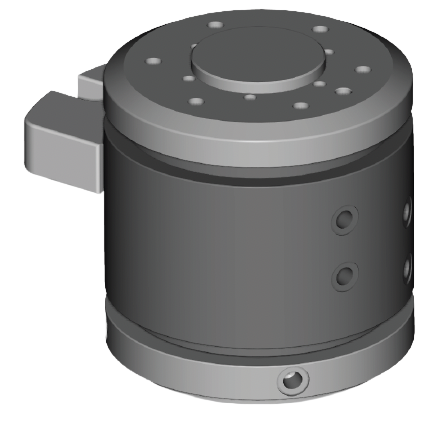

PRD is a rotary fluid feed-through for robot applications and rotary indexing tables with unlimited rotational movement, available with 2 or 4 fluid passages.

Models

PRD is a rotary fluid feed-through for robot applications and rotary indexing tables with unlimited rotational movement.

Advantages

  • High strength, long life, no maintenance.
  • Hardened steel inner hub for high power-transmission of modern robots.
  • ISO flange pattern for easy mounting to most robot types without additional adapter plates.
  • 2 or 4 fluid feed-throughs (more available on request).
  • Compact dimensions for minimal impact in customer applications.
  • Smooth-running, long-lasting seal ensures low starting and continuous torque.
  • Dirt protection by means of rotary seals.
  • Air supply via axial or radial fitting screw connections.
Metric Imperial
Model & Description Data Sheet 2D Drawing 3D Model Weight Nr. of Feed-throughs Recommended Handling Weight Starting Torque Robot Side Connection Max Radial Torque Max Rotational Speed
PRD2-31_5 Two air ports 0.58 kg1.28 lb 2 6.00 kg13.23 lb 2.5 Nm23 in-lb ISO 9409-1-31.5 20 Nm177 in-lb 900 rpm
PRD2-40 Two air ports 1.13 kg2.49 lb 2 20.00 kg44.10 lb 2.5 Nm23 in-lb ISO 9409-1-40 80 Nm708 in-lb 600 rpm
PRD2-50 Two air ports 1.23 kg2.71 lb 2 20.00 kg44.10 lb 2.5 Nm23 in-lb ISO 9409-1-50 80 Nm708 in-lb 600 rpm
PRD2-63 Two air ports 2.41 kg5.30 lb 2 35.00 kg77.18 lb 4.5 Nm40 in-lb ISO 9409-1-63 100 Nm885 in-lb 500 rpm
PRD2-80 Two air ports 5.30 kg11.66 lb 2 100.00 kg220.50 lb 10.0 Nm88.5 in-lb ISO 9409-1-80 350 Nm3098 in-lb 300 rpm
PRD2-100 Two air ports 5.40 kg11.88 lb 2 100.00 kg220.50 lb 10.0 Nm88.5 in-lb ISO 9409-1-100 350 Nm3098 in-lb 300 rpm
PRD2-125 Two air ports 13.40 kg29.48 lb 2 225.00 kg496.13 lb 22.5 Nm200 in-lb ISO 9409-1-125 600 Nm5310 in-lb 240 rpm
PRD2-160 Two air ports 14.35 kg31.57 lb 2 225.00 kg496.13 lb 22.5 Nm200 in-lb ISO 9409-1-160 600 Nm5310 in-lb 240 rpm
PRD4-40 Four air ports 1.53 kg3.37 lb 4 20.00 kg44.10 lb 5.0 Nm44.25 in-lb ISO 9409-1-40 80 Nm708 in-lb 600 rpm
PRD4-50 Four air ports 1.63 kg3.59 lb 4 20.00 kg44.10 lb 5.0 Nm44.3 in-lb ISO 9409-1-50 80 Nm708 in-lb 600 rpm
PRD4-63 Four air ports 3.21 kg7.06 lb 4 35.00 kg77.18 lb 9.0 Nm80 in-lb ISO 9409-1-63 100 Nm885 in-lb 500 rpm
PRD4-80 Four air ports 6.90 kg15.18 lb 4 100.00 kg220.50 lb 20.0 Nm177 in-lb ISO 9409-1-80 350 Nm3098 in-lb 300 rpm
PRD4-100 Four air ports 7.00 kg15.40 lb 4 100.00 kg220.50 lb 20.0 Nm177 in-lb ISO 9409-1-100 350 Nm3098 in-lb 300 rpm
PRD4-125 Four air ports 17.20 kg37.84 lb 4 225.00 kg496.13 lb 45.0 Nm400 in-lb ISO 9409-1-125 600 Nm5310 in-lb 240 rpm
PRD4-160 Four air ports 18.15 kg39.93 lb 4 225.00 kg496.13 lb 45.0 Nm400 in-lb ISO 9409-1-160 600 Nm5310 in-lb 240 rpm

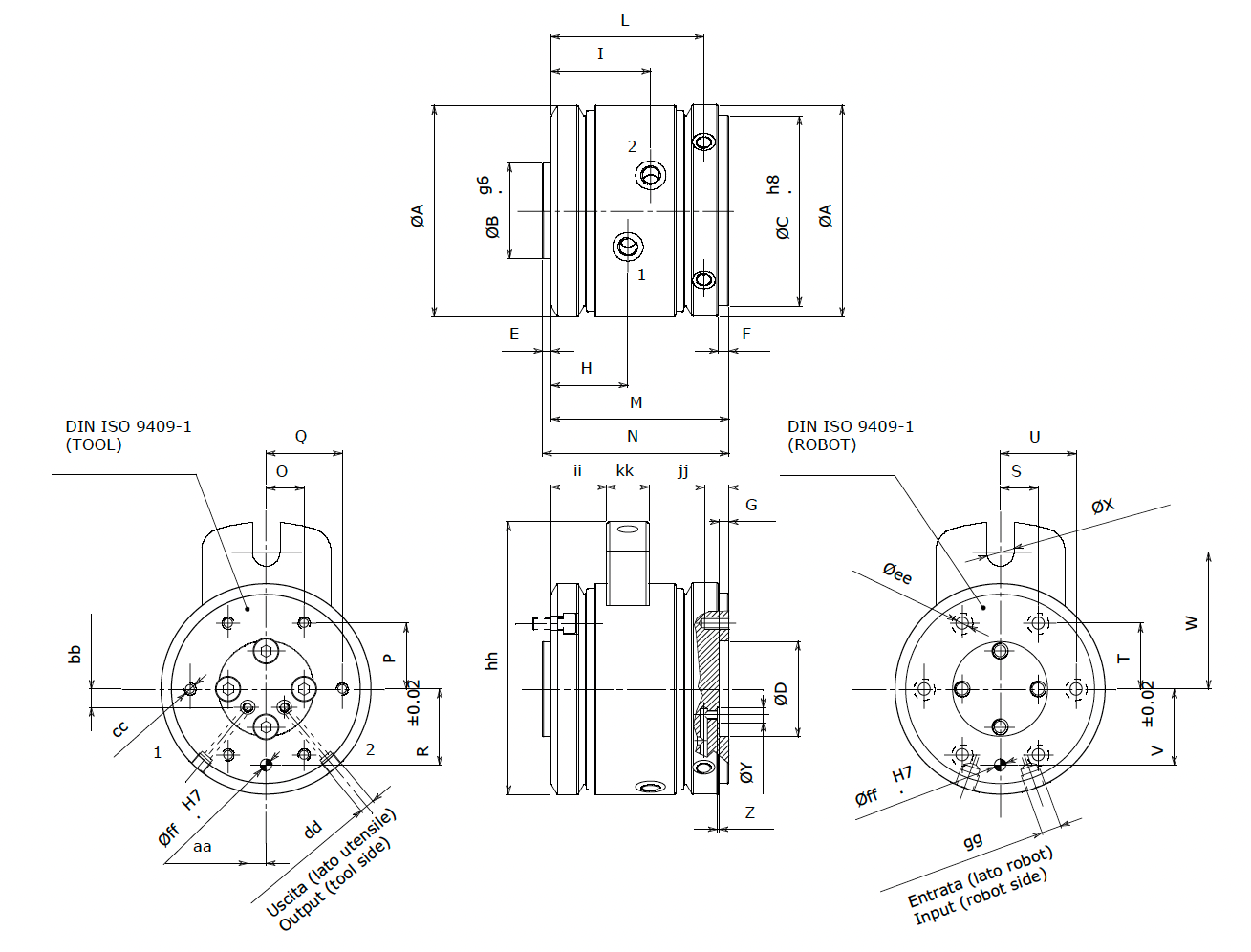

PRD2-31_5

Two air ports

Data Sheet
2D Drawing
3D Model
Weight
0.58 kg1.28 lb
Nr. of Feed-throughs
2
Recommended Handling Weight
6.00 kg13.23 lb
Starting Torque
2.5 Nm23 in-lb
Robot Side Connection
ISO 9409-1-31.5
Max Radial Torque
20 Nm177 in-lb
Max Rotational Speed
900 rpm
PRD2-40

Two air ports

Data Sheet
2D Drawing
3D Model
Weight
1.13 kg2.49 lb
Nr. of Feed-throughs
2
Recommended Handling Weight
20.00 kg44.10 lb
Starting Torque
2.5 Nm23 in-lb
Robot Side Connection
ISO 9409-1-40
Max Radial Torque
80 Nm708 in-lb
Max Rotational Speed
600 rpm
PRD2-50

Two air ports

Data Sheet
2D Drawing
3D Model
Weight
1.23 kg2.71 lb
Nr. of Feed-throughs
2
Recommended Handling Weight
20.00 kg44.10 lb
Starting Torque
2.5 Nm23 in-lb
Robot Side Connection
ISO 9409-1-50
Max Radial Torque
80 Nm708 in-lb
Max Rotational Speed
600 rpm
PRD2-63

Two air ports

Data Sheet
2D Drawing
3D Model
Weight
2.41 kg5.30 lb
Nr. of Feed-throughs
2
Recommended Handling Weight
35.00 kg77.18 lb
Starting Torque
4.5 Nm40 in-lb
Robot Side Connection
ISO 9409-1-63
Max Radial Torque
100 Nm885 in-lb
Max Rotational Speed
500 rpm
PRD2-80

Two air ports

Data Sheet
2D Drawing
3D Model
Weight
5.30 kg11.66 lb
Nr. of Feed-throughs
2
Recommended Handling Weight
100.00 kg220.50 lb
Starting Torque
10.0 Nm88.5 in-lb
Robot Side Connection
ISO 9409-1-80
Max Radial Torque
350 Nm3098 in-lb
Max Rotational Speed
300 rpm
PRD2-100

Two air ports

Data Sheet
2D Drawing
3D Model
Weight
5.40 kg11.88 lb
Nr. of Feed-throughs
2
Recommended Handling Weight
100.00 kg220.50 lb
Starting Torque
10.0 Nm88.5 in-lb
Robot Side Connection
ISO 9409-1-100
Max Radial Torque
350 Nm3098 in-lb
Max Rotational Speed
300 rpm
PRD2-125

Two air ports

Data Sheet
2D Drawing
3D Model
Weight
13.40 kg29.48 lb
Nr. of Feed-throughs
2
Recommended Handling Weight
225.00 kg496.13 lb
Starting Torque
22.5 Nm200 in-lb
Robot Side Connection
ISO 9409-1-125
Max Radial Torque
600 Nm5310 in-lb
Max Rotational Speed
240 rpm
PRD2-160

Two air ports

Data Sheet
2D Drawing
3D Model
Weight
14.35 kg31.57 lb
Nr. of Feed-throughs
2
Recommended Handling Weight
225.00 kg496.13 lb
Starting Torque
22.5 Nm200 in-lb
Robot Side Connection
ISO 9409-1-160
Max Radial Torque
600 Nm5310 in-lb
Max Rotational Speed
240 rpm

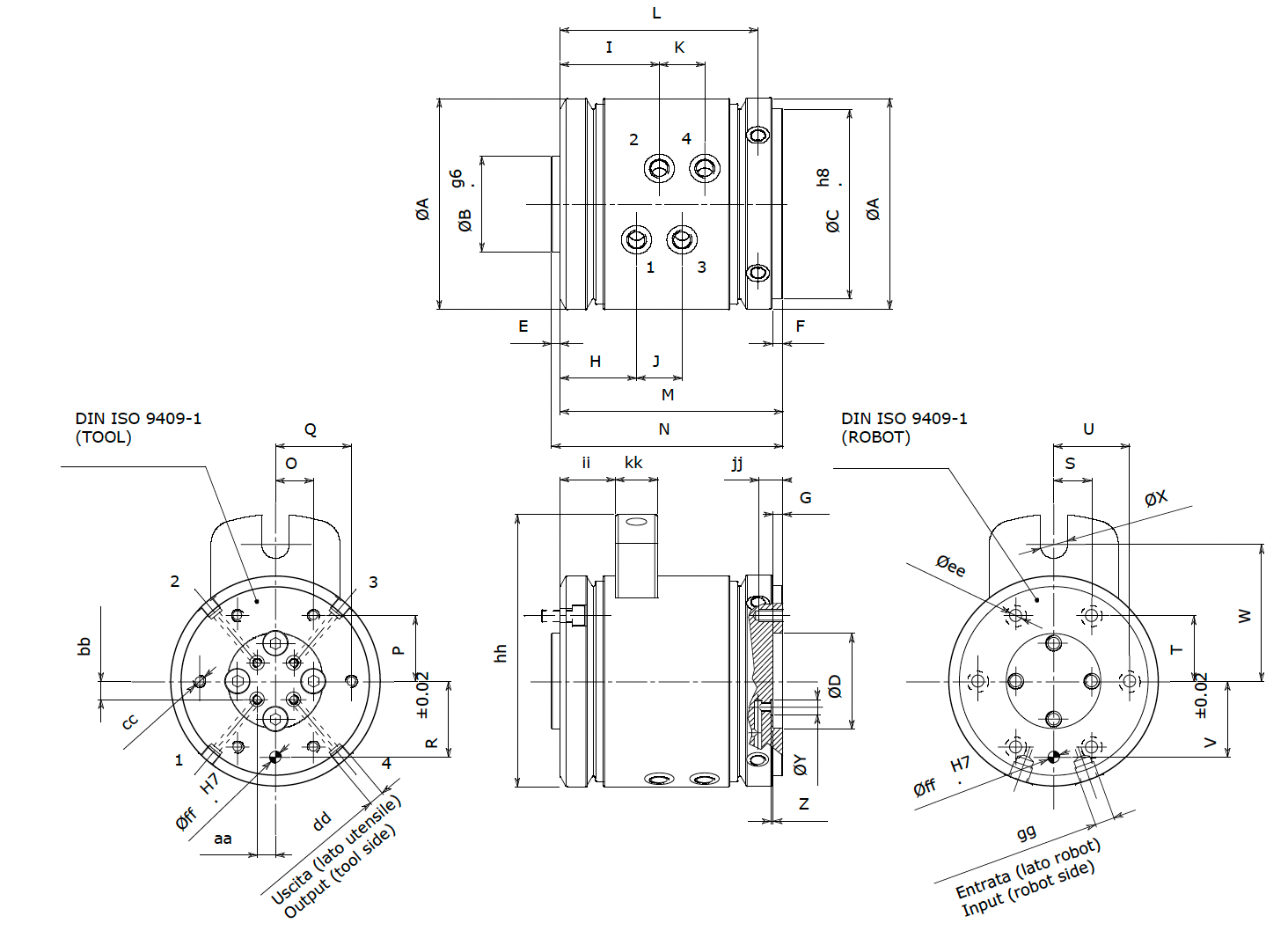

PRD4-40

Four air ports

Data Sheet
2D Drawing
3D Model
Weight
1.53 kg3.37 lb
Nr. of Feed-throughs
4
Recommended Handling Weight
20.00 kg44.10 lb
Starting Torque
5.0 Nm44.25 in-lb
Robot Side Connection
ISO 9409-1-40
Max Radial Torque
80 Nm708 in-lb
Max Rotational Speed
600 rpm
PRD4-50

Four air ports

Data Sheet
2D Drawing
3D Model
Weight
1.63 kg3.59 lb
Nr. of Feed-throughs
4
Recommended Handling Weight
20.00 kg44.10 lb
Starting Torque
5.0 Nm44.3 in-lb
Robot Side Connection
ISO 9409-1-50
Max Radial Torque
80 Nm708 in-lb
Max Rotational Speed
600 rpm
PRD4-63

Four air ports

Data Sheet
2D Drawing
3D Model
Weight
3.21 kg7.06 lb
Nr. of Feed-throughs
4
Recommended Handling Weight
35.00 kg77.18 lb
Starting Torque
9.0 Nm80 in-lb
Robot Side Connection
ISO 9409-1-63
Max Radial Torque
100 Nm885 in-lb
Max Rotational Speed
500 rpm
PRD4-80

Four air ports

Data Sheet
2D Drawing
3D Model
Weight
6.90 kg15.18 lb
Nr. of Feed-throughs
4
Recommended Handling Weight
100.00 kg220.50 lb
Starting Torque
20.0 Nm177 in-lb
Robot Side Connection
ISO 9409-1-80
Max Radial Torque
350 Nm3098 in-lb
Max Rotational Speed
300 rpm
PRD4-100

Four air ports

Data Sheet
2D Drawing
3D Model
Weight
7.00 kg15.40 lb
Nr. of Feed-throughs
4
Recommended Handling Weight
100.00 kg220.50 lb
Starting Torque
20.0 Nm177 in-lb
Robot Side Connection
ISO 9409-1-100
Max Radial Torque
350 Nm3098 in-lb
Max Rotational Speed
300 rpm
PRD4-125

Four air ports

Data Sheet
2D Drawing
3D Model
Weight
17.20 kg37.84 lb
Nr. of Feed-throughs
4
Recommended Handling Weight
225.00 kg496.13 lb
Starting Torque
45.0 Nm400 in-lb
Robot Side Connection
ISO 9409-1-125
Max Radial Torque
600 Nm5310 in-lb
Max Rotational Speed
240 rpm
PRD4-160

Four air ports

Data Sheet
2D Drawing
3D Model
Weight
18.15 kg39.93 lb
Nr. of Feed-throughs
4
Recommended Handling Weight
225.00 kg496.13 lb
Starting Torque
45.0 Nm400 in-lb
Robot Side Connection
ISO 9409-1-160
Max Radial Torque
600 Nm5310 in-lb
Max Rotational Speed
240 rpm

Ambient temperature 5 - 60 °CSound emissions (sound pressure) ≤ 70 dB(A) in each directionAvailable for ISO 9409-1 flange patterns 31.5 to 160

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.

Related Products

Tool Changers
E100

ER100/ET100 is an automatic tool changing assembly for exchanging robotic end-of-arm tooling (EOAT) on the fly. Rated payload up to 120 kg.
Grippers
HPG-2

HPG is a universal two-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.
Robot Components
SR

SR is a dual gripper support that mounts two grippers simultaneously on a robot or mechanical hand — simplifies machine tool interlock and robot load-unload operations.

Designs

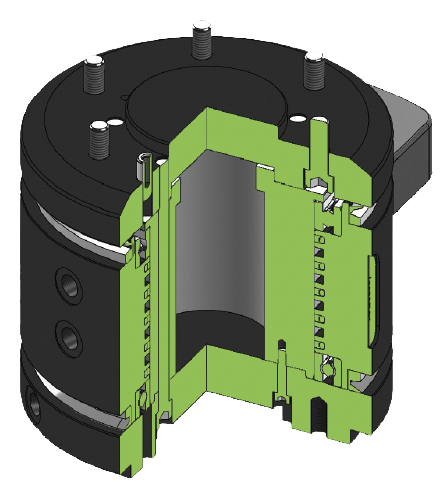

PRD rotary feed-through uses a hardened steel inner hub for unlimited rotational movement and high-power transmission.

An ISO flange pattern mounts directly to most robots with no adapter plates needed, while a smooth-running seal keeps torque low and protects internal components from dirt.
