MP-SWIVEL

MP-Swivel is a pneumatic clamping unit for clamping small components during assembling or light processes; its swivel fingers (4 positions × 90°) eliminate repositioning between machining sides for single-loading multi-side work.

Models Designs Downloads

Models

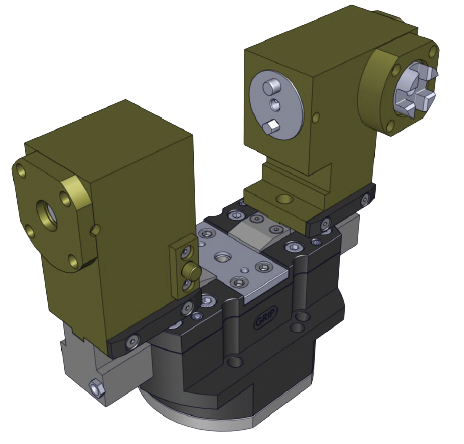

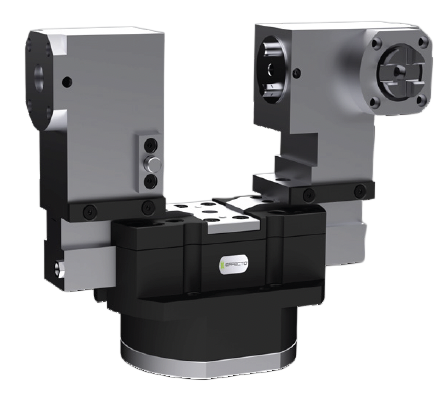

MP-Swivel is a pneumatic clamping unit that allows the clamping of small components during assembling or light processes. The machining or assembling of parts with several machining axes, with conventional spindles, involves a repositioning of the piece for each side. Swivel fingers (4 positions × 90°) enhance the tool performances by eliminating loss of precision and downtime in the productive cycle. With swivel fingers the complete process is performed with a single loading as the rotation and indexing operations always take place with the vise closed and the piece locked.

Advantages

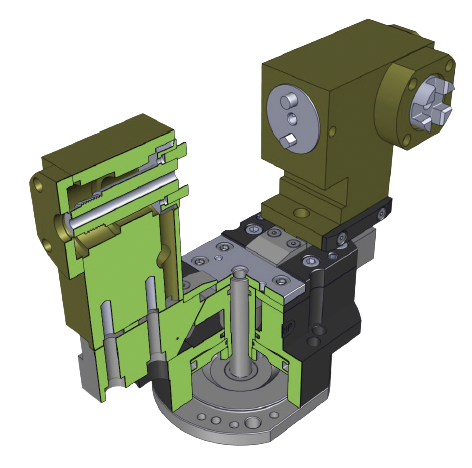

Precise wedge-hook mechanism allows machining accuracy.
High force drive for secure clamping.
Optimum jaw guides (hardened, sturdy, low-backlash) allow a longer service life.
Air supply via hose-free direct connections or fitting screw connections.

Model & Description	Data Sheet	3D Model	Weight	Stroke Per Jaw	Fluid Consumption Double Stroke	Closing Force Per Jaw @ 6 bar	Total closing force @ 6 bar	Pressure
MP-110S-P-12.5-C-9-N-B-N Clamping Unit with Swivel Fingers			8.40 kg9.70 lb	12.5 mm0.49 in	125.13 cm³7.64 in³	715 N160.74 lbf	1430 N321.48 lbf	6-9 bar87-130 psi

MP-110S-P-12.5-C-9-N-B-N

Clamping Unit with Swivel Fingers

Data Sheet
3D Model
Weight: 8.40 kg9.70 lb
Stroke Per Jaw: 12.5 mm0.49 in
Fluid Consumption Double Stroke: 125.13 cm³7.64 in³
Closing Force Per Jaw @ 6 bar: 715 N160.74 lbf
Total closing force @ 6 bar: 1430 N321.48 lbf
Pressure: 6-9 bar87-130 psi

Related Products

Grippers

OPR

OPR are innovative 6-finger pneumatic grippers for handling and assembling external O-rings, with an independent device that expands the gasket and another that subsequently ejects it for assembly.

Grippers

PM is an innovative pneumatic gripper with 4 or 6 jaws for handling and assembly of O-rings and gaskets, equipped with expansion and ejection devices.

Grippers

HPG-2

HPG is a universal two-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.

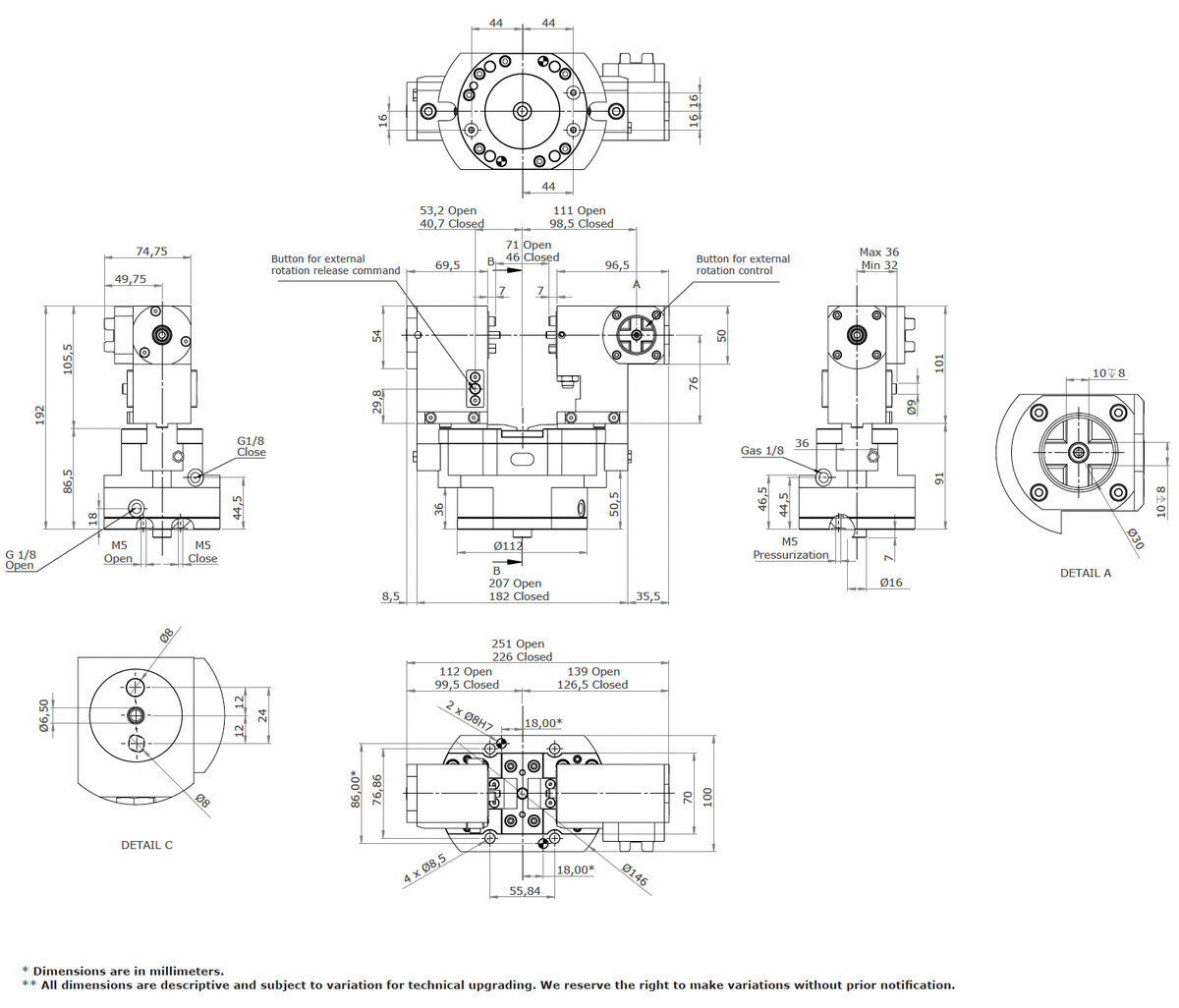

Designs

EFFECTO pneumatic grippers are designed for durability, with a wedge-hook mechanism that delivers high power transmission and repeatable, synchronized gripping cycle after cycle.

Available across 30 versions and multiple sizes, from compact grippers for tight workspaces to larger models for heavy-duty applications, each is built with superior jaw guidance for precise handling and easy maintenance in harsh environments.
