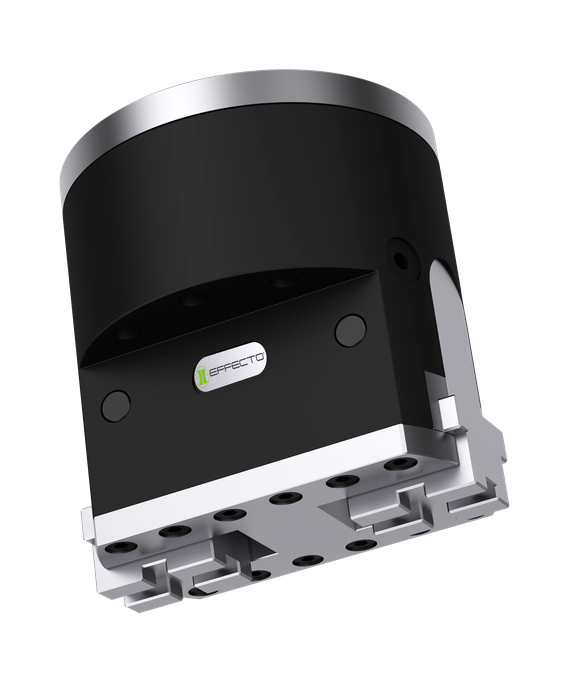

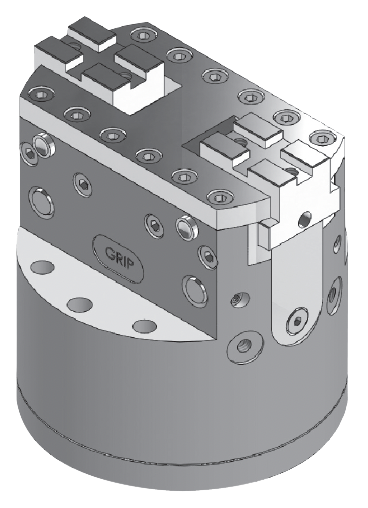

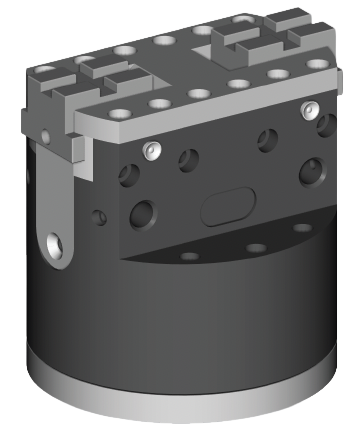

MOP is a universal two-finger parallel gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications.
Advantages
- Robust and lightweight housing made of hard coated aluminum alloy.
- Sturdy T-slot with hardened steel gibs for effective jaw guidance, precise handling and easy maintenance.

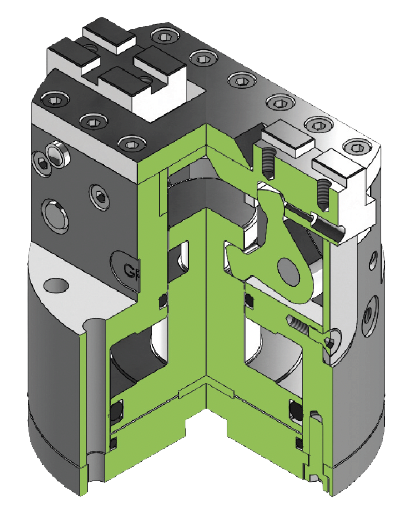

- Lever design for high-force transmission and jaw synchronization.

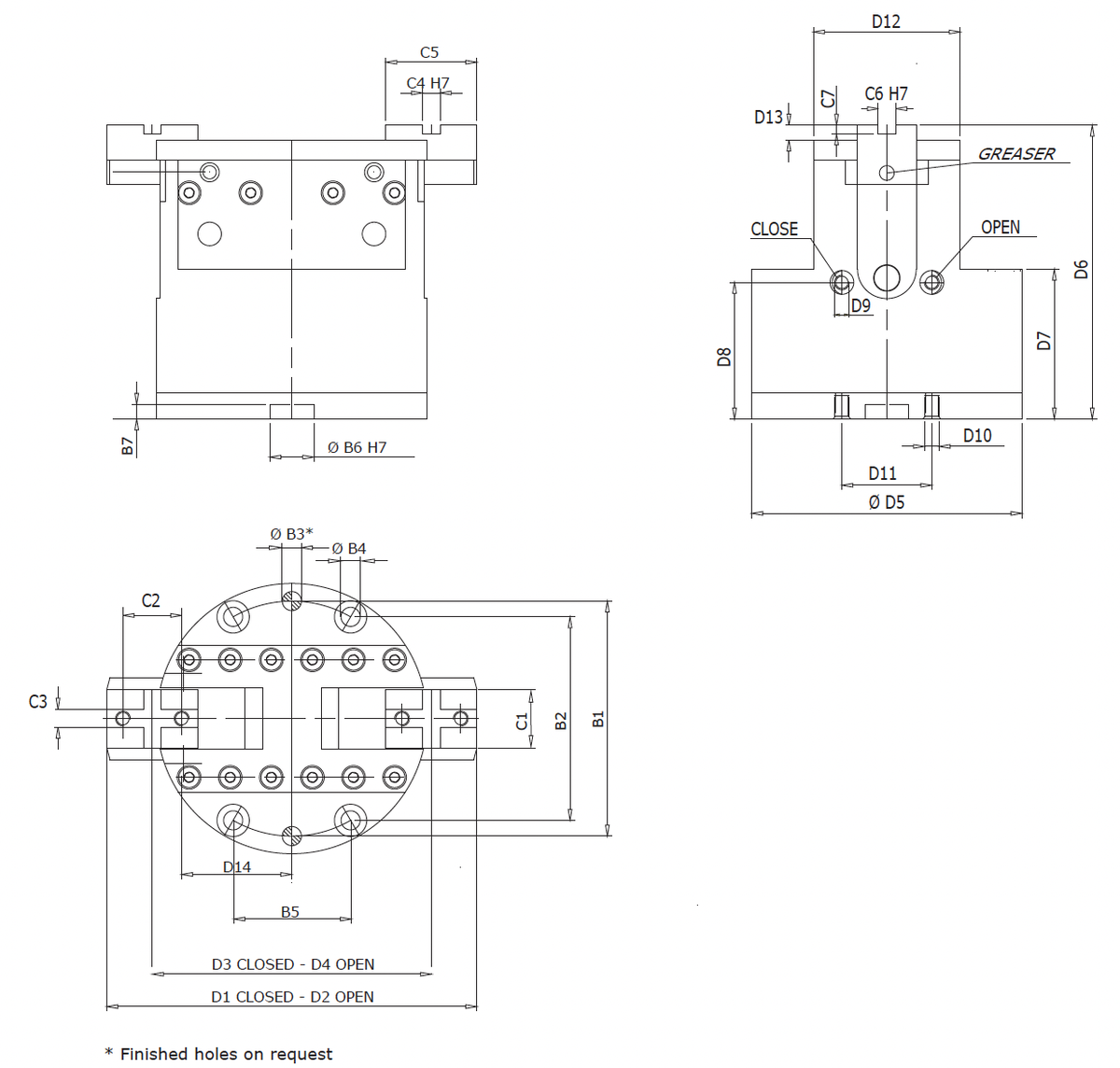

- Mounting from two sides in three screw directions for versatile and flexible integration.
- Air supply via hose-free direct connections or fitting screw connections.
- Weight
- 0.60 kg1.32 lb
- Stroke Per Jaw
- 10 mm0.39 in
- Fluid Consumption Double Stroke
- 31 cm³1.89 in³
- Closing Force Per Jaw @ 6 bar
- 220 N49.5 lbf
- Opening Force Per Jaw @ 6 bar
- 265 N59.57 lbf
- Total closing force @ 6 bar
- 440 N98.92 lbf
- Total opening force @ 6 bar
- 530 N119.15 lbf
- Recommended Workpiece Weight
- 2.20 kg4.80 lb
- Weight
- 1.90 kg4.19 lb
- Stroke Per Jaw
- 15 mm0.59 in
- Fluid Consumption Double Stroke
- 106 cm³6.47 in³
- Closing Force Per Jaw @ 6 bar
- 528.28 N118.8 lbf
- Opening Force Per Jaw @ 6 bar
- 635 N142.76 lbf
- Total closing force @ 6 bar
- 1056.56 N237.52 lbf
- Total opening force @ 6 bar
- 1270 N285.51 lbf
- Recommended Workpiece Weight
- 5.28 kg11.60 lb
- Weight
- 4.00 kg8.82 lb
- Stroke Per Jaw
- 30 mm1.18 in
- Fluid Consumption Double Stroke
- 178 cm³10.86 in³
- Closing Force Per Jaw @ 6 bar
- 445 N100 lbf
- Opening Force Per Jaw @ 6 bar
- 510 N114.65 lbf
- Total closing force @ 6 bar
- 890 N200.08 lbf
- Total opening force @ 6 bar
- 1020 N229.31 lbf
- Recommended Workpiece Weight
- 4.46 kg9.80 lb
