Grippers

OPT

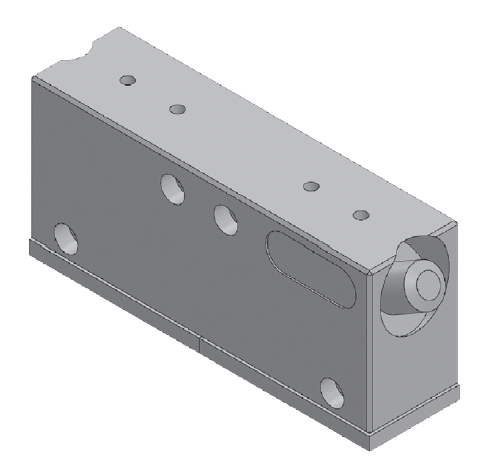

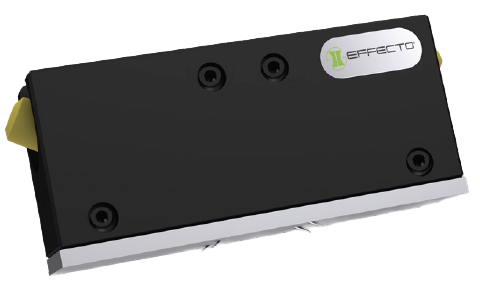

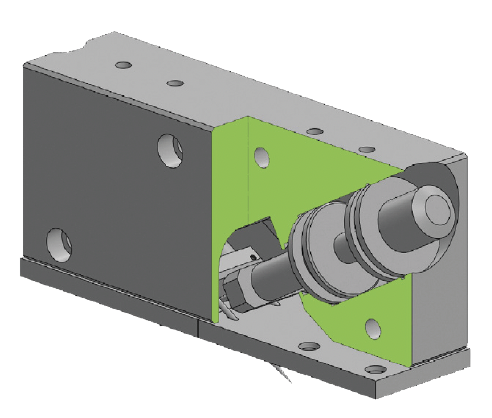

OPT is a pneumatic needle gripper suitable for handling non-rigid and very porous materials (primarily textiles).

Models

OPT is a pneumatic needle gripper suitable for the handling of non-rigid and very porous materials (primarily textiles).

Advantages

  • Extremely short cycle time for high-speed applications.
  • High needle inclination for secure workpiece locking.
  • Robust body; suitable for heavy-duty applications.
  • High repeatability.
  • Long service life.

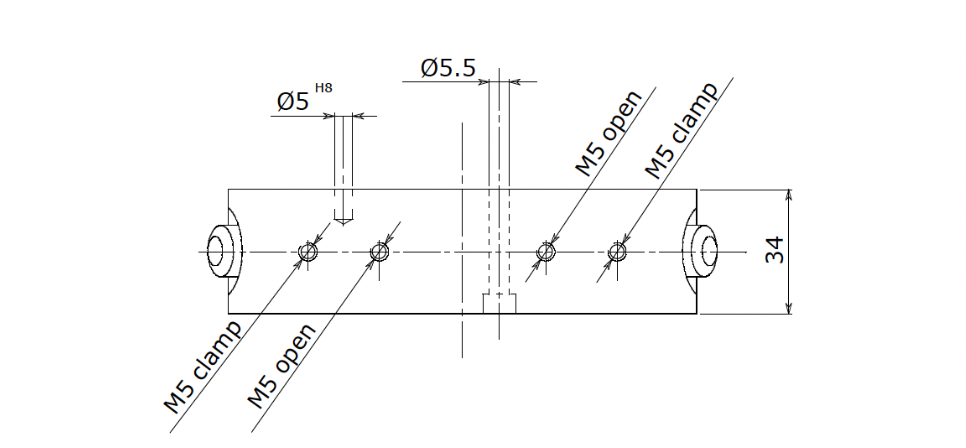

Metric Imperial
Model & Description Data Sheet 3D Model Weight Stroke Per Needle Fluid Consumption Double Stroke Recommended Workpiece Weight Repeat Accuracy Theoretical thrust for each needle @ 6 bar
OPT-34-25-P-14-L-SM-8-N-B-N 0.75 kg1.65 lb 14 mm0.55 in 26 cm³1.59 in³ 1.48 kg3.20 lb ±0.05 mm±0.002 in 147.5 N33.2 lbf
OPT-34-25-P-14-L-SM-8-N-B-N
Data Sheet
3D Model
Weight
0.75 kg1.65 lb

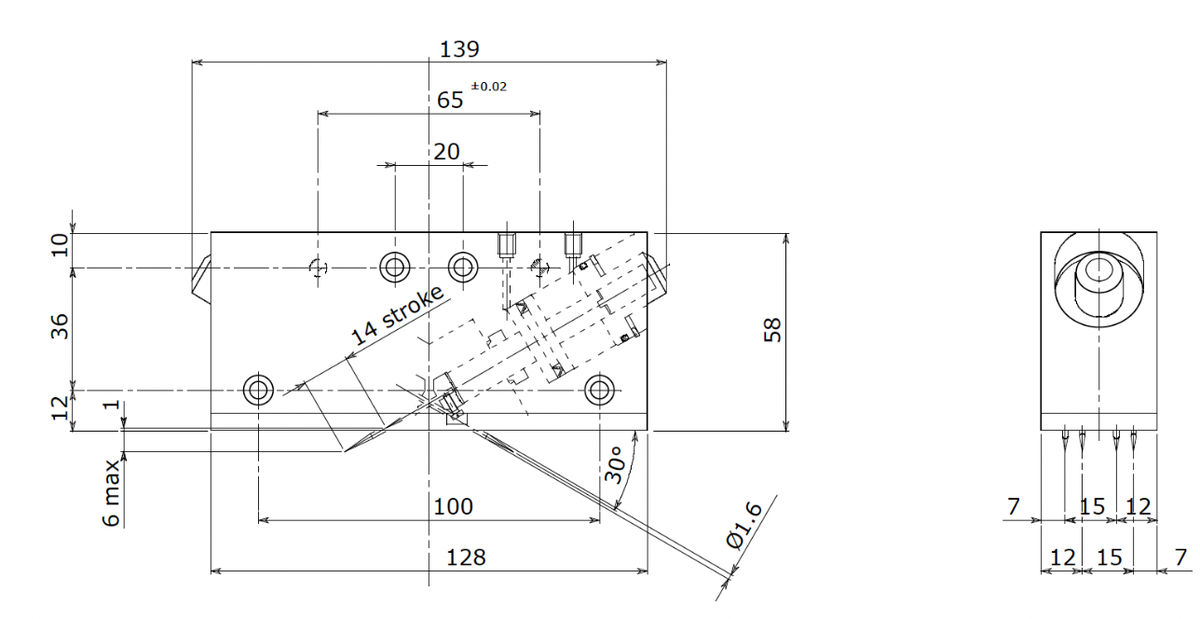

Stroke Per Needle
14 mm0.55 in
Fluid Consumption Double Stroke
26 cm³1.59 in³
Recommended Workpiece Weight
1.48 kg3.20 lb
Repeat Accuracy
±0.05 mm±0.002 in
Theoretical thrust for each needle @ 6 bar
147.5 N33.2 lbf

Operating pressure 2 - 8 barAmbient temperature 5 - 60 °CSound emissions (sound pressure) ≤ 70 dB(A) in each direction

The dimensions are indicative and susceptible to changes due to technical improvements. We reserve the right to make changes without notice.
